Многофункциональный мини-токарный станок 3 в 1 Sumore
- Категория: Other Machine Tool Equipment >>>
- Поставщик: Shanghai,Sumore,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.69 $* | 0.48 $* |
| Aug-16-2025 | 0.50 $* | 0.39 $* |
| Jul-16-2025 | 0.8 $* | 0.74 $* |
| Jun-16-2025 | 0.51 $* | 0.49 $* |
| May-16-2025 | 0.35 $* | 0.26 $* |
| Apr-16-2025 | 0.41 $* | 0.86 $* |
| Mar-16-2025 | 0.87 $* | 0.59 $* |
| Feb-16-2025 | 0.13 $* | 0.46 $* |
| Jan-16-2025 | 0.71 $* | 0.32 $* |
Характеристики
Product Description

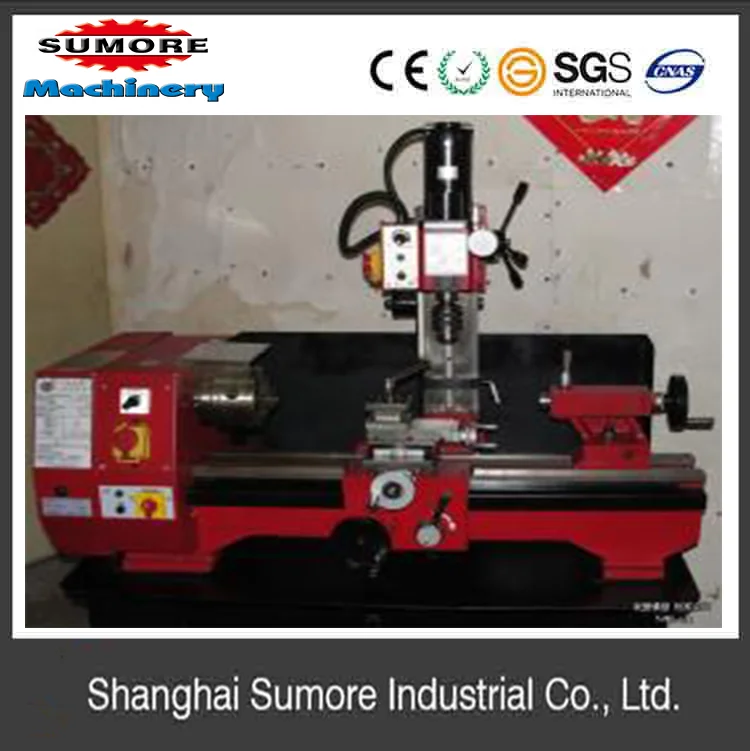

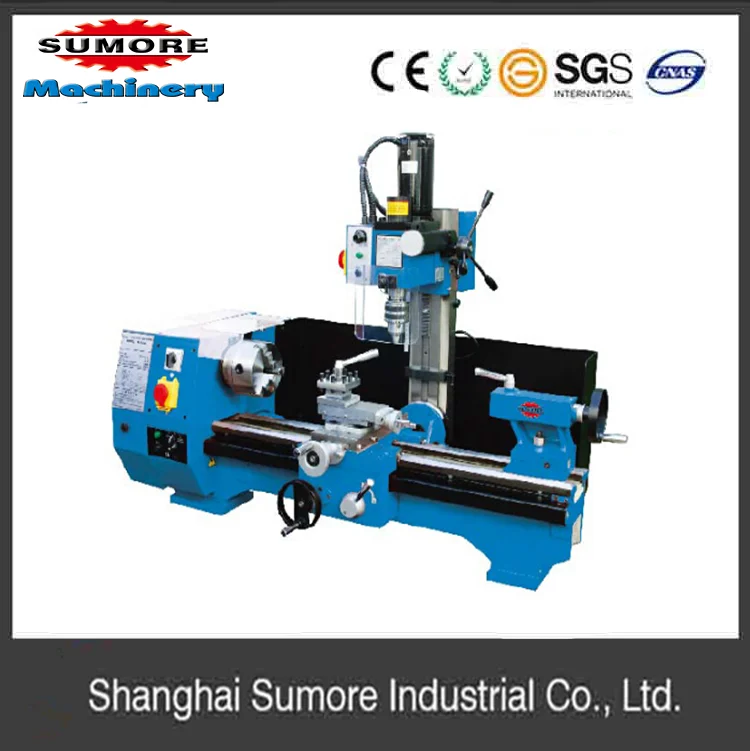

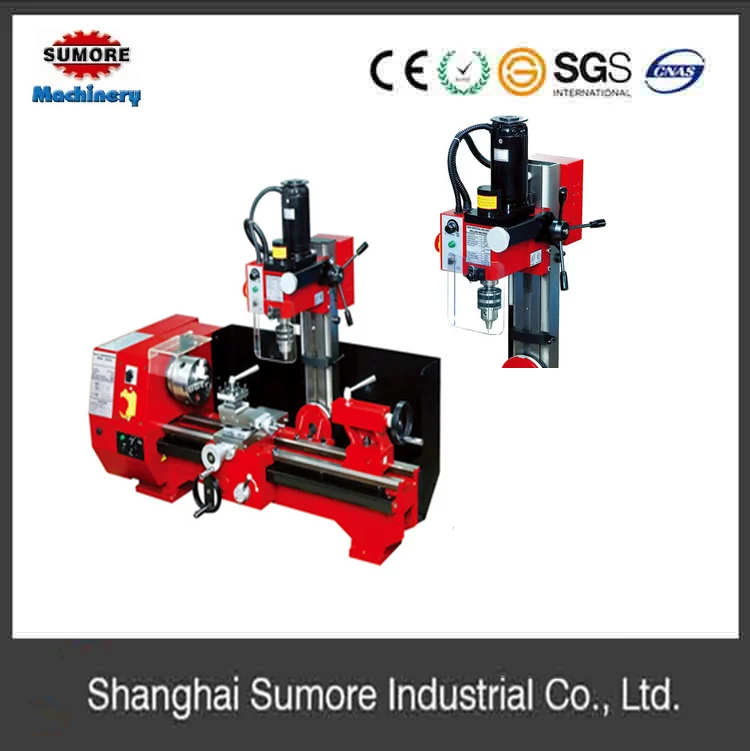

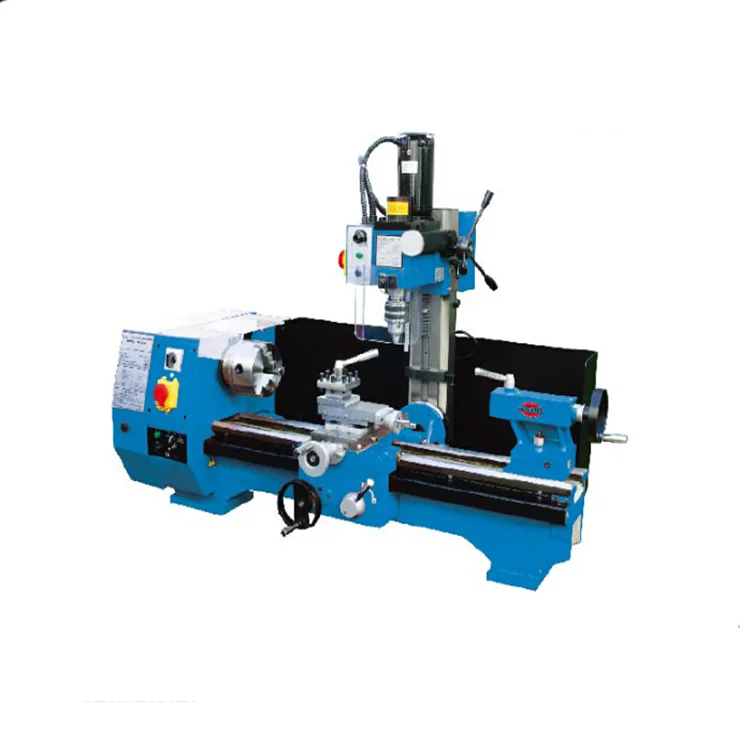

SP2302 Hobby multipurpose metal working machine is one of our most economic and durable manual multipurpose machine. It is new condition not used high quality metal working machine. And it is small in size and delicate in design. This multipurpose metal working machine is made in China, but with same quality with Japan radial drilling machine. The main features are as below:
1. Used for cutting, drilling and milling
2.6 steps spindle speeds
3. Near silent running, Integral splash guard
4. Metric and imperial thread cutting
5. Full range of accessories available
6. Converts to a multi-purpose machine with the milling attachment
Technical Data
Model | SP2302 |
| |
Turning |
|
Swing over Bed | 250 mm |
Distance Between Centers | 400 / 550 mm |
Spindle Bore | 20 mm |
Spindle Taper | MT3 |
Range of Spindle Speeds | 125 - 2,000 rpm |
Compound Travel | 75 mm |
Cross Slide Travel | 110 mm |
Range of Imperial Threads | 10 - 44 TPI |
Range of Metric Threads | 0.4 - 3.0 mm |
Motor Power | 550 w |
Power Supply | Customerized |
| |
Drilling & Milling |
|
Drilling Capacity | 13 mm |
End Milling Capacity | 16 mm |
Face Milling Capacity | 30 mm |
Distance from Spindle Nose to Worktable | 245 mm |
Spindle Speed Range | 100 - 2,500 rpm |
Spindle Travel | 180 mm |
Spindle Bore | MT3 / R8 |
Motor Power | 350 w |
Power Supply | Customerized |
Head Tilt Angle | Left: 45° Right: 45° |
| Whole Machine | |
| Overall Dimension (LxWxH) | 1,040 / 1,200 x 670 x 570 mm |
| Packing Size (LxWxH) | 1,100 / 1,200 x 680 x 860 mm |
| Net Weight | 175 / 195 kg |
| Gross Weight | 225 / 245 kg |
Accessories

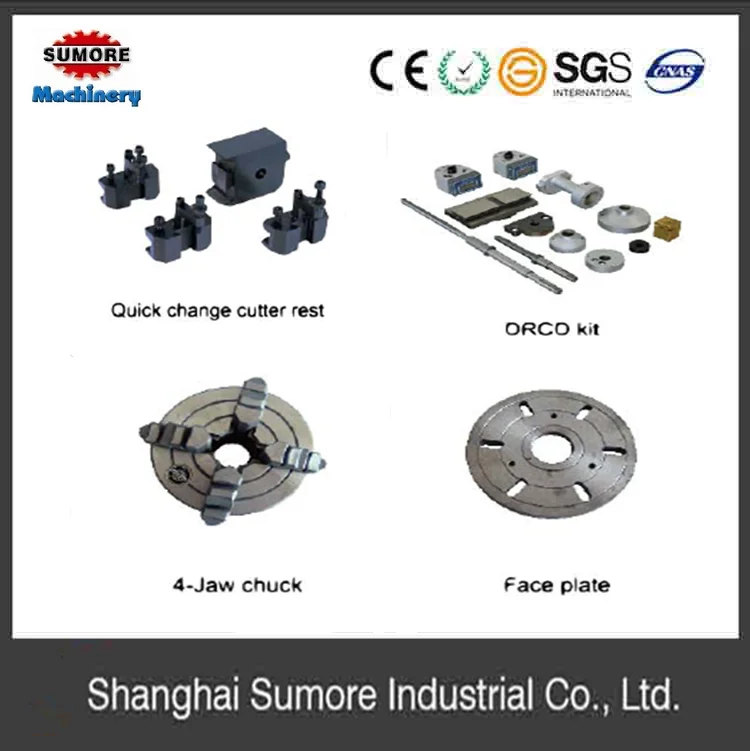

Standard Accessories | Optional Accessories |
3-jaw chuck | 4-jaw Chuck |
Dead Center | Face Plate |
Cutting Tools | Face Plate Clamping Kit |
Change Gear Set | TiN Coated Cutting Tools & Replaceable Tips |
Splash Guard | Steady Rest |
Chuck Safety Guard | Follow Rest |
Stand | Drill Chuck and Drill Arbor |
Oil Tray | Live Center |
Oil Gun | Quick Change Tool Post |
Manual & Parts List | Clutch for Feed Rod |
Lead Screw Guard | |
| Digital Readout Cutting Depth | |
| Coolant System | |
| Work Light |

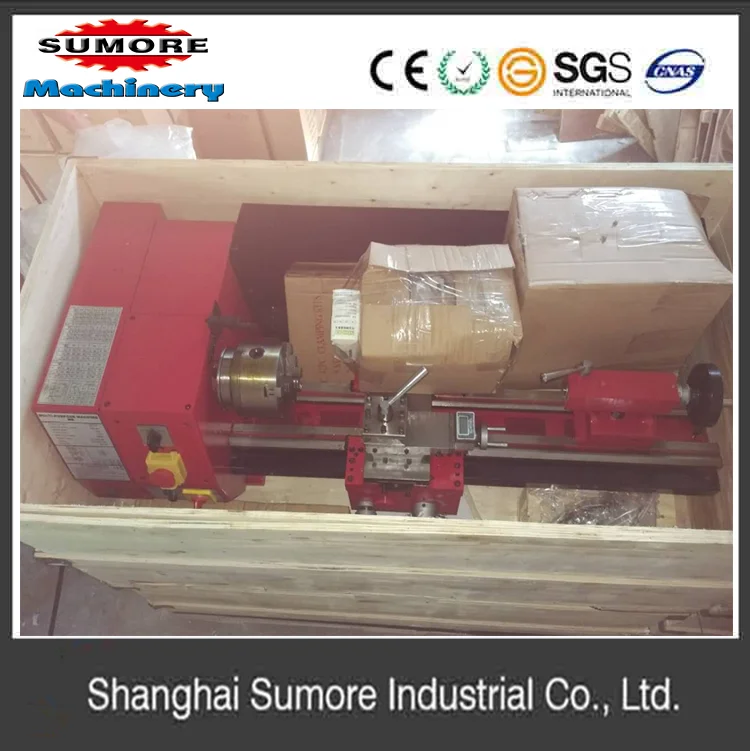

Packaging & Shipping
| Package | 1 set/polywood case (aluminum strips strengthen) |
| Minimum Order Quantity (MOQ) | 1 sets |
| Full Container Loading Quantity (FCL) | 42 / 44 sets/20’GP (unitary; customerized packing available) |
| Delivery Time | 20 calendar days after receiving of advance / full payment |
Related Products
Certificates
Company Information
Shanghai Sumore Industrial Co., Ltd. (Sumore Machinery) was established back into year
2001. The core business of Sumore Machinery was focused on full machinery business chain,
which involves research and development, fabrication and production, foreign trading and
domestic sales on a wild range of products, such as power tools, woodworking equipments,
metal-processing machines and all related accessories.
