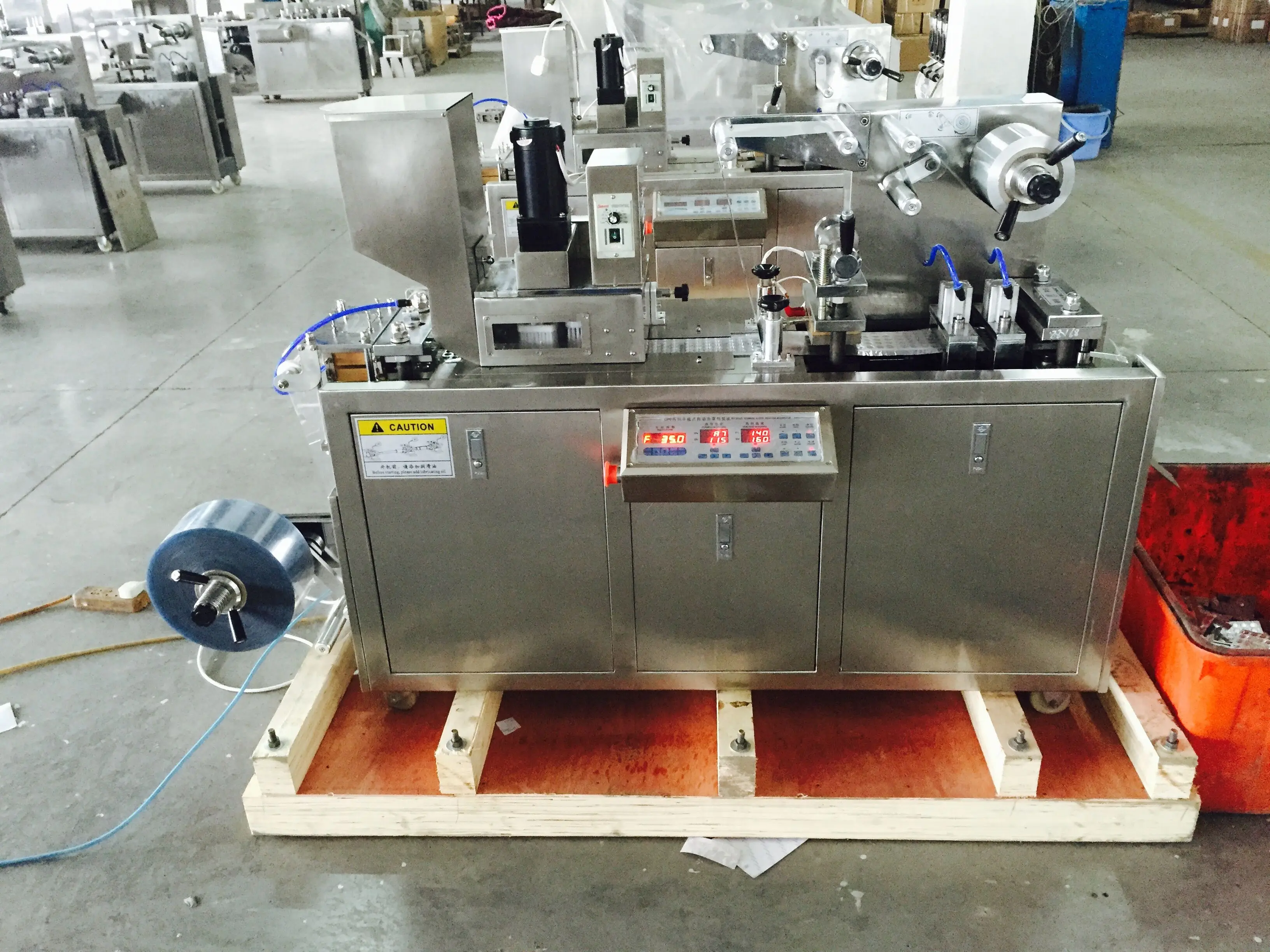

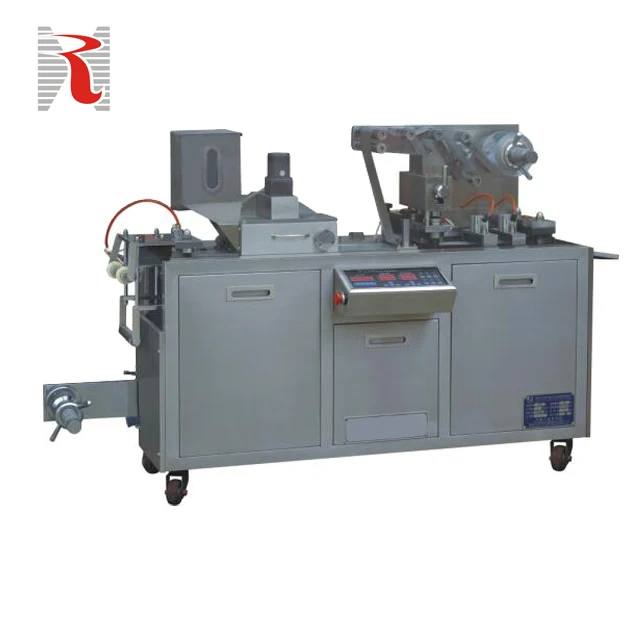

DPP-88A Автоматическая плоская-алюминиево-пластиковые конфеты блистерная упаковочная
- Категория: Blister Packaging Machines >>>
- Поставщик: Herun,Machinery,(shanghai),Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 4641.72 $* | 4873.64 $* |
| Aug-15-2025 | 4602.72 $* | 4832.95 $* |
| Jul-15-2025 | 3861.24 $* | 4054.79 $* |
| Jun-15-2025 | 4524.40 $* | 4750.63 $* |
| May-15-2025 | 3939.98 $* | 4136.68 $* |
| Apr-15-2025 | 4446.5 $* | 4668.37 $* |
| Mar-15-2025 | 4407.80 $* | 4627.75 $* |
| Feb-15-2025 | 4368.69 $* | 4586.51 $* |
| Jan-15-2025 | 4329.67 $* | 4545.59 $* |
Характеристики
Product Description
Introduction and Features
1. This machine adopts the latest model of high-power transmission, the row chain drive the transmission shaft, which eliminates the other gear transmission error and noise.
2. Electrical adopts the imported control systems, which can be customizing by the user. Equipped with the short shot up leakage device, missing particle detection and removed device (Omron Sensor). Adopts imported inverter.
3. This machine adopts optoelectronic system: PVC,PTP,tropical aluminum packaging and automatic feeding,waste selvage automatic material receiving device, which ensure the long-distance multi-site synchronization stability.
4. This machine adopts sub-portfolio structure: PVC informing,feeding,hot sealing; Tropical aluminum cold forming,hot sealing,blanking
5. This machine can be equipped with reprovision photoelectric detection and corrected device, equipped with imported stepper motor, photo printing and packaging, which will optimize the grades of packaging.
6. Application: capsule, tablets, pill, injection and other medicine and food, electronic components blister sealed packaging.
Main Technical Parameters
Spec. | DPP-88 |
Blanking | 10-35 time/min |
Production Capacity | 2100 version/h |
Max. forming area and depth | 110*90*15(mm) |
Standard Stroke | 20-70mm (It can be designed by users.) |
Standard Forum | 80*57mm (It can be designed by users.) |
Air Pressure | 0.6-0.8MPa |
Total Power | 380V/220V 50Hz 4.5Kw |
Main Electrode Power | 0.75Kw |
PVC Rigid Film | 0.15-0.5*110mm |
PTP Aluminum Foil | 0.02-0.035*110mm |
Dialysis Paper | 50-100g*110mm |
Outline dim. | 1800*460*1070mm |
Weight (Kg) | 500Kg |
Noise Index | <75dBA |
Product Category
Company Information
Packaging & Shipping
FAQ
1. How does the machine fit our voltage?
For each equipment, our salesman will confirm the voltage with the customer.
2. How can I buy the machine
Firstly, our salesman will discuss with you all the details of the machine, the lead time and the payment condition.
Secondly, after receiving the 30% down payment, the production will begin.
Finally, we’ll show you the photos and the test video of the finished machine. You pay the balance and the equipment will be shipped as scheduled, or by our forwarder or by your familiar forwarder.
3. How long is your machine’s warranty?
1 year after the delivery. During the one year, we can offer the broken parts free of charge, if the problem isn’t caused by wrong operation.
4. What can you provide for after-sale service?
We can send the engineer to the customer’s factory for the installation and operation training if the customer requires. We can also supply the installation and operation instruction by video.
5. If we have very special request on the production line, could you help me to do the design?
Customized design is provided.
