Автоматическая высокоскоростная пластиковая блистерная упаковочная машина для
- Категория: Машины для блистерной упаковки >>>
- Поставщик: Wenzhou,Urban,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 9520.77 $* | 9996.65 $* |
| Aug-20-2025 | 9440.88 $* | 9912.86 $* |
| Jul-20-2025 | 7920.16 $* | 8316.9 $* |
| Jun-20-2025 | 9280.49 $* | 9744.77 $* |
| May-20-2025 | 8080.38 $* | 8484.32 $* |
| Apr-20-2025 | 9120.47 $* | 9576.69 $* |
| Mar-20-2025 | 9040.55 $* | 9492.60 $* |
| Feb-20-2025 | 8960.64 $* | 9408.93 $* |
| Jan-20-2025 | 8880.64 $* | 9324.36 $* |
Характеристики
Products Description
Description

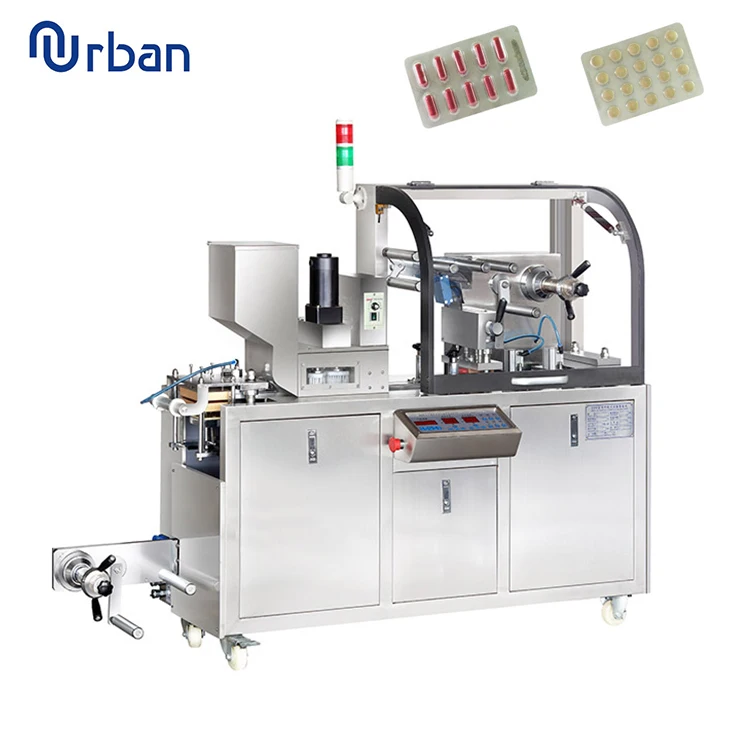

Designed by our company earliest and produced at largest batch process,DPB-80 mini-type bubble-cap packing machine is the smallest,lightest cheapest and energy consumption lowest packing equipment among the similar mode both in domestic and abroad.
This machine is widely suitable for new product preparation room of pharmaceutical section of people’s hospital ,small pharmaceutical factory,drug rest .
Feature
It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number
ofmedicines according to the user’s requirement.
It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side
to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to
optimize packing grade.
It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number
ofmedicines according to the user’s requirement.
It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side
to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to
optimize packing grade.
Solid blister machine
Application: toothbrush/perfume/car liquid perfume/car air freshener/capsule/tablet/small medical consumables, etc.
Liquid blister machine
Application:liquid/chocolate/butter/jam/honey/paste/sauce/ketchup blister packing machine,etc.
Working Process
Model | DPB-80 | DPB-110 | DPB120 | DPB150 |
Punch frequency | 10-33times/min | 10-33tims/min | 10-33times/min | 10-35times/min |
Production capacity | 1980plates/hour | 1980plates/hour | 2400plates/hour | 4200plates/hour |
Max. Forming area & Depth | 105x70(standard depth <15mm) | 115x90(standard depth <15mm) | 125x70(standard depth <15mm) | 145xll0(standard depth <15mm) |
Max. Depth 25mm | Max. depth 26mm | Max. Depth 25mm | Max. depth 26mm | |
Standard Stroke range | 30-80mm | 35-90mm | 30-80mm | 50-120mm |
Standard plate size | 80x57mm | 80x57mm | 80x57mm | 80x57mm |
Air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
Compressed air required | Air compressor>0.3m3/min | Air compressor>0.3m3/min | Air compressor>0.3m3/min | Air compressor>0.3m3/min |
Total power supply | 220V 50Hz 2.4Kw | 220V 50Hz 2.4Kw | 220V 50Hz 2.4Kw | 220V 50Hz 2.4Kw |
Main motor | 0.75Kw | 0.75Kw | 0.75Kw | 1.5KW |
PVC hard Film | 0.15-0.5xll0mm | 0.15-0.5X HOmm | 0.15-0.5 x 130mm | 0.15-0.5x 160mm |
PTP Aluminum film | 0.02-0.035 x HOmm | 0.02-0.035 x HOmm | 0.02-0.035 x 130mm | 0.02-0.035 x 160mm |
Mould cooling | Tap water or Recycling water | Tap water or recycling water | Tap water or Recycling water | Tap water or recycling water |
Overall Dimension(LxWxH) | 1450x590x 1100mm | 1600 x 620 x1420mm | 1870x610x1100mm | 2315 x 635 x 1405mm |
Weight | 465kg | 485kg | 660kg | 890KG |
Noise | <75dBA | <75dBA | <75dBA | <75dBA |

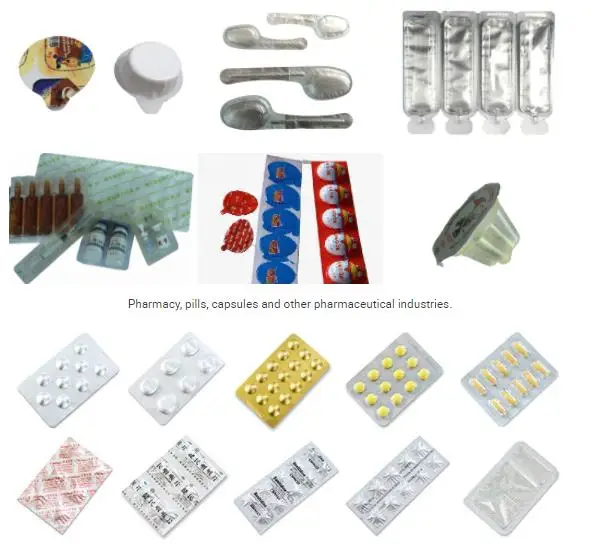

Our products support liquid blisters as well as solid blisters, suitable for a variety of industry needs.
Capsule coffee, cosmetics, toothpaste, perfume and other daily necessities industries.
Application
Pharmacy, pills, capsules and other pharmaceutical industries.
Main products
