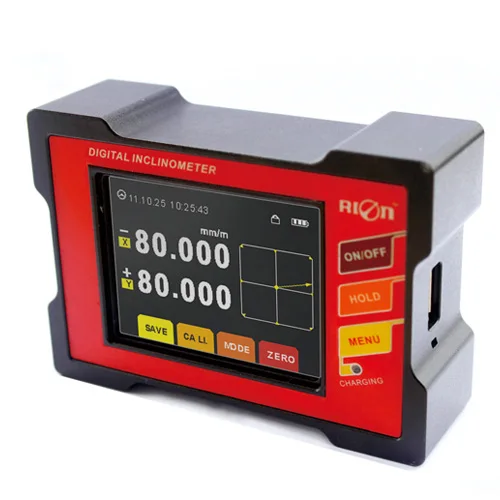

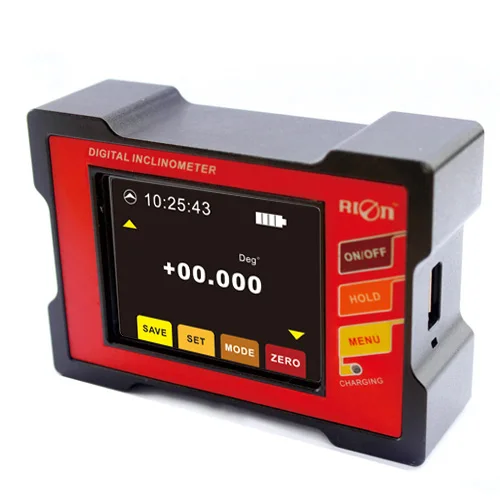

High Precision Touch Screen Dual axis Digital Inclinometer









General Description:

DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industy angle controling and measuring.The core of this product is using the micro-mechanical control principle...etc

Features:

• Accuracy:<0.003°
• Repeatability:0.003°
• Angle resolution:0.001°
• Measuring range:±15°,+/-30°
• User can set the alarm value by himself
• Data store function
• Absolute/Relative measurement can switch
•  Both sides and bottom can measure

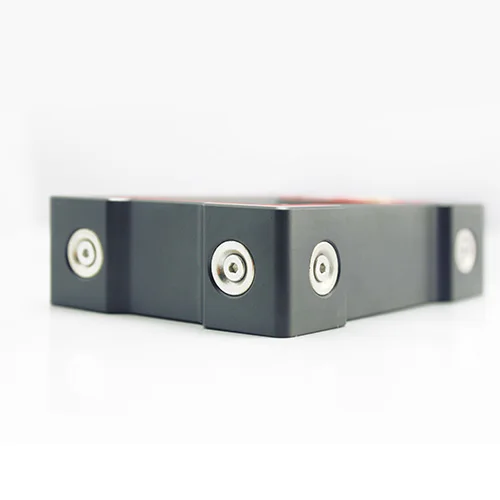

• Double benchmark strong magnet installation
• Working Temperature : -10°~ +65°C
• Auto-angle interleaved compensation function
• Auto temperature drift compensation
• User can calibrate ZERO by himself
• Built-in rechargable industy battaries
• Night vision fours colors screen
• IP54protection class
•  °/mm/m Dual units switch funciton
• Filter frequency optional
• Three kinds of measurement mode selectable (radian, angle, mm)



Application :

• Building construction
• Automobile four wheel testing
• Road slope
• Machinery installation
• Piping installation
• Industrial platform
• Turntable testing
• Pan unit angle detection
• Production jig
• Medical instruments

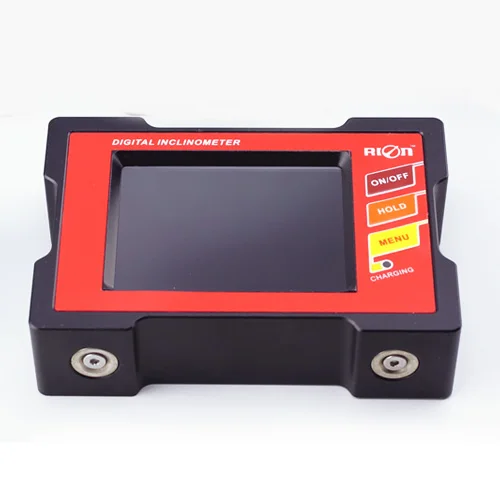

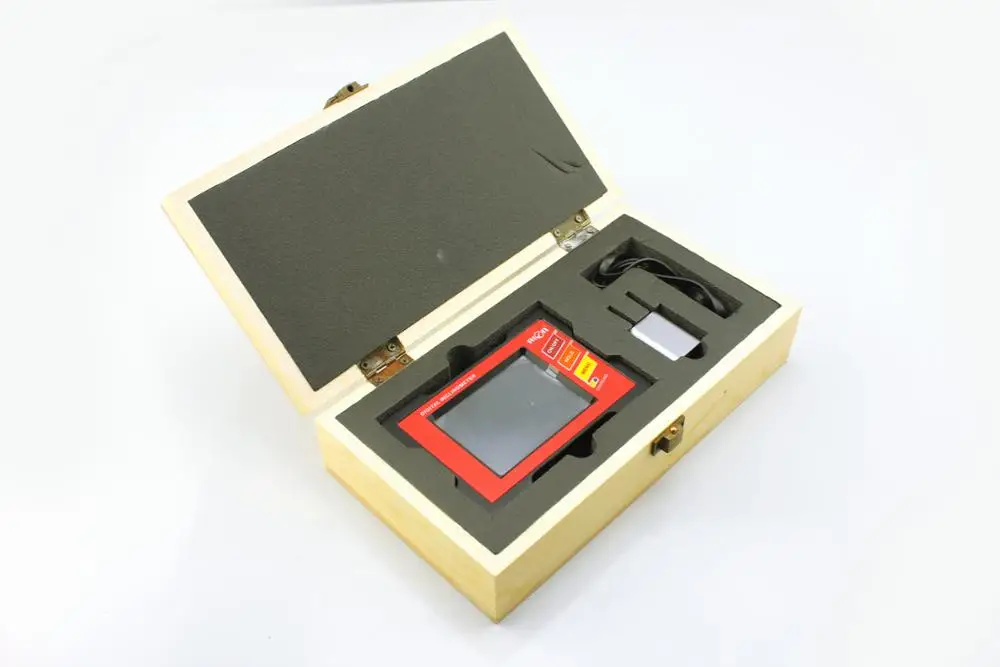

Product & Packing Photos :

















Packing Size: L22*W12*H6mm

Packing Weight : 0.8~1KGS











 Our Company & Workshop View :





We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests

 Our main products :



• Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc.  )
•  2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
• 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
• 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
• Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
• High performance MEMS Mini AHRS ( Attitude Heading Reference System )
• Other Agent Products PNI...etc



Other more information please visit our website : www.rion-tech.net or www.rion-tech.us
