Погружной Датчик уровня воды 0-15 м

Категория: Measuring & Gauging Tools >>>
Поставщик: Shandong,Friend,Control,System,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.0 $*	0.85 $*
Aug-15-2025	0.52 $*	0.62 $*
Jul-15-2025	0.19 $*	0.93 $*
Jun-15-2025	0.63 $*	0.35 $*
May-15-2025	0.33 $*	0.4 $*
Apr-15-2025	0.55 $*	0.15 $*
Mar-15-2025	0.90 $*	0.43 $*
Feb-15-2025	0.50 $*	0.93 $*
Jan-15-2025	0.26 $*	0.79 $*

Характеристики

Products Description

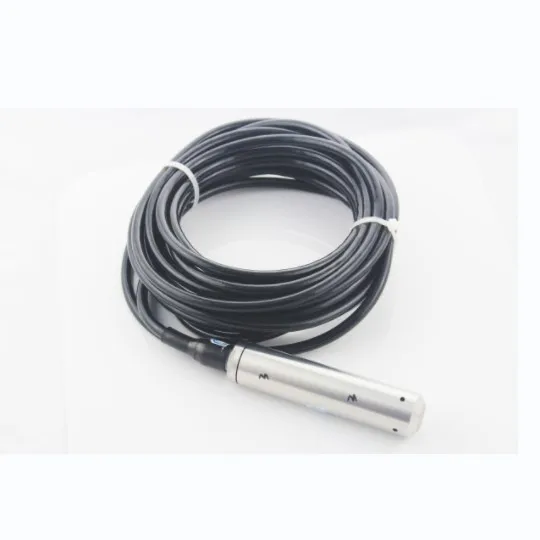

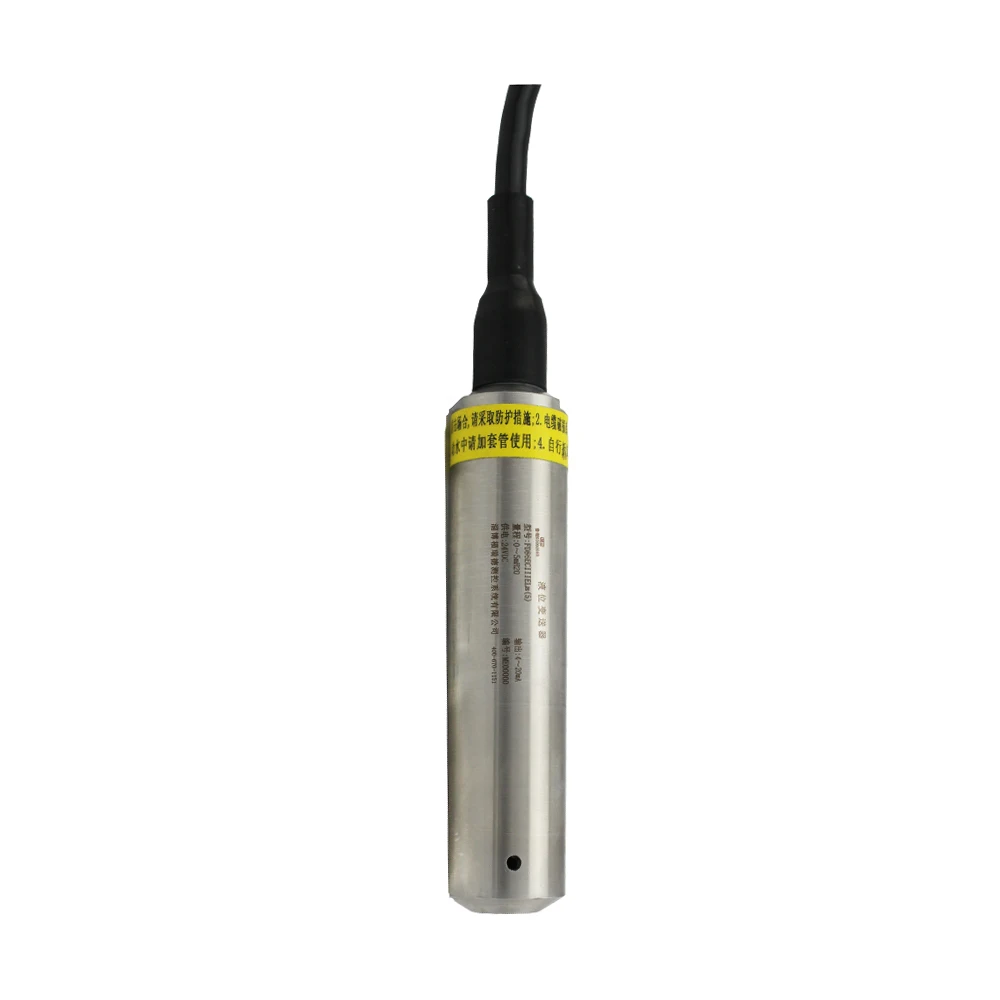

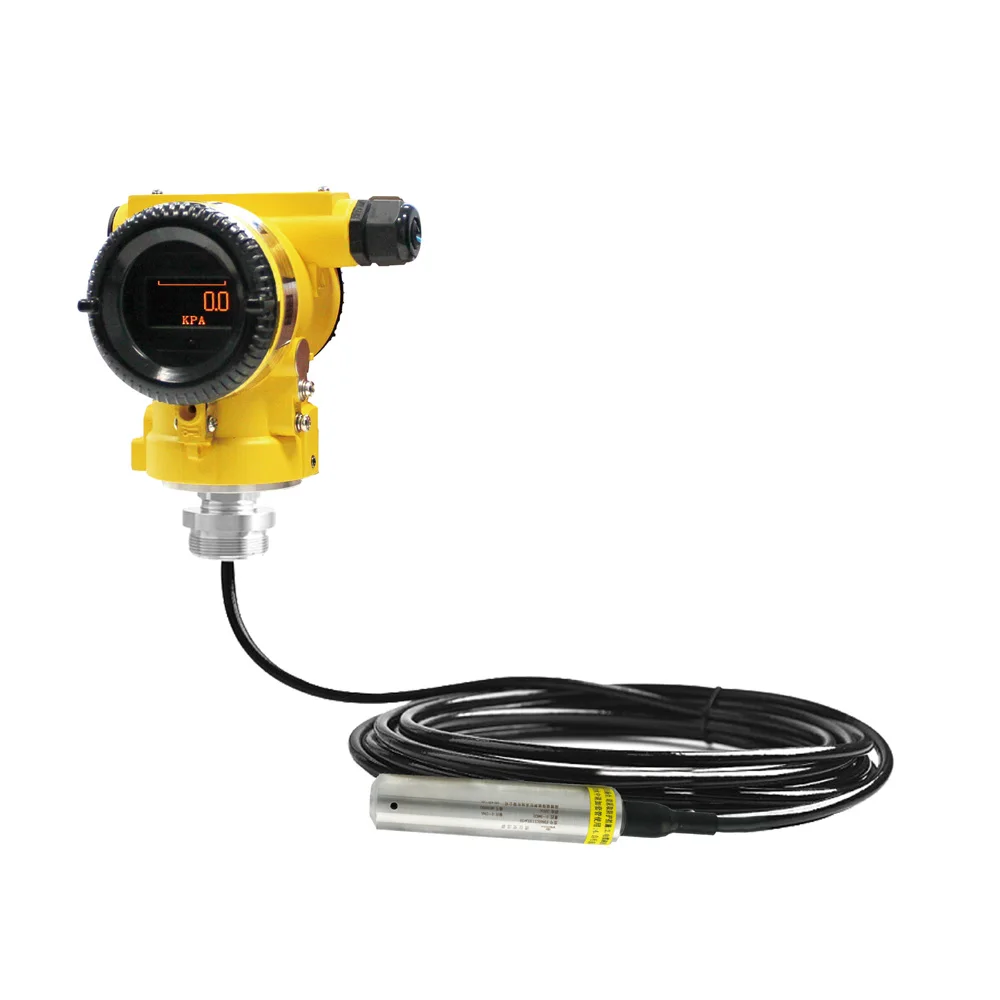

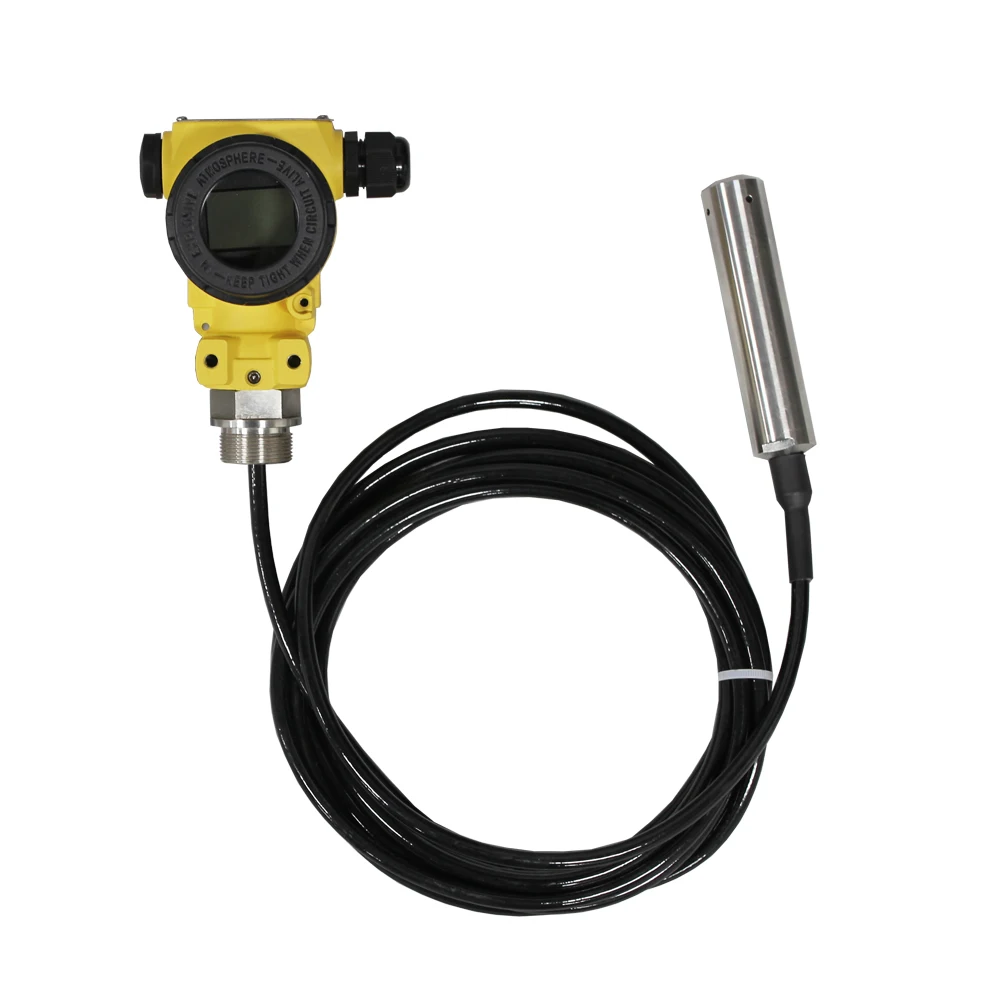

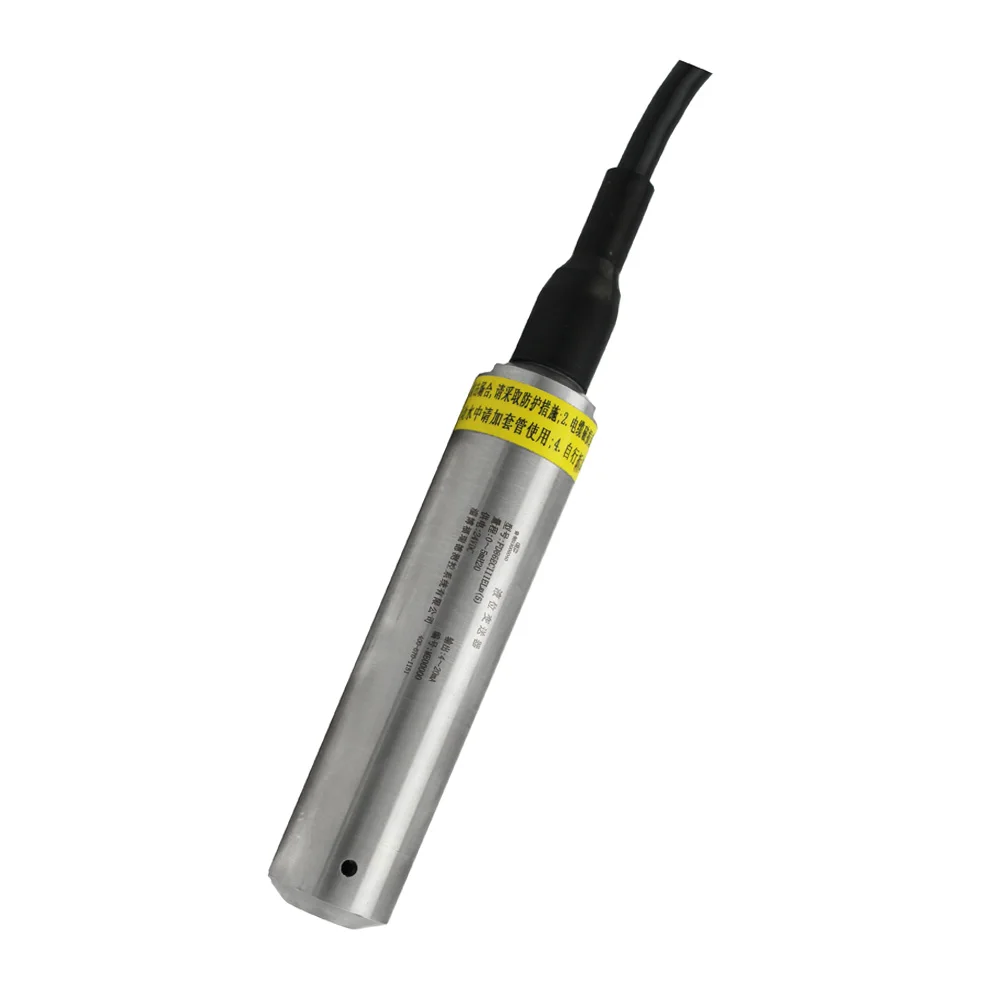

4-20mA submersible level transmitter stainless steel

FD86E/F Submersible level transmitter is used as a measurement element by high -performance pressure sensor. Through the pressure sensor, it is accurately measured by the liquid static pressure that is proportional to the liquid level, and converted to standard (current, voltage or digital) signal output through a dedicated signal conditioning circuit .Establishing a linear correspondence between the output signal and the depth of the liquid, Achieving precise measurement of the deepening of the liquid. FD86E is high accuracy, small volume, and convenient use. It can be directly put into the liquid to measure the liquid level height to the page of the transmitter. Suitable for water level or liquid level measurement and control in the field of petroleum, chemical, power plants, urban water supply, and hydro logical exploration

Product Feature

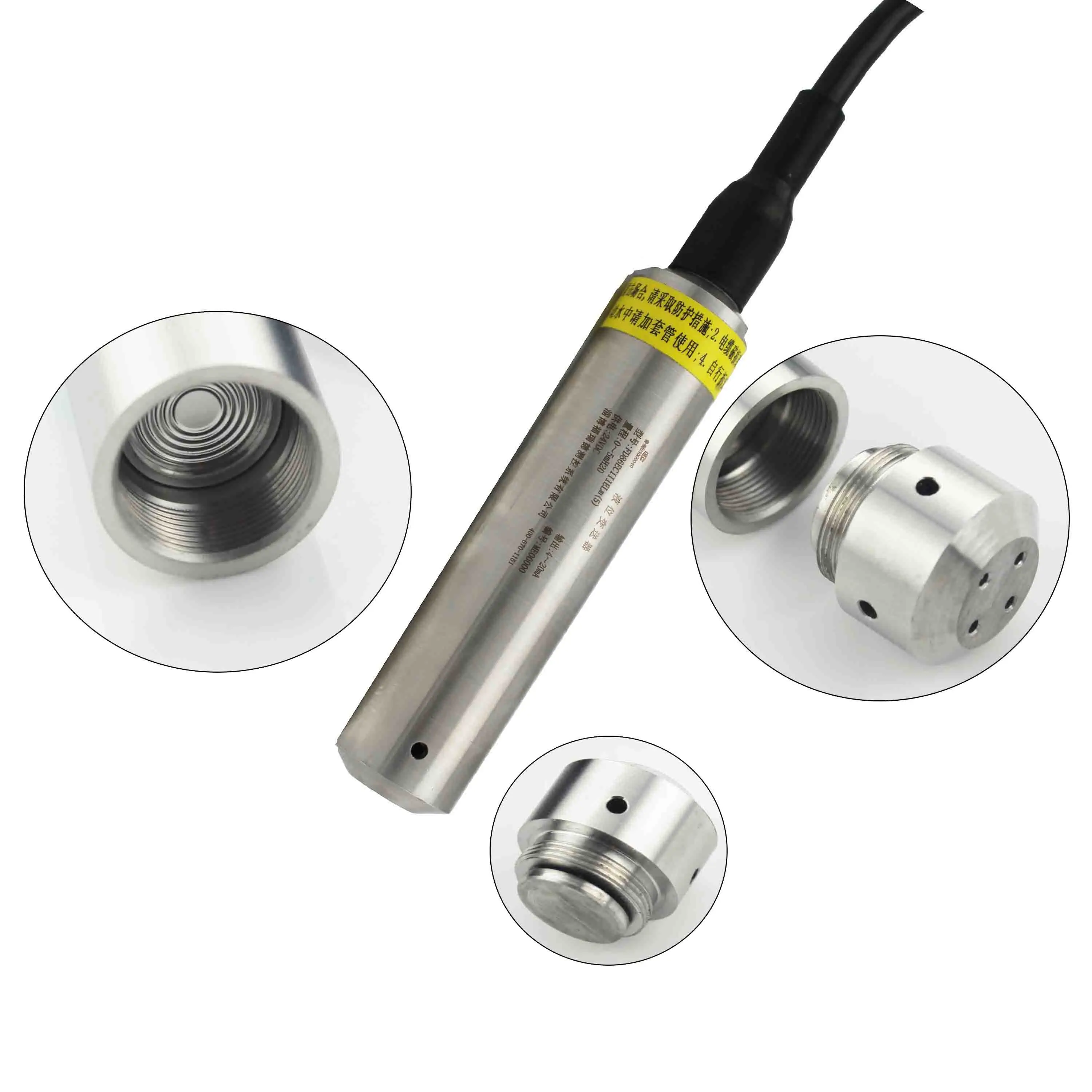

■The pressure connection part is a full -seal stainless steel structure. Both the sensor and the amplifier circuit are in the stainless steel shell, and the protection level is IP68;
■ The top stainless steel hat can be removed to prevent accidental damage to the film and facilitate regular cleaning.
■ No mobile components, stable and reliable performance
■ Suitable for harsh environments such as the wild and open -air
■ Optical fiber labeling, exquisite appearance and delicate appearance

Recommend Products

Details Images

Product Paramenters

Model	FD80F/E Submersible Level Transmitter
Pressure Range	0-1m～200mH2O
Overload Pressure	Allow overload 150% sensor range
Burst pressure:	200% sensor range
Comprehensive accuracy	0.25%F.S 0.5%F.S
Long -term stability	0.2%F.S/year
Medium temperature	-10℃～60℃
Power supply	16V～28VDC (Recommend 24VDC)
Output signal	4mA～20mADC 1V-5VDC RS485
Protocol	MODBUS RTU HART
Protection level	IP65 (Housing) IP68(sensor)
Expiration	12 months
