Высокая эффективность BS-5070 блистерная уплотнительная упаковочная машина для
- Категория: Blister Packaging Machines >>>
- Поставщик: Shandong,China,Coal,Industrial,&,Mining,Supplies,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2618.62 $* | 2749.76 $* |
| Aug-18-2025 | 2596.23 $* | 2726.79 $* |
| Jul-18-2025 | 2178.77 $* | 2287.35 $* |
| Jun-18-2025 | 2552.7 $* | 2680.95 $* |
| May-18-2025 | 2222.20 $* | 2333.78 $* |
| Apr-18-2025 | 2508.1 $* | 2633.49 $* |
| Mar-18-2025 | 2486.53 $* | 2610.45 $* |
| Feb-18-2025 | 2464.91 $* | 2587.44 $* |
| Jan-18-2025 | 2442.38 $* | 2564.36 $* |
Характеристики
Product Description
Introduction of BS-5070 Blister Packaging Machine
BS series blister packaging machine is to sealing the contact surface between blister
cardboard and heater strip (different with UBS series blister packaging machine);
Blister packing by heater strip( different with UBS series);
Semi-automatic blister packaging and sealing without thermoforming;
One person operate one machine, speed is 6s/pcs;
Manual feeding the products to the blister molds ;
Easy to use by using digital time relay to control the operation ;
Pneumatic drive and need connect to air compressor ;
3 station to fix the blister molds for continuous blister packaging ;
Packing process controlled by proximity switch ;
Assemble the wooden disk and blister molds to the machine before using ;
Parameter of BS-5070 Blister Packaging Machine
Model | BS-5070 |
Press plate size | 500mm*700mm |
Pressure | 0.6T |
Speed | 10tims/min |
Weight | 130kgs |
Voltage | 220v 50~60hz |
Power | 2.5kw |
Air-pressure | 0.4~0.6mpa |
Machine dimension | 670mm*840mm*1600mm |
Wooden disk size | 1500mm*700mm*65mm |

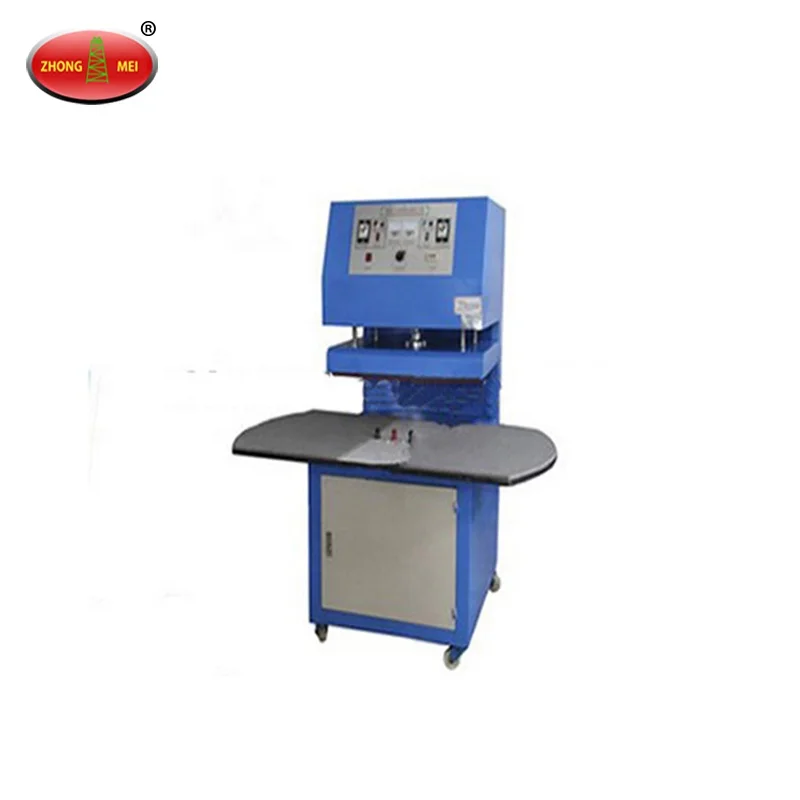

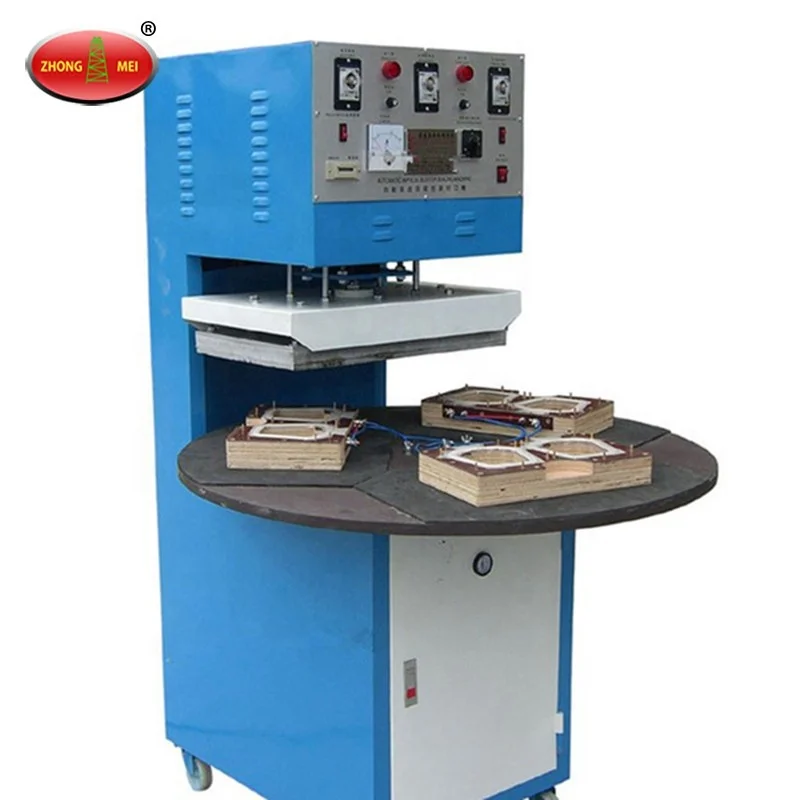

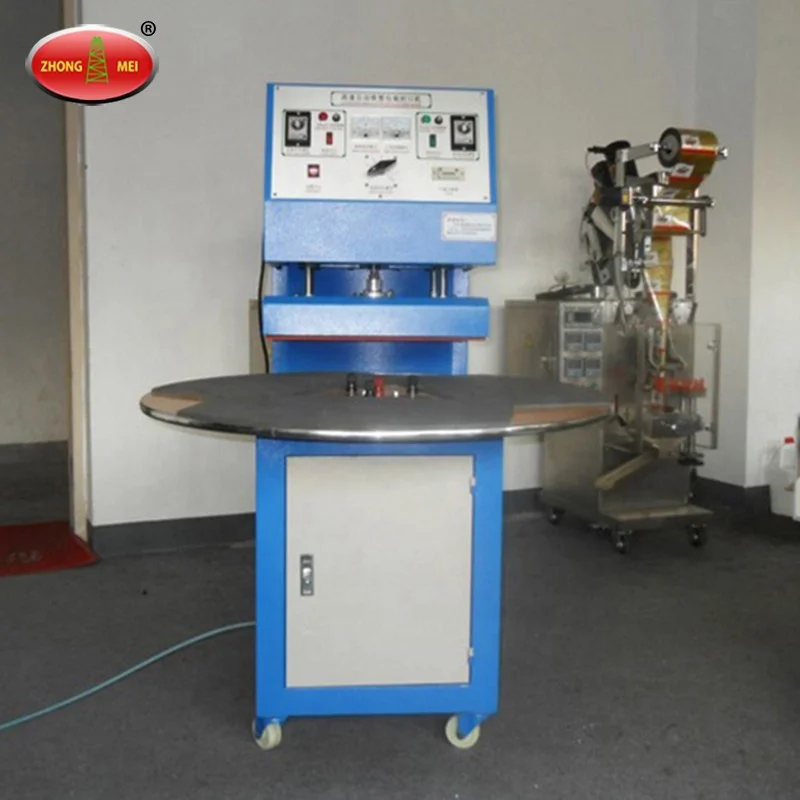

Photos of BS-5070 Blister Packaging Machine
