Машина для термозапечатывания блистерных

Категория: Машины для блистерной упаковки >>>
Поставщик: Guangzhou,Looker,Packaging,Machinery,Co.,Ltd.

Цена:900,00 $ - 950,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	1071.85 $*	1125.19 $*
Aug-15-2025	1062.83 $*	1115.56 $*
Jul-15-2025	891.84 $*	936.76 $*
Jun-15-2025	1044.63 $*	1096.13 $*
May-15-2025	909.35 $*	954.9 $*
Apr-15-2025	1026.33 $*	1077.4 $*
Mar-15-2025	1017.50 $*	1068.67 $*
Feb-15-2025	1008.99 $*	1058.90 $*
Jan-15-2025	999.55 $*	1049.68 $*

Характеристики

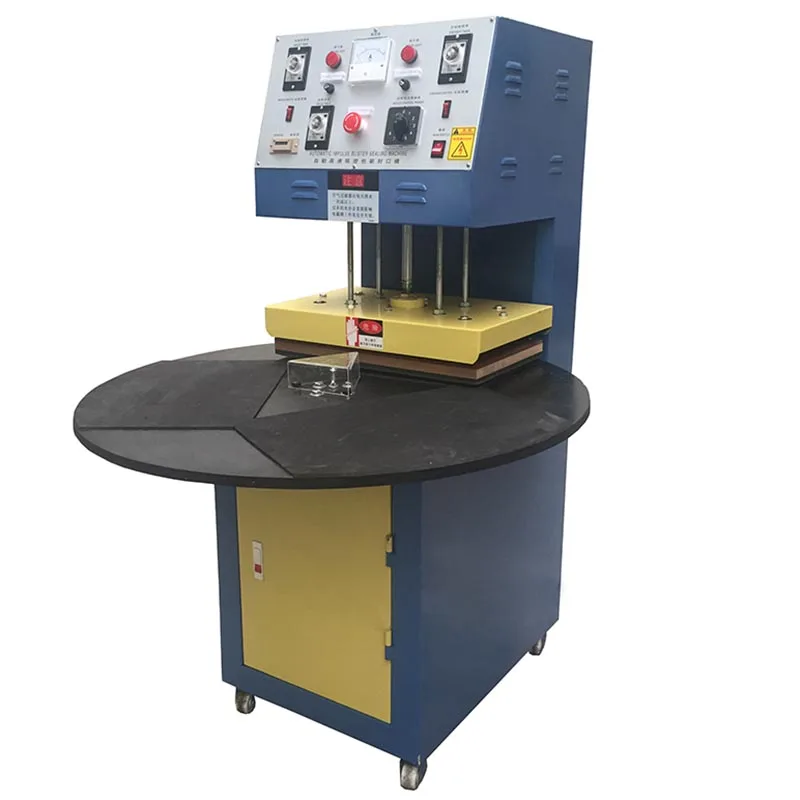

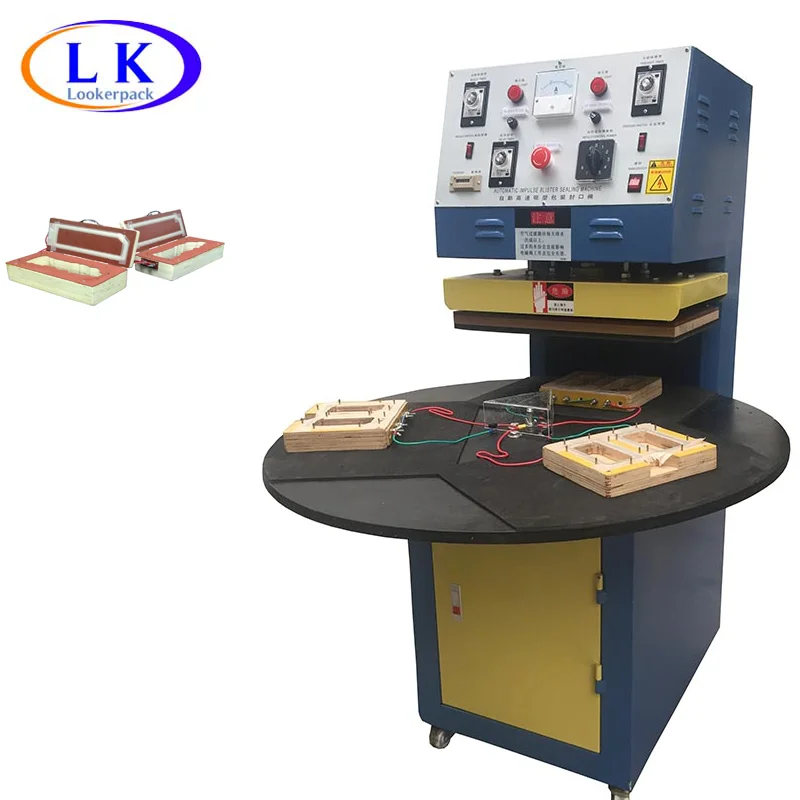

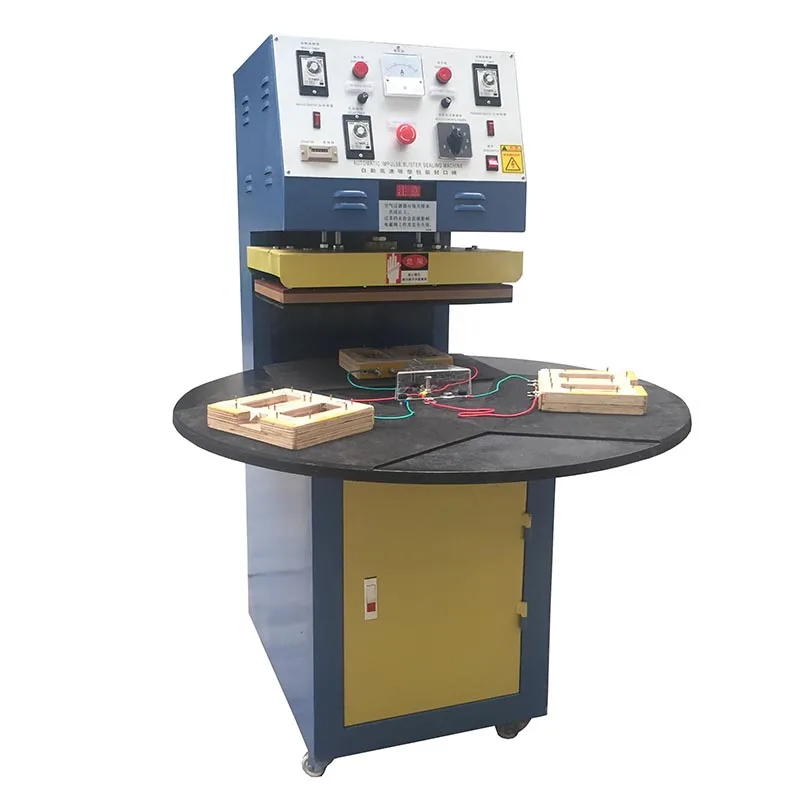

Product Description

Working Principle

The machine uses the pulse fever from the mould/die with heating elements. It seals paper card and blister perfectly, and the sealed products are not only with moistureproof and dustproof function, but also with eye-catching appearance

Application
Applies to plastic blister(made by PVC, PET, PETG etc.)seal with paper card. It's suitable for the packaging process such as toys, stationery, foods, commodity, cosmetics, hardware, medicine, etc.

Main Features

1. The machine uses four guide pins to guide the pressure plate, it is flatter, the pressure is more stable, the paper card and blister adhesive perfectly.
2. Unique pressure plate heating delay design allows the sealed products much better and more attractive.
3. The round plate (square plate) can be rotated clockwise or anticlockwise freely.
4. Fix with Φ80mm cylinder, higher pressure, stable sealing and good looking.
5. Install the emergency stop button, can stop working anytime, ensure the safety of operator also reduce the output of defective products.
6. Arylic cover isolates the electric connection poles, which can avoid short circuit and also protect operator.
7. Small machine allows flexibility and space-saving, four wheels so can move freely.
8. Easy operation and high production efficiency.

Parameter

\t Model	\t LK-50
\t Power supply	\t AC220V 50/60HZ
\t Power	\t 2.0KW
\t Max. sealing size	\t 300*500mm
\t Working table	\t Round table Dia 960mm
\t Sealing mould Q'ty	\t 3pcs
\t Productivity	\t around 10 times/min
\t Machine size	\t 97011351420mm
\t Net weight	\t 100KGs

Detailed Images

Advantage of our machine

1.Arylic cover isolates

Arylic cover isolates the electric connection poles, which can avoid short circuit and also protect operator

2.Emergency button

Emergency stop button, can stop working anytime, ensure the safety of operator also reduce the output of defective products

3.Machine production process

This machine from the frame body to the final machine.
Our engineer take care of it step by step

Each part have double check it before machine ship to each customer.

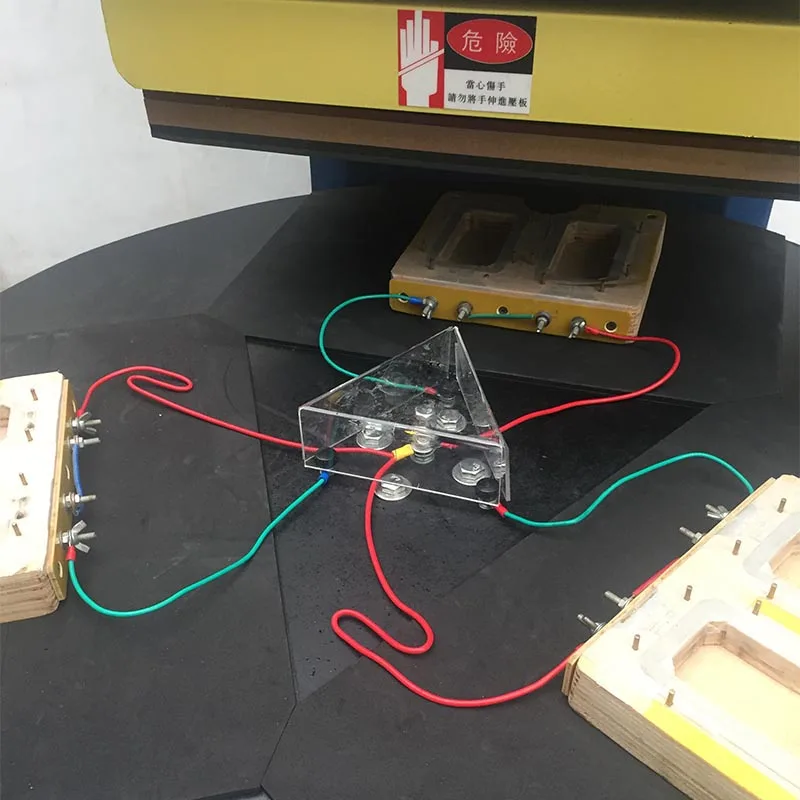

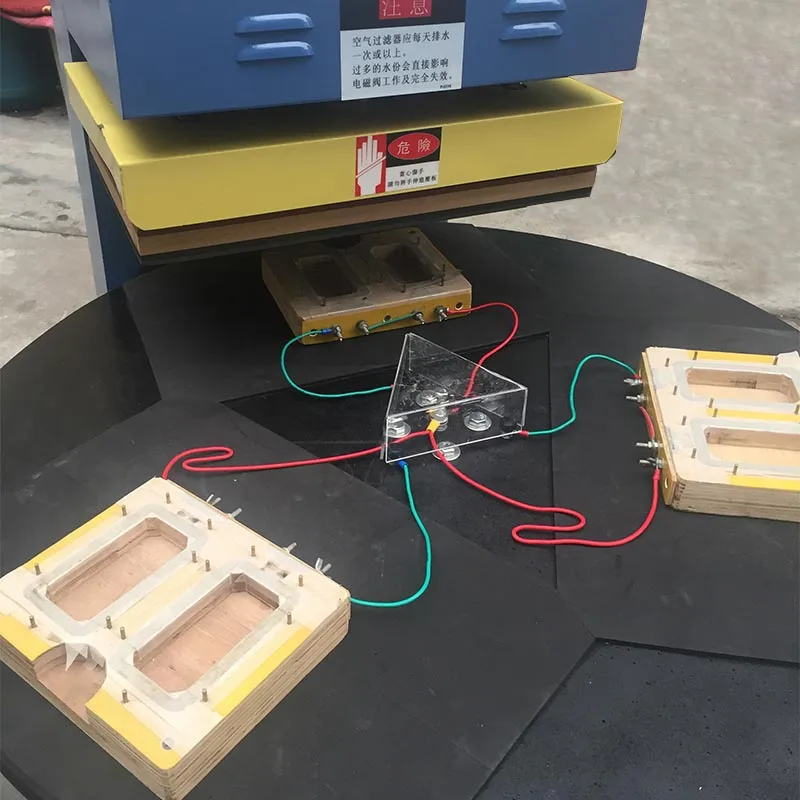

4. Blister Sealing moulds

Name : Round Dia 970mm
which can be placing 3 sets of sealing mould.
and connect the wires like photo we showed on picture with Arylic cover isolates

Samples

Our Service

Before-sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Operation manual.
* Machine assemble instruction video.
* Machine operation video.

Packing & Delivery

\t Packaging
\t Size	\t 110 (L) * 67 (W) * 159 (D)
\t Weight	\t 140kgs
\t Packaging Details	\t The normal package is wooden box Bubble foam for inside package Firm plywood for outside package It is standard pack for shipment to Over sea We use plywood case for packing machines, it will meet export standard like safty protection requirment and durable performance in long time ship by sea or by air our packing no need fumigation.
