medical pills blister packing machine with CE certificate
Usage:
This Producition line is use for Pharmaceutical industry for filling tablets and capsules

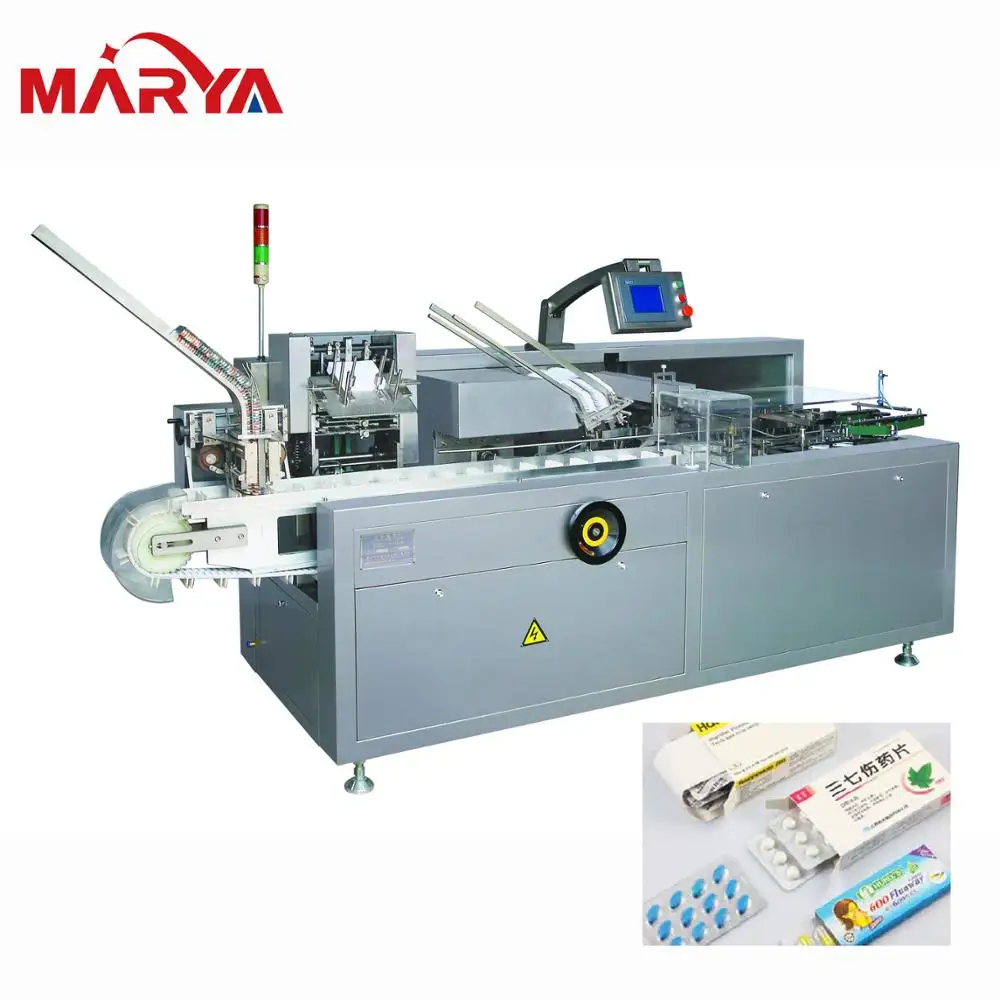

It is combined with the DPH260 Blister Machine and JDZ300Cartoner and Overwrapping machine.
Features:
Fully Automatic
Controlled by famous PLC and HMI
Option:
Fully servo motor Control
Eye mark system
Working procedure:
Blister forming

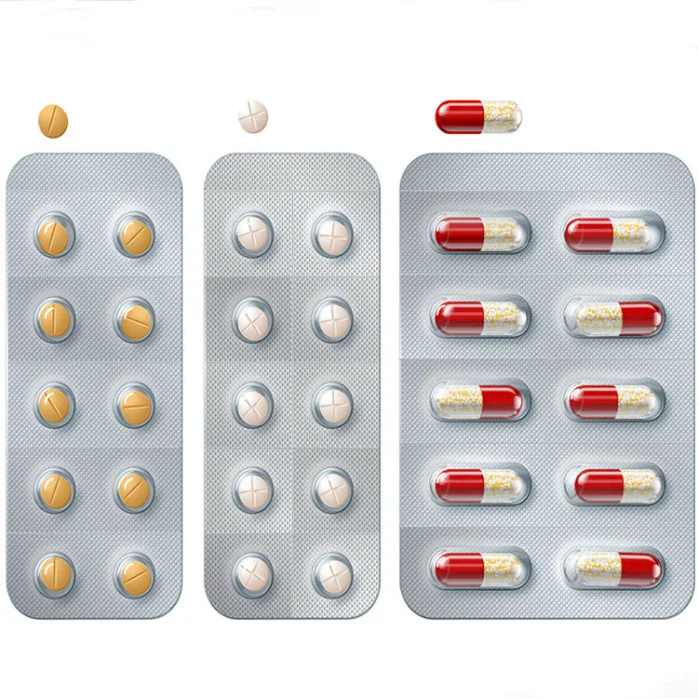

Tablet and Capsule Filling.
PVC-Foil sealing
punching

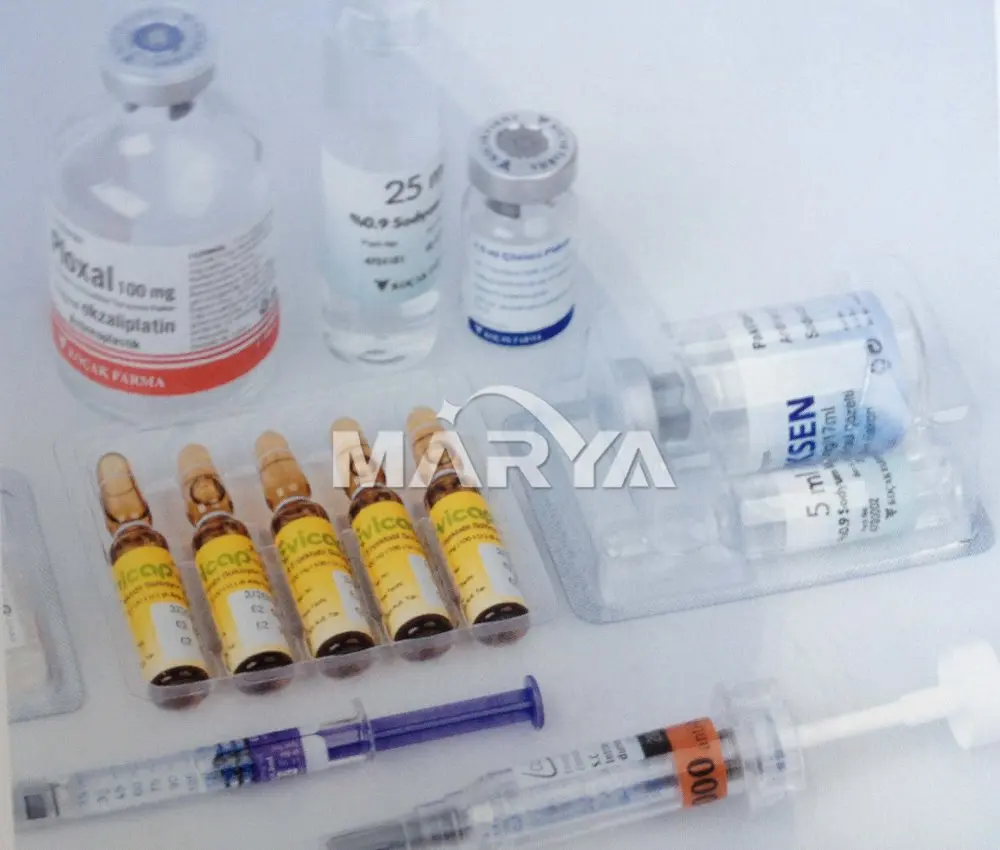

Through integration of a blister and cartoner module for packaging and cartoning of pharmaceutical tablets, capsules and ampoules, this Blister Packaging Line is Our innovative response to the need for high efficiency and low-cost operation, flexibility and maximum productivity for mass batch production. ·Processes all common solid dose products and all types of forming material. ·The machine can achieve 180 minutes of uninterrupted production thanks to Blister module withforming material reels of up to 600mm in diameter and waste material trimming cutter.

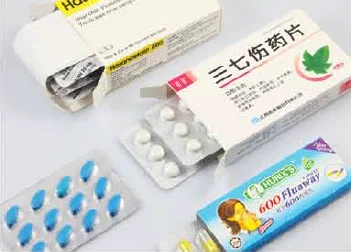

·Capable of all standard types of closure systems for cartons from tuck-in to hot-melt.

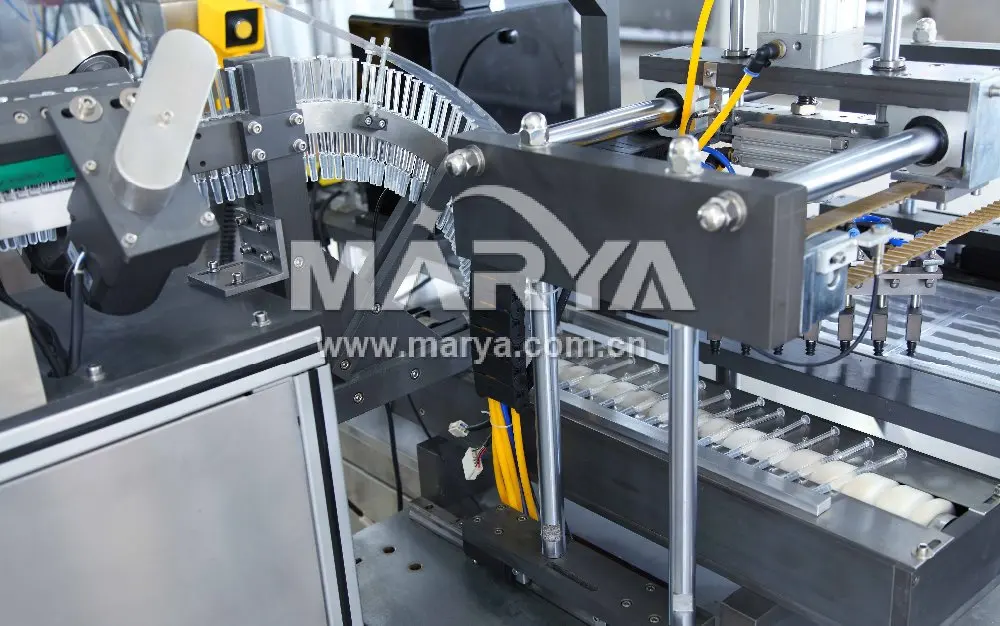

·The heart of a Blister Line is the connection between the Blister Machine and Cartoner. In this line,the connection phase is truly innovative thanks to rotary blister cards pick-up arms and the blister counting magazine that adopt precise servo technology. These accurately control blister transfer, faulty blister rejection, positioning, and feeding, etc., to assure the stability of high running speed. ·Since this Line adopts transfer belt to connect the Blister Machine and Cartoner, it provides easy changeover for different sizes of formats and cartons. ·This line adopt the fully-enclosed structure and safety door, it is in line with the most stringent European safety standards.

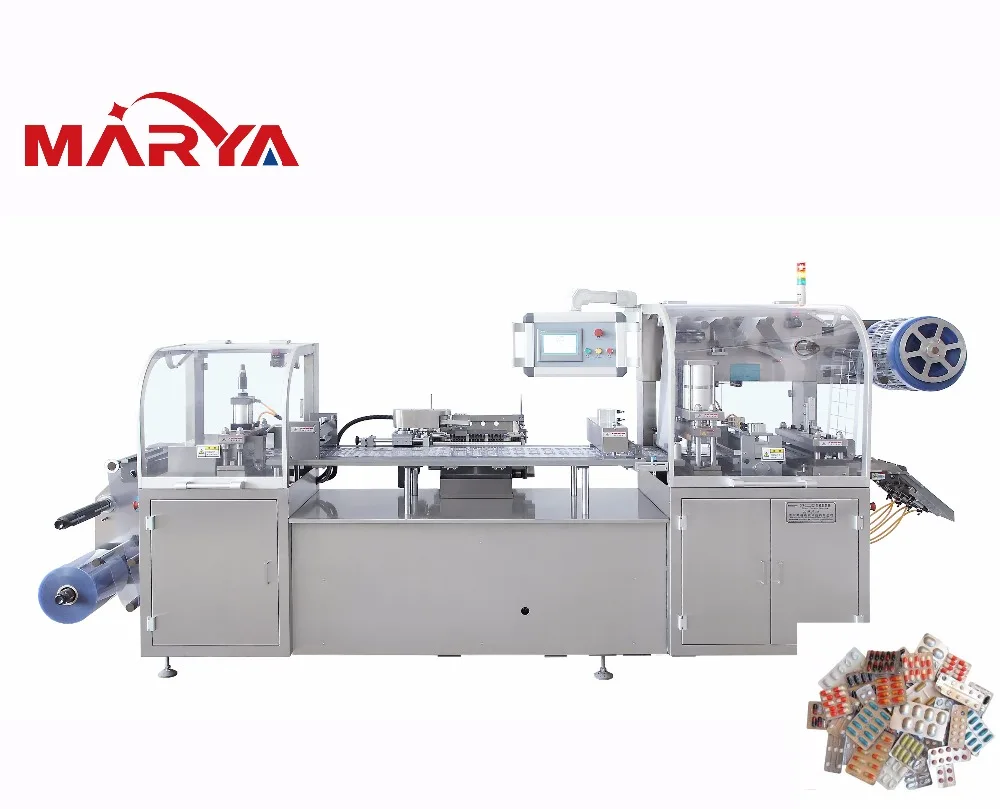

DPP-260H Automatic Al-Plastic Blister packing Machine is our advanced equipment designed under updated improvement. It adopts the integral technology applying frequency inverter for speed control and mechanism, electricity,light and air to machine.Its design is in strict compliance with GMP standard and takes lead in the blister packer's filed.Featuring advanced functions,ease in operation,high output,the machine is the most ideal packing equipment for large and medium size pharmaceutical enterprises,health food and food stuff trades.
pharma blister machine
Features:
1. Adopts top brand PLC controller with touch screen displayed in Chinese and English,Frequency inverter for speed control,servo traction,which can ensure the length of blister traction adjustable within the range.
2. With thermal temperature control and test,main machine over loading protect,PVC and PTP packing material position test,feeder material position test,failure automatic debug and alarm,automatic protection and stop running. 3. The machine station module type design of level frame,good sight,safe and convenient operation. 4. Thermal with contact type,positive press formed,air cushion thermal seal upper and lower net,photo register make your product package better. 5. PVC exchange support with bigger type material support,whole roller,which makes the equipment more practicability. 6. The special design of moulds in rectangle shape,ladder type fixing,provide much convenience and ease to moulds replacement.All material contact parts adopt high quality stainless steel and aluminum metal,slap-up surface treatment craft. 7. Discharging finished product in right order,automatic collection of bad products,auto rewinding of strap material to ensure easy collection. 8. Feeding efficiently,reliable and suitable for many kinds type arrange and irregular feeding,(according to actual product design fit feeder). 9. The machine has been designed into separated body,which is easily move into lifts or workshops.
pharma blister machine
Technical Parameters for Blister Packing Machine:
Item/Model
DPP-260H
Punching frequency
AL/Plastic 20-60times/min Al/AL15-30times/min
Max production capacity
AL/Plastic 140thousand Grains/hour
Al/Al 75thousand Grains/hour
Max forming depth
AL/Plastic 22mm Al/Al 18mm (made to order)
Adjustable scope of Travel
made to order 30-140mm
Clean compressed air
Press 0.6-0.8Mpa
Air consumer(air compressor)
≥0.25m3/min(self prepared)
Power
380V 50HZ 8.5Kw
Dimension
4500x760x40500px(can be separated)
Weight
1800kg
Company Information
Shanghai Marya Pharmaceutical Engineering&Project Co.,Ltd is a professional Pharmaceutical Turnkey projects Contractor .We have 3 our own factories and more than 30 OEM factories under quality Control of Shanghai Marya,We have a 30 year experienced professional team for doing the turnkey project from design to construction.
Our Pharmaceutical projects can be done according to international standard like EU cGMP, WHO GMP, UK MHRA, Australian TGA, etc We are not noly a manufacturer but also a designing and construction company.We can provide much better price and better technical support and service than other companies
We can design and manufacture machines based on Customer's request ,Your satisfaction is our top Priority. With 30 year experienced professional design team and construction team.Under the support of our factory ,We can provide customer with high efficiency and quality in project, save your time and cost. Our machineries and projects have sold all over the country and they are exported to America, Europe and middle east ,South east Asia, Africa and other countries and regions. Welcome to Visit Our factory in China
Packaging & Shipping
Standard export wooden case packaging . Inner package: Stretching film Delivery time:30-60 working days after receiving 30% deposit or L/C
