IECHO Цифровой Режущий нож для

Категория: Other Machine Tool Equipment >>>
Поставщик: Hangzhou,IECHO,Science,&,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.93 $*	0.59 $*
Aug-15-2025	0.5 $*	0.8 $*
Jul-15-2025	0.56 $*	0.42 $*
Jun-15-2025	0.60 $*	0.34 $*
May-15-2025	0.31 $*	0.66 $*
Apr-15-2025	0.4 $*	0.22 $*
Mar-15-2025	0.38 $*	0.58 $*
Feb-15-2025	0.49 $*	0.22 $*
Jan-15-2025	0.57 $*	0.11 $*

Характеристики

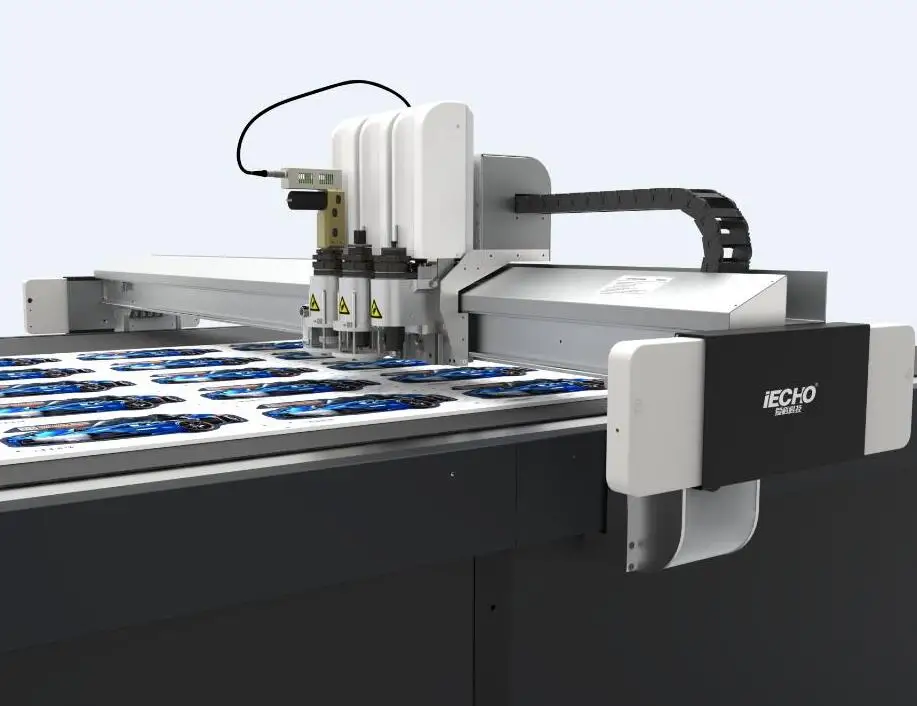

IECHOcutting system includes electrical control box, cutting main body, pump, air compressor and other accessory parts.

According to customer's requirements, we will configure the following one tool or several tools: tangential knife, oscillating knife, driven rotary knife, V-cut, creasing wheel, punching knife and CNC router.

Materials can be cut

· Corrugated paper

· PVC expansion sheet

· Adhesive sticker

· Postage stamp gum

· Photo frame paper

· KT board

· Grey cardboard

· Honey comb plate

· Arcylic

· Foam

· other soft material......

2.Technical Parameters

Cutting Effective Area	2.5m×1.7m:2.5m×1.6m;1.7m×1.3m
Max. Cutting Speed	1.8m/s
Cutting Accuracy	0.1mm
Max. Cutting Thickness	50mm(According to customer's materials)
Data Formats	DXF, HPGL
Memory	8M
Working Voltage	AC power 380V±10%, 220V±10%,50HZ
Fuse Specification	10A
Cutting System Power	1.5KW
Drive Motor	Servo Motor
Pump Vacuum	-25KPa
Pump Power	9.5KW;7.5KW
Environment	Temperature -0°C-40°C,Humidity20%-80%RH
Noise Level	60db

3.Functions and structures.

a.Suction device.

b.Motor depth control.

c.Imported spare parts.

d.Security system.

e.Control panel.

4.Usage.

SIGN & ADVERTISING INDUSTRY

BK cutting system supplies the total solution to sign & advertising industry,especially suited to registration cutting of white cardboard,sticker,acrylic,PVC,corrugated board and honey comb board, the system has improved the process flow of sign & advertising companies,accelerated production efficiency and enhanced product quality.

PACKING INDUSTRY

Common carton sample cutting machine only meets the former sample making process, while iEHCO BK carton cutting system meets small production requirement, which can cut all kinds of packaging materials easily, such as corrugated board, white cardboard, grey cardboard and PVC, maximizes the possibility of rapid completion of orders for the printing and packaging factories.

AUTOMOBILE UPHOLSTERY

BK cutting system has been applied to cutting automobile upholstery successfully, such as automobile mat, car seat, cover, sun block and car curtain.

COMPOSITES

IECHO BK cutting system replaces the traditional composites manufacturing mode, such as drawing lines and cutting yarn, especially fo the complicated allotypic patterns, it can advance at least 20 times efficiency, gurantee controllability of carbon fiber, glass fiber , aramid fiber, UHMW polyethyene etc, and reduce the labor cost greatly.

Main Product list -----BKL and BK3 Model
