Недорогой счетчик-датчик длины JM316 с колесом
US $19.00-$20.00
Толщиномер покрытия для быстрого измерения
- Категория: >>>
- Поставщик: Guangzhou,Panyu,Yisitong,Electronic,Instruments,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 71.66 $* | 75.47 $* |
| Aug-17-2025 | 71.29 $* | 75.0 $* |
| Jul-17-2025 | 59.97 $* | 62.40 $* |
| Jun-17-2025 | 70.75 $* | 74.8 $* |
| May-17-2025 | 61.27 $* | 64.13 $* |
| Apr-17-2025 | 68.41 $* | 71.96 $* |
| Mar-17-2025 | 68.97 $* | 71.50 $* |
| Feb-17-2025 | 67.72 $* | 70.3 $* |
| Jan-17-2025 | 67.86 $* | 70.60 $* |
Характеристики
ETA2032 High Quality zinc coating thickness gauge wurth coating thickness tester
Product Description
BRIEF INTRODUCTION
* It meets the standards of both ISO2178 and ISO-2361 as well as DIN, ASTM and BS. Suitable for the laboratory and for use in harsh field conditions.
* The gauge can measure the thickness of non-magnetic coating layers on magnetic substrate.Such as: (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)..
* The gauge can measure the thickness of non-metals coatings layers covered on non-magnetic metals substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on non-nagnetic metals substrate (aluminum, brass, zinc and nonmagnetic stainless steel).
* The gauge can measure the thickness of non-magnetic coating layers on magnetic substrate.Such as: (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)..
* The gauge can measure the thickness of non-metals coatings layers covered on non-magnetic metals substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on non-nagnetic metals substrate (aluminum, brass, zinc and nonmagnetic stainless steel).

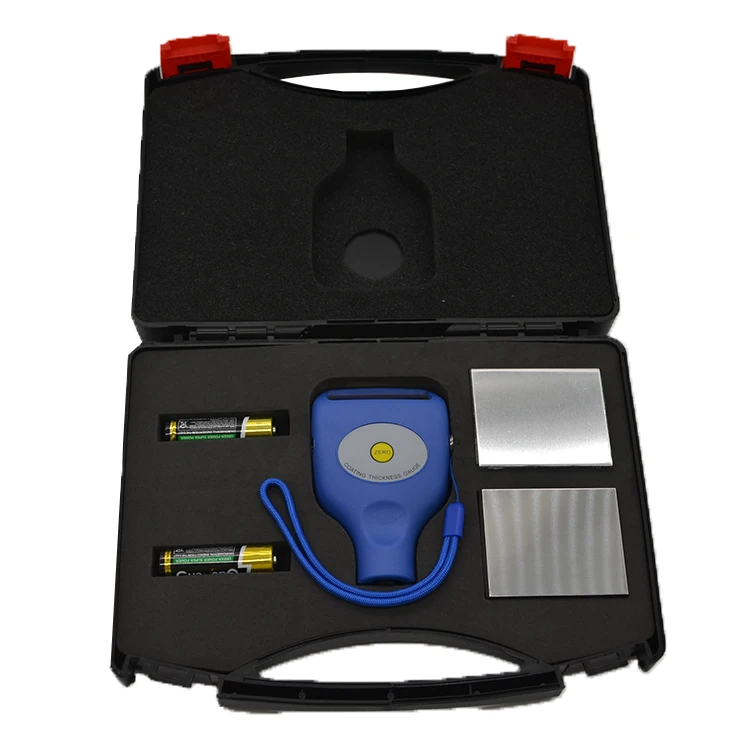

Standard Delivery
Main unit(1500um).............1pc
Instruction manual............. 1pc
Substrate............................2pc
Carrying case..................... 1pc
Calibration foil set.............. 1set
Carrying case..................... 1pc
Calibration foil set.............. 1set
Technical Specification | ||||
Model No. | ETA2032 | |||
Measuring principle | Fe | NFe | ||
Measuring range (µm) | O-1500µm | |||
Accuracy | 3% Hµm | |||
H refers to the thickness of testing piece | ||||
Minimum resolution (µm) | 10µm or 0.5mil | |||
Min curvature of the min area (mm) | Convex:5mm, concave:25mm | |||
Diameter of the min area (mm) | Φ7 | |||
Critical thickness of substrate (mm) | 0.5 | |||
Dimensions | 100*65*25mm | |||
Memory | 0 | |||

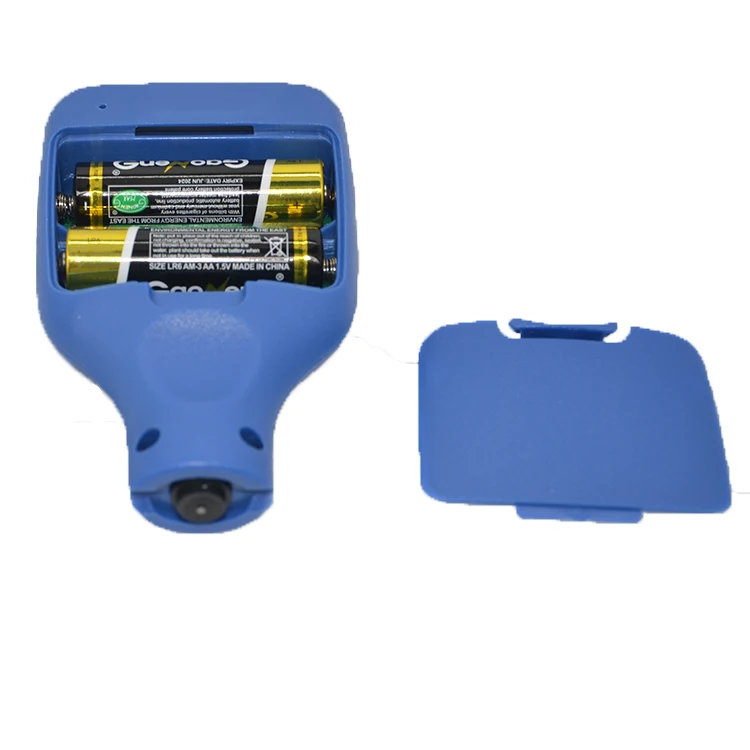

Power supply | AA Alkaline battery | |||
Standard configuration | Main Machine,4 calibration specimens (38µm,126µm,183µm,249µm) | |||
Certifications
Application
Product packaging
Company Profile
FAQ
Q:Are you a trading company or a factory?
A: Yes, we are a factory, all products of our ali-shop are produced by our factory
Q:Do you accept OEM orders?
A: Yes, we provide OEM services to worldwide customers.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q. What’s the lead-time for orders?
A: Normally it takes 7~10 working days after receiving payment(basing on the actual quantity).
Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q: What Shipping way Customer can choose?
A: DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order quantity!
A: Yes, we are a factory, all products of our ali-shop are produced by our factory
Q:Do you accept OEM orders?
A: Yes, we provide OEM services to worldwide customers.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q. What’s the lead-time for orders?
A: Normally it takes 7~10 working days after receiving payment(basing on the actual quantity).
Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q: What Shipping way Customer can choose?
A: DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order quantity!
