Ультразвуковой датчик уровня воды Zigbee топлива

Категория: Measuring & Gauging Tools >>>
Поставщик: Jinggoal,International,Limited

Цена:299,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-17-2025	380.40 $*	388.51 $*
Jul-17-2025	308.3 $*	314.37 $*
Jun-17-2025	374.94 $*	381.83 $*
May-17-2025	371.74 $*	378.18 $*
Apr-17-2025	296.16 $*	302.74 $*
Mar-17-2025	365.5 $*	372.8 $*
Feb-17-2025	362.57 $*	369.56 $*
Jan-17-2025	359.45 $*	366.14 $*

Характеристики

Product Description

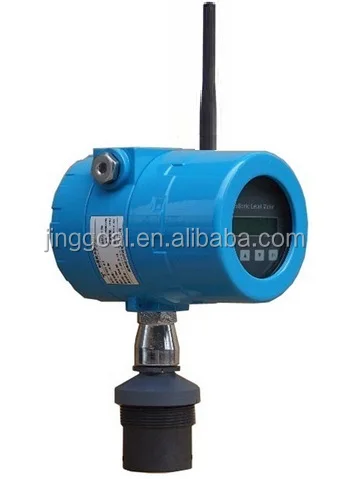

IUD51Z ultrasonic level meter has a beautiful appearance, stability performance; explore proof design and good measurement function. Isolated power supply by industrial instruments, all of the output, input lines with lightning protection, overvoltage, over current protection circuit functions.

It using the embedded ZigBee module, compliance with Zigbee protocol standard, as well as CSMA / CA anti-collision mechanism, effectively avoid channel blocking at the same time and data loss. Using single batteries, low consumption design, the working life could reach more than half a year.

Feature

1) LCD display, wireless signal output

2) High-precision real-time performance, high sampling frequency, low frenquency, low power consumption

3) Long battery life

4) With anti-shock function

Parameters

Functions	Integrative Type
Level Range:	5M, 10M, 15M, 20M,30M, 50M.
Accuracy:	0.5%F.S
Blind Zone:	0.2-0.6m
Working Pressure:	2 Bar (Explore Proof Type is 5 Bar)
Resolution:	3mm or 0.1%F.S (Max of them)
Display:	English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection.
Output:	GPRS+SMS
Relay /Alarm Output:	AC 250V/ 8A; DC 30V/ 5A;
Power Supply:	24VDC 120mA 12VDC (available to offer power by motor, battery or solar power and so on.)
Environment Temperature:	Meter: -20~+60°C/ Sensor: -20~+80°C
Explore Proof:	Ex(ia)ⅡCT6
Water Proof:	Standard Type: IP66
Cable of Sensor:	Null
Sensor Installation:	By level range and model code
Store Request:	Temperature: -20~+80°C Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration.
