Шпиндель токарного станка для SP2108B Китай неиспользованный механический токарный станок
- Категория: Other Machine Tool Equipment >>>
- Поставщик: Shanghai,Sumore,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 714.11 $* | 750.24 $* |
| Aug-18-2025 | 708.22 $* | 743.69 $* |
| Jul-18-2025 | 594.41 $* | 624.27 $* |
| Jun-18-2025 | 696.56 $* | 731.68 $* |
| May-18-2025 | 606.52 $* | 636.24 $* |
| Apr-18-2025 | 684.81 $* | 718.2 $* |
| Mar-18-2025 | 678.99 $* | 712.90 $* |
| Feb-18-2025 | 672.62 $* | 706.40 $* |
| Jan-18-2025 | 666.62 $* | 699.54 $* |
Характеристики
Product Description

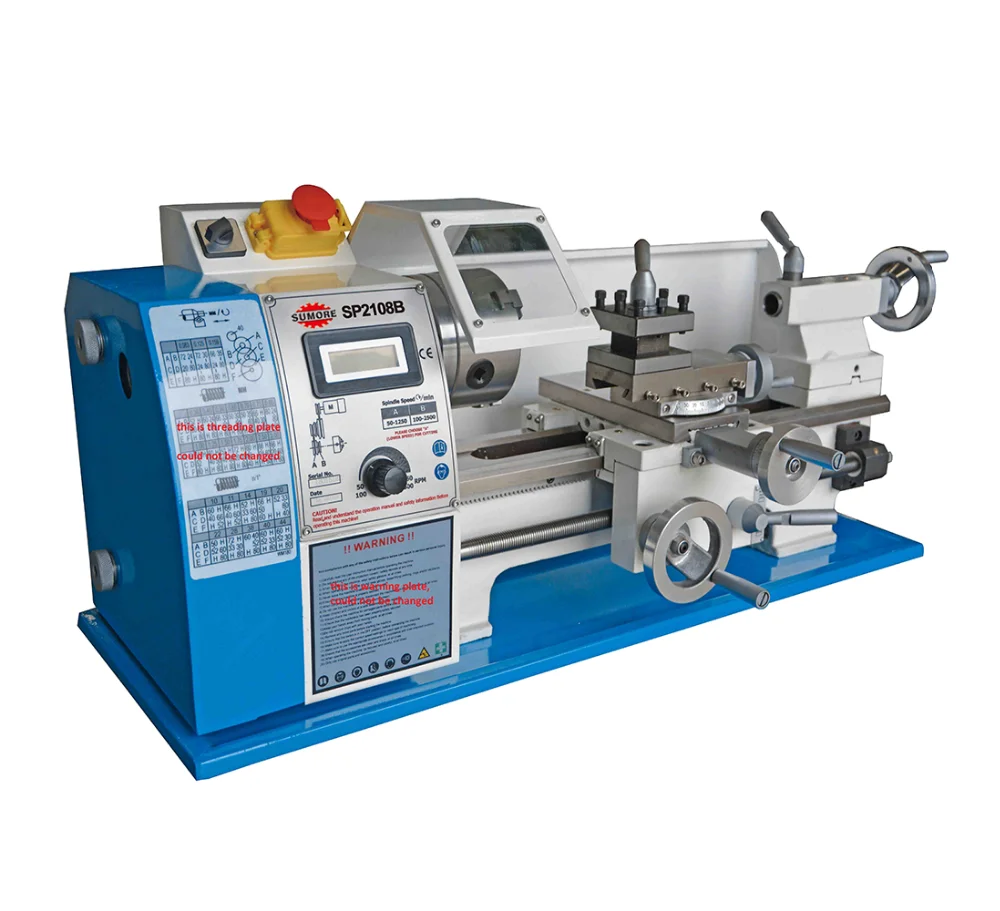

lathe headstock spindle for SP2108B China not used mechanical lathe for sale .
Features
Exceptional SUMORE Quality
Individual Accuracy Test with Each Machine
- Simple But Rigid Steel Structure
- Easy Operation & Convenient Reparations
- Brushless Motor
- Variable Speed
- Different Worktable Length Options
- Considerable Safety Design
Technical Data
Model | SP2108B |
Swing over Bed | 180 mm |
Swing over Cross Slide | 110 mm |
Distance Between Centers | 300 mm |
Width of Bed | 100 mm |
Spindle Bore | 21 mm |
Headstock Spindle Taper | MT 3 |
Range of Spindle Speeds | 50 - 2,500 rpm |
Range of Longitudinal Feeds | 0.100 - 0.200 mm/rev |
Compound Slide Travel | 55 mm |
Cross Slide Travel | 75 mm |
Carriage Travel | 195 mm |
Tailstock Quill Travel | 60 mm |
Tailstock Quill Taper | MT 2 |
Number of Inch Threads | 10 |
Range of Inch Threads | 8 - 44 TPI |
Number of Metric Threads | 10 |
Range of Metric Threads | 0.5 - 3.0 mm |
Motor Power | 450 / 600 w (550 w) |
Power Supply | 230 v / 1 PH / 50 Hz |
Overall Dimensions (LxWxH) | 740 x 390 x 370 mm |
Net Weight | 60 kg |
Packing Size (LxWxH) | 800 x 480 x 450 mm |
Gross Weight | 65 kg |
Accessories
Standard Accessories | Optional Accessories |
3-jaw chuck | 4-jaw Chuck |
Dead Center | Face Plate |
Cutting Tools | Face Plate Clamping Kit |
Change Gear Set | TiN Coated Cutting Tools & Replaceable Tips |
Splash Guard | Steady Rest |
Chuck Safety Guard | Follow Rest |
Stand | Drill Chuck and Drill Arbor |
Oil Tray | Live Center |
Oil Gun | Quick Change Tool Post |
Manual & Parts List | Clutch for Feed Rod |
Lead Screw Guard | |
| Digital Readout Cutting Depth | |
| Coolant System | |
| Work Light |
Packaging & Shipping
| Package | 1 set/polywood case (aluminum strips strengthen) |
| Full Container Loading Quantity (FCL) | XX sets/20’GP (unitary; customerized packing available) |
| Delivery Time | 25 calendar days after receiving of advance / full payment |
Packaging & Shipping
Illustrative Image Only
Certificates
Company Information
Shanghai Sumore Industrial Co., Ltd. (Sumore Machinery) was established back into year
2001. The core business of Sumore Machinery was focused on full machinery business chain,
which involves research and development, fabrication and production, foreign trading and
domestic sales on a wild range of products, such as power tools, woodworking equipments,
metal-processing machines and all related accessories.
Contact Us
--Please do not hesitate to contact us for more details or data sheets, all other questions would
be fully welcomed too.
-- Latest MACHINERY CATALOGUES are available now! Download them on our official website or
directly contact us.
-- Sumore Machinery always insist on the concept of providing our customers the most
enjoyable metal working experiences. Every need or request would be answered at our
best considering customer’s greatest interests.
-- Sumore Machinery values each relationship among our worldwide customers and hopes
every unique requirement of our customers could be satisfied.
