Передатчик Mac RS485 4 ~ 20mA выходной резервуар для воды 0.25% F.S высокоточный


Поделиться:


Цена:35,00 $ - 65,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-20-2025 44.91 $* 45.69 $*
Jul-20-2025 36.99 $* 37.1 $*
Jun-20-2025 44.38 $* 45.59 $*
May-20-2025 43.19 $* 44.20 $*
Apr-20-2025 35.41 $* 36.76 $*
Mar-20-2025 43.89 $* 44.2 $*
Feb-20-2025 42.17 $* 43.87 $*
Jan-20-2025 42.77 $* 43.11 $*

Характеристики

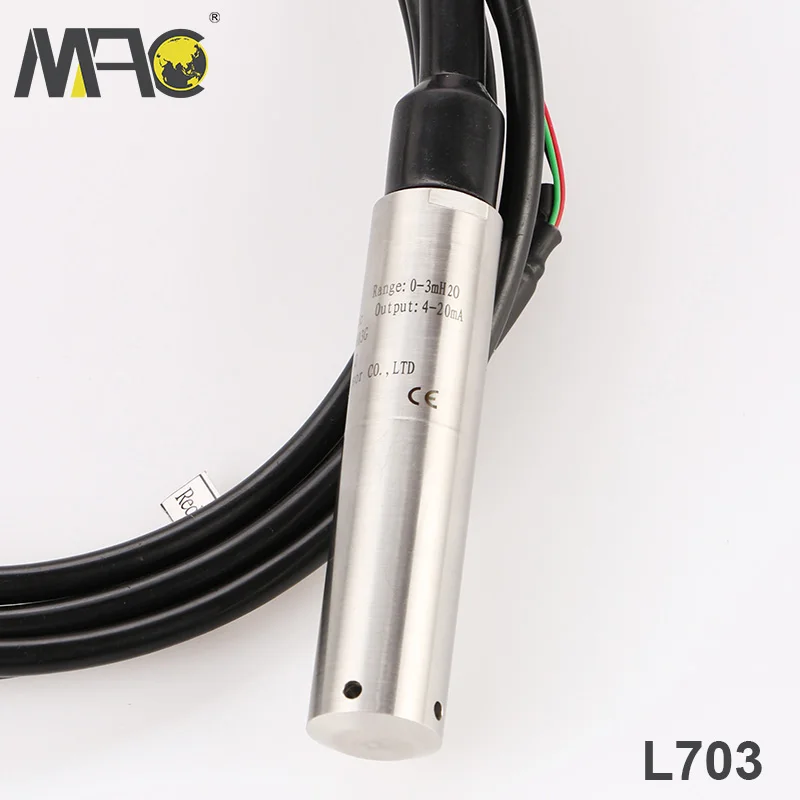

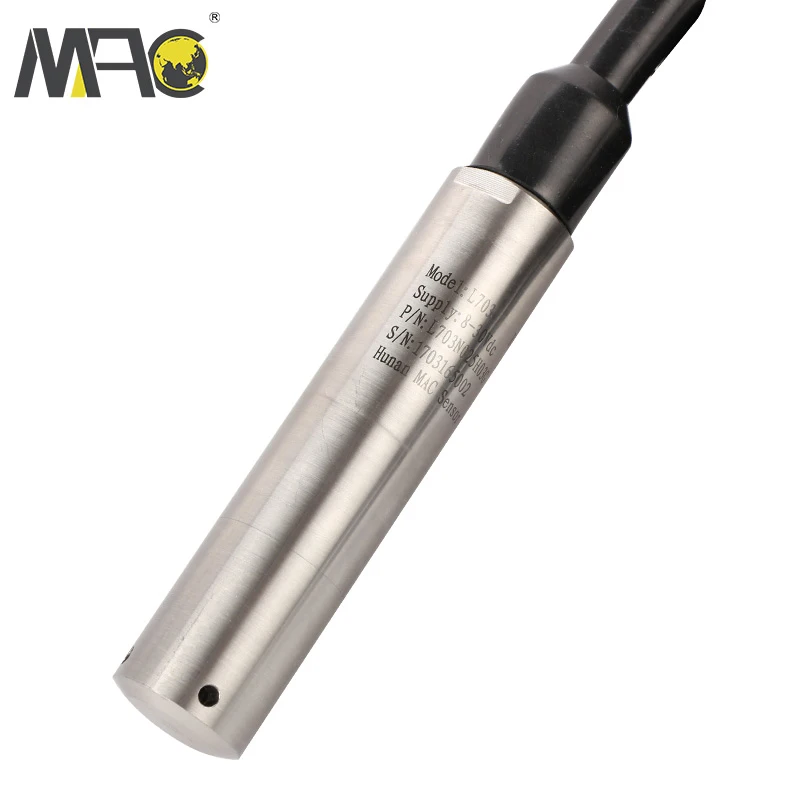

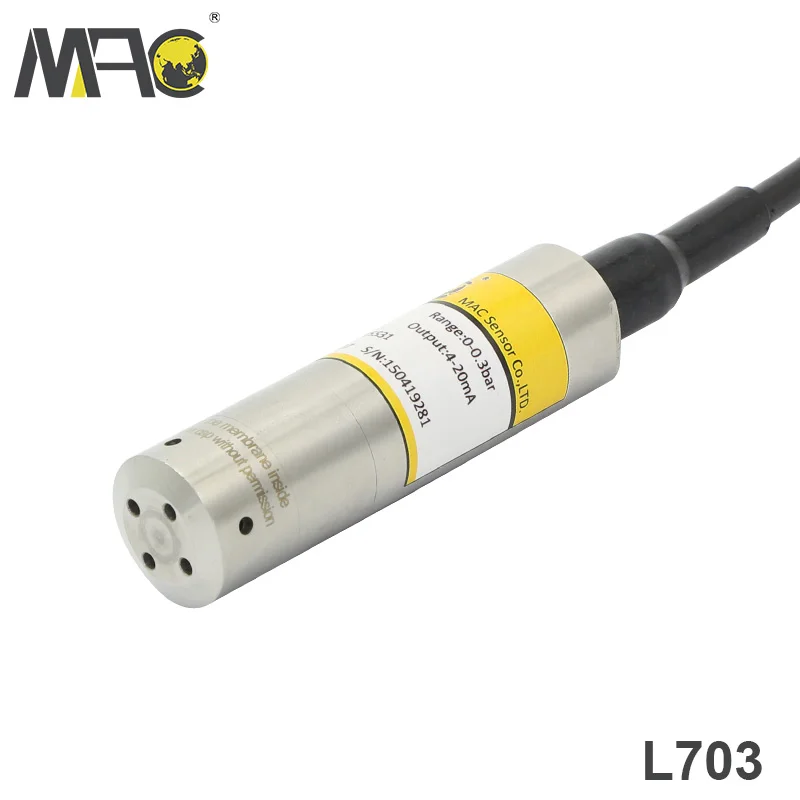

Macsensor transmitter RS485 4~20mA Output water tank 0.25% F.S high accuracy level sensor








l703-1_04





l703-1_03l703-1_09l703-1_06



Product Description

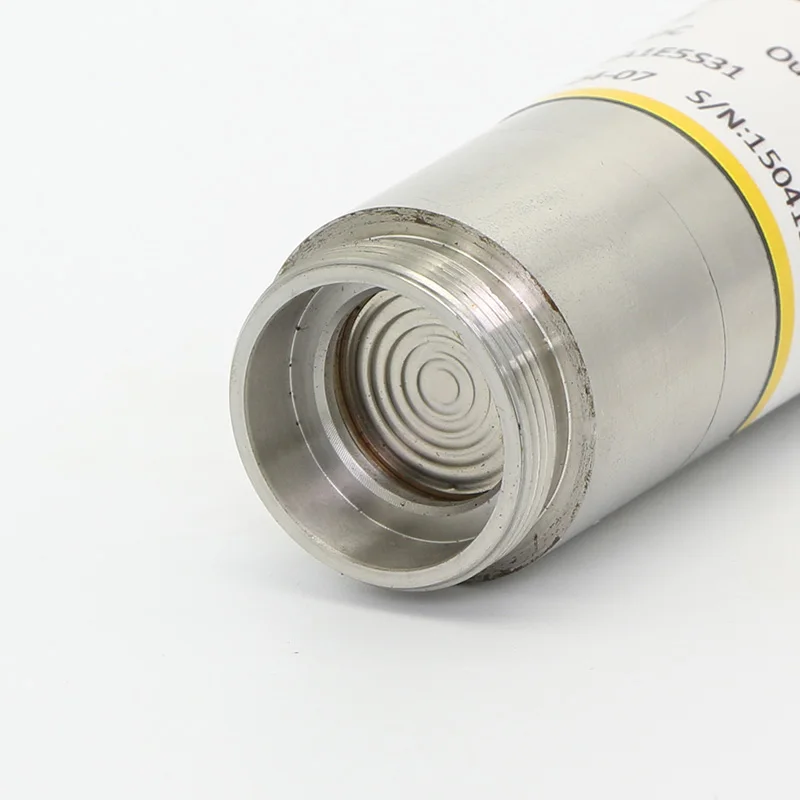

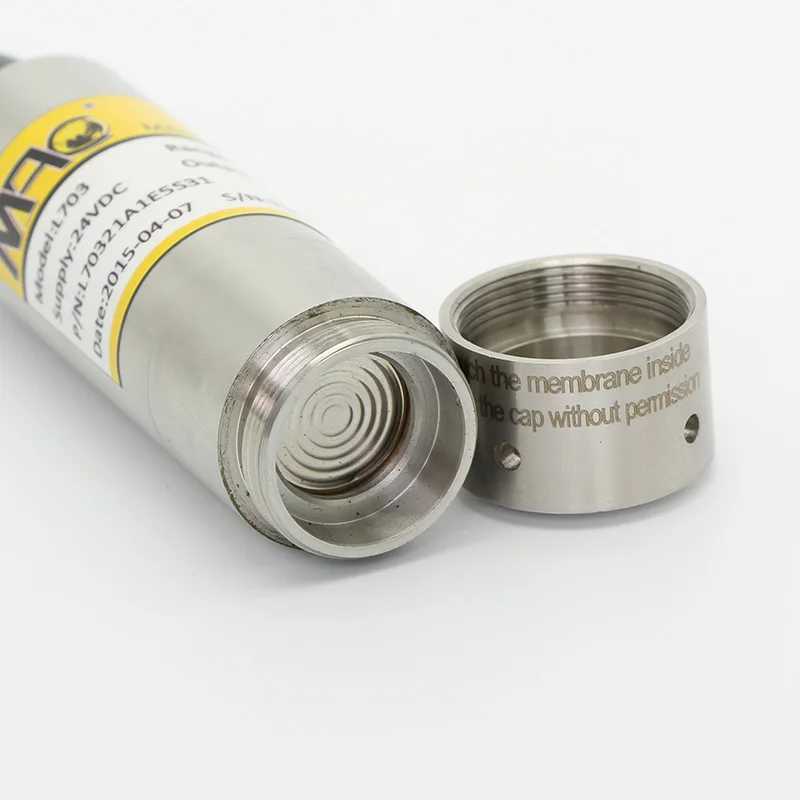

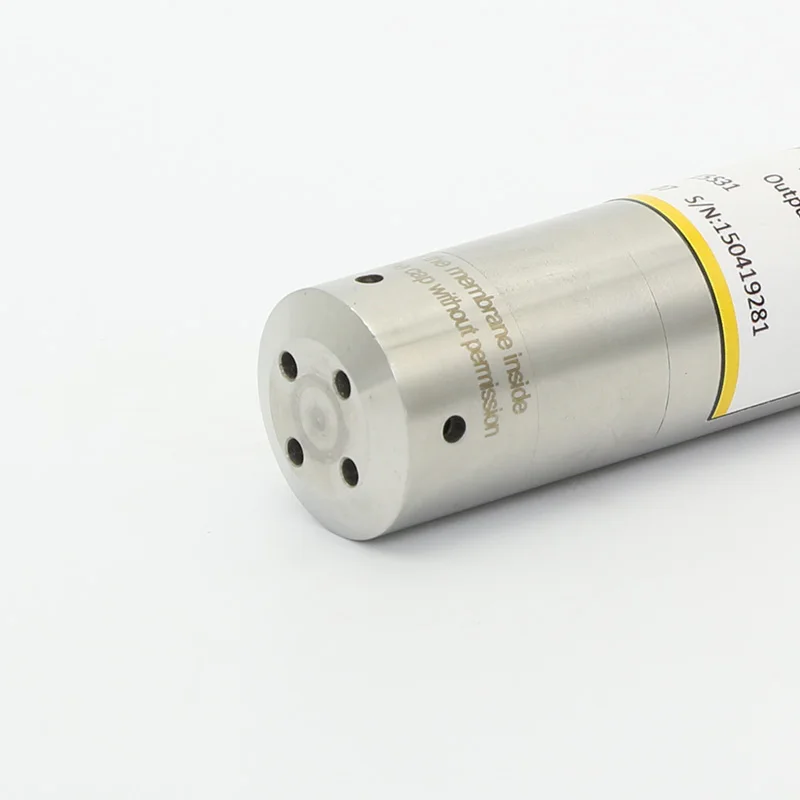

L703 is a submersible Water Tank Level Sensor suitable for liquid level and depth measurement. It consists of a piezoresistive sensing element encased in a 316 SS housing. Its all stainless steel, hermetically sealed housing make it suitable for immersion in most industrial liquids and oils. The welded housing is tested in-house via a helium leak tester to ensure proper protection. The conductors of the cable are also isolated from the outside environment to keep the level sensor operational for long-term use. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage.








A vented cable provides an atmospheric pressure reference. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The vent is protected with a maintenance free filter eliminating particulate or water droplets from entering the transducer.





1. High accuracy and reliability


2. Completely submersible pressure transducer and cable
3. Compact, rugged design for easy installation
4. Water level sensor compatible with most monitoring equipment
5. Vented cable for automatic barometric compensation
6. Multiple level ranges available from 30cm to 500 meters
7. Dynamic temperature compensation system
8. Submersible pressure transducer not affected by foam, wind, or rain
9. Monitors levels in groundwater wells, rivers, streams, tanks, lift stations and open channels
10. Anti-expolosion ATEX, RoHs, CE Certified























































































































Model:


Parameter:



L703



Characteristic:



Various configurations


Corrosive proof, explore proof and leakage proof functions


Highly-efficient lighting protection and strong RFI & EMI resistance and well stability



Applications:



a. Water tank level measurement and control.


b. Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).


c. Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.


d. Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)



Pressure Range:



0-0.1 Bar…..50 Bar / 0-1M……..500M H2O Optional



Overload:



150% F.S.



Burst Pressure



300% F.S.



Accuracy:



≤ ±0.5%F.S; ≤ ±0.25%F.S; ≤ ±0.1%F.S



Long Stability:



Standard: 0.2%F.S±0.05%



Working Temp:



-30℃~70℃ OR -30℃~100℃(Customized)



Temperature Compensation:



-10℃~65℃ OR -20℃~80℃(Customized)



Medium compatible:



Compatible with 316L Stainless Steel



Electronic Wire:



2 Wires



3 Wires



4 wires



Output:



4~20mA



1~5V


0~5V



0~10 V



0.5~4.5 V


Ratiometric



0-100 mV/V



RS485 Modbus RTU



Power Supply:



12~36 V DC



10~36 Vdc



15~36 Vdc



5 Vdc



10 Vdc



10~30 Vdc



polarity protection



Yes



Yes



Yes



Yes



Yes



Yes



Insulate resistance:



>100M Ω@100V



Electronic connection:



Fixed cable and water proof IP68



Response time:



≤4 ms (standard); ≤1 ms (Customized)



Pressure Type:



Gage pressure; Absolute pressure; Sealed gage pressure optional.



Certificate approving:



intrinsic safety or ExdIICT6 and CE Certificate approving



EMC Standard:



EN 61326-1:2013; EN 61326-2-3:2013


EN 61000-6-2:2005; EN61000-6-4:2007+A1



Cable optional:



Cable materials are optional according request, we offer 3 type special cable as follow:


PE Cable(Water Proof); PUR Cable(Oil Proof); PTFE Cable(Anti-Corrosive).



Remarks:



Special applications request by customized
