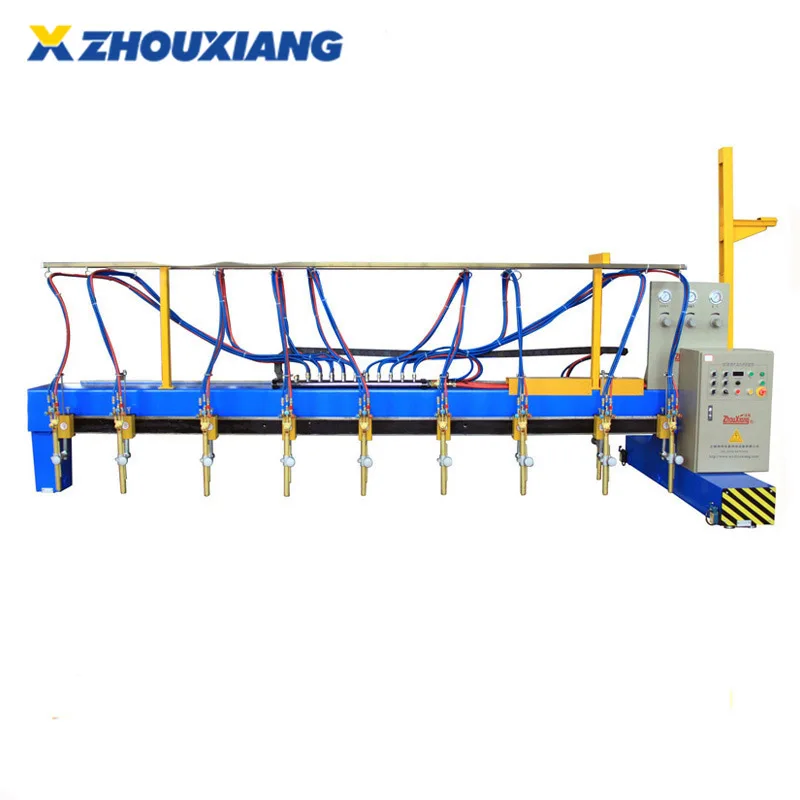

High Efficiency 9 Straight Cutting Torch Steel Plate Cutting Machine



Model	CNC/GDZ-3000	CNC/GDZ-4000	CNC/GDZ-5000
Drive mode	Double	Double	Double
CNC cutting torch	2	2	2

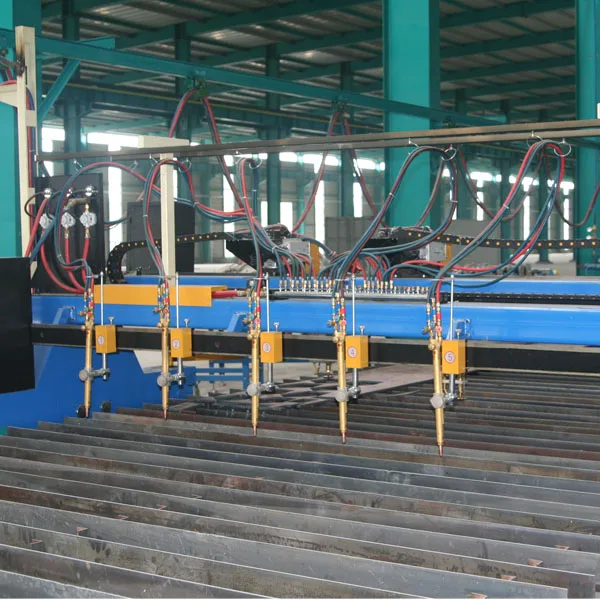

Straight cutting torch	9	9	According to user’s request
Rail Gauge	3000	4000	5000
Effective cutting width (mm)	230~2200	230~3200	230~4200
Rail Length (mm)	15,000 (valid cutting length 12,500)
Cutting depth	6~100	6~100	According to user’s request
Material of Plate	Stainless steel, carbon steel or other material
Cutting Gas	Oxygen, Propane or acetylene or other cutting gas
Free running speed	4000mm/min
Cutting precision	±0.5mm/mm
Repeatability precision	±0.5mm/mm
Above are our standard model, it can be designed and manufactured according to customer’s request.





1. Both driving end and cross beams adopt box-beam welding structure whose stress has been relieved, it features compact structure, light weight, good rigidity, small deformation and artistic appearance.

2. The driving of the main longitudinal end beam and moving of transverse torch adopts Japan Panasonic servo driver and motor which drives Japan SHIMPO reducer through rack-and-pinion gearing.

3. The side of driving end beam equipped with horizontal guiding wheels which can make the guiding wheel press rail tightly by adjusting its eccentric shaft, therefore, the stability and accuracy during the whole moving can be assured.

4. The longitudinal guide rails are all made by high intensity track, all the contact surface of track have precision machining and accurate grinding racks are installed outside the guide way.

5. The longitudinal guide rails are firmed by pressing plate backing board and connecting sleeve, which can ensure the longitudinal straightness and parallelism of rail.

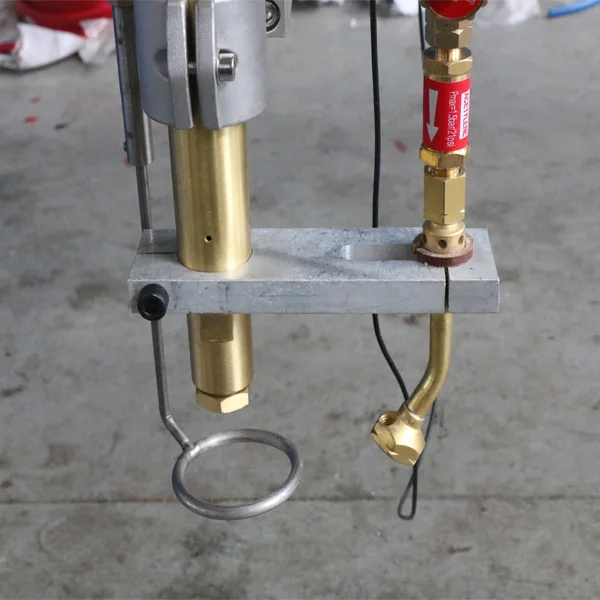

6. Automatic igniter and height controller of torch can be chosen according to customer’s requirement, with convenient operation.

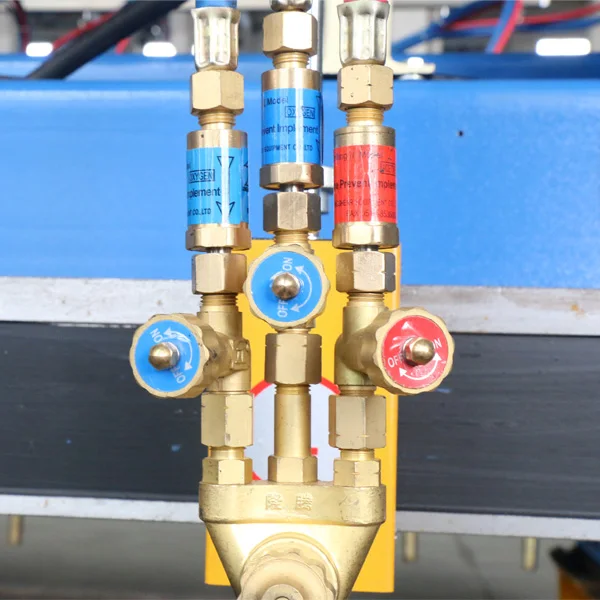

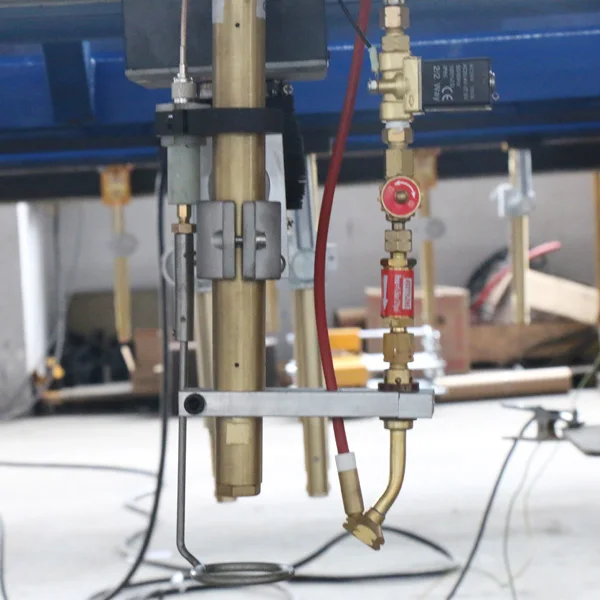

7. There’s backfire arrester equipped on the torch which can prevent the safety hazards during cutting process.



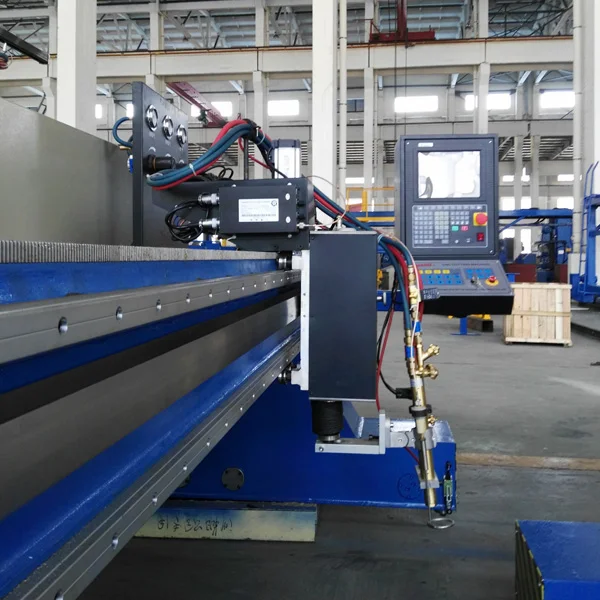

• SF-2200 CNC control system is designed by Beijing STARFIRE company. The system is equipped with10.4 colorful LED display screen,Chinese and English human-machine interface,parametric graphics library, have very powerful cutting process and manufacturing function.


• FAGOR8037-CNC system is made by Spain FAGOR Company which has excellent functions, Is a cost-effective CNC system,With multi-language functions,Built in PLC central control unit.7.5 inch color LCD screen,USB interface and a number of features.


• EDGE PRO CNC system is developed by American HYPERTHERM AUTOMATION company,basis on WINDOWS interface operate CNC system,The system is equipped with a large hard disk memory,15inch touch panel.USB interface parameter graphics base,etc. Intelligent systems, operation simple and convenient.
