Product Profile

For a long time laboratory traditional Chinese medicine (herbal) natural product extraction and juice spray drying have been a difficult problem for scientific research personnel. Upon laboratory traditional Chinese medicine (herbal) natural product extraction and juice spray drying, materials immediately melt when spray dried as they have a lot of carbohydrate compositions which are easy to melt at high temperature and they form sticky candy like substances on drying chamber wall of traditional spray dryer. As a result, scientific research personnel can not get desirable powder with good liquidity. Sometimes a lot of auxiliary materials are added in order to get the powder, such as starch or cyclodextrine, but no satisfactory effect has been achieved.

Product Description

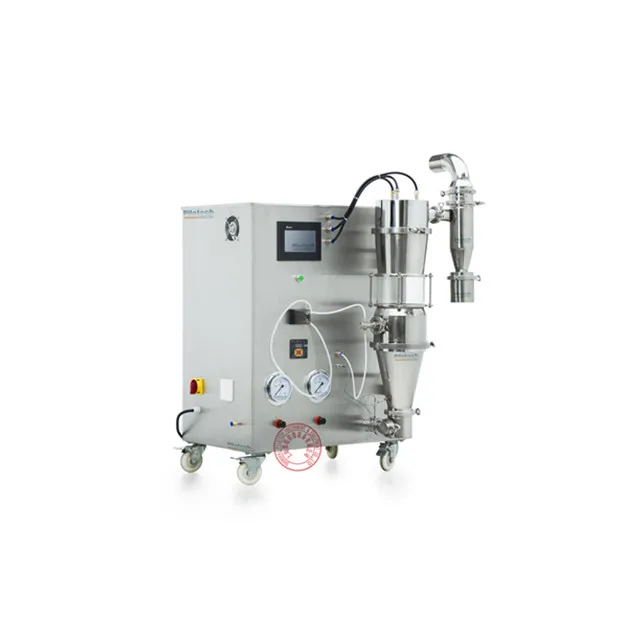

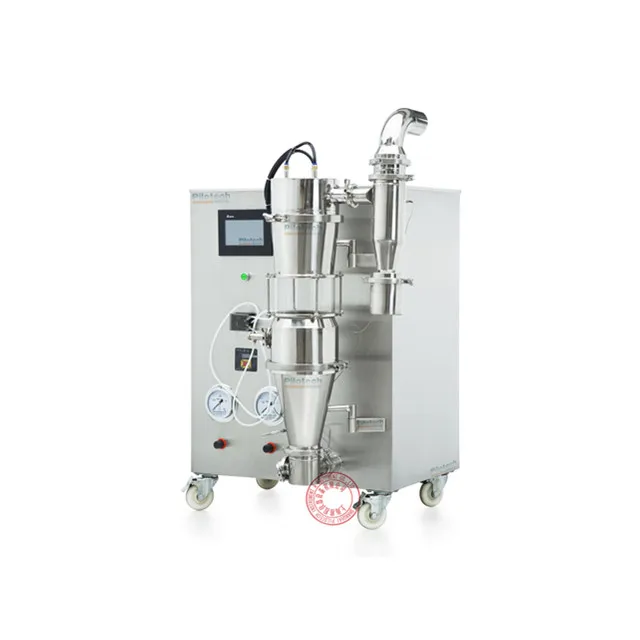

YC-1800 laboratory low-temperature spray dryer is a breakthrough made by Shanghai Pilotech Instrument & Equipment Co., Ltd with efforts in spray drying technology. YC-1800 can extract natural product and juice from traditional Chinese medicine (Chinese herbal medicine) in laboratory and get powder particles of excellent liquidity at a low temperature of 110°C with a high yield. In particular, it achieves rapid material drying at low temperature and provides very convenient and safe drying method for thermo-sensitive materials, such as biological product, high carbohydrate traditional Chinese medicine natural product extract, thermolabile polymer material, heat gasification material and so on.

Features

1)Spray dry at low temperature (110℃) using for thermosensitive material.

2)7" high-resolution LCD, human-oriented interface, Chinese and English menu, Optimize operation procedure, efficiency, flexibility, easy-going and easy learning.

3)Patrticle size with normal distribution

4)Two fluid atomizing structure, made of SUS 304(316 optional)Stainless steel. Easy operating.

5)To assure accurate temperature control and easy parameter adjusting, YC-1800 applies PID.

6)The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution.

PRODUCT PARAMETERS

Parameters

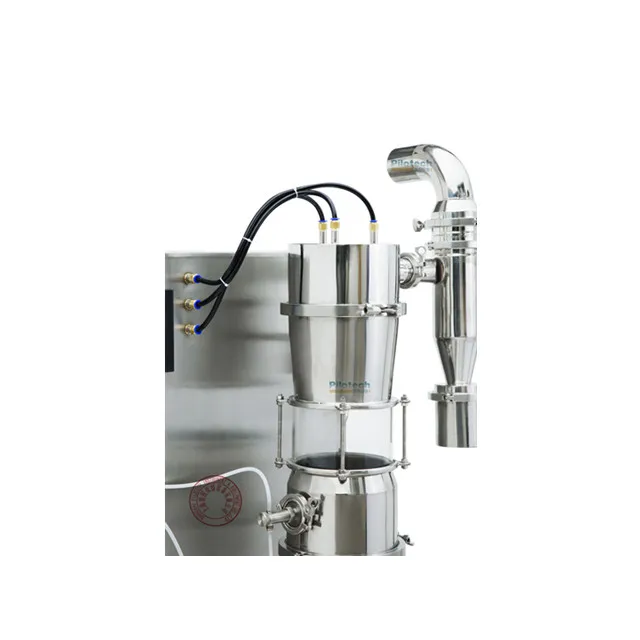

1,Two fluid atomizing structure, made of SUS 304(316 optional)Stainless steel.

2,Evaporation rate of water at inlet temperature of 110ºC using Standard:Approximately 1000 ml~ 1800ml/hour

3,Min sample:50ml

4,To assure accurate temperature control and easy parameter adjusting, YC-1800 applies PID.

5,standard with 0.7 mm jet and other sizes are available as accessories

6,Power: 4KW/380V

7,Spray dry at low temperature (110℃) using for thermosensitive material.

8,7" high-resolution touch screen LCD

COMPANY PROFILE

PRODUCTION SHOW

QUALITY INSPECTION SHOW

CERTIFICATE SHOW

OUR CUSTOMERS

PACKAGE TRANSPORTATION

FAQ

	Do all products have English operating interfaces and operating manuals?
	Yes, all our equipment has English operation interfaces, and if necessary, we are also able to provide the edition in the user's native language, and all products are available in English operating instructions; if necessary, we can also provide the user's desired language version. In addition, there are are operating videos for our products for the convenience of customers to use. Q:How is the after-sales service of your company?
	How is the after-sales service of your company?
	We offer one-year quality guarantee for all the products, and for products within the warranty period, we provide free services for all damages not resulting from human beings. After the warranty expires, we will charge cost price only .
	How is the stability and durability of your products?
	The company has been established for over 10 years, and our products have been adopted by 90 percent of colleges and universities in China. The earliest products are still used by customers at present; they are really durable. In China, before purchasing our equipment, many teachers in university will listen to the views of colleagues carefully. Pilotech's equipment is reputed for its good performance and stability, and numerous new customers are recommended by old customers.
	As for the overseas market, what kind of policy does Pilotech have on dealers?
	Pilotech welcomes dealers worldwide to sell our products, and we will provide dealers with strong technical support and competitive prices. Pilotech hopes to grow and develop together with distributors from different countries.
