 Double-head cnc edm machine low price





MACHINE	UNIT	SPEC
Table Dimension	mm	2000x1000
Internal Dimensions of Processing Tank	mm	3000x1540x700(length×width×height)
Running Distance of X,Y,Z Axis	mm	1800x800x550(Single)
		1200x800x550(Double)
Maximum Weight of Workpiece	kg	6500
Distance From Electrode Plate to table	mm	600~1200(minimum~maximum)
Outline Dimension		5000x4500x3650(lengthxwidthxheight)
Machine Weight	kg	6500
Input Power Supply	V	380(domestic)
Total Input Power	KVA	9+9





 2. Performance Upgrades

We have a comprehensive ability of development and upgrade on hardware and software, We have reached the following improvements, and will provide upgrade services for customers.



(1). Pulsing tool lifting

Up parameter, short tool lift, controlled by ten digits.

(a). Compared to the same previous params of tool lifting, a 15% processing time is increased, and a 30% speed is improved when processing the bone position.

(b). More continuous discharging.

(c). The smaller DN parameter can be used under special circumstance, the processing efficiency is not affectted.

 (2). Low current processing, more stable servo algorithm is improved, and the processing efficiency of the rang of 0.5A~3A is improved by 10%.



(3). Fine processing speed

The fine processing speed of C825 and C810 is improved by 20%.



(4). Custom servo voltage

The original set of stalls is from 0 to 9. In order to solve the software problem that the servo stall gap is too big, the actual servo voltage which can be setted by customers is from 11 to 200.



EDM process has become the important part in the field of mechanical manufacture. They are widely used in the fields of moulds, electrinic instruments, precision mechanical process, automobile parts, military, etc.

Our company's EDM series machines are featured in strong functions, convenient and reliable operation, of fairly good rigidity, running placidly, of good controll ability, suitable to process conductive metal moulds, complicated metal parts and templates with high precision, high toughness and difficult processing.

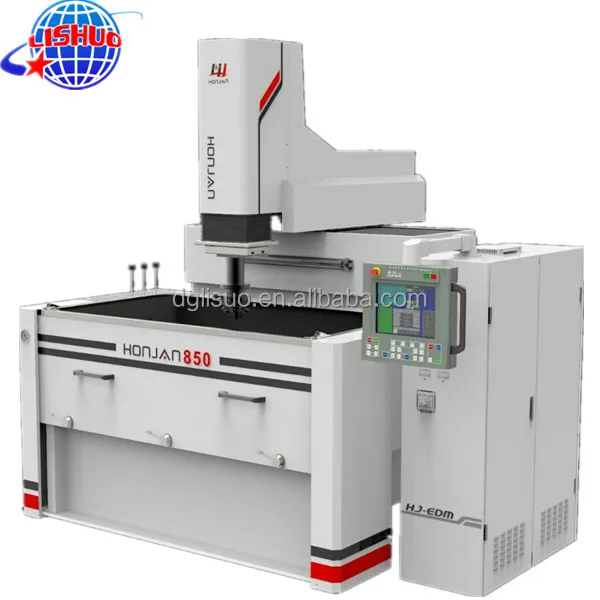

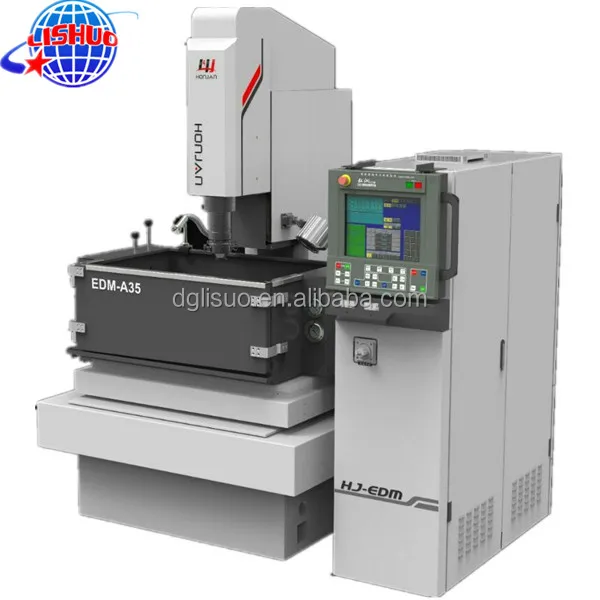

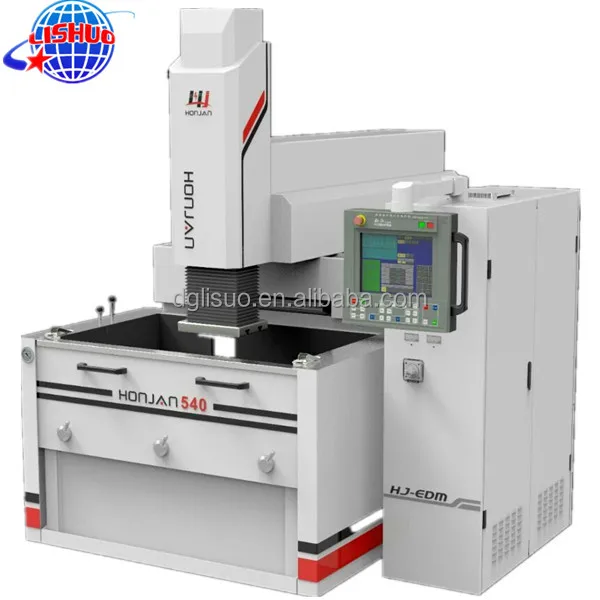

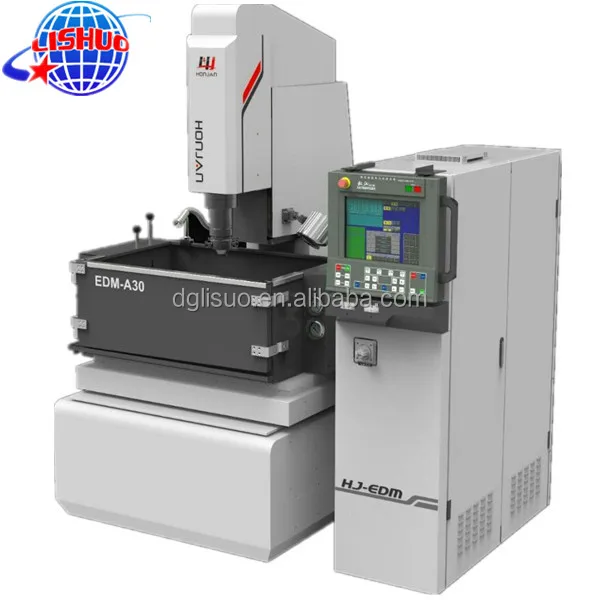

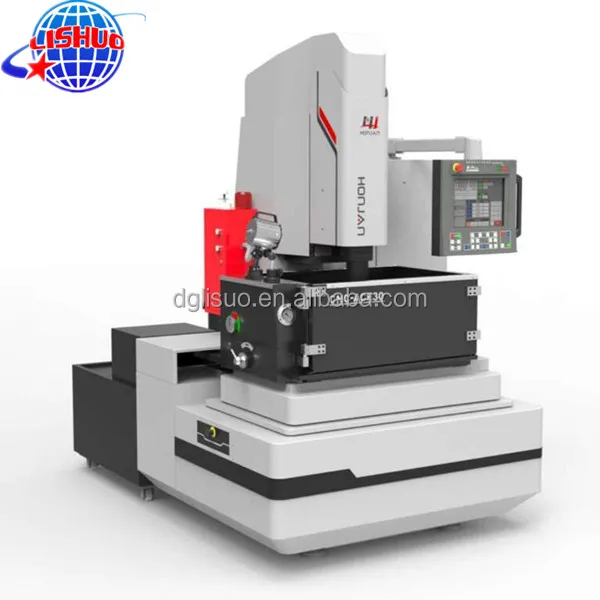

Related Products:

The Products made by our machines are as follows:



Payment

(1).T/T payment, L/C, D/A, D/P (2). Paypal, Escrow. (3).Western Union, MoneyGram.







♥Quick  Response	Your inquiry will be replied with 24 hours.
♥High  Quality	Well-trained workers and more than 10 years experience.
♥Customer  First	Customer oriented, efficient solution to control the cost for our client.
♥Competitive  Price	Directly from factory to save your money.
♥After-sales  Warranty	Once there is problem after you received products, you can contact us  in time.We will resolve it in short time.
♥Flexibility	Small orders are acceptable for quick delivery and to help you reduce  stock cost.
♥QC System	Each part has been got 100% test and try out before shipment.
♥OEM Service	Custom fabrication according to your drawings, samples or designs.



As a professional manufacturer, our company war established in 2000 and located at Chang'An town, DongGuan City, GuangDong Province. We have an extensive stock holding and we ensure your order is properly packaged and dispatched to wherever you are in the world. All of our products are comply with international quality standard with competitive price.



If you need any assistant, please don't hesitant to tell me. Our mission is sticking with the good quality and satisfactory service.

1. Can I negotiate the price?

      Yes. we will consider the discounts based on your order quantity.



2. What's your minimum order requirement?

      MOQ is depended on the type of products.



3. How long will you prepare the goods?

      Generally, it's about 3 days to 15 days. But it finally according to the order quantity and product type.



4. How can I know my order's production progress?

      We will keep on eyes on the production progress, and inform you when start producing and shipping.



5. What warranty you can offer to me?

      Please send the goods back to us for replacement within one month if there is any problem with our products. Please keep the goods in the previous condition but we are not charge the delivery cost. Hope you can understand.
