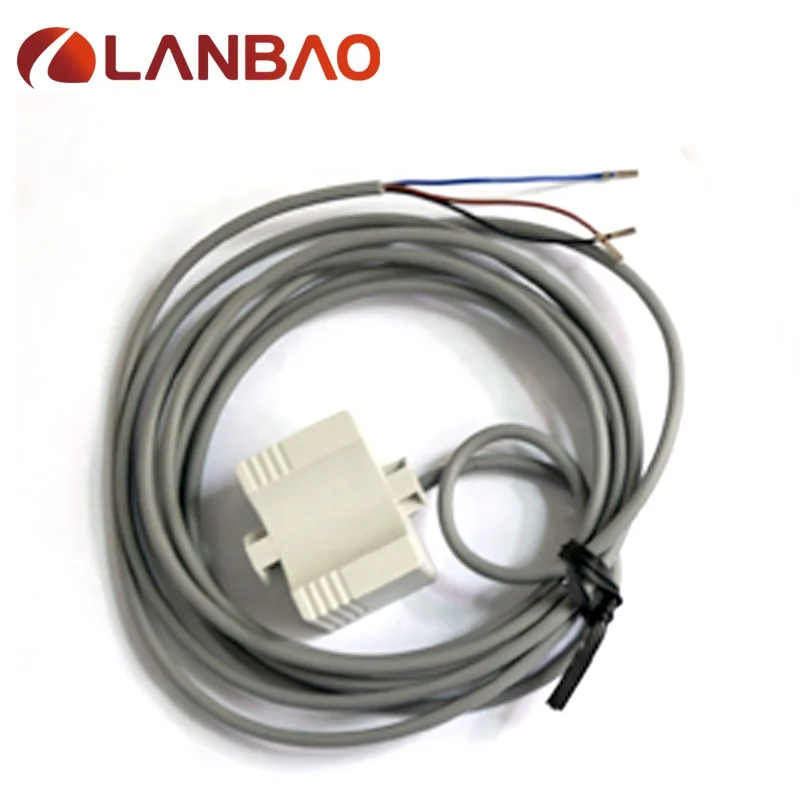

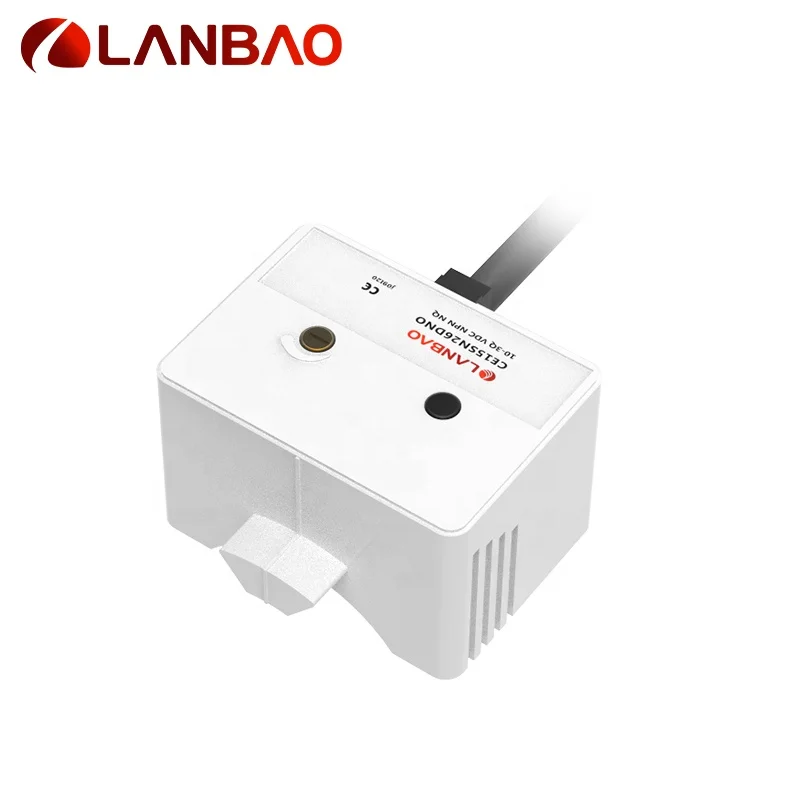

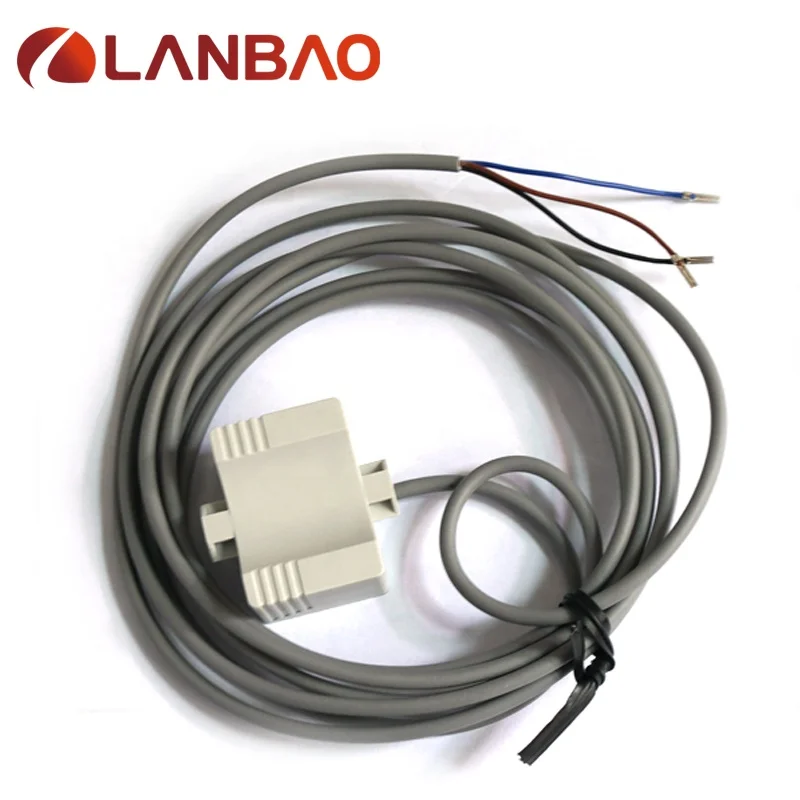

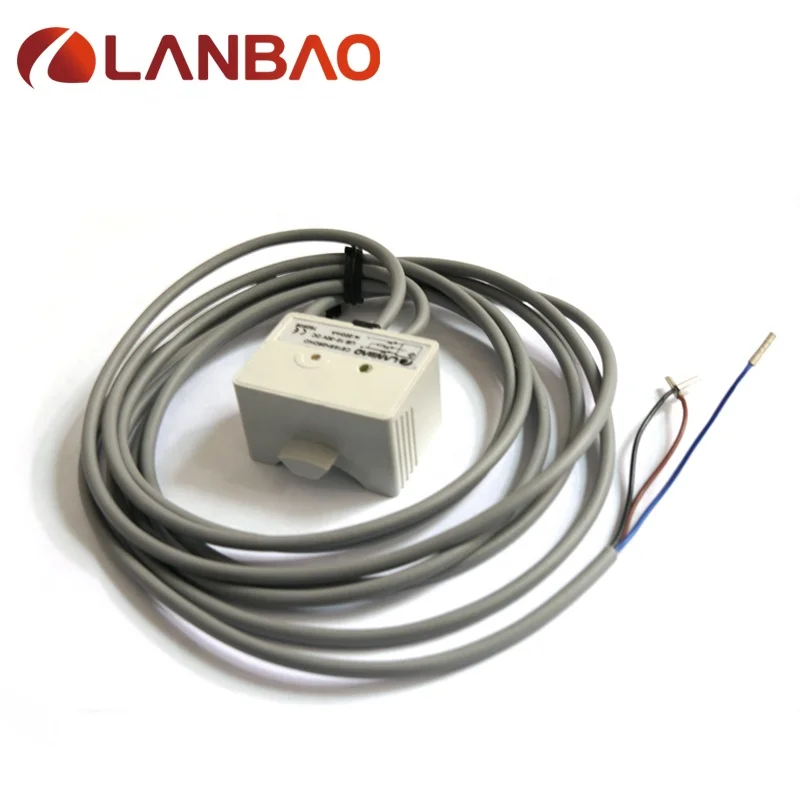

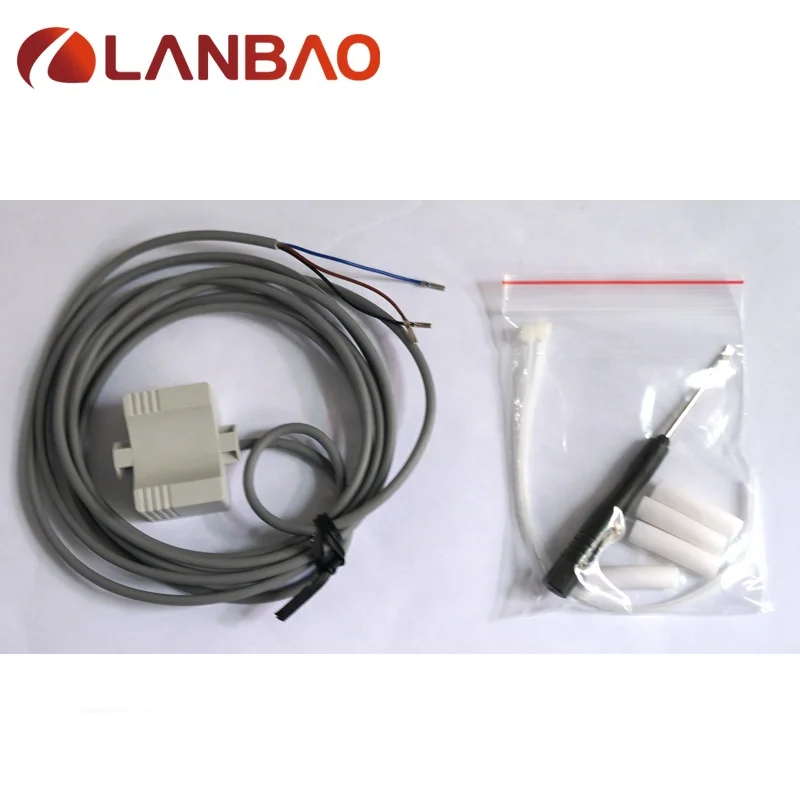

Npn Nc Lanbao Capacitive Sensor Liquid Water Level Sensing Detector (ce15sn26dnc Dc3)

Features

♦U type design for easier installation and detection

♦Be able to detect various media via nonmetallic container

♦Widely applied in container detecting







Part number

NPN NO	CE15SN26DNO
NPN NC	CE15SN26DNC
PNP NO	CE15SN26DPO
PNP NC	CE15SN26DPC







Technical specifications



Mounting	Non-Fush
Rated distance [Sn]	.......
Assured distance [Sa]	.......
Dimensions	34*33*20mm
Output	NO/NC(Depends on model)
Supply voltage	10…30 VDC
Applicable pipeline	Non-metal, O. D.:Ø12…26; Wall thickness
Switch-point drifts [%/Sr]	≤1.0mm
Hysteresis range [%/Sr]	≤±20%
Repeat accuracy [R]	3.......20%
Load current	≤100mA
Residual voltage	.......
Current consumption	≤15mA
Circuit protection	Short-circuit, overload and reverse polarity protection
Output indicator	Yellow LED
Ambient temperature	-10℃…55℃
Ambient humidity	35-95%RH
Frequency	60Hz
Voltage withstand	500V/AC 50/60Hz 60s
Insulation resistance	≥50MΩ(75VDC)
Vibration resistance	.......
Degree of protection	IP67
Housing material	PBT
Connection	2m PVC cable





Dimension                                                                                                                                               unit:mm



Wiring diagram

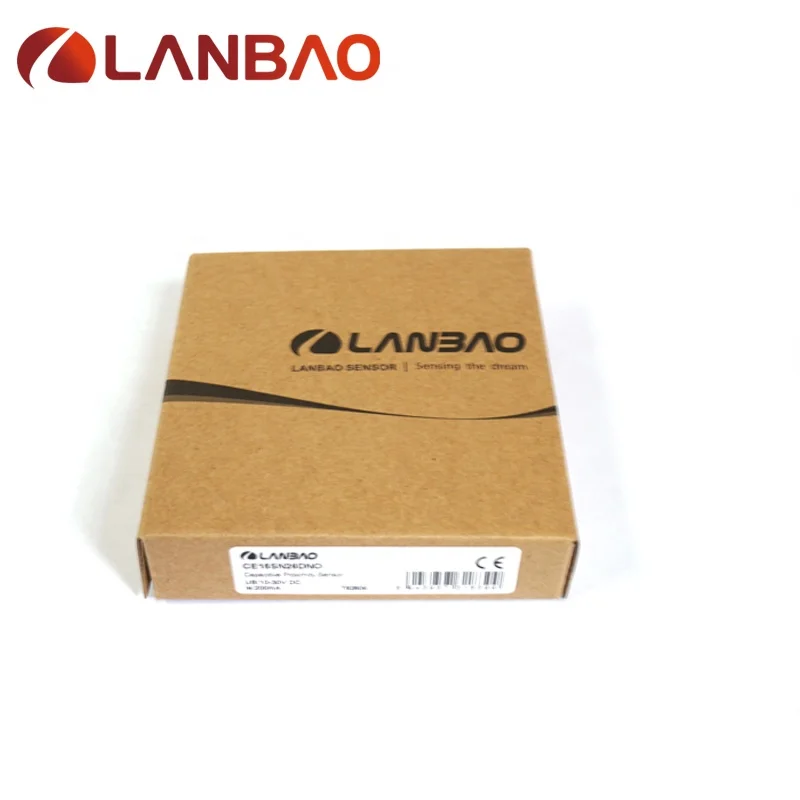

Packing

Packaging is designed according to specific products for better protection.
