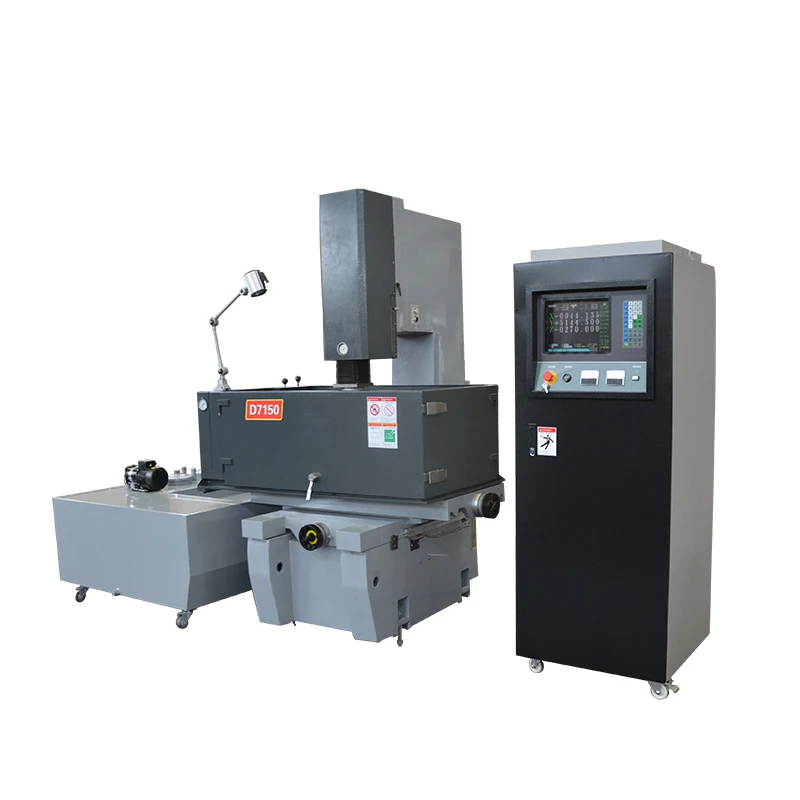

Точная формовочная машина EDM серии
- Категория: Other Machine Tool Equipment >>>
- Поставщик: Taizhou,Hitech,Nc,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 8330.75 $* | 8747.23 $* |
| Aug-20-2025 | 8260.93 $* | 8673.10 $* |
| Jul-20-2025 | 6930.76 $* | 7277.1 $* |
| Jun-20-2025 | 8120.64 $* | 8526.37 $* |
| May-20-2025 | 7070.11 $* | 7424.67 $* |
| Apr-20-2025 | 7980.24 $* | 8379.45 $* |
| Mar-20-2025 | 7910.29 $* | 8306.25 $* |
| Feb-20-2025 | 7840.16 $* | 8232.47 $* |
| Jan-20-2025 | 7770.17 $* | 8159.89 $* |
Характеристики
Product Description
Main Features☆☆☆☆☆
1) Japan SANYO DC servo motor in Z axis.
2) X,Y axes adopts precise ball screw.
3) Professional database system.
4) High speed 400mm3/min.
5) Surface roughness Ra0.8.
6) Taiwan control system.
7) Germany guideway.PVC coating for wear resistance.
8) SIEMENS,Germany AC contactor.
9) OMRON relay.
10) Japan high frequency power tube.
11) Harbin bearings.P5 grade.
12) Castings,HT250 resin sand.

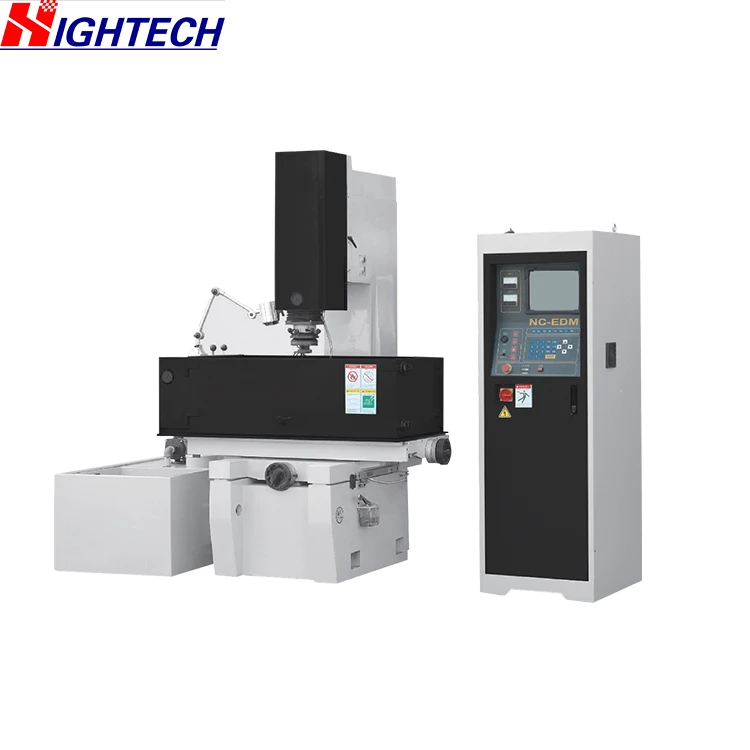

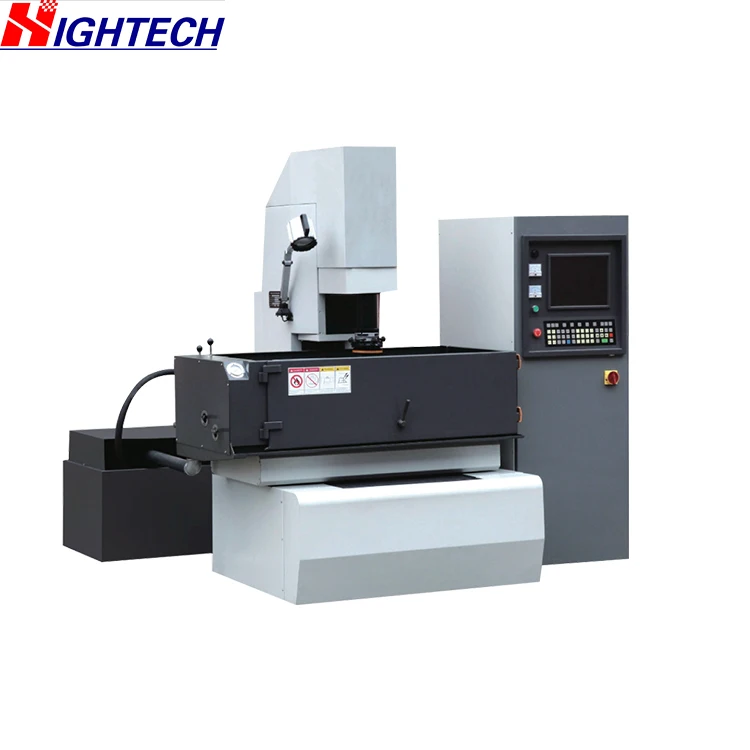

Die Sinking Forming EDM Machine Introduction
The die sinking EDM D7132 machines are used with impulse electric cabinet.Z axis is driven by Japan SANYO DC servo motor,with Z axis numerical control feature.
X,Y axes adopt precise ball screw,and precision optical grating digital display shows the coordinate which make coordinates have high positioning accuracy.
Electric cabinet of EDM die sinking machine adopts the most advanced industry-specific control board,strong function,good stability,simple operation.
As long as input a few parameters,such as Z axis depth,it will select a set of suitable date from the expert database system that matches the processing,and process from the rough processing to finish once automatically.
Main Parameters of Die Sinking Forming EDM Machine
Item | D7125 | D7132 | D7140 | D7145 | D7150 | D7160 |
Worktable size | 400x250 | 500x200 | 650x400 | 720x450 | 800x500 | 1000x600 |
Worktank size | 1030x520x320 | 1030x560x320 | 1050x630x410 | 1400x710x410 | 1450x780x500 | 1680x850x580 |
X axis travel | 250 | 320 | 400 | 450 | 500 | 600 |
Y axis travel | 150 | 250 | 300 | 350 | 400 | 450 |
Z axis travel | 240 | 240+240 | 250+250 | 250+250 | 250+300 | 250+350 |
Distance between electrode and worktable | 400 | 550 | 650 | 680 | 700 | 800 |
Max. workpiece weight | 250 | 550 | 750 | 800 | 800 | 1000 |
Max. electrode weight | 50 | 60 | 70 | 80 | 100 | 150 |
Machine weight | 1100 | 1200 | 1800 | 2000 | 2200 | 3000 |
Machine size | 1100x1200x2040 | 1100x1400x2120 | 1100x1200x2040 | 1500x1500x2250 | 1600x1500x2300 | 1700x1600x2400 |
Control Cabinet of Die Sinking Forming EDM Machine
Taiwan control system
SIEMENS,Germany AC contactor.
OMRON relay.
Japan high frequency power tube.
High speed:400mm3/min.
Surface roughness:Ra0.8
Workpieces Show of Die Sinking Forming EDM Machine
Package Pictures of Die Sinking Forming EDM Machine
Company Introduction
D71 Series Precise EDM Forming Machine
Company Introduction
Taizhou Hitech NC Machine Tool Co.,Ltd is located in Hi-tech Science and Technology Industry Zone of Taizhou City,Jiangsu Province,China.
Main Products
Our company specializes in researching,manufacturing and selling quality EDM machines all over the world.Our products include:
Single cut EDM wire cutting machine
Multicut EDM wire cutting machine
Die Sinking EDM D7132
EDM drill machine
Emery wire cutting machine
Brass wire EDM cutting machine
Main Market
Taizhou Hitech NC Machine Tool Co.,Ltd has build long-term and close cooperation relationships with many foreign friends,covering more than 20 countries,and we are looking forward to more cooperations with friends all over the world and hope our machines can help more friends in their local industry and business market development.
Service and Quality Promise
We always keep our enterprise mission--"Quality Changes The World" in mind.We start our work from each trivial matter and do our best to complete each detail well and offer solid technical service and good service to our customers.
Why Choose Us
Certificates
Test Equipments
Trade Assurance Service
One-year Warranty
24 Hours After-sales Service
L/C Acceptable
Pre-sales Service
* Inquiry and consulting support.
* View our factory.
* Offer quotation.
After-sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*Provide all spare parts for life-time.
FAQ
Q:Are you manufacturer?
A:Yes,we are manufacturer of die sinking EDM D7132 machine.Welcome to visit us!
Q:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q:What information do you need before making quotation?
A:Worktable size or table travel you need.Surface roughness and cutting speed requirements.
Q:What should I do to start a new business in die sinking EDM D7132 machine area?
A:Please contact us immediately,we provide free pre-sales consultant service.
Q:Why choose you?What is the difference between you and other Chinese supplier?
A:We have specialized in this area for over 20 years.Our die sinking forming EDM machines are exported to Russia,India,UAE,South Korea,Canada,Vietnam,Thailand,Mexico,Turkey and etc.
You can get higher quality product & better professional service from Hitech with same price.
Q:I`m worried about after-sales service!
A:Warranty is one year.
Any parts damaged during warranty will be replaced for free!
We provide spare parts for life time at cost price.
Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price.
Our engineers are available to service overseas!
Q:How do I get in contact with you?
Wechat/Whatsapp:+8618936786832
Skype:sophie_hitech
Telephone:+86-523-86892269
Fax:+86-523-86892368
