Цилиндрическая бурильная-фрезерный станок с ЧПУ

Категория: Other Machine Tool Equipment >>>
Поставщик: Shenzhen,Richon,Industry,Co.,Ltd.

Цена:14 800,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	17612.87 $*	18493.50 $*
Aug-19-2025	17464.57 $*	18337.87 $*
Jul-19-2025	14652.73 $*	15385.9 $*
Jun-19-2025	17168.85 $*	18026.62 $*
May-19-2025	14948.42 $*	15695.52 $*
Apr-19-2025	16872.55 $*	17716.57 $*
Mar-19-2025	16724.9 $*	17560.38 $*
Feb-19-2025	16576.20 $*	17405.17 $*
Jan-19-2025	16428.89 $*	17249.96 $*

Характеристики

Products Description

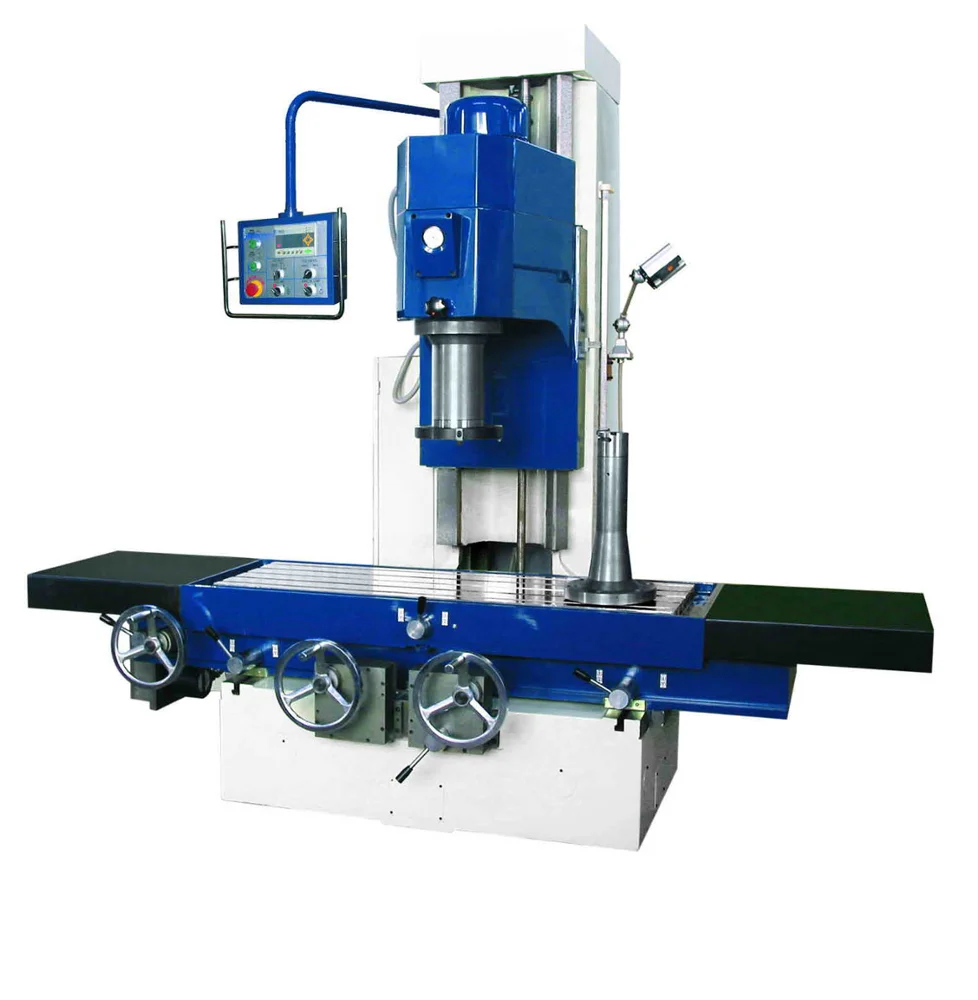

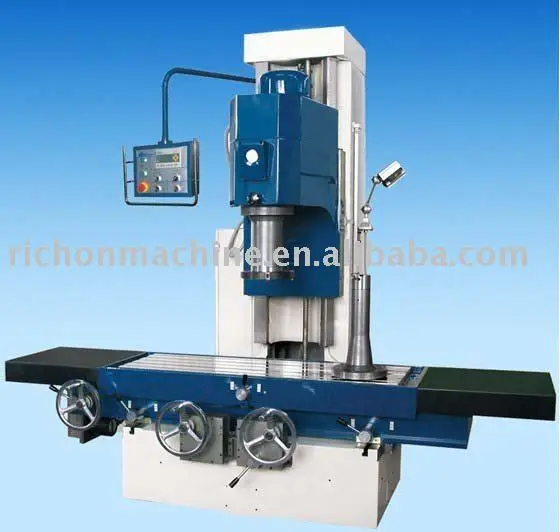

Cylinder boring-milling machine TX200A

* Stepless of spindle turning, feeding and table travelling
* Rotating speed and feed of spindle as weel as the movement of worktable is free-setup, automatical returning of spindle can be
realized
* Longitudinal and cross movement of table
* Complete set of accessories of boring, milling, drilling & reaming and easy exchange
* Tool fast centering device
* Tool measuring device
* Boring depth control device
* Table with digital readout for jig borer machine

MAIN SPECIFICATION			UNIT	TX200A
Max.boring diameter			mm	200
Max.boring depth			mm	500
Max.milling area			mm	400x1000
Max.drilling & reaming diameter			mm	30
Spindle speed			mm	120-860
Feeding of the spindle			r/min	14-900
Rapid moving speed of the spindle			mm/min	900
Spindle travel			mm/min	700
Distance between spindle end face and table			mm	0-700
Distance between spindle axis and carriage vertical plane			mm	365
Longitudinal feed of worktable			mm	32-1350
Rapid moving speed of the table longitudinal travel			mm/min	1350
Max.longitudinal travel of the working table			mm/min	1500
Max.cross travel of the working table			mm	200
Worktable size (W*L)			mm	500x1500
Dimensional precision of boring hole			mm	H 7
Machining precision	Roundness	mm	0.005
			Cylindricity		0.01/300
			Milling flatness		0.1
Surface roughness	Boring	um	Ra2.5
Surface roughness		um	Milling		Ra3.2
Main motor power			kw	5.5
Overall dimensions (LxWxH)			cm	260x163x230
Packing dimensions (LxWxH)			cm	225x190x228
N.W/G.W			kg	3500/3800

Company information

Customer Review

FAQ

Q1: How long guarantee period you offer?/ how is warranty?
A1: 12 month guarantee after machine on board.

Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.
Cost-value replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time.

Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customer requirements(relative cost born

by customer.

Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet different requirements.

Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! So you can rest assured on our quality products and our best services.

Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
