Универсальный револьверный фрезерный станок

Цена:*

Количество:

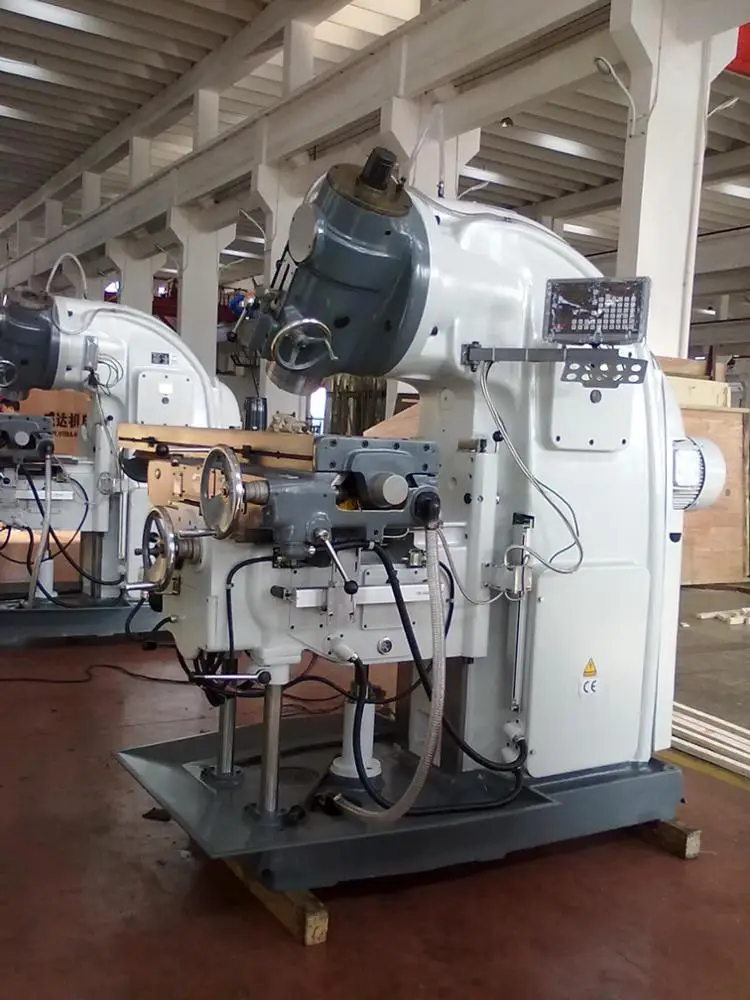

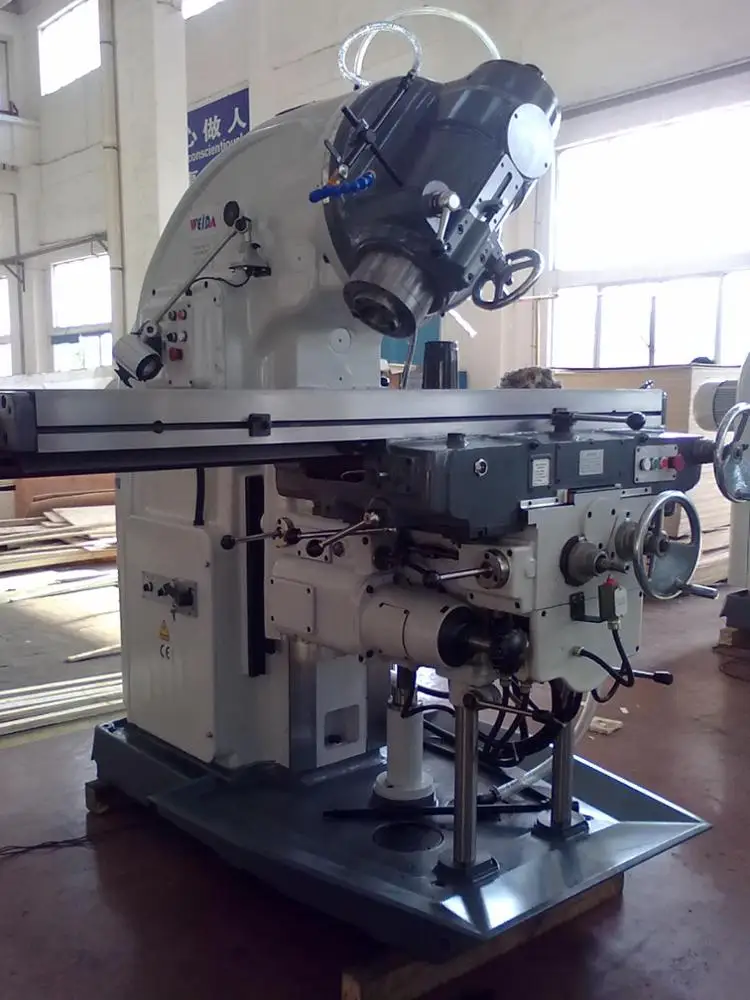

X5040 Vertical knee-type milling machine

Specification	Unit	X5040
Table size	mm	400X1700
T-slots(NO./Width/Pitch)		3/18/90
Longitudinal travel(manual/auto)	mm	900/880
Cross travel(manual/auto)	mm	315/300
Vertical travel(manual/auto)	mm	385/365
Rapid feed speed(X/Y/Z)	mm/min	2300/1540/770
Max. load	kg	800
Table feed range(X/Y/Z)	mm/min	23.5-1180/15-786/8-394
Spindle speed range	r/min	30-1500
Spindle speed step	steps	18 steps
Stroke of spindle quill	mm	85
Max.swivel angle of vertical milling head		±45°
Distance between spindle nose and table surface	mm	115/500
Power of spindle motor	kw	11
Overall dimensions(L×W×H)	mm	2556×2159×2258
Net weight	kg	4250/4350

Standard accessories:

name	Specification Model	Qty
Drawbar		1set
ISO50 Mill chuck	4,5,6,8,10,12,14,16	8 pieces/set
ISO50 Cutter arborCutter arbor	φ40	1 piece
7:24 The middle set of	7:24 ISO50/MS4	1piece
Oil gun		1 piece
Inner hexagon spanner	6	1 piece
Double-ended wrench	17x19	1 piece
Double-ended wrench	22x24	1 piece
Double-ended wrench	27x30	1 piece
Double-ended wrench	32x36	1 piece
Single head spanner	14	1 piece
Single head spanner	50	1 piece
Inner hexagonal wrench	5	1 piece
Inner hexagonal wrench	8	1 piece
Inner hexagonal wrench	10	1 piece

Optional accessories:

.jpg

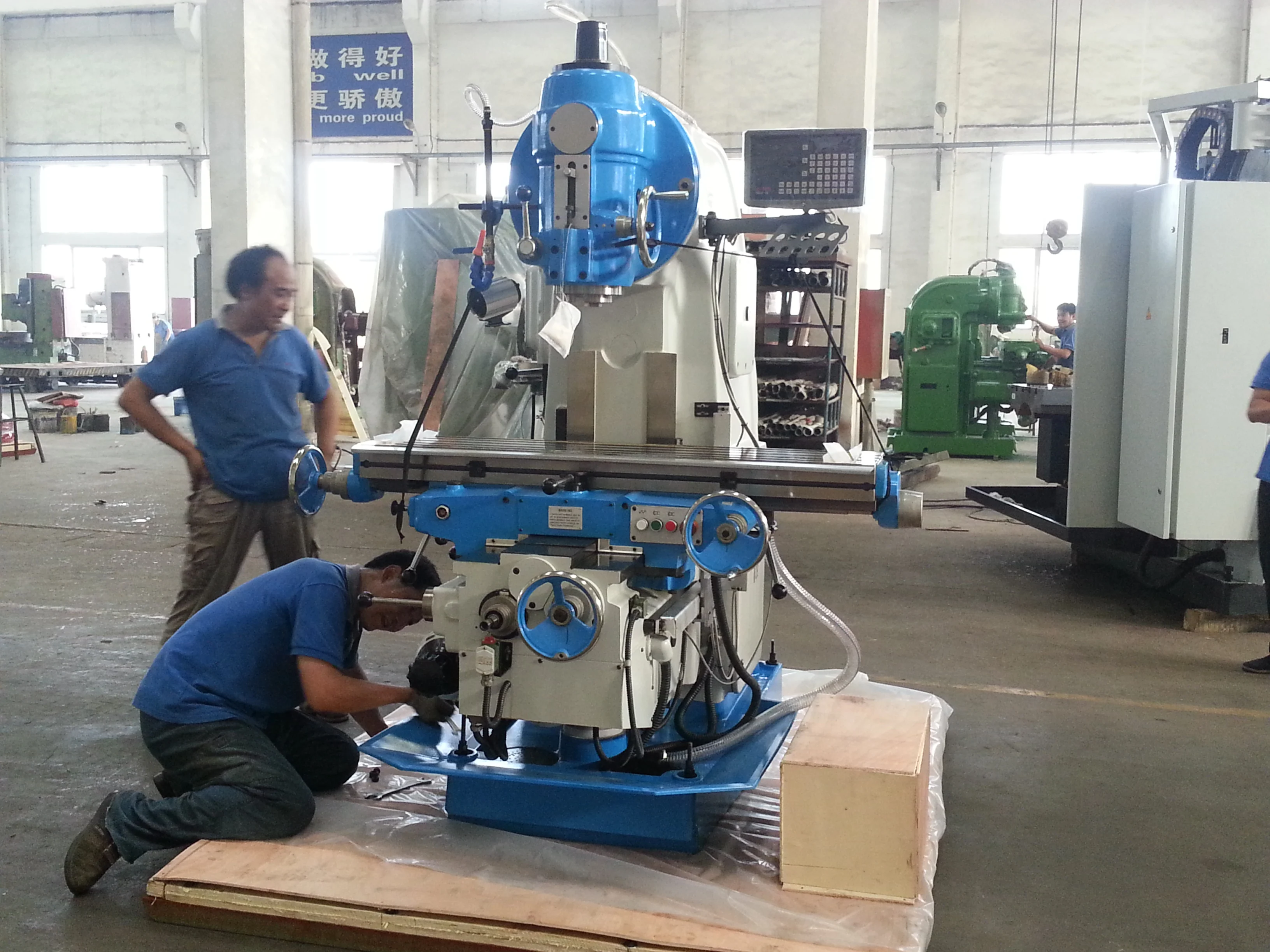

The production process :

Batch production:

Our product is done in the standard of normal workshop, large-scale production of high quality, ensure high efficiency and ensure product quality.
