Практичная и доступная машина для

Категория: Quilting Machines >>>
Поставщик: Henan,Kunmin,Machinery,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.41 $*	0.8 $*
Aug-16-2025	0.34 $*	0.71 $*
Jul-16-2025	0.88 $*	0.77 $*
Jun-16-2025	0.48 $*	0.6 $*
May-16-2025	0.87 $*	0.23 $*
Apr-16-2025	0.20 $*	0.42 $*
Mar-16-2025	0.15 $*	0.92 $*
Feb-16-2025	0.72 $*	0.65 $*
Jan-16-2025	0.96 $*	0.52 $*

Характеристики

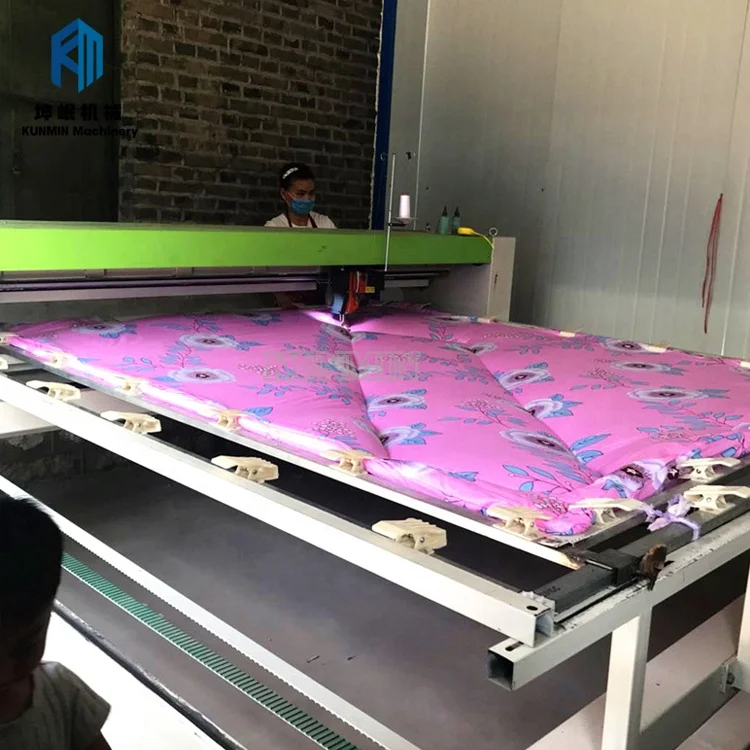

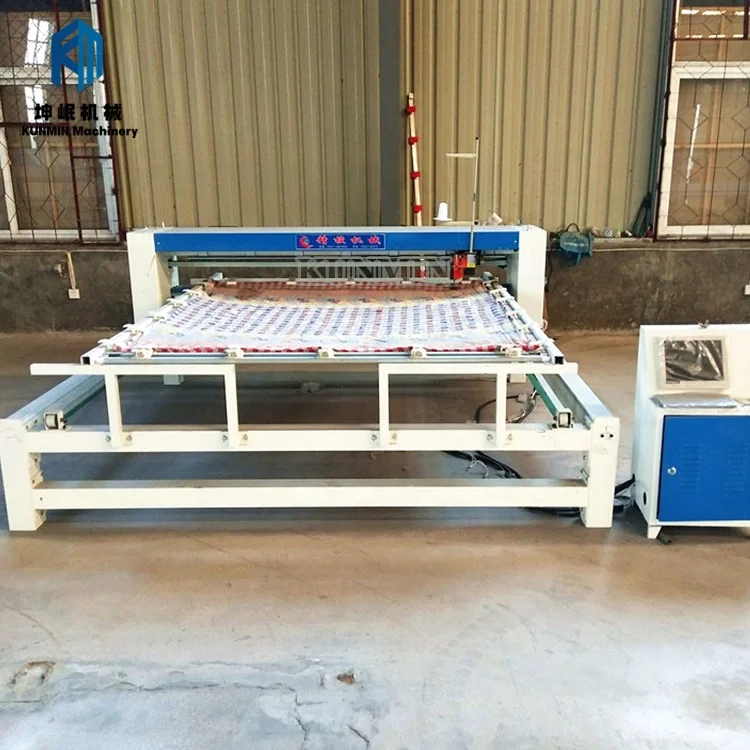

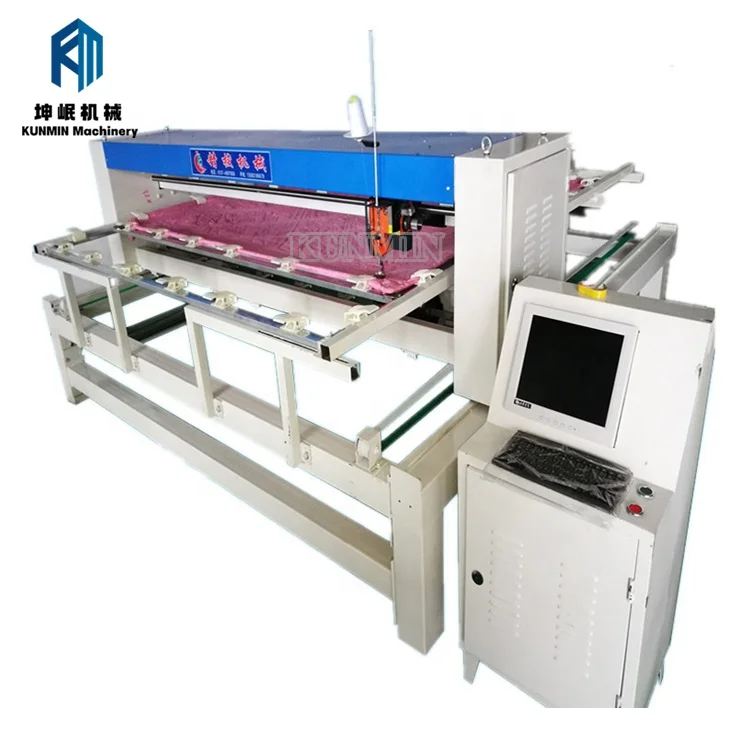

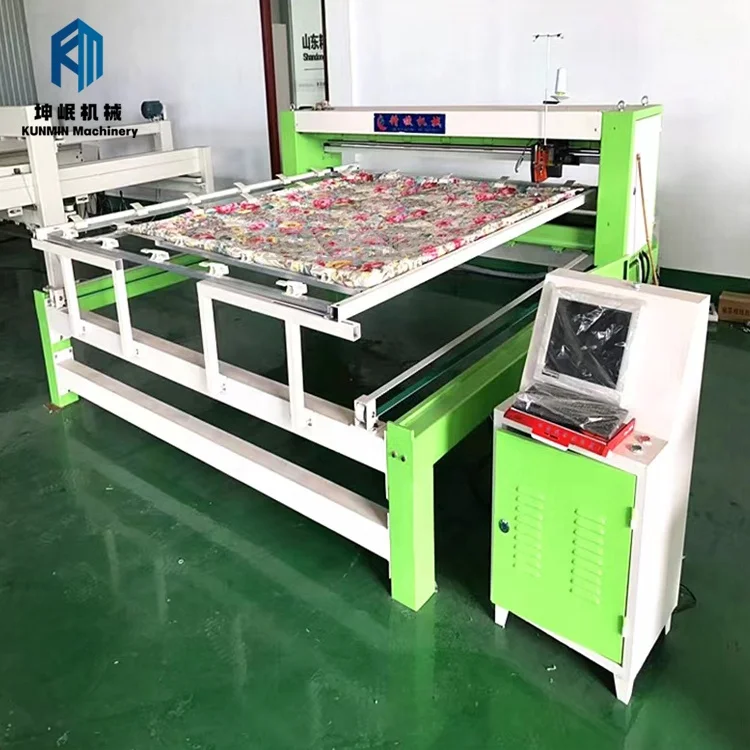

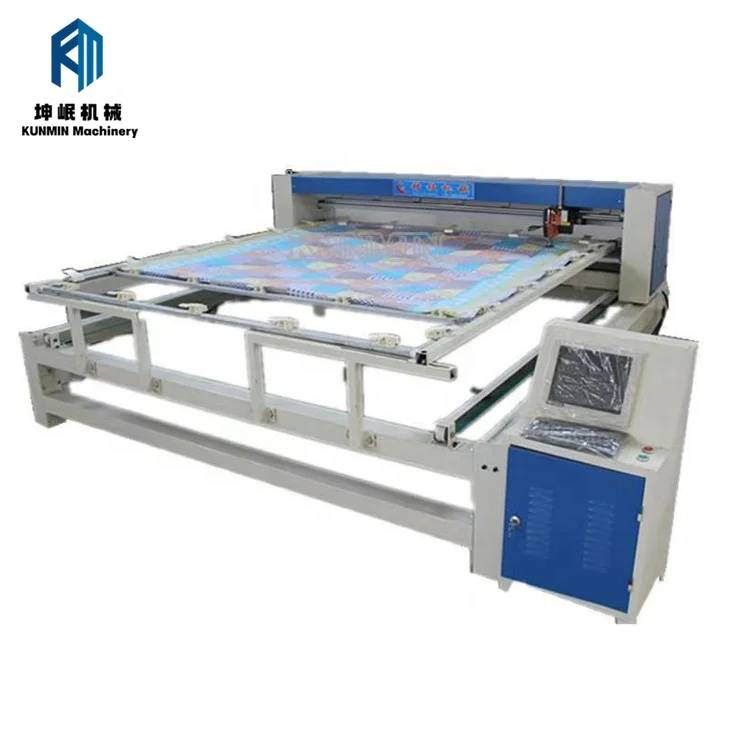

Practical And Affordable Quilt Duvet Cloth Quilting Making Machine

This machine is mainly used for the summer is cool, cotton, chemical fiber, wool, silk floss quilt, bedspread, quilt, camel hair are sleeping bags, mattresses, textile decoration materials such as sewing.

Product Selling Points

Feature:
1.You can use USB flash disk to copy patterns and other files, and support USB hot swap.
2.Through the pattern management function, it is very convenient to copy and delete pattern files.
3.Pattern tracing function, used to quickly locate to a certain point in the pattern to start quilting.
4.With pattern browsing function, it can automatically recognize a variety of pattern formats, and can rotate and mirror the pattern graphics.
5.Two types of fixed seam are provided: forward and reverse. The seam pitch can be specially treated and the length of the seam can be changed.

Advantage:

1.The main shaft adopts precision spline transmission, and the linear guide rail is used for the movement of the head, which has high motion accuracy and low noise.
2.A reliable industrial control system is adopted, the main shaft adopts frequency conversion drive system, and the X and Y directions adopt stepping drive system.
3.Using a new industrial control motherboard, the system can be started with a USB flash drive, and can run programs or restore the control system.

Product Paramenters

Model	KM-QM-22*24	KM-QM-24*26	KM-QM-26*28	KM-QM-28*30
Max.quilt size	2.2*2.4m	2.4*2.6m	2.6*2.8m	2.8*3.0m
Needle drop size	2.0*2.2m	2.2-2.4m	2.4*2.6m	2.6*2.8m
Power	110/220V 50HZ/60HZ 1.5kw
Quilting thickness	1200g/m2
Sewing speed	1300-2200r/min
Needle	DP5 18~22#
Dimension	331.4m	3.23.21.4m	3.43.41.4m	3.63.61.4m
Weight	720kg	750kg	800kg	850kg
