Характеристики
Products Description

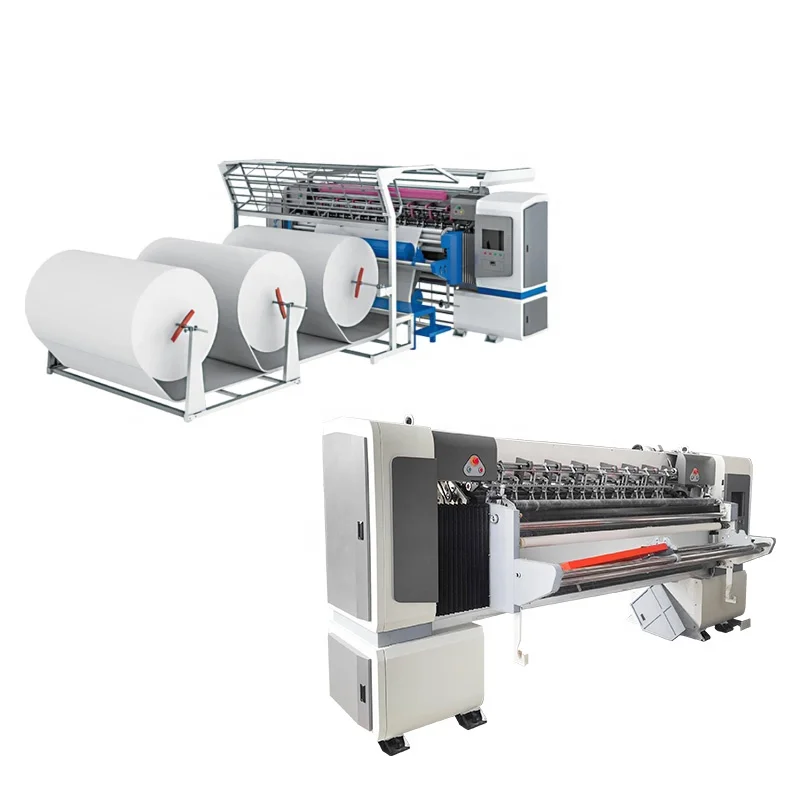

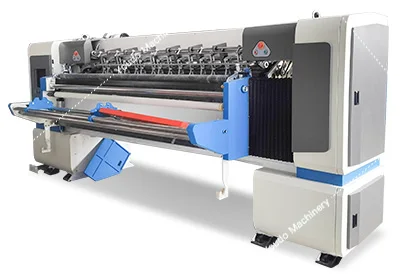

Computerized Multi Needle Quilting Machine
The machine is mainly used for producing mattress fabric, bed cover, quilt, sleeping bag and other textile decoration products. The advanced independent sewing head with subsection sewing function.This machine can produce multi-needle quilting and single head quilting patterns, it is convenient for production and customers can have abundant product models
UDZD-HFJ-3W Computeried chain stitch Multi needle quiting machine | ||
Quilt width | 2450mm | |
Space between nedle rows | (50.8,76.2127)5"(76.2,76.2,152.4)6" | |
Space between needles | 25.4mm | |
X stroke | 304.8mm | |
Quilting thickness | ≤60mm | |
Stitch | 3-8 | |
Output | 60-230(m/hour) | |
Modle of needle | 24/180 ,23/160 ,22/140 ,21/130 | |
Spindle speed | 500-1000r/min | |
Rated voltage | 380V/220V(50HZ/60HZ) | |
Power | 8KW | |
Dimension | 5400*1650*2300mm | |
Weight | 4500kg | |
Final product display
Application Cases
Machine advantages
Advantage 1
*Independent Sewing Head to Subsection Sewing
*Main Principal Axis and X,Y Axis Servo Motor Driving
*Precision and Stable Rack Linear Guide way
*Anti-vibration Fabric Hopper and Steadiness Balancing System
Advantage 1
*Fabric Pneumatic Pressure Device
*Automatic Fabric Thickness Adjusting Device
*Material Rack Follow-up System
*Fabric Draw-out Device
*Automatic Fabric Thickness Adjusting Device
*Material Rack Follow-up System
*Fabric Draw-out Device
*Automatic Roller Gap Adjustment Device
*Powerful Control System
Machine Details
Touch screen operation
Touch screen operation interface, the operation is easy and convenient.
Hidden knife design
Hidden knife design, make the operation more convenient and secure.
Infrared cutting fixed length function
Using infrared cutting fixed length function, high precision, fabric cutting neat.
high efficiency.
Work stability, a little vibration, low noise, high efficiency.
Machine Introduction
Feature
*Advanced computer control systems and mechanical manufacturing processes improve machine performance, speed, and output
*The needle row and pressure plate both use a cam free double rocker motion mechanism without the need for oil, to avoid dirty the fabric effectively.
*The spindle frequency conversion control automatically lifts the needle, and the saddle and roller are driven by servo.
*Computer numerical control speed regulation, with a maximum speed of 1000 revolutions per minute, and needle steps of 3-8mm can be set arbitrarily.
*Quilted: 180 ° pattern, 360 ° pattern, continuous pattern, and tack jump pattern.
*The needle row and pressure plate both use a cam free double rocker motion mechanism without the need for oil, to avoid dirty the fabric effectively.
*The spindle frequency conversion control automatically lifts the needle, and the saddle and roller are driven by servo.
*Computer numerical control speed regulation, with a maximum speed of 1000 revolutions per minute, and needle steps of 3-8mm can be set arbitrarily.
*Quilted: 180 ° pattern, 360 ° pattern, continuous pattern, and tack jump pattern.

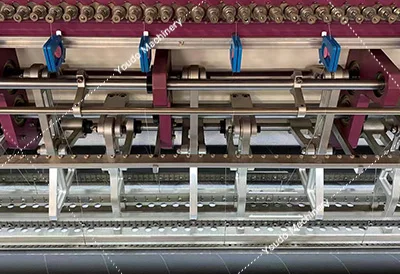

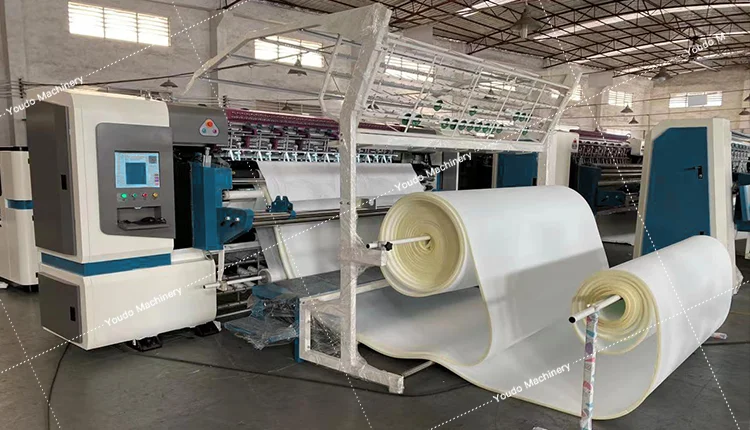

Real photo
After Sales Service
Quality assurance
We have always focused on research and development because they are the key to our corporate innovation. They make us do better in production, technical service and marketing.We provide high-quality machines and professional after-sales service.
Our goal is to maximize customer satisfaction and value. We usually provide 1 year warranty and free common accessories.
We promise that our products are brand new and have not been used. They are made of corresponding materials and adopted a new design.
The quality, specifications, and functions are in compliance with the contract requirements.
We promise that the products produced on this production line can be stored for one year without any additives.
Test and tear down
We will take the initiative to test the operation of the machine when it is completed, and take videos to let customers rest assured.When disassembling, we will paste the corresponding label on each part, and provide multi-language installation video and instruction manual. Customer satisfaction is our aim.
Package
We will wrap the machine with film to avoid damp and scattered during transportation, and thicken the export wooden box to surround the machine to protect the machine from impact and friction. The size depends on the machine.Transportation
We can provide multiple channels of transportation. We guarantee that the freight forwarders we use have more than 5 years of cooperation history, provide you with fast timeliness and economic prices, and ensure the safety and integrity of your machines.Installation and commissioning
After the equipment arrives at the customer's workshop, please arrange the equipment in accordance with the floor plan drawn up by us. During the epidemic, we can use online videos or video tutorials to guide debugging. After the epidemic is over, we can also arrange professional engineers to your factory. You need to provide our engineers'
round-trip air tickets and accommodation, as well as salary.
FAQ
Q:Are you a Manufacturer?
A:Yes, we are a professional INTELLIGENT MATTRESS EQUIPMENT MANUFACTURER over 16 years.
A:Yes, we are a professional INTELLIGENT MATTRESS EQUIPMENT MANUFACTURER over 16 years.
Q: Can we visit your factory?
A: Warmly welcome, my friends! Once we have your schedule, we will arrange professional sales team to follow up.
A: Warmly welcome, my friends! Once we have your schedule, we will arrange professional sales team to follow up.
A:Yes, we can provide you with samples free of charge, but the freight needs to be borne by you.
Q: I'm a small wholesaler. Do you accept small orders?
A: If you are a small wholesaler, no problem, we are willing to grow with
you.
you.
Q: How are you doing in quality control?
A: we have the inspection of the quality supervision department every year and issue the inspection report. Each batch of goods will be strictly controlled Controlled, there will be quality regulations within the company to ensure that each batch of products are qualified and of the best quality.
Q: How long is the delivery date of the machine?
A: Normal in 20-25 days
Q: How long is the warranty period of your machine?
A:1-year free maintenance and lifelong warranty
Q: How to ship your machines to my country?
A:We have more than 20 years of foreign trade experience and can provide you with a variety of ways to choose, cheap, fast and safe
