Нетканая шерстяная войлочная игла для пробивки дивана подушки теплоизоляция одеяла

Нетканая шерстяная войлочная игла для пробивки дивана подушки теплоизоляция одеяла

Категория: Quilting Machines >>>
Поставщик: Shandong,New,Haina,Machinery,Co.,Ltd.

Цена:22 200,00 $ - 23 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	26418.44 $*	27739.11 $*
Aug-20-2025	26196.1 $*	27506.27 $*
Jul-20-2025	21978.67 $*	23077.91 $*
Jun-20-2025	25752.3 $*	27040.57 $*
May-20-2025	22422.33 $*	23543.65 $*
Apr-20-2025	25308.41 $*	26573.66 $*
Mar-20-2025	25086.98 $*	26340.11 $*
Feb-20-2025	24864.31 $*	26107.81 $*
Jan-20-2025	24642.3 $*	25874.39 $*

Характеристики

Product description

Product usage

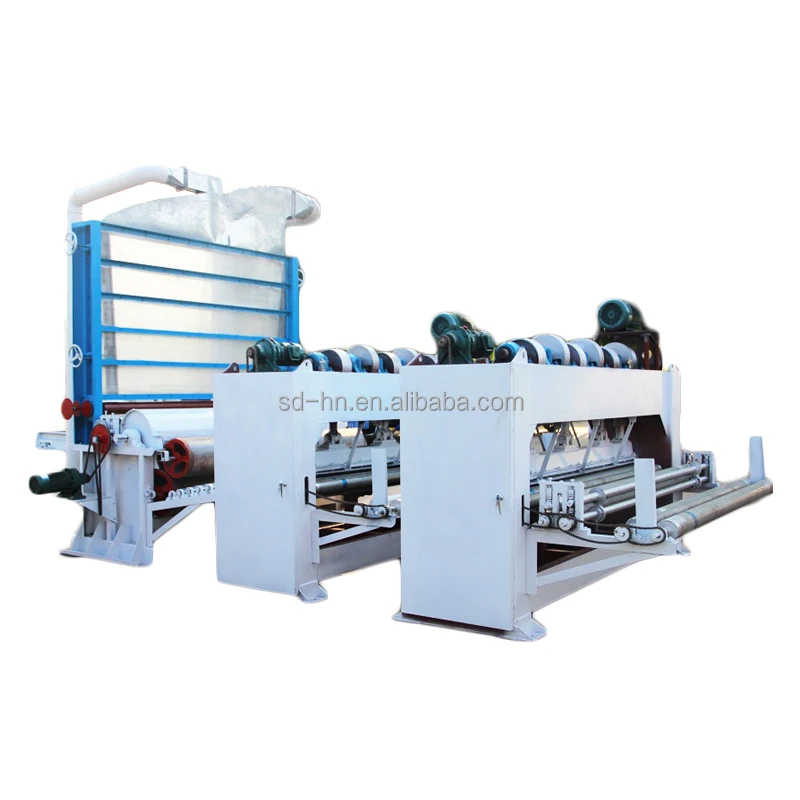

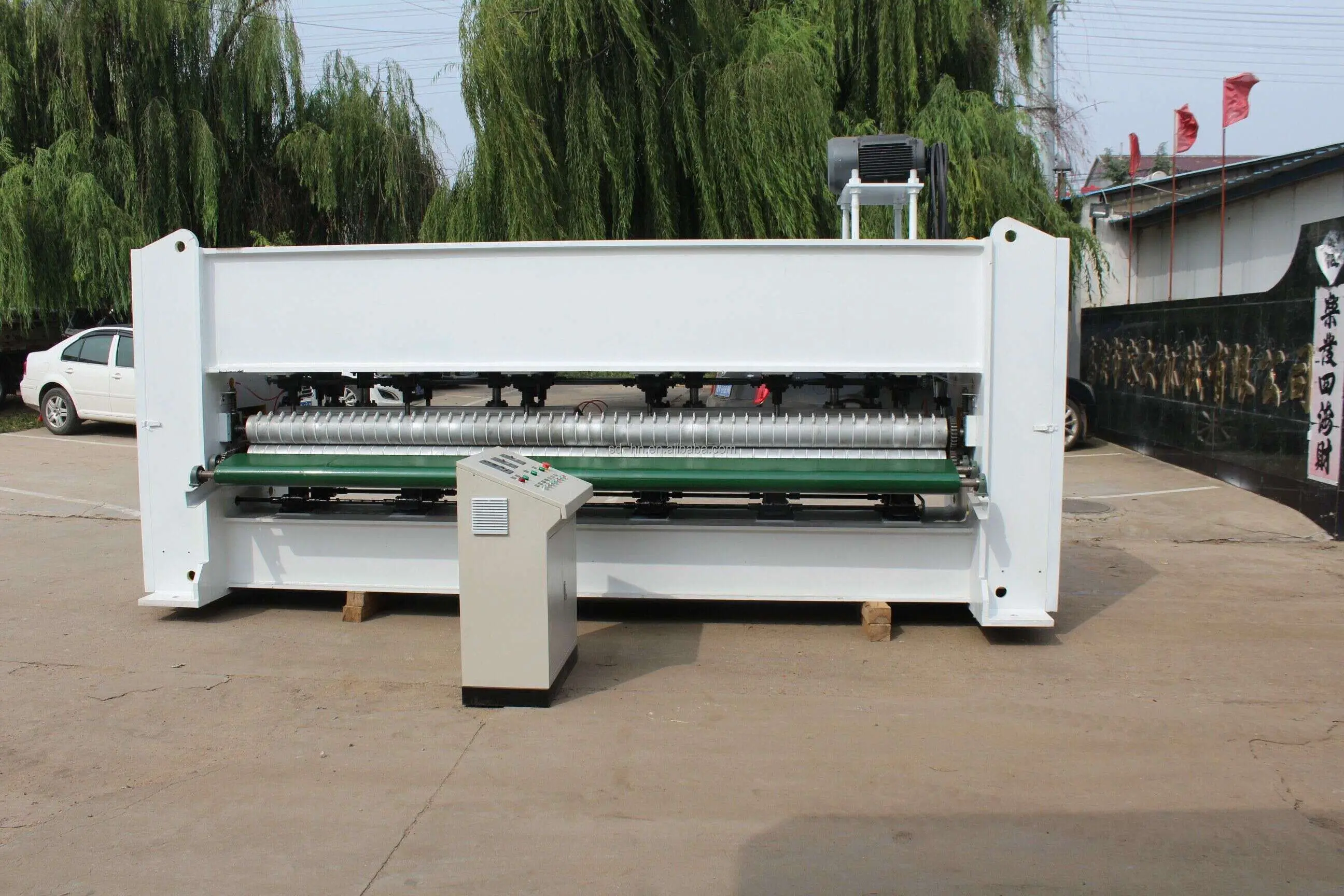

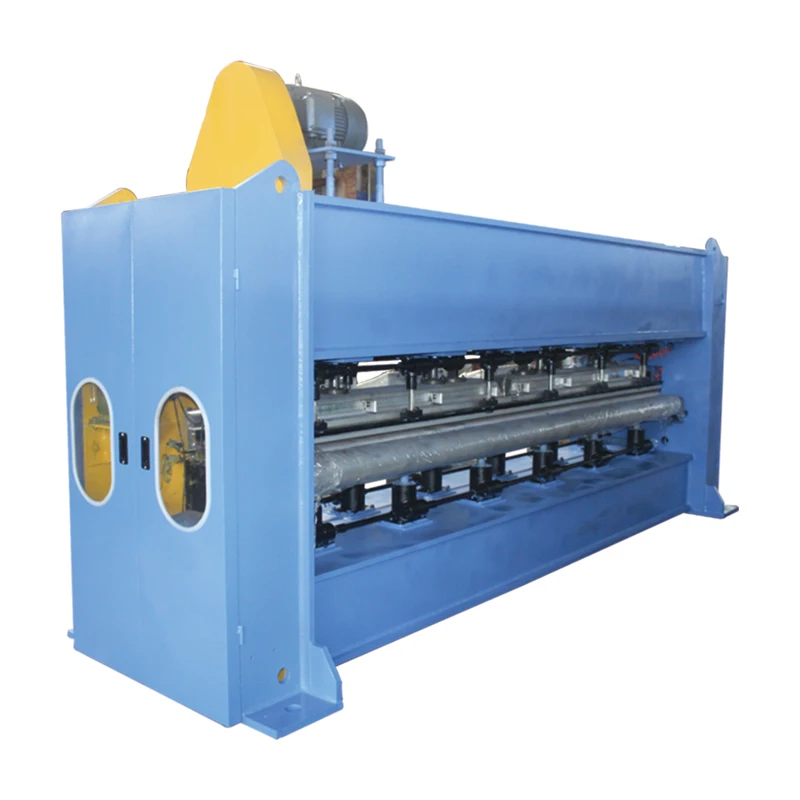

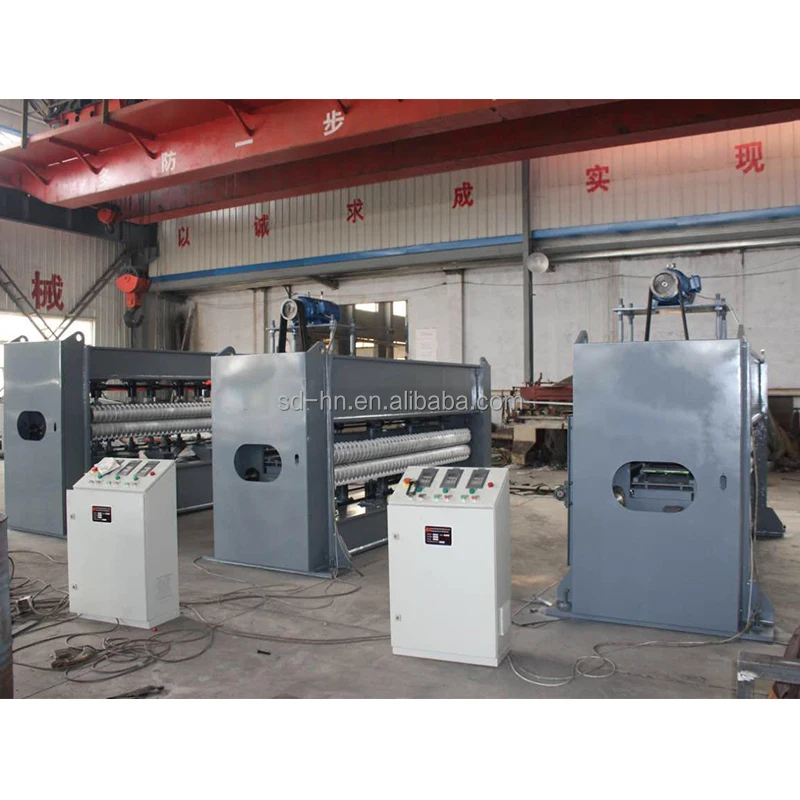

Needle punching machine can convent the fleeciness textile fiber into Acupuncture cotton,high-density and high-spring such as The insulation blanket,Greenhouses quilt raw materials ,Shoes materials,Mattresses,Sofa cushion,Chemical products and Non-woven fabrics for engineering etc ,through Carding process,Spreading process,Acupuncture process, Strengthening process.

Product Paramenters

Model	Mid-speed GMZ-380M7
Dimension ofM/C	14970W1600H2425(mm)
Weight	9050kg/9350kg
Total power	22KW
Main motor	15KW
Needle density	Depend on the customer's requirements
The average output	360 kg/hour(Working at width 2500 mm&300 g/ ㎡ under running normal)
Product specifications	80 ~ 1000 g / ㎡ (1 layer)
Protection	Main motor overload protection
The control mode	Constant power & Inverter control
Working width	3800mm
Needle plate	High-strength aluminum alloy
Bearing	KOYO/Or according to the customer's requirements
Type of holes	Diameter1.83mm/An inverted cone
Trip of needle	60 mm140mm/40mm
transfer roller	meter:168 mm/ Chromium plating process/high quality 50# steel
The main shaft /other work shaft	Diameter: 80mm Dynamic balance and strength strengthening heat treatment/high quality steel
Print Color	Following customer's requirements
The control cabinet and panel	Digital display instrument, and equipped with knob regulator.professional electric schematic diagram
Note	Direction :first then /The round-trip distance of the needle can be adaptive adjustment according to the thickness of the raw materials
