Датчик уровня бака водонагревателя датчик


Поделиться:


Цена:200,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 238.3 $* 250.10 $*
Aug-16-2025 236.78 $* 248.14 $*
Jul-16-2025 198.38 $* 208.64 $*
Jun-16-2025 232.97 $* 244.34 $*
May-16-2025 202.71 $* 212.12 $*
Apr-16-2025 228.72 $* 239.20 $*
Mar-16-2025 226.0 $* 237.12 $*
Feb-16-2025 224.96 $* 235.23 $*
Jan-16-2025 222.81 $* 233.61 $*

Характеристики



Product Description








3419banner1

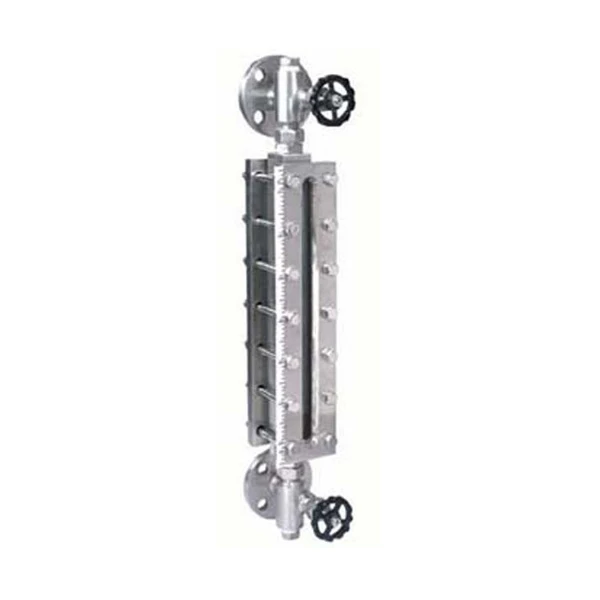

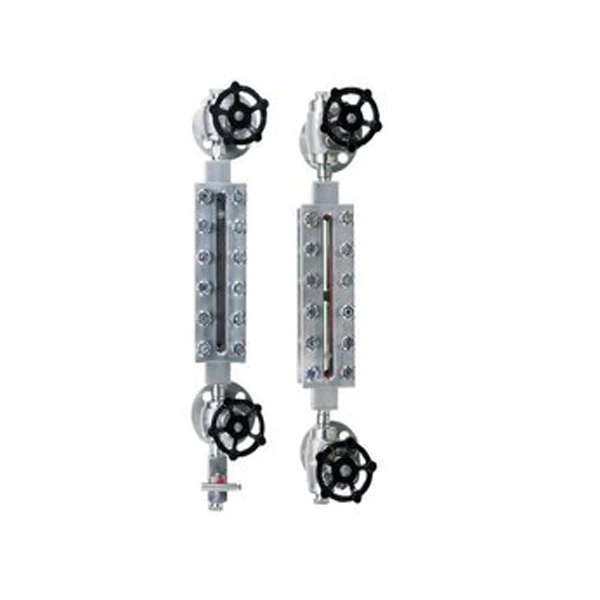

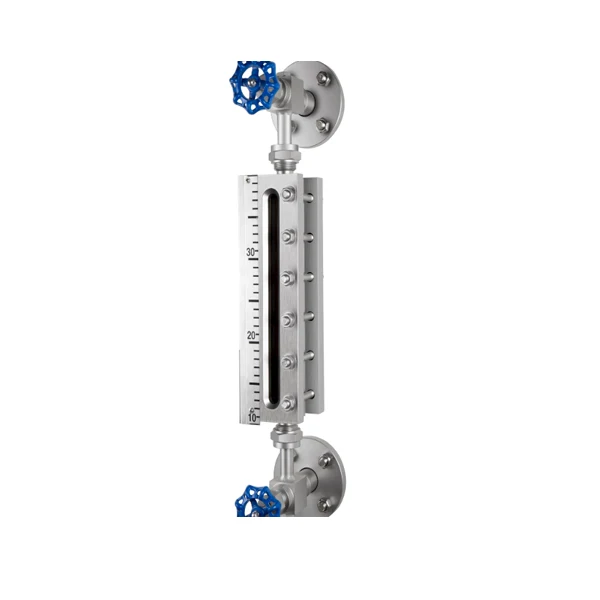

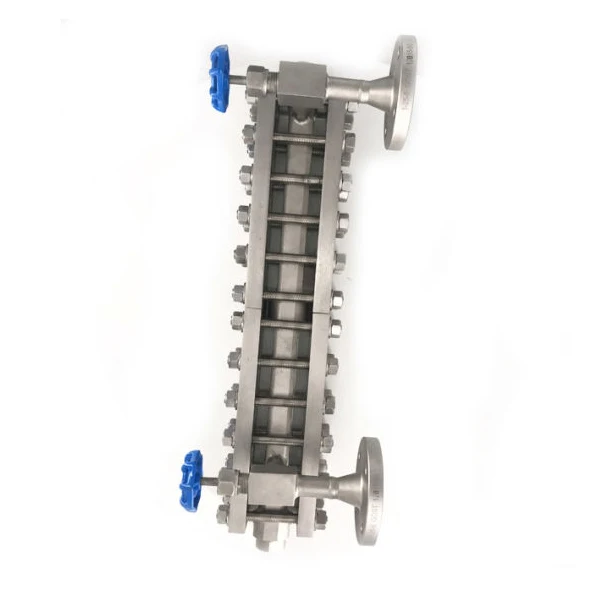

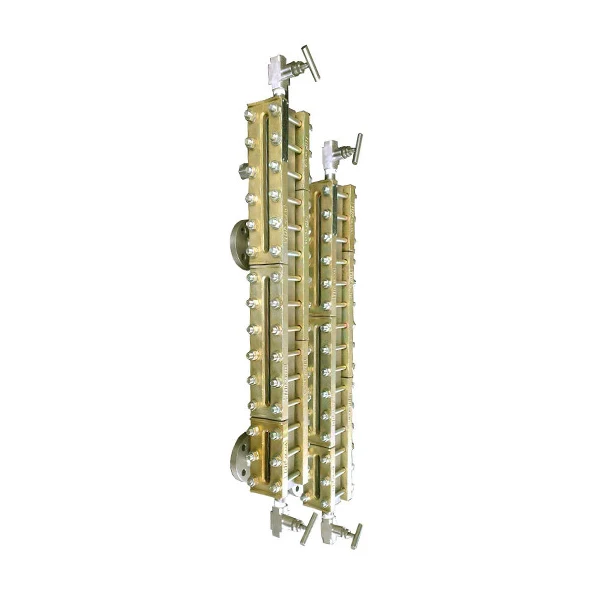

ULB-W High Temperature Glass Plate Level Gauge





Summary


ULB-W high temperature class plate level gauge is manufactured with high temperature glass and other high temperature materials. It is mainly used in petroleum, chemical, pharmaceutical industries for indicating liquid level in high temperature vessel. It can be used for high temperature medium lower than 450℃.





Main technical parameters


Range (the distance between the flanges’ center L): 500mm, 800mm, 1100mm, 1400mm, 1700mm or on request


Visual range: H=L-260;


Needle valve automatically close pressure: ≥ 0.3 MPa;


Wetted material: 20, 304, 316 or on request


Non-wetted material: Carbon steel


Nominal pressure: ≤4.0MPa;


Operating temperature: ≤450;


Heating steam jacket joints: R3/8 (male thread) or on request;


Heating steam pressure: ≤1.0MPa;


Flange: HG/T20592-2009, HG/T20615-2009 or on request;








Order requirements


Model and specification


Distance between flanges’ center


Medium


Operating pressure


Operating temperature


Flange standard


Wetted material


Other requirements


 33333








































Model



Name



Application



ULB-ⅠWA



Transparent high temperature glass plate level gauge



For colorless transparent liquid, light better place



ULB-ⅠWB



Transparent high temperature glass plate level gauge with heating



For transparent, sticky and easily frozen medium



ULB-ⅠWC



Reflection high temperature glass plate level gauge



For colored liquid, light better place



ULB-ⅠWD



Reflection high temperature glass plate level gauge with heating



For colored, sticky and easily frozen medium



Note: If level gauge with scale plate, please write R at the end of model. For example: ULB-IWAR
