Оборудование для производства петель Accurl поставщик


Поделиться:


Цена:23 000,00 $ - 28 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 27370.8 $* 28739.65 $*
Aug-18-2025 27140.70 $* 28497.35 $*
Jul-18-2025 22770.54 $* 23909.36 $*
Jun-18-2025 26680.24 $* 28014.30 $*
May-18-2025 23230.22 $* 24392.88 $*
Apr-18-2025 26220.84 $* 27531.88 $*
Mar-18-2025 25990.47 $* 27290.38 $*
Feb-18-2025 25760.0 $* 27048.2 $*
Jan-18-2025 25530.89 $* 26807.5 $*

Характеристики



Product Overview

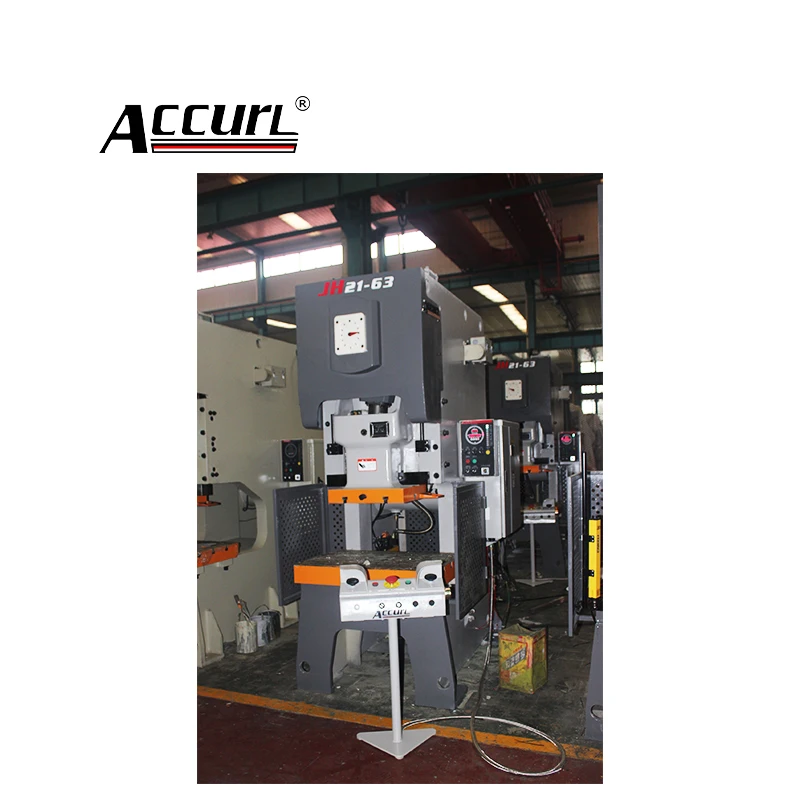

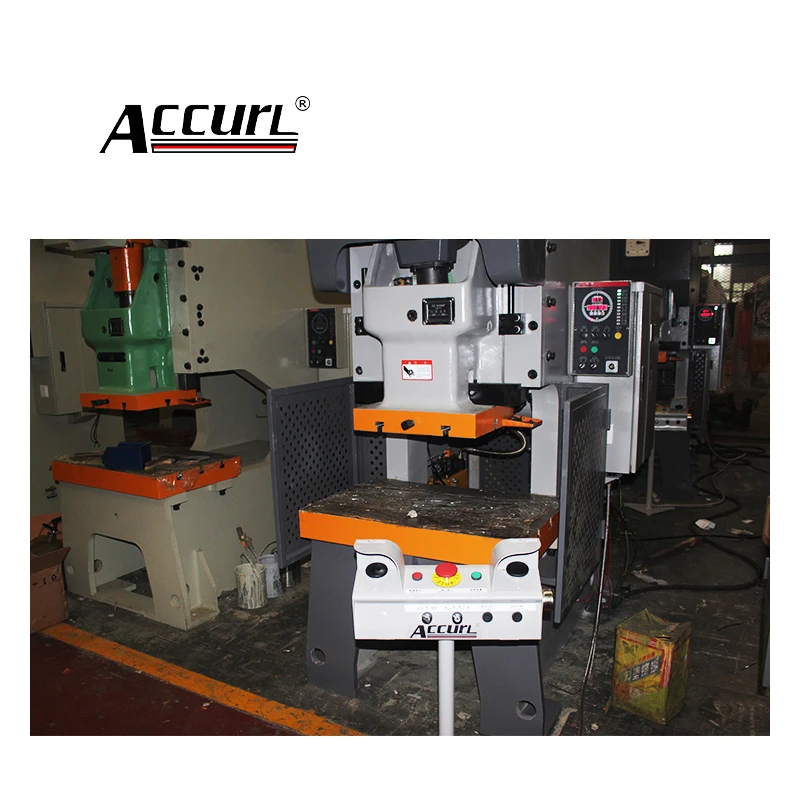

C Frame Crank Type Mechanical Stamping Press

JH21 series are general-purpose presses for sheet metal stamping. They are suitable for various cold stamping processes such as shearing, punching, blanking, bending and shallow drawing,ect.


Product Features



1.The production efficiency can be increased by 30% or so compared with common crank punch press
2.High rigidity welded fuselage
3.Dry pneumatic friction clutch
4.Safety double solenoid valve
5.High sensitivity hydraulic overload protection
6.Multifunctional high affinity electronic control system
7.PLC centralized control, convenient operation

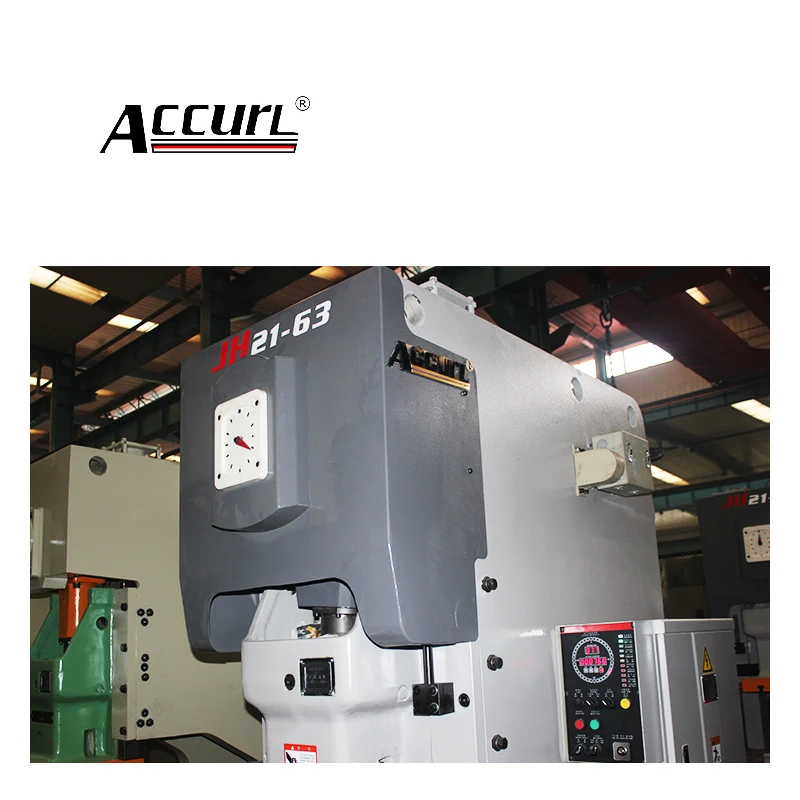

HIGH PRECISION FOR SHEET METAL  PUNCHING AND STAMPING

The press body is milling and boring by PAMA machine center and all the surfaces and holes will be finished machining in on position

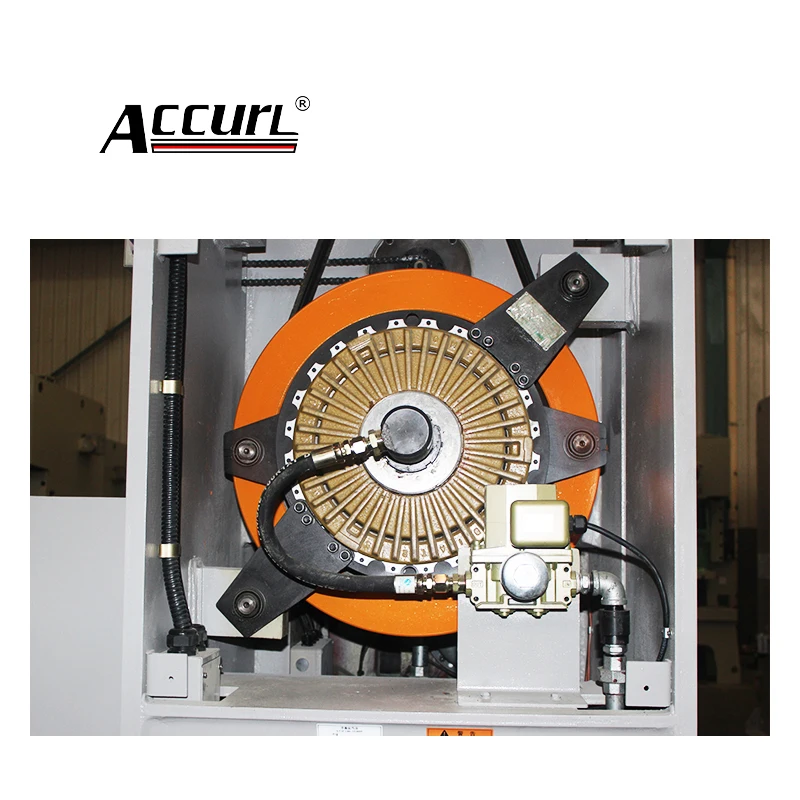

WET TYPE PNEUMATIC CLUTCH AND BRAKE

Wet type pneumatic clutch with impor ted clutch disc, NOK seals, lower noise and maintenance cost, longer service life.

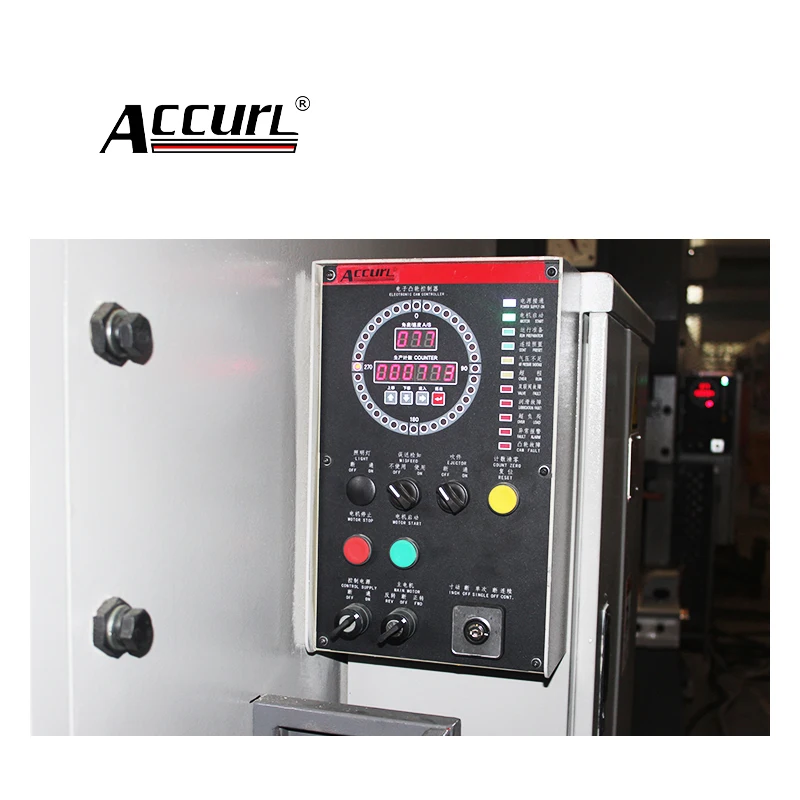

HMI FOR EASY OPERATION

HMI according to the working time or working stroke times. HMI with setting function, I/O monitor, counter and preset counter.


Product Paramenters



Type
Nominal
Nominal Stroke
Slide Stroke
Max Die Set Height
Throat Depth
Motor
Weight
Press Pressure
KN
mm
mm
mm
mm
Kw
Kg
Mpa

JH21-45
H

450
4
70
295

225

5.5

3550





0.5
S
4
120
270

JH21-60
H

600
4
80
330

270

5.5

5150
S
4
140
300

JH21-80
H

800
5
100
350

310

7.5

6450
S
5
160
320

JH21-100
H

1000
5
100
365

330

7.5

8650
S
5
160
335


Advantage:

1. The main body is welded with high quality steel plate. It will be heat treated and ball blasting treated to release the stress and improve the rigidity.

2. The press adopts Panasonic or Omron PLC with high stability and longer service life.

3. The wet cultch produced by World is made up of the best seals, bearing and friction discs. It features lower noise and longer service life.

4. The control panel includes double hand buttons and emergency stop button and foot pedal control switch is optional.

5. The press is equipped with auto lubrication pump and it is easy for maintenance.

6. The hydraulic overload protected pump is used to protect the press and the die from overloading.

7. The motorized slide adjusting device is adopted with a thin brake motor and operated with push buttons. It offers stable positioning accuracy and quick adjustment.
