Шпиндель с воздушным охлаждением двигатель 220v 2.2kw ER20 квт. шпиндель 4 подшипниками квадратный 24000 об/мин HY инвертор частотно-регулируемым приводом наборы для фрезерного станка
- Категория: Machine Tool Equipment >>>
- Поставщик: Zhejiang,Zhongqiu,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.53 $* | 0.8 $* |
| Aug-19-2025 | 0.18 $* | 0.46 $* |
| Jul-19-2025 | 0.44 $* | 0.70 $* |
| Jun-19-2025 | 0.30 $* | 0.83 $* |
| May-19-2025 | 0.17 $* | 0.20 $* |
| Apr-19-2025 | 0.65 $* | 0.55 $* |
| Mar-19-2025 | 0.28 $* | 0.56 $* |
| Feb-19-2025 | 0.88 $* | 0.92 $* |
| Jan-19-2025 | 0.22 $* | 0.66 $* |
Характеристики
Different power applications of air-cooled square spindle | ||||||||
1.5KW | Relief carving, advertising carving, material wood, pvc, acrylic board | |||||||
2.2KW | Relief carving, advertising carving, material wood, aluminum, part of soft metal, pvc, acrylic board | |||||||
3.5KW | Relief carving, advertising carving, hollow cutting process of PVC, acrylic, MDF, LED and other materials, and need faster speed and cutting power, materials wood, aluminum, some soft metals, pvc, acrylic board. | |||||||
4.5KW | For solid wood cutting and perforating, it can also be used as a cutting machine, 4.5-7.5kw, select the appropriate power according to the hardness of the material and the depth of the hole. | |||||||
6KW | For solid wood cutting and perforating, it can also be used as a cutting machine, 4.5-7.5kw, select the appropriate power according to the hardness of the material and the depth of the hole | |||||||
7.5KW | For solid wood cutting and perforating, it can also be used as a cutting machine, 4.5-7.5kw, select the appropriate power according to the hardness of the material and the depth of the hole | |||||||
6KW ATC Spindle | Automatic tool change spindle: automatic tool change engraving machine or woodworking machining center | |||||||
9 KW ATC Spindle | Automatic tool change spindle: automatic tool change engraving machine or woodworking machining center | |||||||

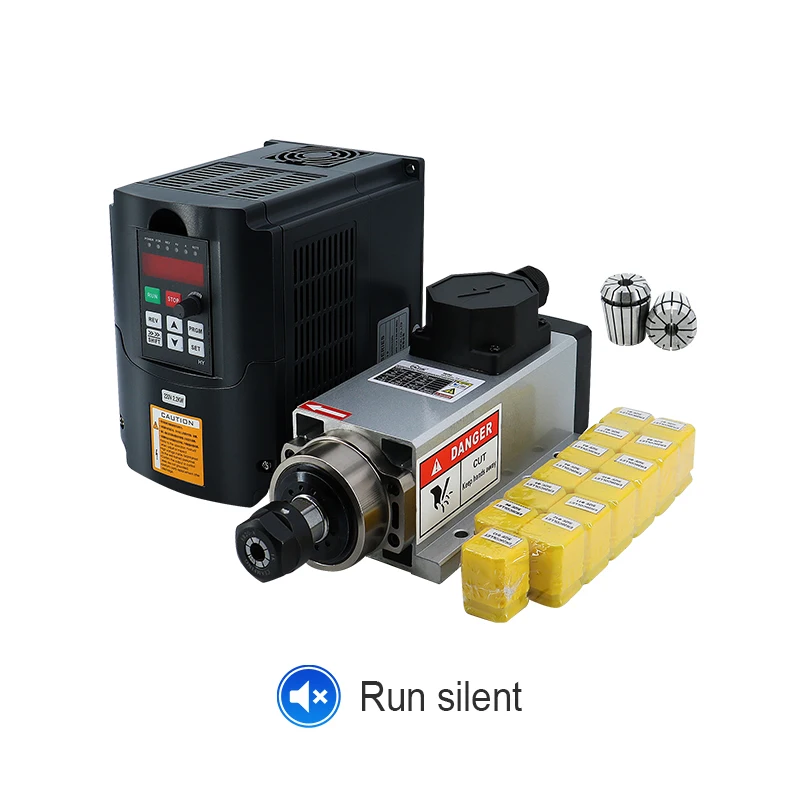

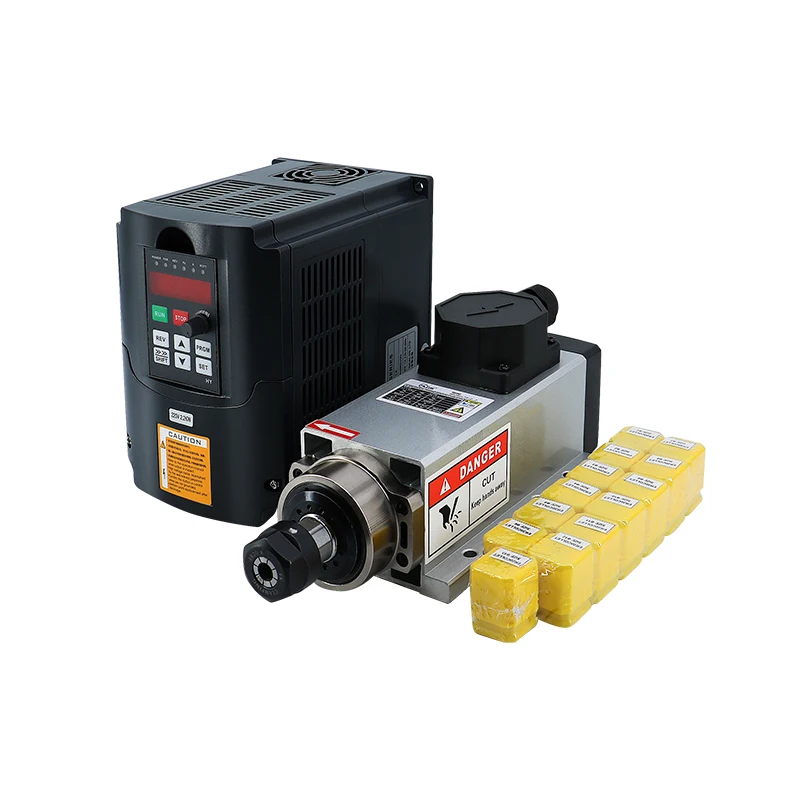

Product packaging
1 2.2kw ER20 4 bearings air cooled spindle
1 HY 2.2kw inverte/VFD
1 kit ER20 high accuracy collet(≤0.008mm) （Quantity: 15）
1 HY 2.2kw inverte/VFD
1 kit ER20 high accuracy collet(≤0.008mm) （Quantity: 15）
ER20 High Accuracy Collects | ||||||||||||
□φ1*1 | □φ2 *1 | □φ3 *1 | □φ3.175*1 | □φ4*1 | □φ5 *1 | □φ6 *2 | ||||||
□φ7*1 | □φ8*1 | □φ9*1 | □φ10 *1 | □φ11 *1 | □φ12*1 | □φ13*1 | ||||||
Product Description
1. Terminal Box
2. Cooling fan
3. Metal body
4. Parameter
5. Lengthened rotor
6. Chuck
MOTORE ASINCRONO TRIFASE/ASYNCHRONOUS 3 PHASE MOTOR
spindle | Fail | ||
V（±10%） | 220 | V（±10%） | |
Hz | 400 | Hz | |
rpm | 24000 | rpm | |
KW (HP) | 2.2 | KW (HP) | |
A | 6 | A | |
IS .F | Poli:2 | TA :20℃ | Serv:S1 |
=0.8 | Cosφ0.7 | IP：50 | Air Cooling |
Specification
Tech parameters | ||
Power:2.2KW | Input Voltage :220V | |
Input Frequency :50/60Hz | Input Phase : 1phase | |
Output Voltage : 220V | Output Phase : 3pahse | |
Output Current :10A | Output Frequency: 400Hz | |
Control Method : V/F control; Open-loop fiux vector control | ||

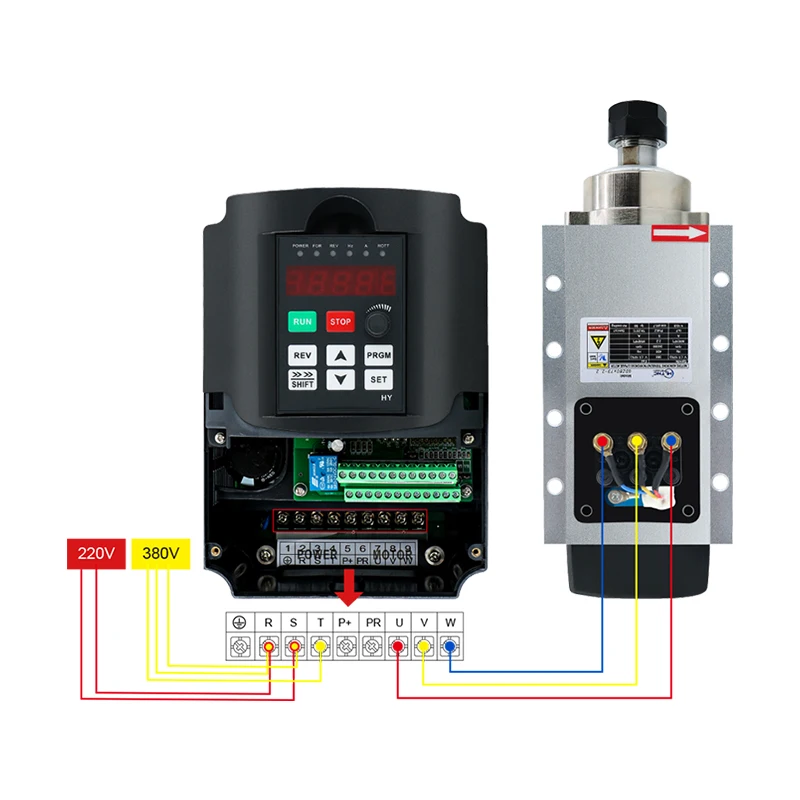

Function description of Main circuit terminals
Symbol | Function Description |
R.S.T | Input terminal of AC line power.(220V class,for both single、three phase, single phase connected to any two phases) |
U.V.W | Output terminal of the inverter |
P.Pr | Connector for braling resistor（optional) |
E | Ground terminal:the third method of grounding for 220V ang specialgrounding for 380V of electrical engineering regulations. |
Instruction for use
Inverter Setting Scheme | Inverter Setting Scheme | |
PD013=8 | Restore factory setting | |
PD005=400 | Set max operating frequency | |
PD004=400 | Set base frequency | |
PD002=1 | Set board potentiometer control | |
PD070=1 | Set analoy input | |
PD072=400 | Set high analoy frequency | |
Application
Wood Carving Soft Metal Engraving Aluminum Alloy Caring
Related Products
Milling Cutter Sliding Table Air Cooled Spindle
item | value |
Place of Origin | China |
Zhejiang | |
Condition | New |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
Weight (KG) | 12 |
Showroom Location | None |
Video outgoing-inspection | Not Available |
Machinery Test Report | Not Available |
Marketing Type | Ordinary Product |
Brand Name | HLTNC |
Application | Milling |
Maximum Torque | |
Drive | inverte |
Operating Speed | 24000rpm |
Warranty | Unavailable |
Core Components | Bearing |
Application | CNC Macine Center |
Power | 2.2 Kw |
Cooling type | Air Cooling |
Product name | CNC Spindle Motor |
Voltage | 220V |
Collet | ER20 |
Name | Cnc Mill Spindle |
Frequency | 400Hz |
Joint of nose | ER20 Nut |
Spindle Bearing Type | 2x7005C P4 DB & 2x7002C P4 DT |
FAQ

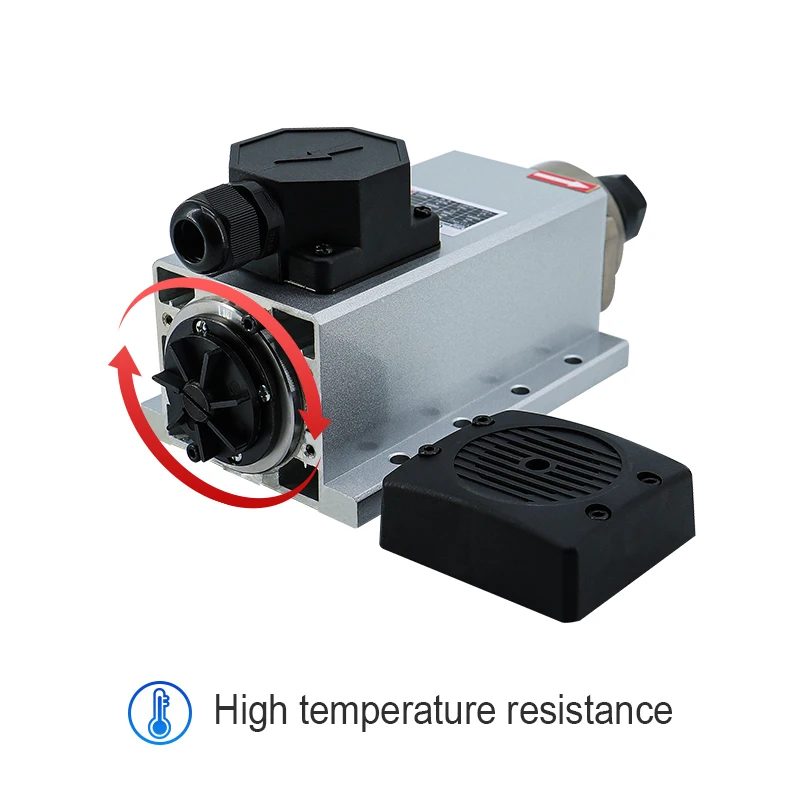

1:The spindle has been running for a period of time and the temperature is very high. Is it normal? What is the working environment temperature range?
Answer:Mechanical products have very good heat resistance. The surface is normal within 150°c, and the suitable working environment temperature is -10°c ~ +50°c
2: Application of air-cooled spindle
Answer:This air-cooled spindle is suitable for woodworking, aluminum and some soft metals, and can be used with a variety of milling cutters

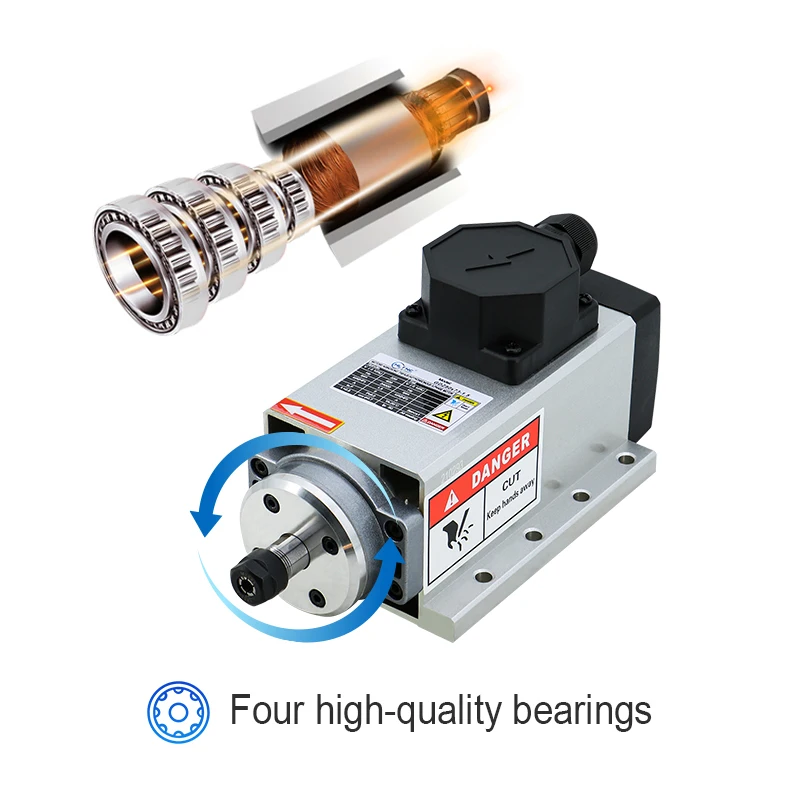

3:Number and material of bearings
Answer:4 steel ball bearings, model C7002
4:Continuous working time
Answer:If the ambient temperature is in the normal range and the surface temperature of the spindle is within 150 degrees, it can work continuously without interruption.
5: Can the spindle run vulgarly?

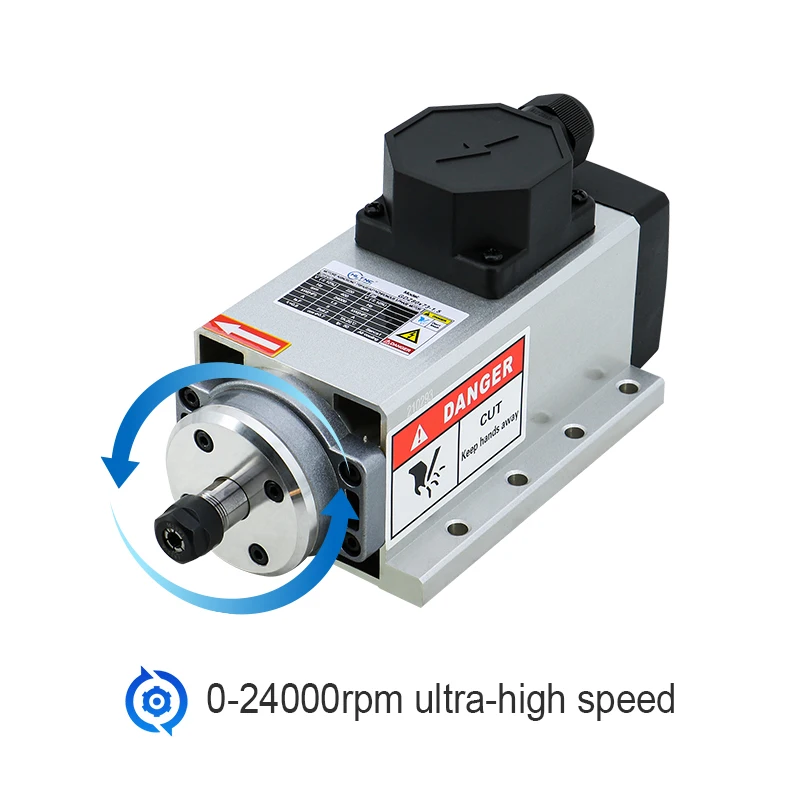

Answer: Yes, the maximum speed of this spindle is 0-24000rpm, which is all possible within this range
6:Abnormal sound
Answer:If there are abnormal noises, most of them are bearing problems, because the bearing has a service life and is vulnerable to damage. According to different frequency and intensity of use, the bearing needs to be replaced after 0.5 to 1 year.
Answer:Mechanical products have very good heat resistance. The surface is normal within 150°c, and the suitable working environment temperature is -10°c ~ +50°c
2: Application of air-cooled spindle
Answer:This air-cooled spindle is suitable for woodworking, aluminum and some soft metals, and can be used with a variety of milling cutters
3:Number and material of bearings
Answer:4 steel ball bearings, model C7002
4:Continuous working time
Answer:If the ambient temperature is in the normal range and the surface temperature of the spindle is within 150 degrees, it can work continuously without interruption.
5: Can the spindle run vulgarly?
Answer: Yes, the maximum speed of this spindle is 0-24000rpm, which is all possible within this range
6:Abnormal sound
Answer:If there are abnormal noises, most of them are bearing problems, because the bearing has a service life and is vulnerable to damage. According to different frequency and intensity of use, the bearing needs to be replaced after 0.5 to 1 year.
