Новый дизайн автоматическая машина для изготовления ПВХ мёд жидкий блистерная упаковка фасовки
- Категория: Blister Packaging Machines >>>
- Поставщик: Foshan,Soonfer,Intelligent,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 10591.17 $* | 11121.58 $* |
| Aug-15-2025 | 10502.70 $* | 11027.52 $* |
| Jul-15-2025 | 8811.51 $* | 9252.79 $* |
| Jun-15-2025 | 10324.60 $* | 10840.37 $* |
| May-15-2025 | 8989.17 $* | 9438.57 $* |
| Apr-15-2025 | 10146.51 $* | 10653.37 $* |
| Mar-15-2025 | 10057.58 $* | 10560.97 $* |
| Feb-15-2025 | 9968.74 $* | 10466.62 $* |
| Jan-15-2025 | 9879.18 $* | 10373.22 $* |
Характеристики

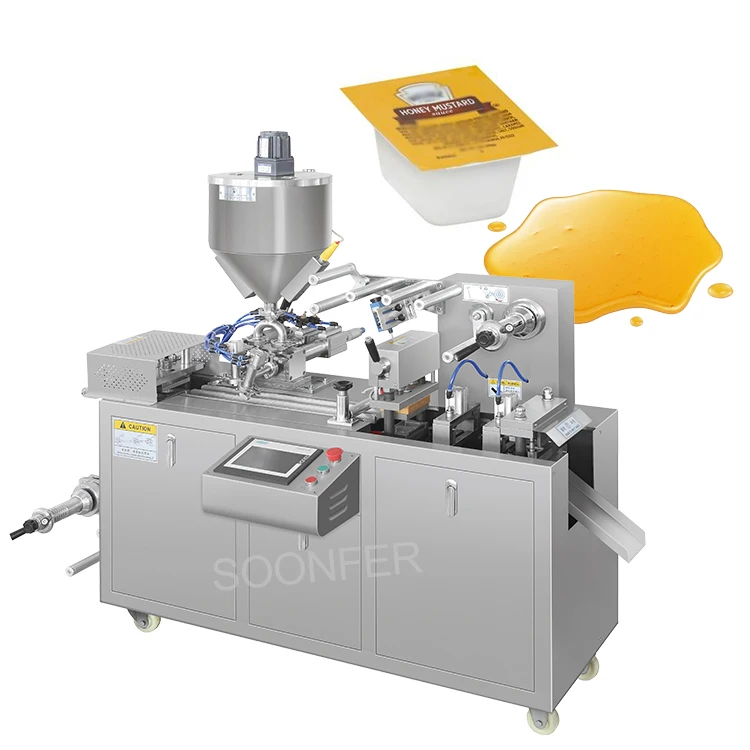

Easy to operate automatic butter jam liquid blister packing machine

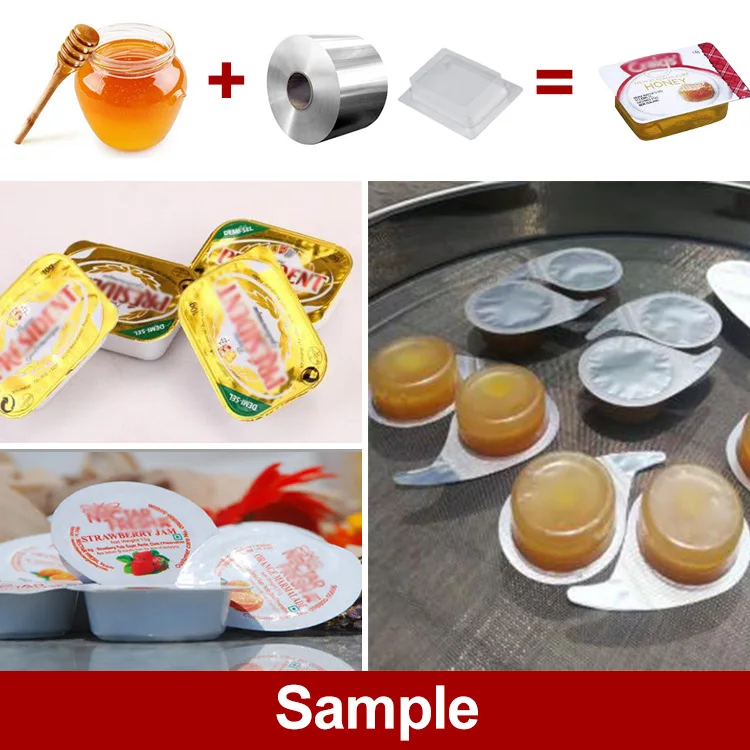

This machine is suitable for the automatic packaging of various liquid paste items in the food, chemical, daily chemical and other industries, such as cream, honey, tartar sauce, fish sauce, mayonnaise, salad dressing, tomato sauce, jam, chocolate sauce, liquid cheese etc.
Professional technology research and development capabilities, can customize various PVC material molding molds for customers, make customers' products more diversified, and improve economic benefits.
This achievement ensures you save a lot of time and human resources, allowing you to reach very high hygienic standards and speed in maintenance and flavour changeover operations.
1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted. Also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.

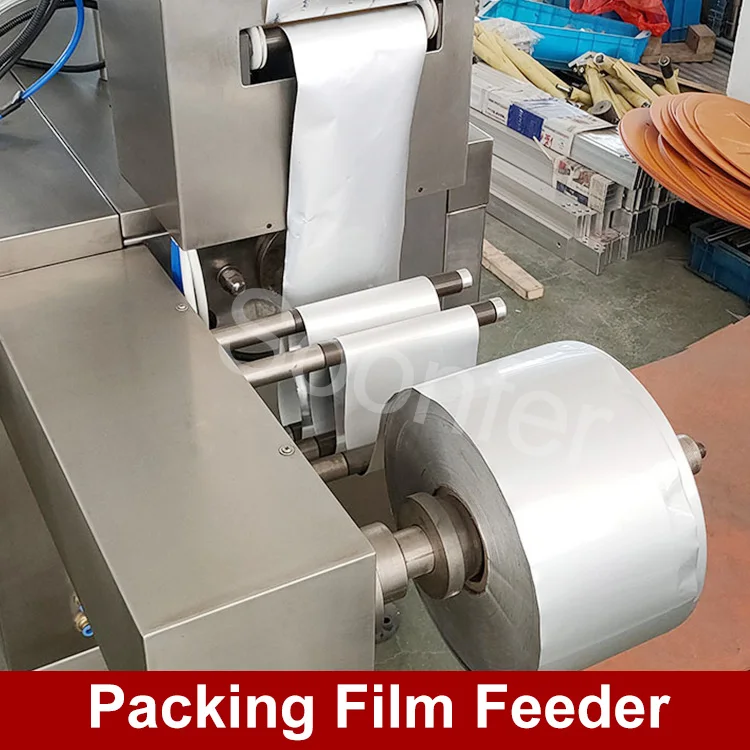

3. It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
Punch frequency | 10-20 times/min |
Production capacity | 2400 plates/hour |
Max. forming area & depth | 105*70mm(standard depth ≦15mm), Max. depth 25mm( customized) |
Standard stroke range | 30-80mm(can be designed as user’s requirement) |
Standard plate size | 80*70mm(can be designed as user’s requirement) |
Air pressure | 0.4-0.6Mpa |
Compressed air required | Air compressor≥0.3m³/min |
Total power supply | 220V, 50Hz, 2.8kw |
Main motor | 0.75kw |
PVC hard Film | 0.15-0.5*110mm |
PTP aluminum film | 0.02-0.035*110mm |
Dialysis Paper | 50-100g*110mm |
Mould cooling | Tap water or recycling water |
Dimension | (L)1840*(W)900*(H)1300mm |
Weight | Net weight: 480kg, gross weight: 550kg |
Noise index | <75dBA |
One machine with dual functions, which can produce aluminum-plastic or aluminum-aluminum varieties，each station of the whole machine adopts a quick-loading structure design, which is suitable for multi-variety production, and it is more convenient and effective to replace the mold (it only takes 30 minutes to change the mold to the formal feeding production).

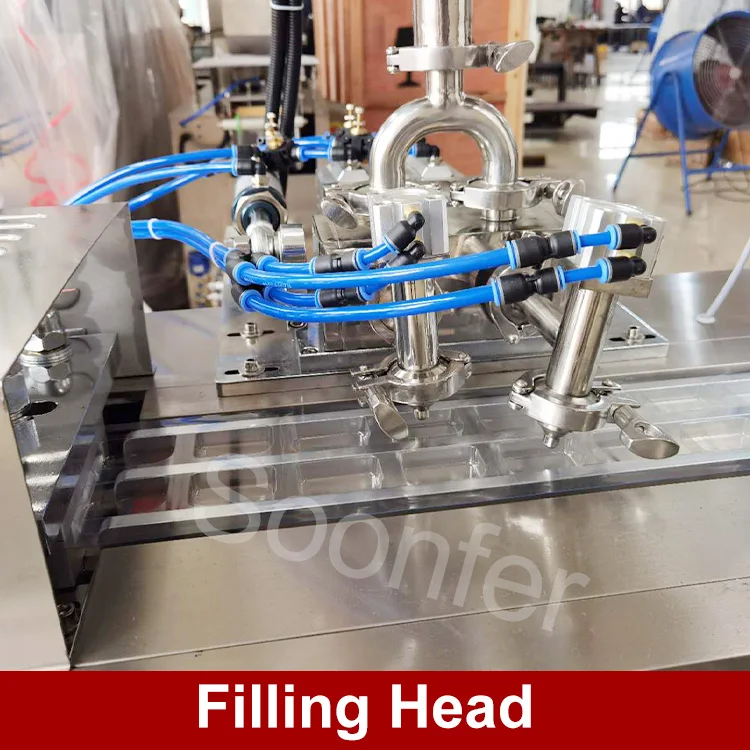

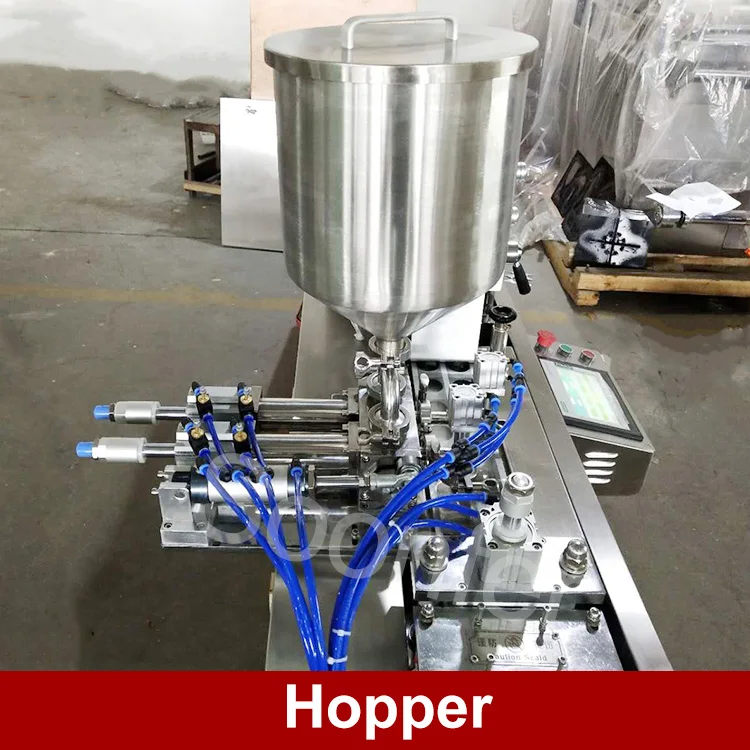

The material contact part is made of 304 stainless steel to ensure that it meets the food hygiene requirements. The piston type quantitative metering and filling are high accuracy.
Instructions and operating videos are prepared for you
Our Factory
1. Standardized workshop of total 10000 square meters.
2. The equipment will be tested before leaving the factory, to ensure the smooth working of water pipeline,and pneumatic,electrical and mechnical stability.
3. Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
Our Engineers
Equipped with many experienced engineers and machine inspection and maintenance technicians to ensure the quality of the machine and provide customers with a complete after-sales system.
Our Customer& Exhibition
Export Shipment
FAQ
Q1. How to find a machine suitable for my product?
Please tell us your requirement, such as the product weight, the bottle type and size or the expected productivity.
Please tell us your requirement, such as the product weight, the bottle type and size or the expected productivity.
Q2: How can we make sure about the machine quality after placing the order?
Before delivery, we will send you some pictures and videos to you for confirmation, and also you could arrange for quality
checking by yourself or third party inspection organization.Q3: What is your after sales services?
We offer you high quality machines with 1 year warranty and supply life-long technical support. And normal machine is properly adjusted before dispatch. The machine could be use immediately after simple installation. Free training advices and technical support will be sent to you via manual instruction or videos.
We offer you high quality machines with 1 year warranty and supply life-long technical support. And normal machine is properly adjusted before dispatch. The machine could be use immediately after simple installation. Free training advices and technical support will be sent to you via manual instruction or videos.
Q4: We are afraid you won't send us the machine after payment?
Please note that we have 14 years experience in this industry and have offical bussines license and certificates. At the same time, we could place the order through Alibaba Trade Assurance which could gurantee your interest.
Please note that we have 14 years experience in this industry and have offical bussines license and certificates. At the same time, we could place the order through Alibaba Trade Assurance which could gurantee your interest.
