Высокочастотный ПВХ блистерный сварочный стол высокочастотные автоматические мозоли или лотки термоуплотнительная и упаковочная
- Категория: Blister Packaging Machines >>>
- Поставщик: Luohe,Siyu,Machinery,Co.Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.48 $* | 0.0 $* |
| Aug-15-2025 | 0.93 $* | 0.19 $* |
| Jul-15-2025 | 0.86 $* | 0.17 $* |
| Jun-15-2025 | 0.91 $* | 0.23 $* |
| May-15-2025 | 0.20 $* | 0.34 $* |
| Apr-15-2025 | 0.14 $* | 0.56 $* |
| Mar-15-2025 | 0.22 $* | 0.59 $* |
| Feb-15-2025 | 0.21 $* | 0.45 $* |
| Jan-15-2025 | 0.60 $* | 0.21 $* |
Характеристики
Application
High Frequency Welding Machine (HF Welding) also known as Radio frequency welding machine (RF Welding Machine), it is using the high frequency electromagnetic waves to heat and soften the join of certain plastics, such as PVC, PET, EVA, TPU, etc.
When a press/die descents to apply pressure on the surface of two pieces of material, the high frequency wave are passed through the die and table. The high frequency field causes the molecule to vibrate and generate heat from vibration. The process can be continuous and able to perform localized heating.This machine can seal the edge of the blister clamshell and cut the extra.

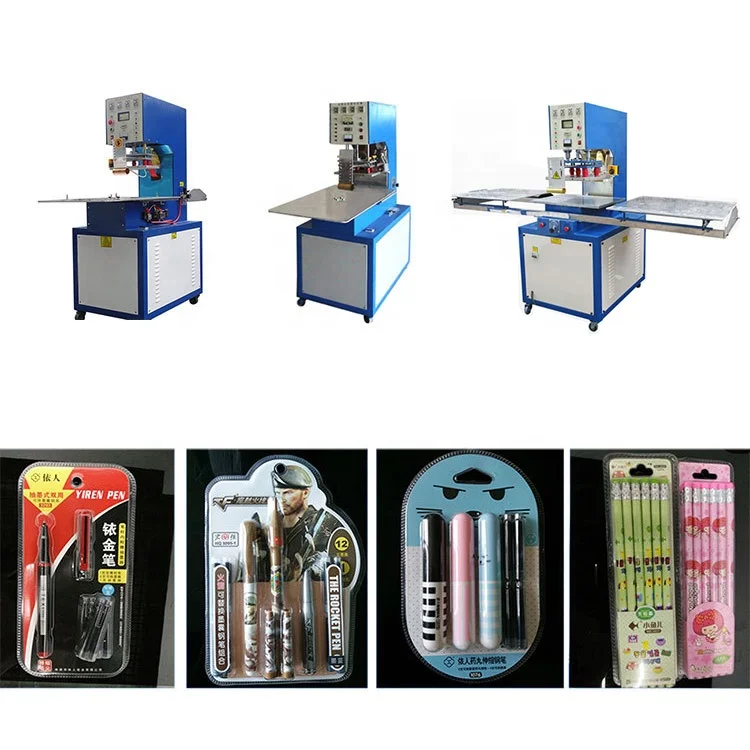

High Frequency Welding Machine is ideal for blister packing, especially for double sided blister clamshell of PVC or PET material. Paper cards can also be used for high frequency sealing.
Application Range:
1. PVC + PVC Blister Clamshell Sealing + Cutting
2. PVC Blister Clamshell + Paper cards Sealing (No cutting)
3. PET + PET Blister Clamshell Sealing + Cutting
4. PET Blister Clamshell + Paper Cards Sealing (No cutting)
When a press/die descents to apply pressure on the surface of two pieces of material, the high frequency wave are passed through the die and table. The high frequency field causes the molecule to vibrate and generate heat from vibration. The process can be continuous and able to perform localized heating.This machine can seal the edge of the blister clamshell and cut the extra.
High Frequency Welding Machine is ideal for blister packing, especially for double sided blister clamshell of PVC or PET material. Paper cards can also be used for high frequency sealing.
Application Range:
1. PVC + PVC Blister Clamshell Sealing + Cutting
2. PVC Blister Clamshell + Paper cards Sealing (No cutting)
3. PET + PET Blister Clamshell Sealing + Cutting
4. PET Blister Clamshell + Paper Cards Sealing (No cutting)
Advantages

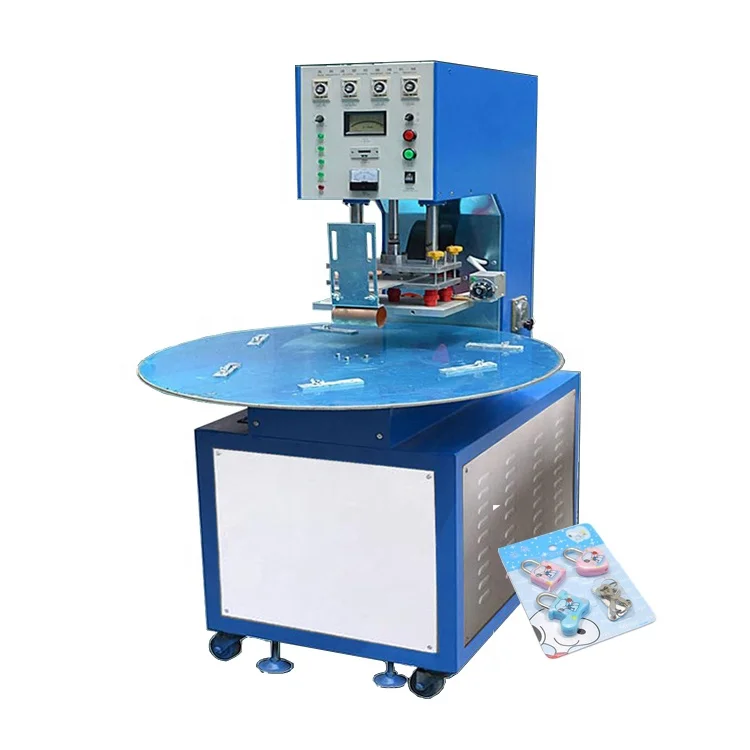

1. Rotary turntable with 2/3/4 working stations working alternately, more efficient.
2. High Sensitive anti-spark tube, to protect the sealing mould.
3. Fast sealing and replaceable mould to suit various sealing size requirement.
4. High Frequency Sealing is fast, usually less than 5 seconds, and the sealed blisters are good-looking.
5. Microcomputer programming system control.
6. Adopting electric motor crawler transmission,cylinder pressure moving.
7. The use of special adjustable heating components,temperature error plus or minus 5 degrees.
8. Custom size work tables and welding platen is available.
2. High Sensitive anti-spark tube, to protect the sealing mould.
3. Fast sealing and replaceable mould to suit various sealing size requirement.
4. High Frequency Sealing is fast, usually less than 5 seconds, and the sealed blisters are good-looking.
5. Microcomputer programming system control.
6. Adopting electric motor crawler transmission,cylinder pressure moving.
7. The use of special adjustable heating components,temperature error plus or minus 5 degrees.
8. Custom size work tables and welding platen is available.
Specification
Mold | SY-5000 |
H.P Power | 5KW |
Voltage | 380V/50Hz 3 phase/ customized |
Power input | 8KVA |
Frequency | 27.12 MHz |
Upper Electrode | 200*350 mm |
Lower Electrode | 400*600 mm |
Stroke | 175mm |
Timer | 1-10 S |
Rectifier | Silicon Diode |
Oscillation Tube | 7T85RB |
Dimension | 1000*660*1700 mm |
Weight | 300kg |
Product Description
Packing & Delivery
Company Profile
FAQ
1. who are we?
We are based in Henan, China, start from 2019,sell to North America(25.00%),Western Europe(15.00%),Mid East(10.00%),Domestic Market(10.00%),South America(10.00%),Eastern Europe(10.00%),Africa(8.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southeast Asia(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Meat processing machinery,Fruit processing machinery,Packing machine,Snack machine,Pastry & bakery machine
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,French,Russian,Korean,Italian
We are based in Henan, China, start from 2019,sell to North America(25.00%),Western Europe(15.00%),Mid East(10.00%),Domestic Market(10.00%),South America(10.00%),Eastern Europe(10.00%),Africa(8.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southeast Asia(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Meat processing machinery,Fruit processing machinery,Packing machine,Snack machine,Pastry & bakery machine
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,French,Russian,Korean,Italian
