Характеристики
Product Description

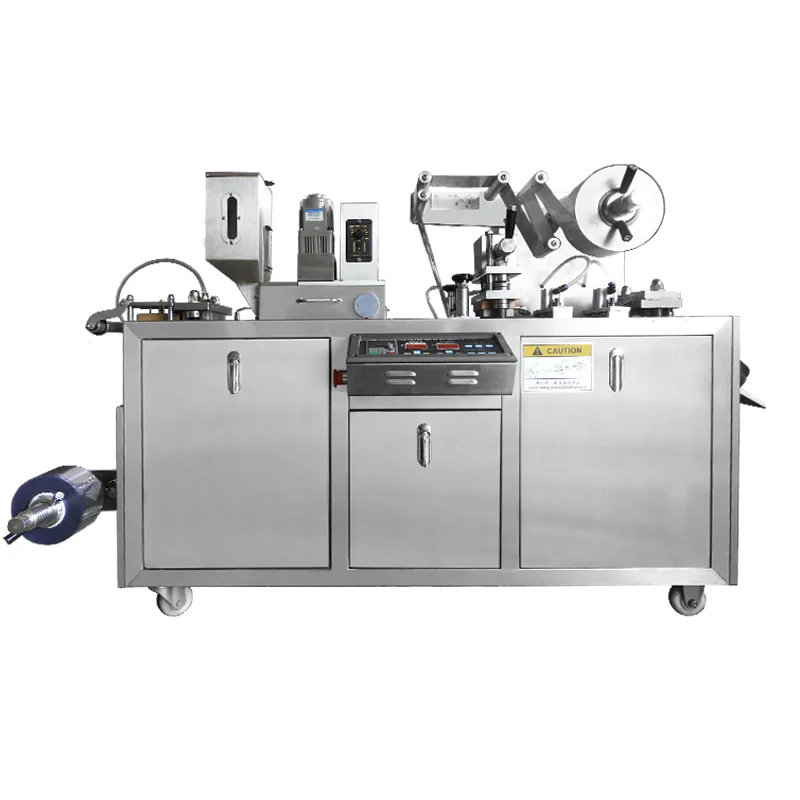

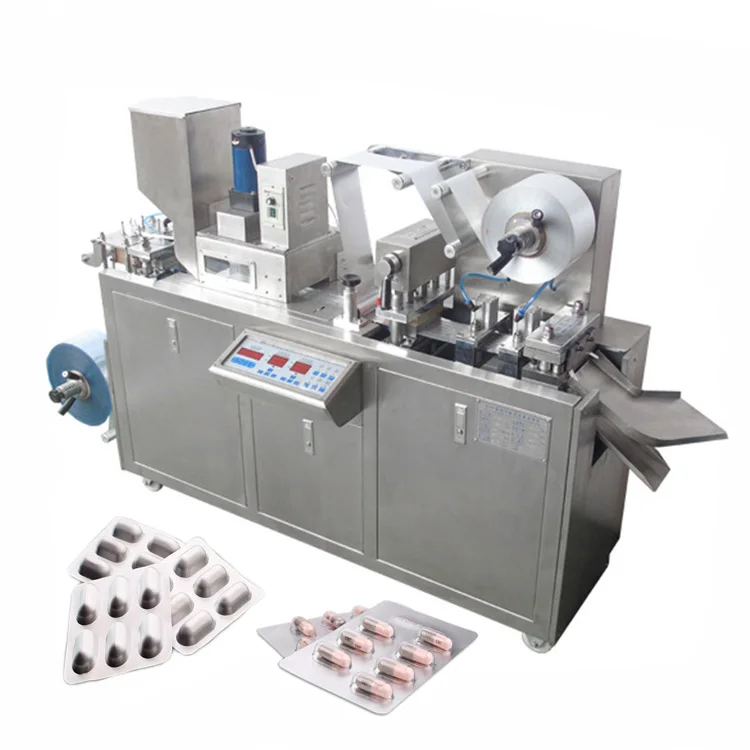

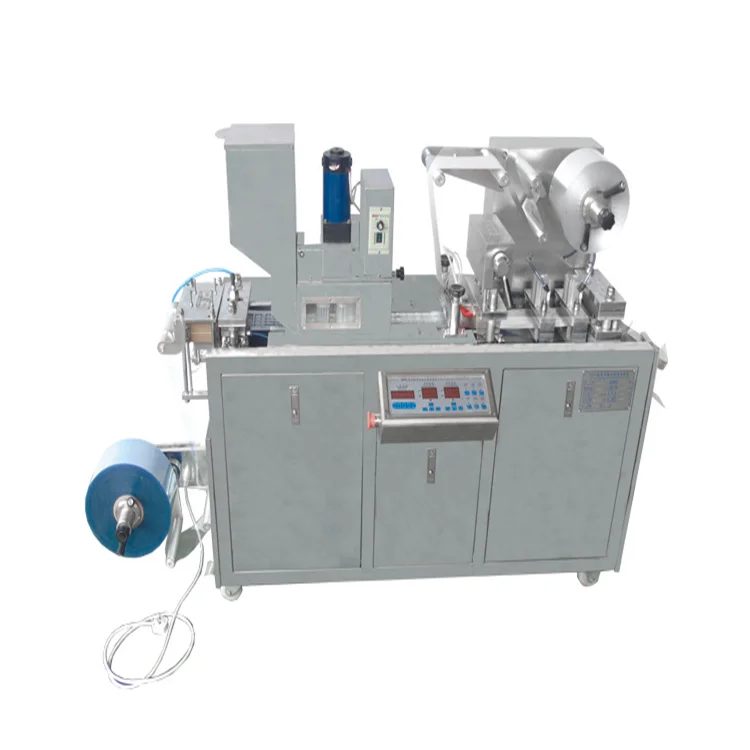

Industrial hot sealing machine food grade honey automatic blister packaging machine
Performance characteristics
1. The latest domestic high-power transmission mechanism is adopted, and the main drive shaft is driven by the platoon chain, which eliminates the error and noise of other gear transmissions.
2. The electrical appliance adopts imported control system, and it can be equipped with missing material and leakage compensation device and missing particle detection and removal device according to customer requirements.
3. The whole machine adopts a segmented combination: PVC forming, feeding and heat sealing are one section, and tropical aluminum cold forming, heat sealing and punching can be divided into one section for separate packaging.
4. Adopt photoelectric control system, automatic feeding of PVC, PTP, duralumin packaging, automatic punching of waste edges, to ensure the stability of ultra-long-distance multi-station synchronization.
5. It can be equipped with photoelectric detection and correction device, equipped with imported stepper motor traction, printing and packaging of graphics and text, to optimize the grade of packaging.
6. This machine is suitable for: capsules, plain tablets, sugar coatings, capsules, injections, special shapes, etc., as well as medical devices, light foods, and electronic components in blister sealed packaging.
2. The electrical appliance adopts imported control system, and it can be equipped with missing material and leakage compensation device and missing particle detection and removal device according to customer requirements.
3. The whole machine adopts a segmented combination: PVC forming, feeding and heat sealing are one section, and tropical aluminum cold forming, heat sealing and punching can be divided into one section for separate packaging.
4. Adopt photoelectric control system, automatic feeding of PVC, PTP, duralumin packaging, automatic punching of waste edges, to ensure the stability of ultra-long-distance multi-station synchronization.
5. It can be equipped with photoelectric detection and correction device, equipped with imported stepper motor traction, printing and packaging of graphics and text, to optimize the grade of packaging.
6. This machine is suitable for: capsules, plain tablets, sugar coatings, capsules, injections, special shapes, etc., as well as medical devices, light foods, and electronic components in blister sealed packaging.
Details
PVC Former
Heating makes the PVC material shape, and the mold can be replaced according to actual needs.

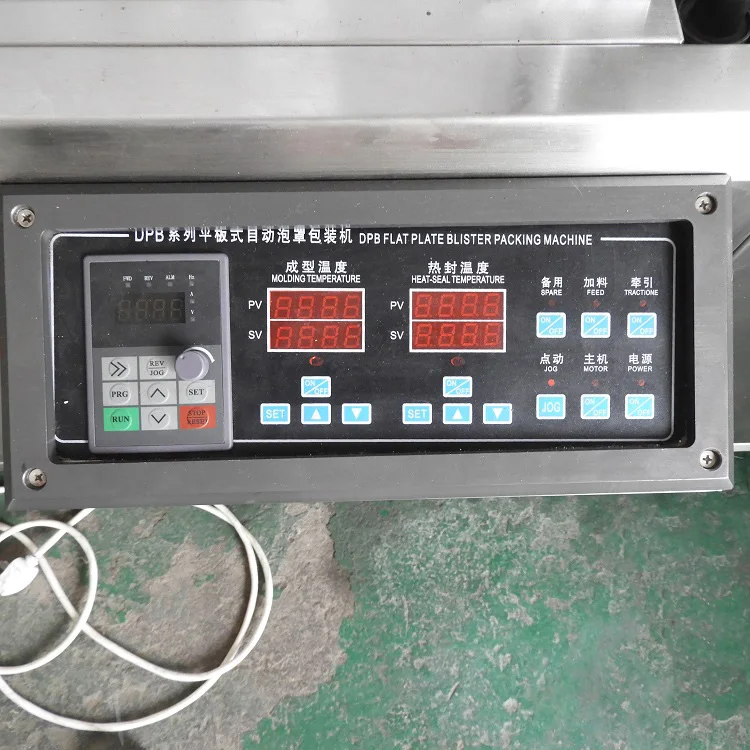

Control Panel
Control the entire machine running process, with an emergency stop switch beside it, safe and reliable.

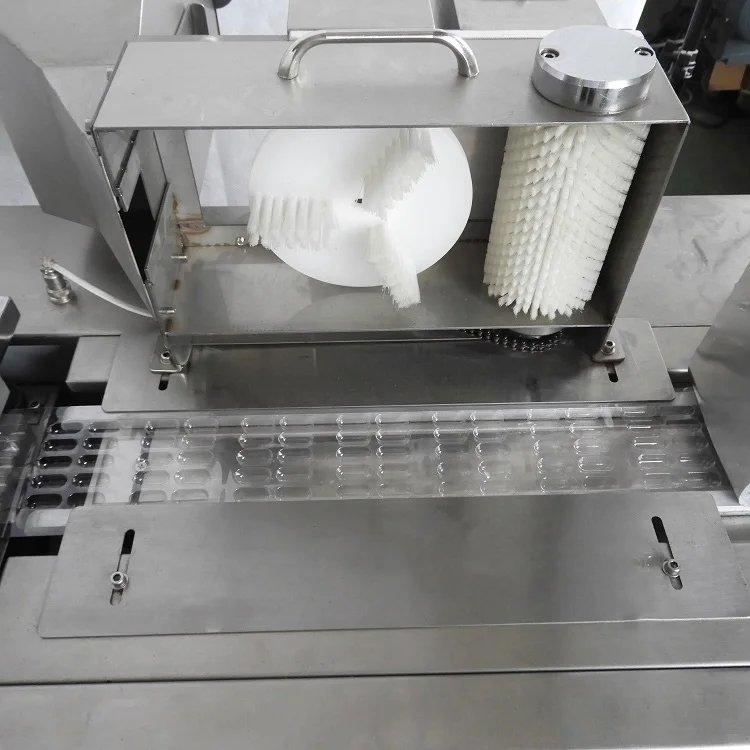

Transmembrane guide rod
The aluminum film is inserted into the film guide rod to fix the aluminum film, which is conducive to the smoothness of the film.

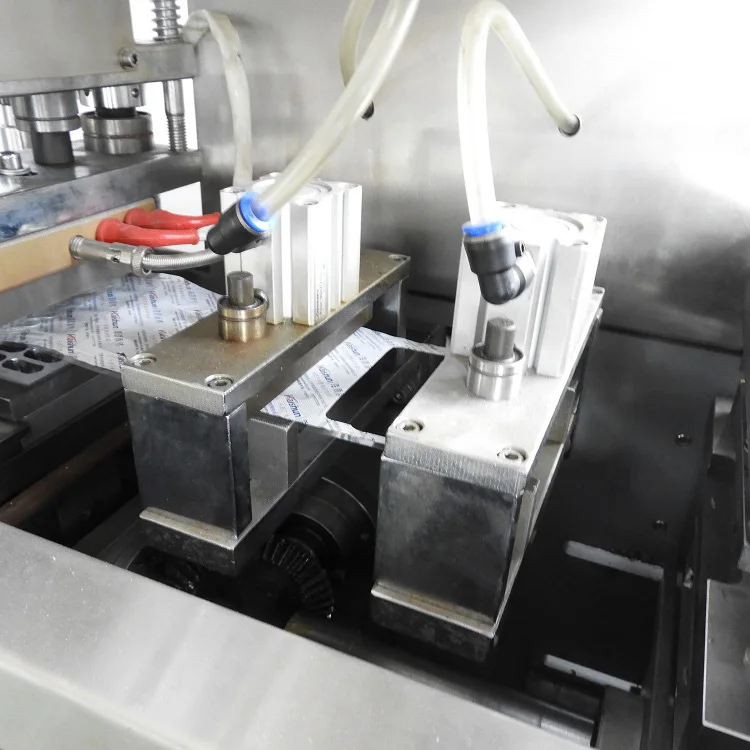

Aluminum plastic sealing mold
Heat-seal the PVC board and aluminum film that have been added.
Specification
Model | OC-BPM-115 |
Production capacity | 2400 plastes/hour |
Forming area depth | 85*115*14MM (can be customized to 30MM) |
Standard stroke range | 20-70MM (can be designed as required) |
Standard plate | 80*57MM one out of two (can be designed according to requirements) |
Air pressure | 0.6-0.8Mpa |
Total power of power supply | 220V/380V 50HZ 3.2KW |
Main motor power | 750W |
PVC hard film | 0.15-0.5*80MM |
PTP aluminum foil | 0.02-0.035*80MM |
Punching frequency | 10-40 times/min |
Dialysis paper | 50-100G*80MM |
Mold cooling | tap water or circulating water |
Dimensions | 1600*600*110OMM |
Machine weight | 450KG |
Working Process | ||||
1. Forming (up and down heating) | 2. Heat sealing (upper heating) | 3. Coding | ||
4. Indentation (can be heated in a small amount) | 5. Cutting | 6. Forming and outputting finished products | ||
Suitable For
