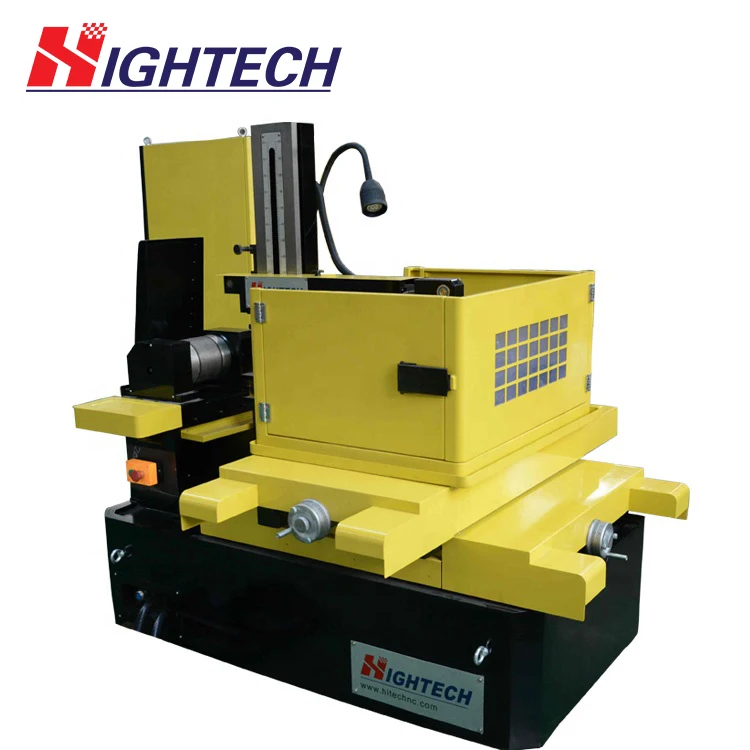

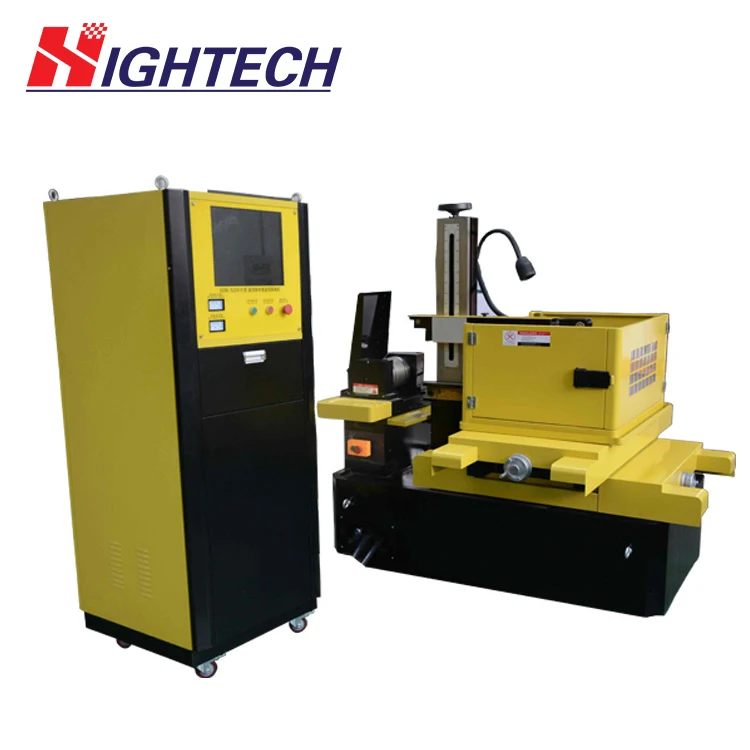

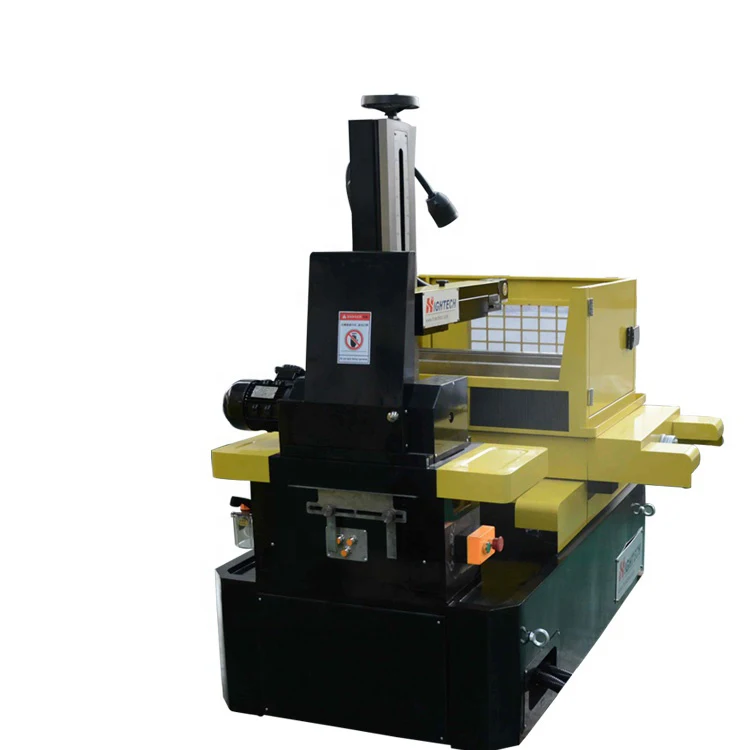

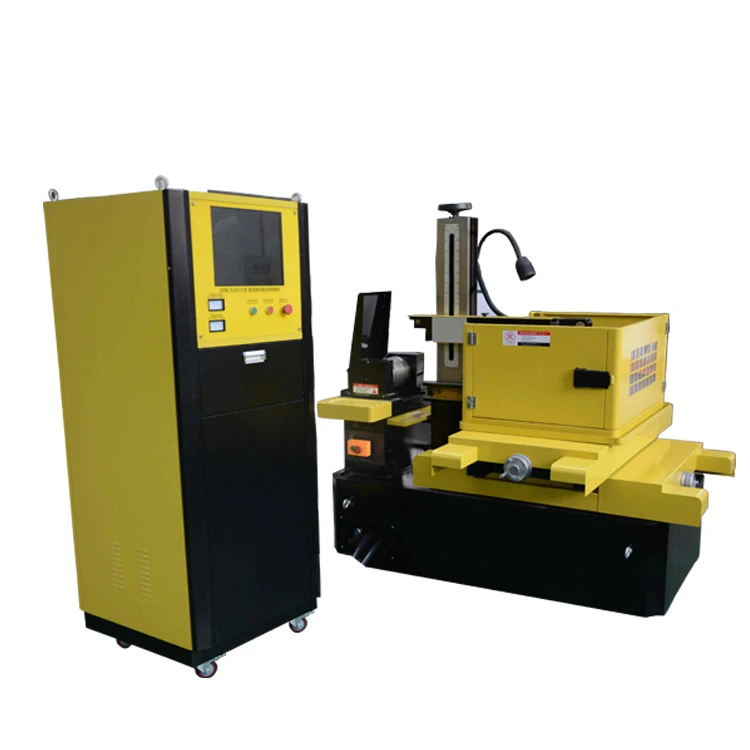

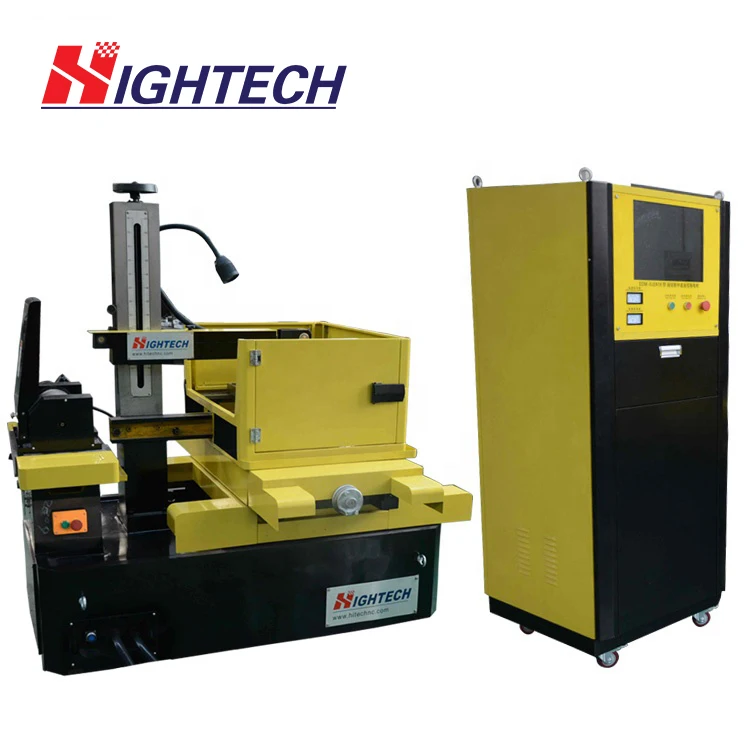

Аппарат для резки проволоки DK7725 Edm современный


Поделиться:


Цена:4 300,00 $ - 5 600,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 5117.16 $* 5373.32 $*
Aug-16-2025 5074.49 $* 5328.44 $*
Jul-16-2025 4257.47 $* 4470.66 $*
Jun-16-2025 4988.45 $* 5237.82 $*
May-16-2025 4343.47 $* 4560.3 $*
Apr-16-2025 4902.98 $* 5147.22 $*
Mar-16-2025 4859.93 $* 5102.39 $*
Feb-16-2025 4816.52 $* 5057.22 $*
Jan-16-2025 4773.67 $* 5012.17 $*

Характеристики



Products Description


Main Technical Parameters


Model
Worktable size (mm)
Worktable travel (mm)
Max. cutting thickness (mm)
Processing taper
Max. load weight (kg)
Main machine weight(kg)
DK7720
250x320
200x250
200
6°/80mm
100
800
DK7725
270x420
250x320
400
6°/80mm
200
1200
DK7732
380x600
320x400
400
6°/80mm
300
140
DK7740
410x710
400x500
400
6°/80mm
450
1600
DK7745
500x750
450x550
400
6°/80mm
450
1650
DK7755
596x880
550x650
500
6°/80mm
800
2500
DK7763
790x1260
630x1000
600
6°/80mm
1000
3500
DK7780
900x1500
800x1200
600
6°/80mm
1500
5500
DK77120
1300x1900
1200x1600
600
6°/80mm
4000
10000






Product introduction
DK77 series wire EDM machines, models are complete, structure is reasonable, rigidity is good, and precision is high. High-grade machine adopts precision linear guide rail, and high column optionally equips electric lifting roller span adjustment. Swinging big taper series machine tools are equipped with wire electrode wire agencies, and produce semi-hermetic environmental protection machine tools. Molybdenum wire diameter range is from 0.12-0.18mm, maximum processing speed is more than 120 mm² / min, the best surface roughness ≤Ra2.5um(single cut)Ra1.6mm(multicut).


Detailed Pictures



Double ldler pulley
With double-sided large guide wheel,the cutting is more stable,and the molybdenum wire is put into the guide wheel.no hook is needed to wear molybdenum wire, whitch is conwenient for operation.



Wire Barrel Show
The chromium plating process is adopted to reduce the runout of the barrel and increase its smoothness.



Coating Process and Induction Switch
Second annealing of castings,appearance spraying process is corrosion-resistant,wear-resistant and durable.Flexible electronic
induction switch,no physical contact ,stable and not easy to damage.



Metal water retaining cover
Metal water retaining cover with better water retaining effect, and more convenient open-door operation



Electrical Cabinets
stable operation electrical cabinets guarantee the processing stability and the compatibility between processing surface roughness
and speed, so that the failure rate is very low



0peration Softwares
operation softwares could be Autocut, HL, X8 and other softwares to meet the processing all requirements of customers. several
operation languages are optional


Hot Sale Products






Company Profile


Company Introduction








Main Products
Our company specializes in researching,manufacturing and selling quality EDM machines all over the world.Our products include:
Single cut EDM wire cutting machine
Multicut EDM wire cutting machine
EDM die sinking machine
EDM drill machine
Emery wire cutting machine
Brass slow wire EDM cutting machine


Customer evaluation
We always keep our enterprise mission--"Quality Changes The World" in mind.We start our work from each trivial matter and do our best to complete each detail well and offer solid technical service and good service to our customers.






Why Choose Us


Certificates




Test Equipments




Trade Assurance Service




One-year Warranty
24 Hours After-sales Service
L/C Acceptable








Pre-sales Service
* Inquiry and consulting support.
* View our factory.
* Offer quotation.






After-sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*Provide all spare parts for life-time.


FAQ


Q:Are you manufacturer?
A:Yes,we are manufacturer of brass wire EDM cutting machine.Welcome to visit us!

Q:What payment terms do you accept?

A:We are flexible on payment terms,please contact us for details!

Q:What information do you need before making quotation?
A:Worktable size or table travel you need.Surface roughness and cutting speed requirements.

Q:What should I do to start a new business in EDM wire cutting machine area?

A:Please contact us immediately,we provide free pre-sales consultant service of brass slow wire EDM cutting machine.

Q:Why choose you?What is the difference between you and other Chinese supplier?

A:We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia,India,UAE,South
Korea,Canada,Vietnam,Thailand,Mexico,Turkey and etc.
You can get higher quality product & better professional service from Hitech with same price.

Q:I`m worried about after-sales service!
A:Warranty is one year.
Any parts damaged during warranty will be replaced for free!
We provide spare parts for life time at cost price.
Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price.
Our engineers are available to service overseas!

Q:How do I get in contact with you?
Wechat/Whatsapp:+8618936786832

Q:How do I get in contact with you?
Wechat/Whatsapp:+8618936786832
Skype:sophie_hitech
Telephone:+86-523-86892269
Fax:+86-523-86892368
