Соевый/молочный порошок/яичный белый порошок делая машину козы молоко спрей сушильное оборудование сушилка для


Поделиться:


Цена:9 800,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 11662.76 $* 12245.7 $*
Aug-15-2025 11564.84 $* 12142.54 $*
Jul-15-2025 9702.53 $* 10187.99 $*
Jun-15-2025 11368.99 $* 11936.68 $*
May-15-2025 9898.68 $* 10393.28 $*
Apr-15-2025 11172.95 $* 11731.60 $*
Mar-15-2025 11074.23 $* 11628.55 $*
Feb-15-2025 10976.98 $* 11525.95 $*
Jan-15-2025 10878.63 $* 11422.55 $*

Характеристики





Product Overview

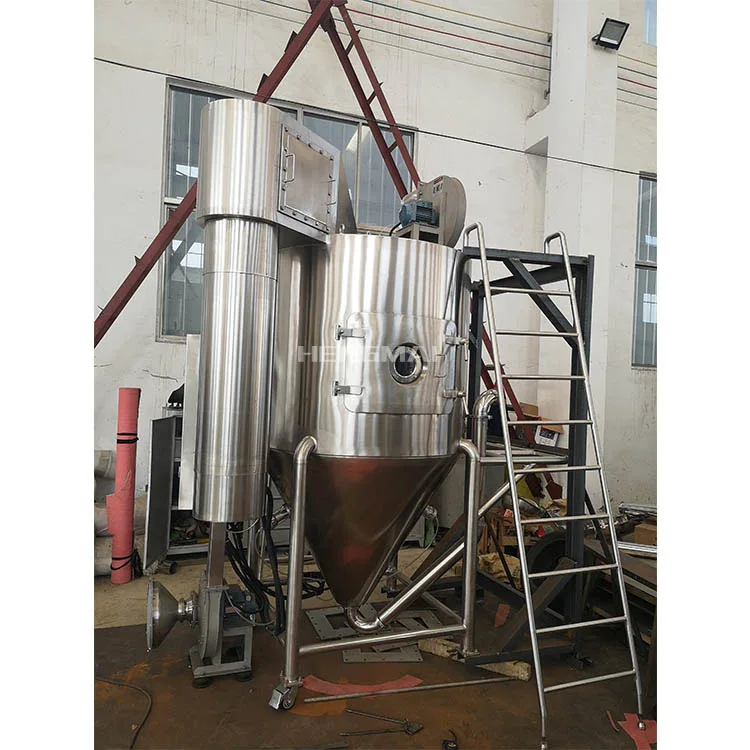

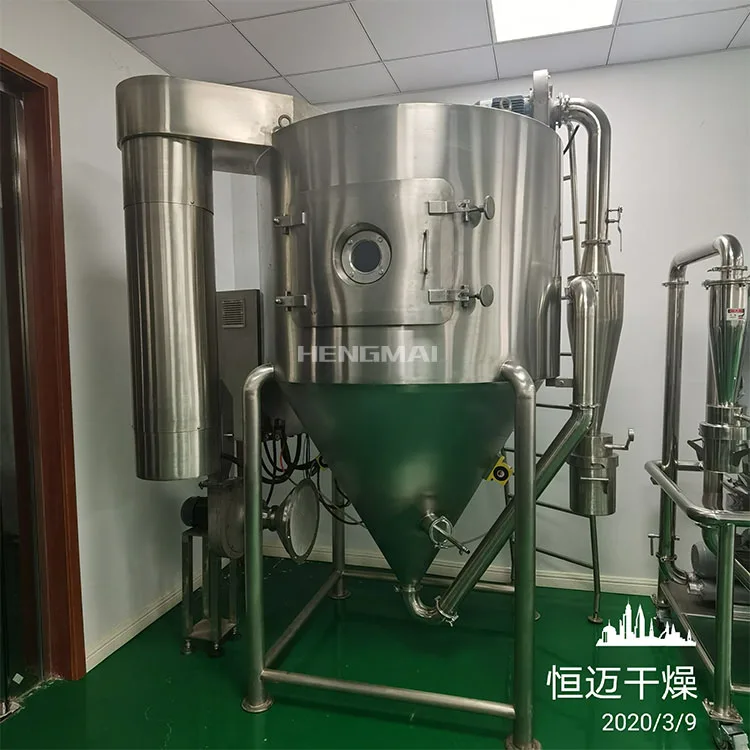

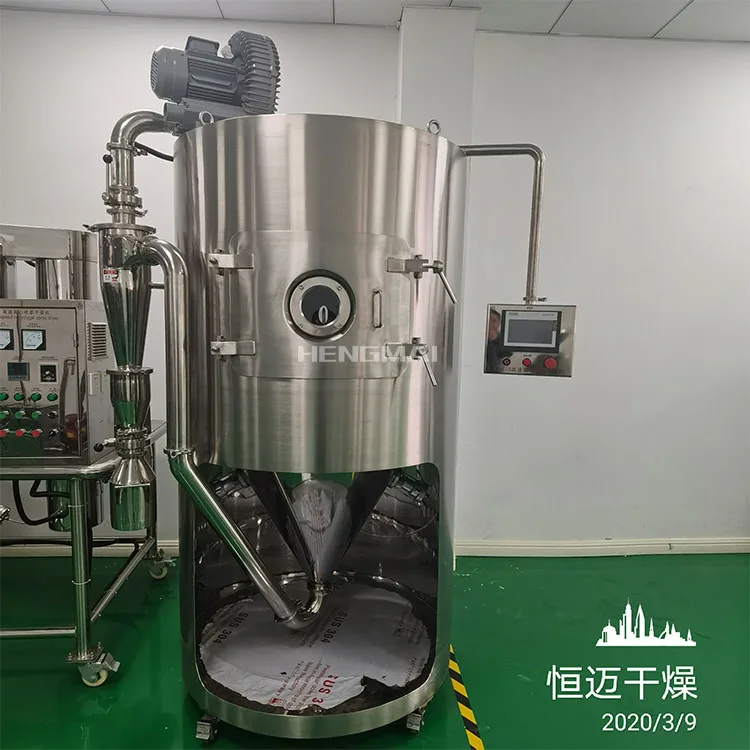

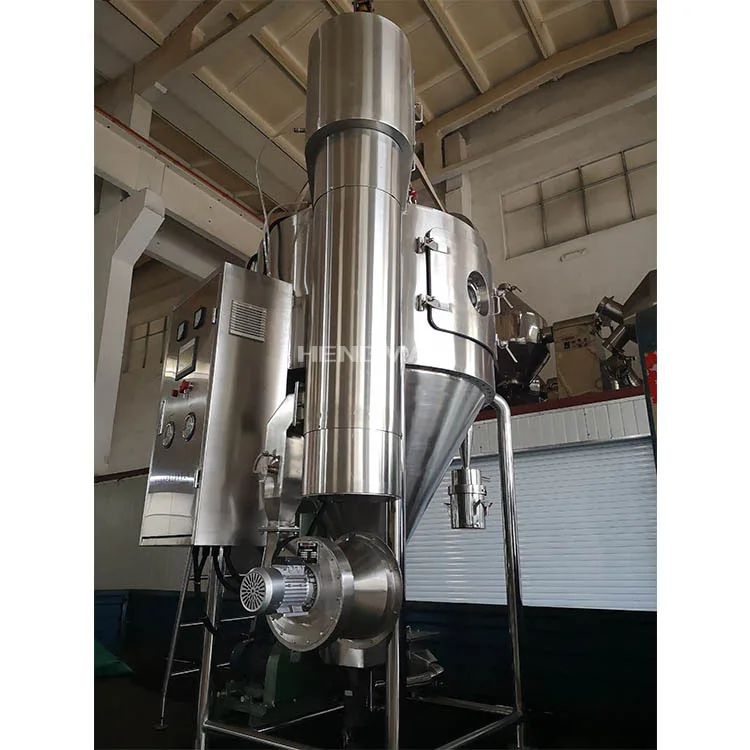

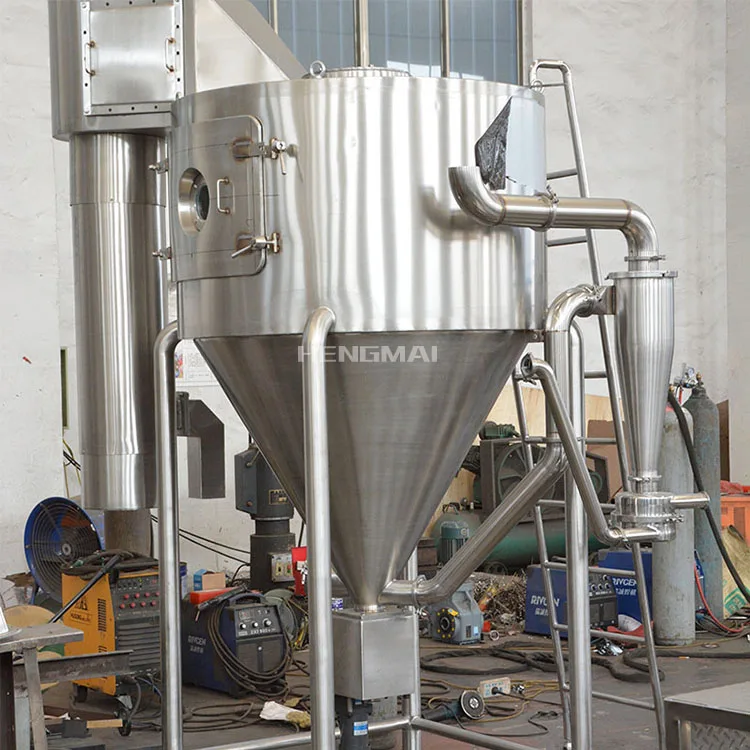

LPG Series Centrifugal Spray Dryer
Spray drying is a widely used technology in liquid forming and drying industry. It is suitable for producing powder and granular solid products from solution, emulsion, suspension and paste liquid raw materials. Therefore, spray drying is an ideal process when the particle size distribution, residual moisture content, bulk density and particle shape of the finished product must meet the standards.




Main Features
1.The drying speed is fast, and the surface area of the material liquid is greatly increased after atomization. In the hot air
flow, 95% - 98% of water can be evaporated instantly, and the drying time is only a few seconds. It is especially suitable for the drying of heat sensitive materials.
2.The product has good uniformity, fluidity and solubility, high purity and good quality.
3.The production process is simple and easy to operate and control. The liquid with moisture content more than 90(40% - 60% for special materials) can be dried into powder products at one time. After drying, there is no need to crush and screen, which reduces the production process and improves the product purity. The particle size, bulk density and moisture of the product can be adjusted by changing the operating conditions within a certain range, which is very convenient for control and management.


Principle
1.Most of the hot air circulates in the tank with high thermal efficiency and energy saving.
2.Using the forced ventilation, adjustable air plate is set in the box, and the material is dried evenly.
3.Wide selection of heat source, such as steam, hot water, electricity, far-infrared.
4.Low noise, balanced operation, automatic temperature control, convenient installation and maintenance.
5.Wide range of applications, drying series of other driers have their specific uses, such as dehydrated vegetables drying machine suitable for dehydration vegetables drying, Chinese medicine spray drying machine for drying Chinese medicine, and hot air drying oven can dry all kinds of materials, is a general drying equipment.




Centrifugal Spray Dryer
Model
LPG-5
LPG-25
LPG-50
LPG-150
LPG-200-2000
Inlet temperature
140-350 Autocontrol




Outlet temperature
80-90
Max. evaporation of water(kg/h)
5
25
50
150
200-2000
Centrifugal spray drive type
 Compressed air drive
Mechanical drive
Max.speed(rpm)
25000
18000
18000
15000
8000-15000
Spray tray diameter(mm)
50
120
120
150
180-240
Heat source
Electric
Steam Electricity
Steam, Electricity,Oil, Gas,Hot stove
Max. electric heating power (kw)
9
36
72
99
\\
Dimensions(L*W*H)m
1.8*0.93*2.2
3*2.7*4.26
3.5*3.5*4.8
5.5*4*7
According to the actual situation
Dry powder recovery
≥95%


Different product parameters, freight cost different, please consult before ordering.Support non-standard customization.






Applications


Chemical industry: sodium fluoride (potassium), basic dyes and pigments, dye intermediates, compound fertilizer, formaldehyde silicic acid, catalyst, sulfuric acid agent, amino acid, white carbon black, etc.
Plastic resin: AB, ABS emulsion, urea formaldehyde resin, phenolic resin, rubber (urea) formaldehyde resin, polyethylene, polyvinyl chloride and so on.
Food industry: fat rich milk powder, gluten, cocoa milk powder, milk replacer, pig blood powder, egg white (yellow), etc.
Food and plants: oats, chicken juice, coffee, instant tea, flavored meat, protein, soybean, peanut protein, hydrolysate, etc.
Sugars: corn steep liquor, corn starch, glucose, pectin, maltose, potassium sorbate, etc.
Ceramics: alumina, ceramic tile materials, magnesia, talc powder, etc.








Company Profile


Changzhou Hengmai Drying Equipment Co., Ltd. located in Changzhou, an industrial star city and a beautiful water town in the south of the Yangtze River, covering total area of 5000sqm. With strong technical force, perfect test system, precision processing equipment and strict management system. We have 10 years of customization experience and excellent R&D team. W specializing in the production of oven, belt dryer, vacuum drying machine, vacuum rotary dryer, drying machine, centrifugal spray dryer, drum scraper dryer, hollow leaf dryer, drum scraper dryer, three dimensional mixing machine, high efficiency wet granulation machine, two dimensional mixer, trough mixer, twin screw mixer, rotary granulator, V mixer, swing system Granulator, high efficiency granulator, hot blast stove, pulverizer, etc. We support non-standard customization and have a great advantage in the quality of price, devoted to creating a set of product design and development, processing and manufacturing, engineering installation and after-sales service in one integrated enterprise.










Raise requirement
Customer drawings, samples, ideas
Provide design scheme
Give solutions as required and confirm quotation
Sign contract
Confirm cooperation, sign contract, pay advance payment


Production
Arrange production and delivery inspection
Delivery
Pay the balance and deliver the goods
After-sale service
One year warranty, video service, on-site solution


Product packaging and delivery




Recommend Products




FAQ


Q: How to choose suitable equipment?
A: Tell us your work flow and requirements, then we will recommend you suitable equipments.

Q: What is your minimum order quantity?
A: 1 set.

Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai. We can provide CIF quote upon request.

Q: How long is your delivery time? A: We make machines after receiving the payment, the production cycle is usually around 15-35 days, depending on which kind of machine.

Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality.

Q: What is the warranty period?
A: 24 hours timely response. The warranty period for non-artificial damage is 1 year after delivery of goods.

Q: How to solve the equipment trouble during using?
A: Please email us about problem with pictures or a small video will be better, we will find the problem and solve it. We suggest ordering more consumable parts in advance.
