Низкая температура лаборатории молимся сушильная машина
- Категория: Spray Drying Equipment >>>
- Поставщик: Platinum,Overseas,Trade,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 18564.23 $* | 19492.73 $* |
| Aug-17-2025 | 18408.92 $* | 19328.15 $* |
| Jul-17-2025 | 15444.5 $* | 16216.39 $* |
| Jun-17-2025 | 18096.0 $* | 19001.77 $* |
| May-17-2025 | 15756.36 $* | 16544.92 $* |
| Apr-17-2025 | 17784.41 $* | 18673.10 $* |
| Mar-17-2025 | 17628.48 $* | 18509.58 $* |
| Feb-17-2025 | 17472.31 $* | 18346.31 $* |
| Jan-17-2025 | 17316.41 $* | 18182.89 $* |
Характеристики
Product Description

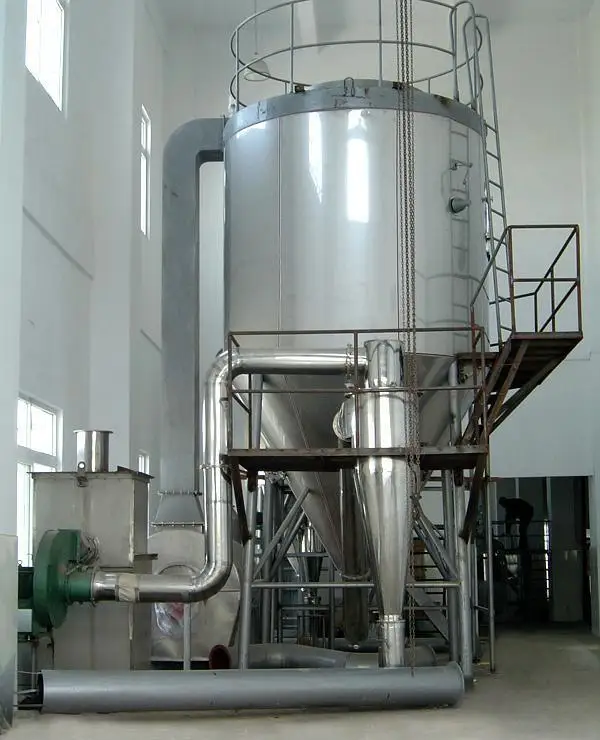

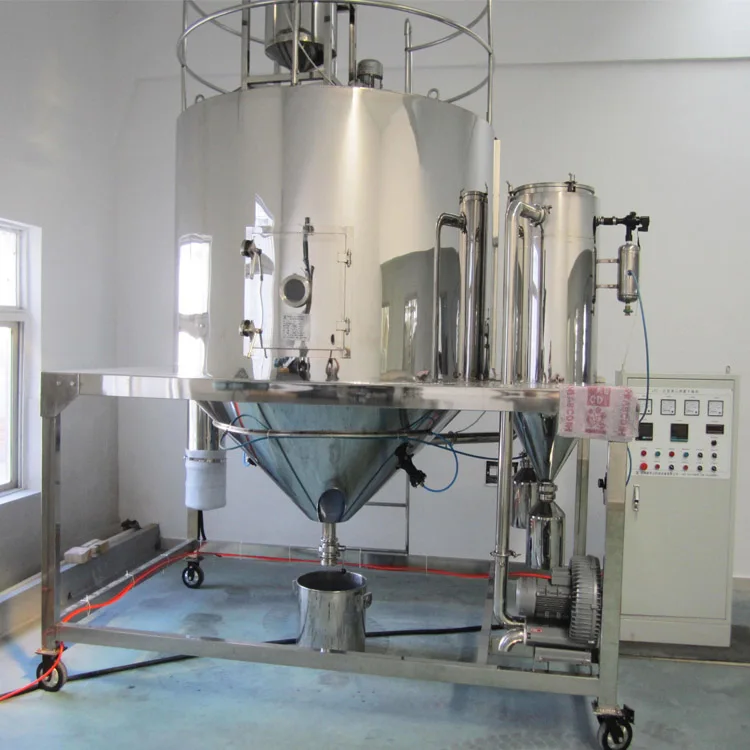

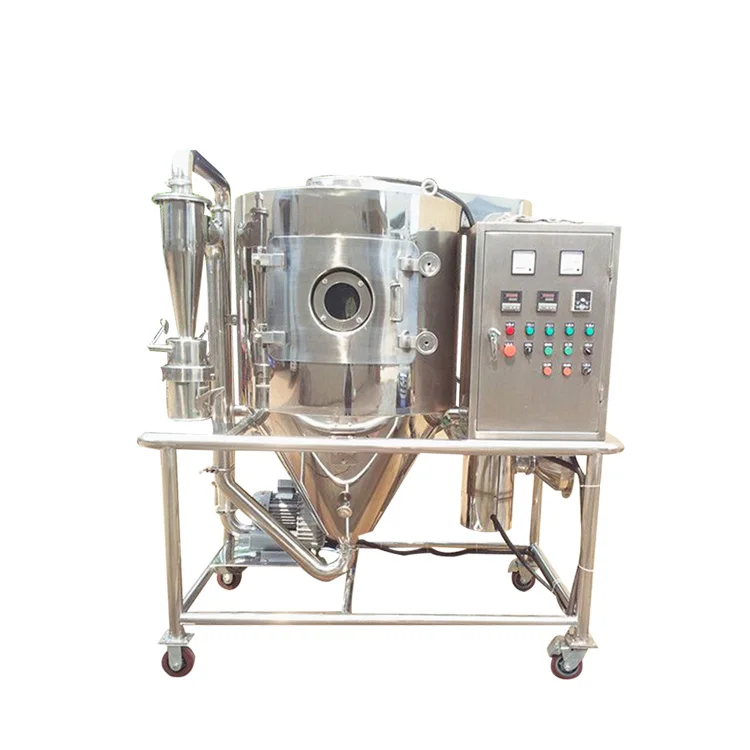

Low Temperature Lab Pray Dryer Price
Spray Dryer is a special drying equipment for drying emulsions, suspensions, pastes, solutions and other liquids. It performs particularly well in the drying of polymers and resins: pigments: ceramics, glass, rust removers,insecticides:carbohydrates, dairy products: detergents and surface active; fertilizers: organic compounds, inorganic compounds materials.
Principle of operation
The air passes through the filter and heater and enters the air distributor at the top of the dryer, the hot air enters the dryer in a spiral shape evenly.
The liquid is pumped from the liquid tank through the filter to the centrifugal atomiser of the dryer, so that the liquid is sprayed into very small mist droplets, and the liquid and the hot air come into contact in parallel, so that the water evaporates rapidly and dries into powder products in a very short time.
The finished product is discharged from the bottom of the drying tower and the cyclone separator, and the exhaust gas is discharged by the fan.
The liquid is pumped from the liquid tank through the filter to the centrifugal atomiser of the dryer, so that the liquid is sprayed into very small mist droplets, and the liquid and the hot air come into contact in parallel, so that the water evaporates rapidly and dries into powder products in a very short time.
The finished product is discharged from the bottom of the drying tower and the cyclone separator, and the exhaust gas is discharged by the fan.
Specification
Model | PGZ-5 | PGZ-25 | PGZ-50 | PGZ-100 | PGZ-150 | PGZ-200 | |||||
Large water Evaporation(kg/h) | 5 | 25 | 50 | 100 | 150 | 200 | |||||
Spray form | High-speed centrifugal atomisers | ||||||||||
Nebuliser speed(rpm) | 25000 | 18000 | 16000 | ||||||||
Diameter of atomisation disc(mm) | 50 | 120 | 150 | ||||||||
Diameter of tower(mm) | 0.9 | 1.75 | 2.3 | 2.7 | 3 | 3.2 | |||||
Electric power(kw) | 9 | 31.5 | Steam+18 | Steam+36 | Steam+54 | Customized | |||||
Heat source | Optional electric, steam + electric, oil, coal, gas hot air furnace | ||||||||||
Dimensions(L*W*H)m | 1.6*9.1*1.75 | 4*2.7*4.5 | 4.5*2.8*5.5 | 5.2*3.5*6.7 | 7*5.5*7.2 | 7.5*6*8 | |||||
Product packaging
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
Company Profile
FAQ
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
