DPP250R полностью автоматическая таблетка таблетки капсулы блистерная упаковочная машина для автоматической упаковки
- Категория: Blister Packaging Machines >>>
- Поставщик: Herun,Machinery,(shanghai),Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 17850.22 $* | 18743.84 $* |
| Aug-16-2025 | 17700.90 $* | 18585.26 $* |
| Jul-16-2025 | 14850.5 $* | 15593.57 $* |
| Jun-16-2025 | 17400.88 $* | 18270.97 $* |
| May-16-2025 | 15150.56 $* | 15908.84 $* |
| Apr-16-2025 | 17100.81 $* | 17955.76 $* |
| Mar-16-2025 | 16950.38 $* | 17798.8 $* |
| Feb-16-2025 | 16800.40 $* | 17640.99 $* |
| Jan-16-2025 | 16650.12 $* | 17483.65 $* |
Характеристики
Product Paramenters
Model | DPP-250 |
Punching frequency | 10-40 Cycles/min. |
Production capacity | 2400-9600pcs/hour |
Max. forming area, depth | 240x140x26mm (Standard plate size: 240x140x14mm) |
Standard travel range | 40-140mm |
Standard blister size | 80*57mm( designed as per user’s requirement) |
Air supply | 0.4-0.6Mpa |
Air compressed required | ≥0.3m3/min |
Total power | 380V/220V 50Hz 8.5Kw |
Main motor power | 1.5Kw |
PVC sheet | Thickness(0.15-0.5)*Width250mm |
PTP | Thickness (0.02-0.035)*150mm |
Dialyzing paper | (50-100)g*250mm |
Cooling mould | Running water, Circulation water |
Overall dimension | 3250*710*1700mm(L*W*H) |
Weight | 1400kg |
Noise | <75dBA |
Configuration List
NO. | Description | Model | Qty. | Manufacturer |
1 | Traction Cylinder | SDA φ25×10 | 2 | SHENPU |
2 | Main motor | CH40-B 3HP2200W | 1 | Zhejianglibang |
3 | Forming heater | 290×250×25 2000W | 2 | Herun |
4 | Hot sealing heater | 265×120×25 1500W | 1 | Herun |
5 | Frequency inverter | DVM-4T022-05 | 1 | Zhejiang Delair |
6 | Waste material collection motor | 4RK25GN-CZ 4GN-15K | 2 | Libang,Zhejiang |
7 | Feeding motor | 8Z52JW15 | 1 | Jinan Yibang |
8 | Thermocouple | WRKT-01 | 2 | Tes of Taiwan |
9 | Air-break | C65N-C32 | 1 | Schneider |
10 | Air-break | C65N-C16 | 3 | Schneider |
11 | Air-break | C65N-C6 | 1 | Schneider |
12 | Switching power supply | LRS-75-24 | 1 | Ming Wei |
13 | Touch screen | ST700 | 1 | Siemens |
14 | PLC | CPU224CN | 1 | Siemens |
15 | Solid relay | SSR-40DA | 2 | Fotek of Taiwan |
16 | Proximity switch | TL-Q5MCI-Z | 3 | Omron |
17 | Electromagnetic valve | 4V210-08 | 6 | AirTAC |
18 | Emergency switch | XB2-BS542 | 3 | Schneider |
19 | The cursor | GDL-211 | 1 | Shanghai Yatai |
20 | Temperature module | EM231CN | 1 | Siemens |
21 | Speed control module | EM232CN | 1 | Siemens |
22 | Servo motor | MHMF082LIU2M | 1 | Panaonic |
23 | Expansion module | EM222CN | 1 | Siemens |
24 | Miniature relay | 2Y2N | 9 | Omron |
25 | Encoder The encode | E6B2-CWZ6C | 1 | Omron |
Sample Display
Details Images

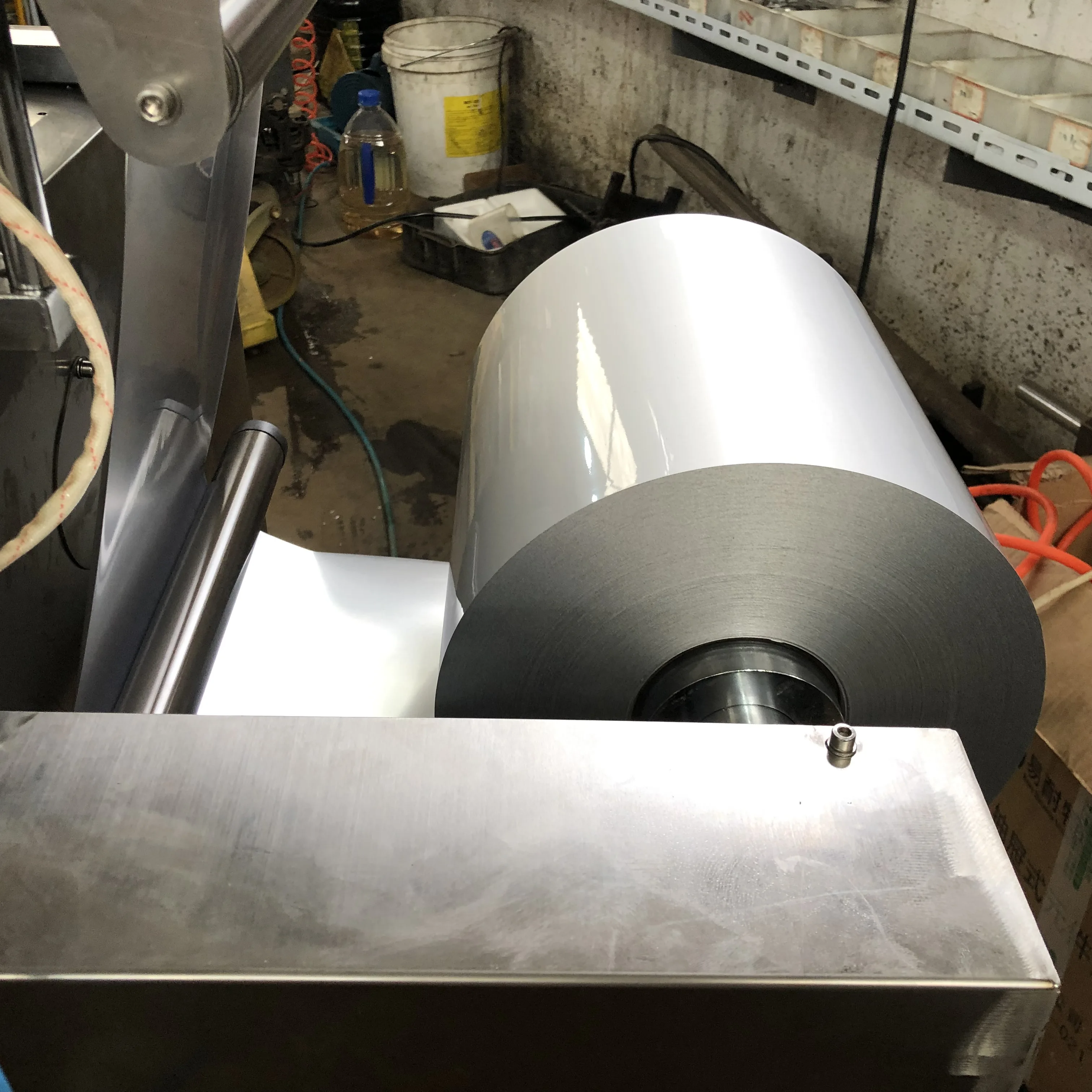

Alu Foil Feeding Device
Blister Forming Device
Blister Sheet Exit
Connector-1
Germany Siemens Touch Screen
Drawing Device

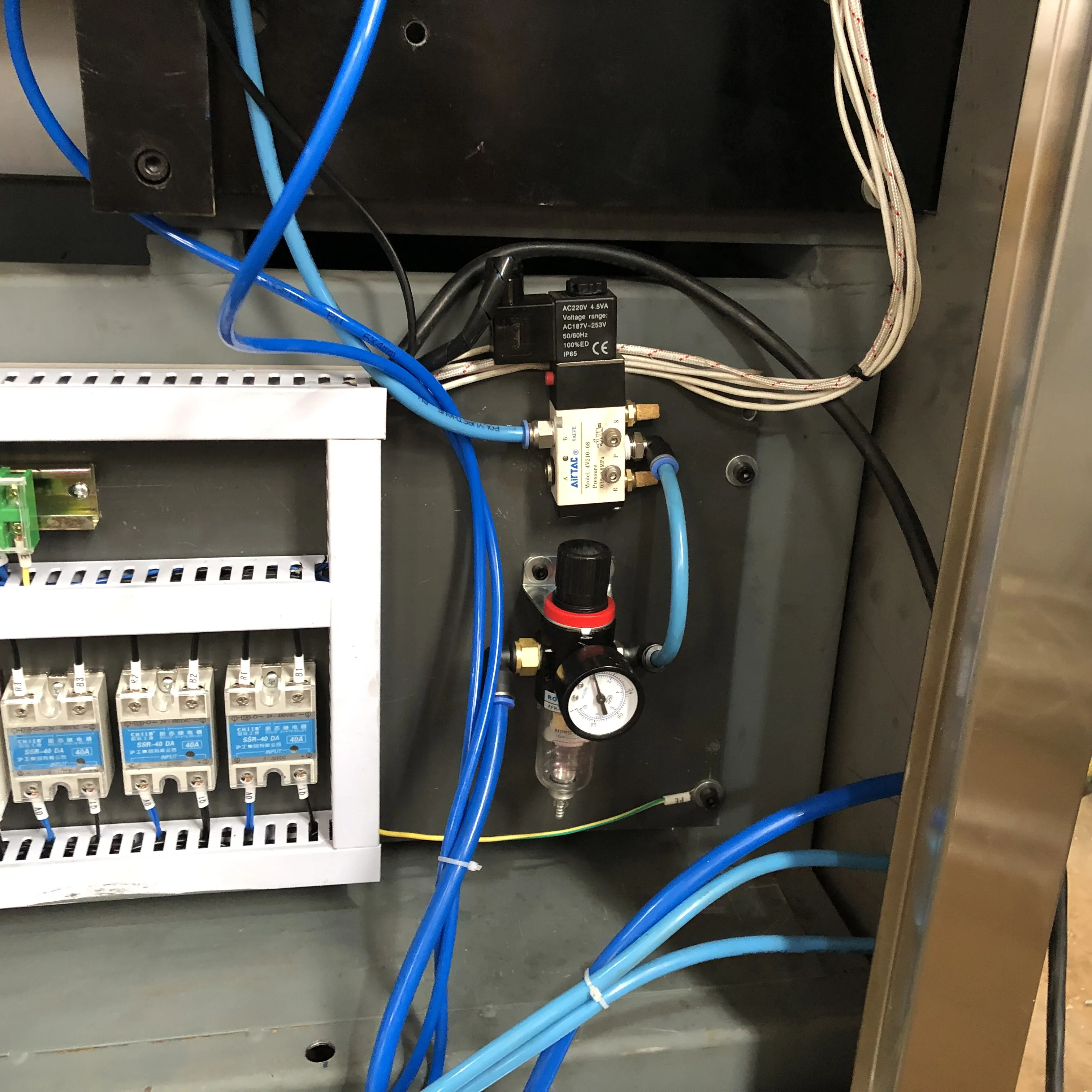

Electric Device
Electric Device-2(Proximity Switch)
Pill Feeding Device

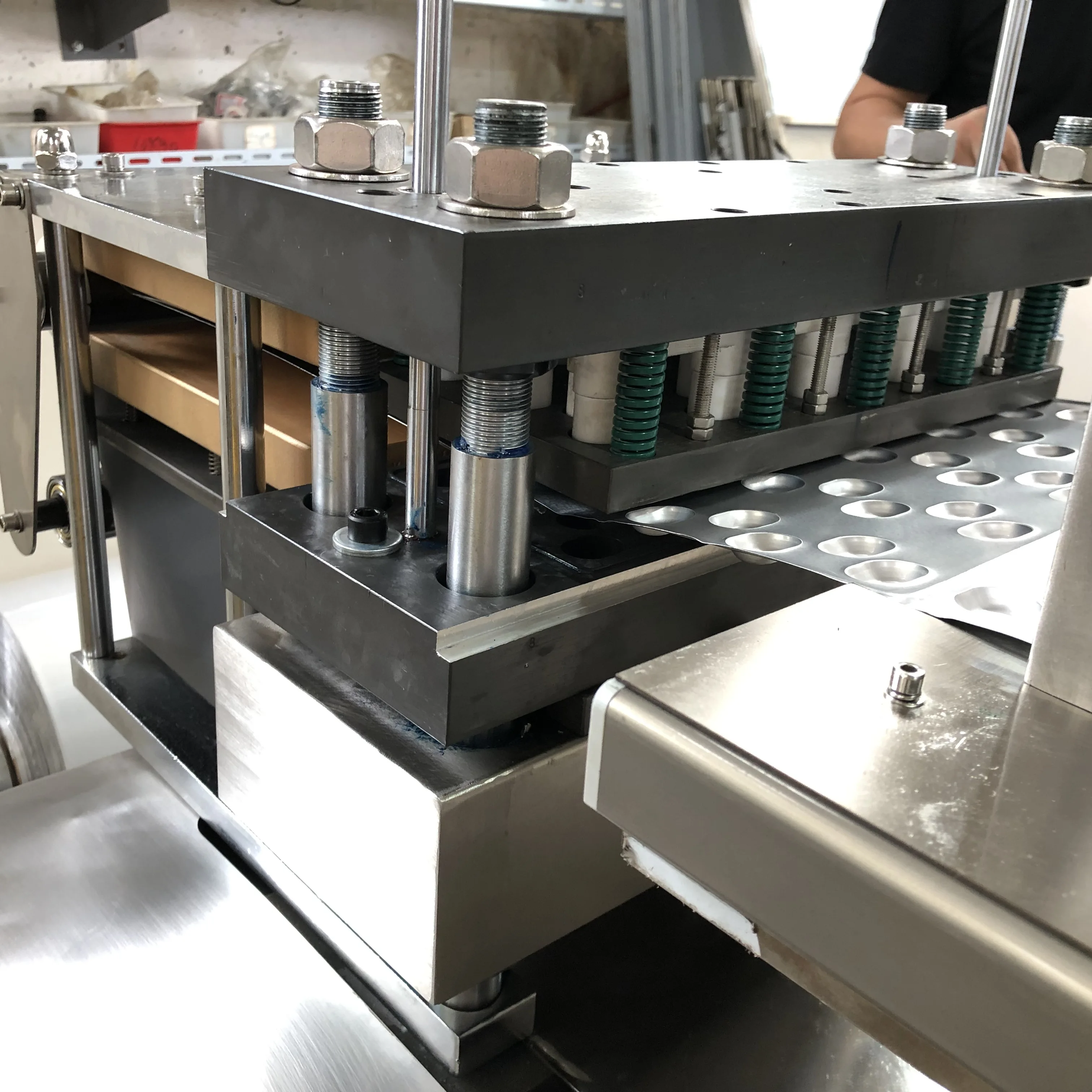

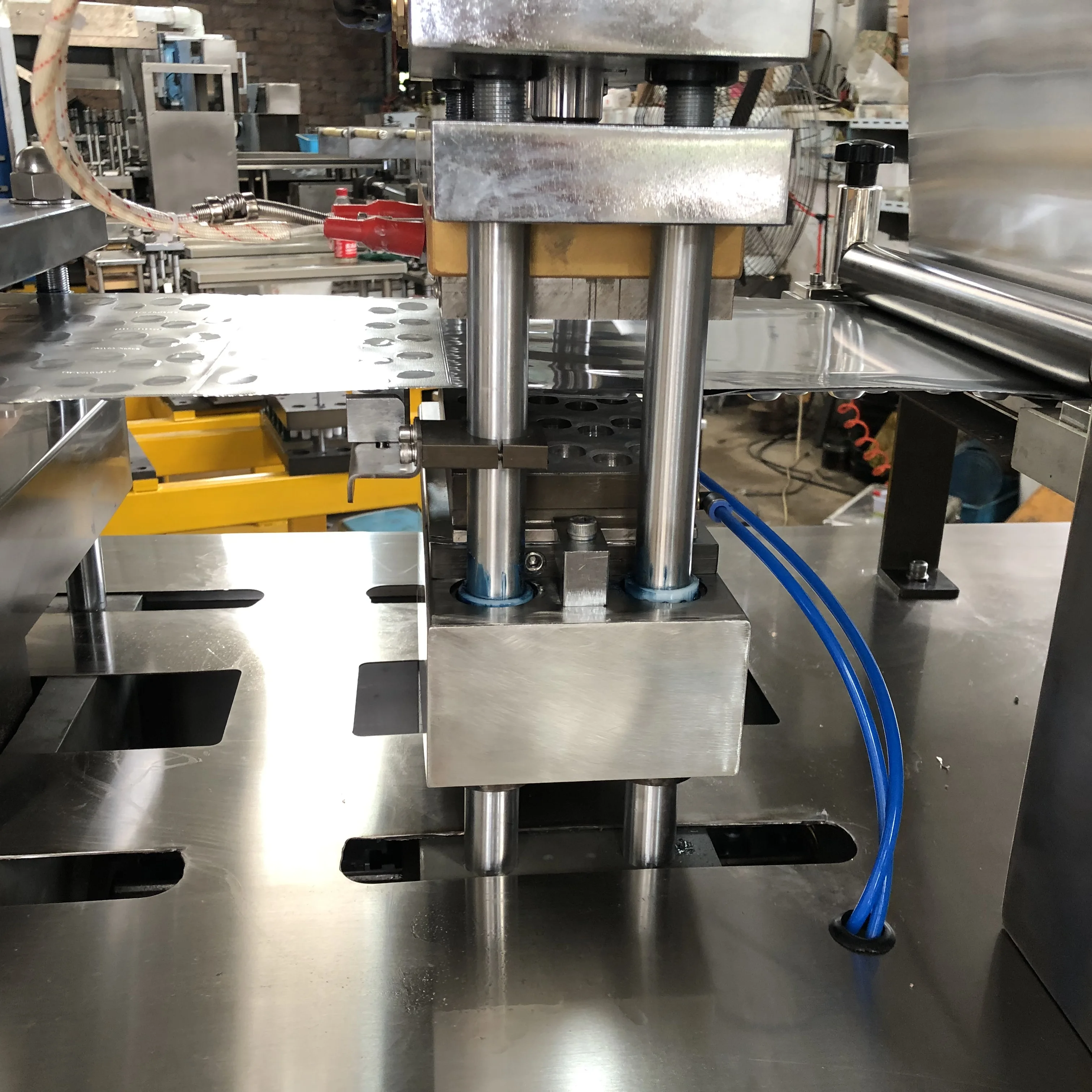

Punching Device
PVC Film Holder
Emergency Button
Recommend Products
Packing And Shipping
Company Profile
Herun Machinery (Shanghai) Co. Limited, located in Shanghai, is a professional manufacturing and trading company for pharmaceutical machinery, with CE certificates covering all the equipments we produced. Herun Machinery is member of China Association for Pharmaceutical Equipments, supplying generally 6 categories of products, such as mixer, tablet press machine, coating machine, automatic capsule filling machine, blister packing machine, counting and packing machine, to pharmaceutical and food industry.
We have a top R&D team to control the standardized process in the production and make our machines to meet at maximum the
customer's strict requirements. We provide OEM/ODM, and after-sales service to overseas customers. Customers of more than 20
countries choose us for the cooperation because of our professional experience of 12 years.
customer's strict requirements. We provide OEM/ODM, and after-sales service to overseas customers. Customers of more than 20
countries choose us for the cooperation because of our professional experience of 12 years.
FAQ
Q1: Where is your factory? How can I visit your factory?
A1: Our factory is located in Shanghai. We are warmly welcome you to
visit the production base if you have a travel plan.
visit the production base if you have a travel plan.
Q2: How can I know your machine is designed for my product?
A2: If you don't mind, you can send us material sample and we test it on the machine. During that time, we will take video and clear ,pictures for your reference. If possible, we even can hold video conversation online with you.
Q3: How can I trust you for the first transaction?
A3: Please note that our above business licenses and certificates. And if you don't trust us, we can use Alibaba
Trade Assurance service. it will protect your money during the whole transaction.
Trade Assurance service. it will protect your money during the whole transaction.
Q4: How about the after service and guarantee period?
A4: We make the warranty of 12 months from the machine's arrival in buyer's facility. With a professional team of experienced technicians, we can serve abroad and do the best after-sale service to assure the machine's perfect operation.
Q5: How can we contact you?
A5: Please leave a message and click "send" to send us an inquiry.
Please find our contact information on this page, then you can communicate with us by Email,
WeChat, Skype, WhatsApp, QQ, Facebook, phone, etc.
