Инструменты для запечатывания зубных щеток оборудование упаковки игрушек 8 кВт и бумажная карточка высокочастотный сварочный аппарат блистерной из ПВХ
- Категория: Blister Packaging Machines >>>
- Поставщик: Shenzhen,Hansweld,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.54 $* | 0.83 $* |
| Aug-15-2025 | 0.4 $* | 0.19 $* |
| Jul-15-2025 | 0.42 $* | 0.88 $* |
| Jun-15-2025 | 0.19 $* | 0.63 $* |
| May-15-2025 | 0.50 $* | 0.21 $* |
| Apr-15-2025 | 0.9 $* | 0.51 $* |
| Mar-15-2025 | 0.57 $* | 0.31 $* |
| Feb-15-2025 | 0.62 $* | 0.41 $* |
| Jan-15-2025 | 0.19 $* | 0.26 $* |
Характеристики
Product Parameter
Working principle:
Using pneumatic components to drive the pressing plate to work, and use the principle of adjustable electric heating to complete the sealing of PVC, PP, PE and other plastic blister molding materials with cardboard. The operation is simple, convenient and efficient. The large voltage is converted to a small voltage, and the large current is controlled to control the heating sheet. Generate instantaneous heat, heat the blister cover and the paper card together, and press the cylinder to make the two blister covers and the paper card close together.
MODEL | HSD-4060 |
VOLTAGE | 220V 3P 50/60Hz |
WOutput Power | 4.5KW |
Packing Speed | 6-15Times/min |
Working Station | 12 Stations |
WEIGHT | 500KG |
MACHINE SIZE | 3200*840*1500MM |
Equipment characteristics:
The degree of automation is high and the working state is stable. You can choose automatic manipulator discharge according to customer needs or manual discharge, which can automatically complete feeding, heat sealing, shaping, automatic discharging, and automatic feeding functions.
★Automatic stripping, you can put the box at the end of the machine to load products or connect to the production line!
★Automatically put paper cards: the manipulator automatically puts paper cards. (Additional)
★Automatic storage of production parameters: The production parameters of each product, such as the hot pressing time, can be stored intelligently, and then recalled when used. (Additional)
★Machine fault self-check function: the machine stops working, the computer will automatically jump to the fault page and display the fault content .(additional)
★Production quantity alarm function: set the quantity of production, the first few editions will automatically alarm when the output is about to be completed, and automatically stop the operation when the quantity is reached. (Additional)
★Automatic stripping, you can put the box at the end of the machine to load products or connect to the production line!
★Automatically put paper cards: the manipulator automatically puts paper cards. (Additional)
★Automatic storage of production parameters: The production parameters of each product, such as the hot pressing time, can be stored intelligently, and then recalled when used. (Additional)
★Machine fault self-check function: the machine stops working, the computer will automatically jump to the fault page and display the fault content .(additional)
★Production quantity alarm function: set the quantity of production, the first few editions will automatically alarm when the output is about to be completed, and automatically stop the operation when the quantity is reached. (Additional)

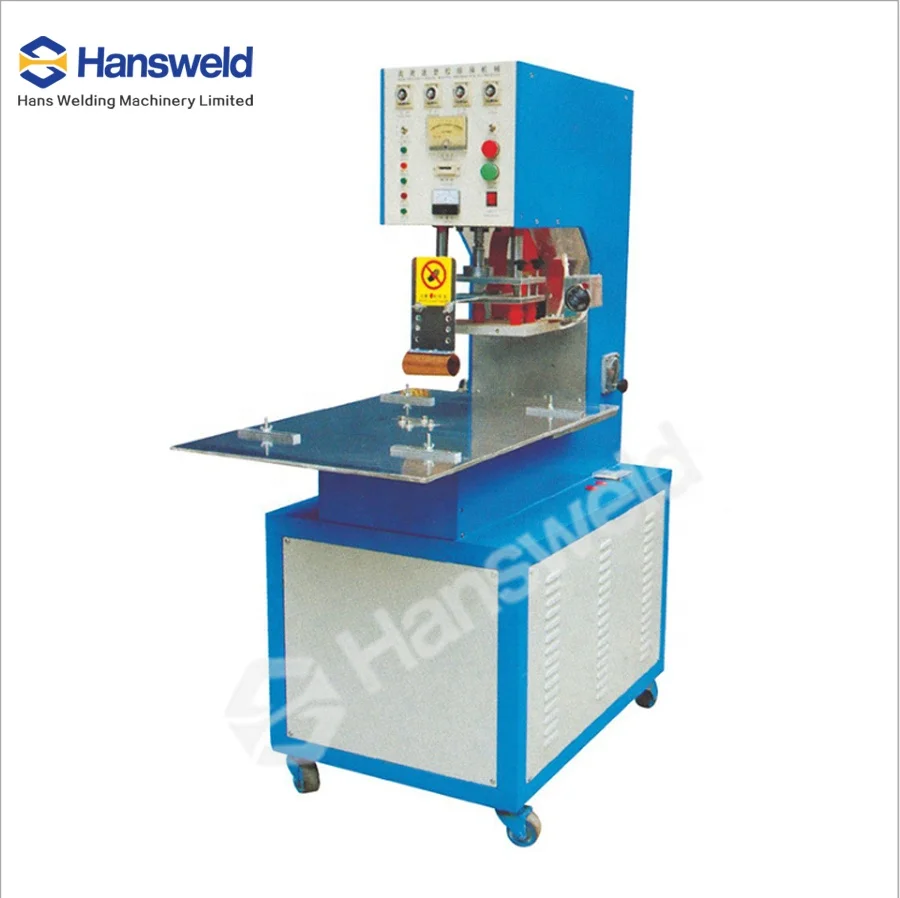

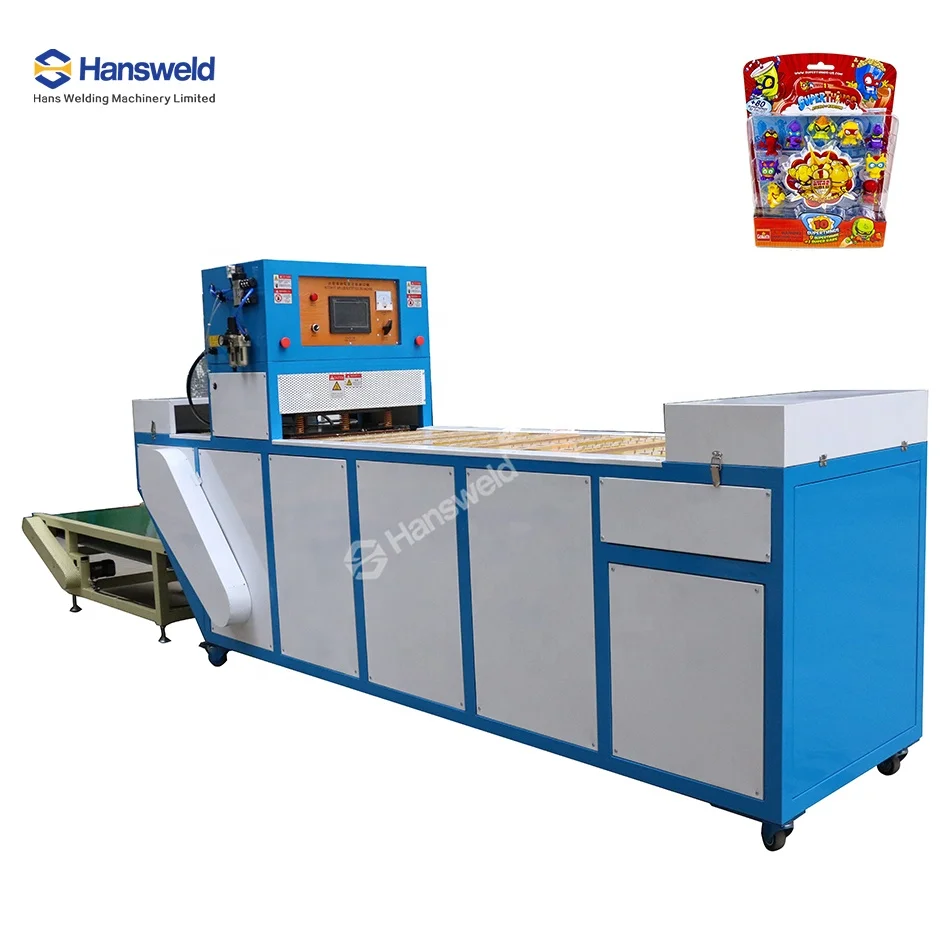

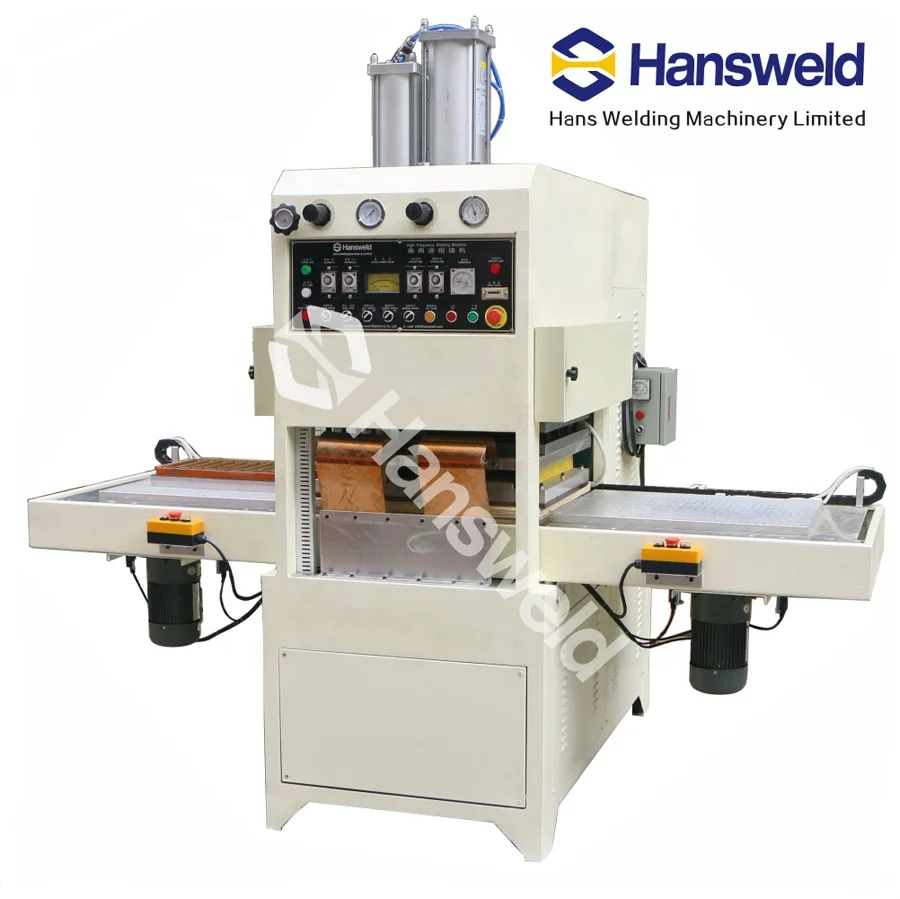

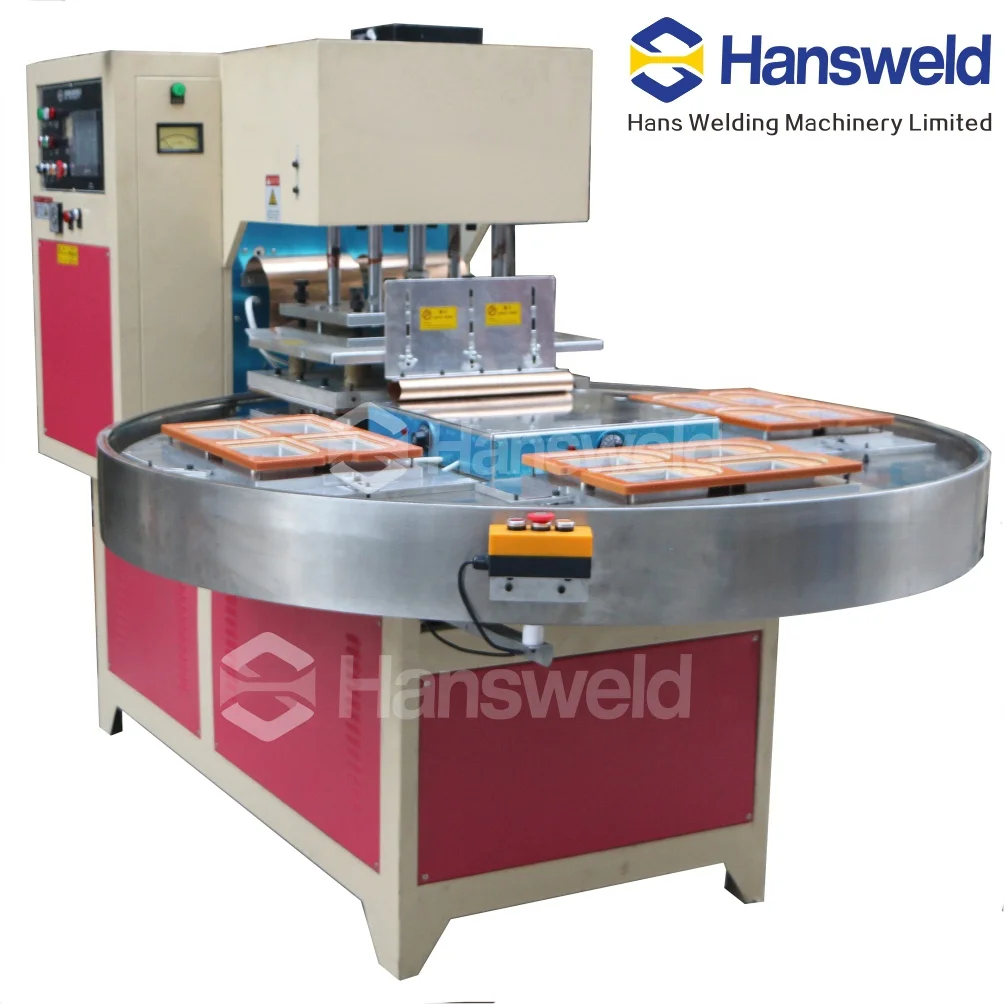

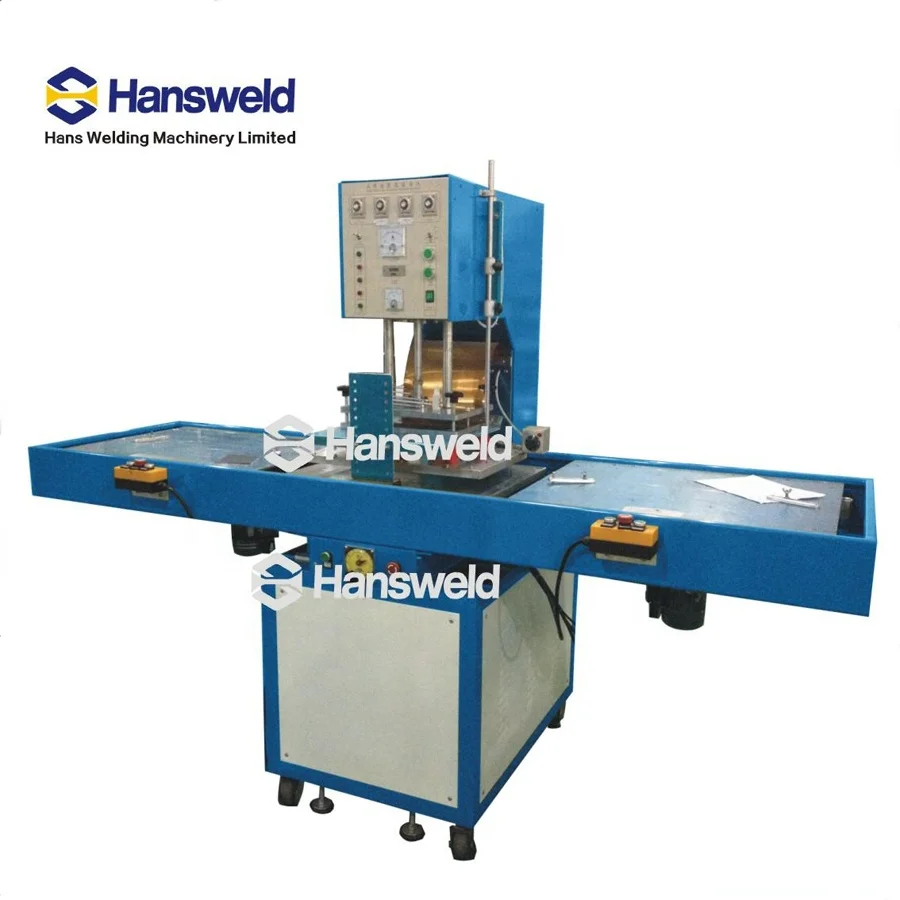

Product Display
