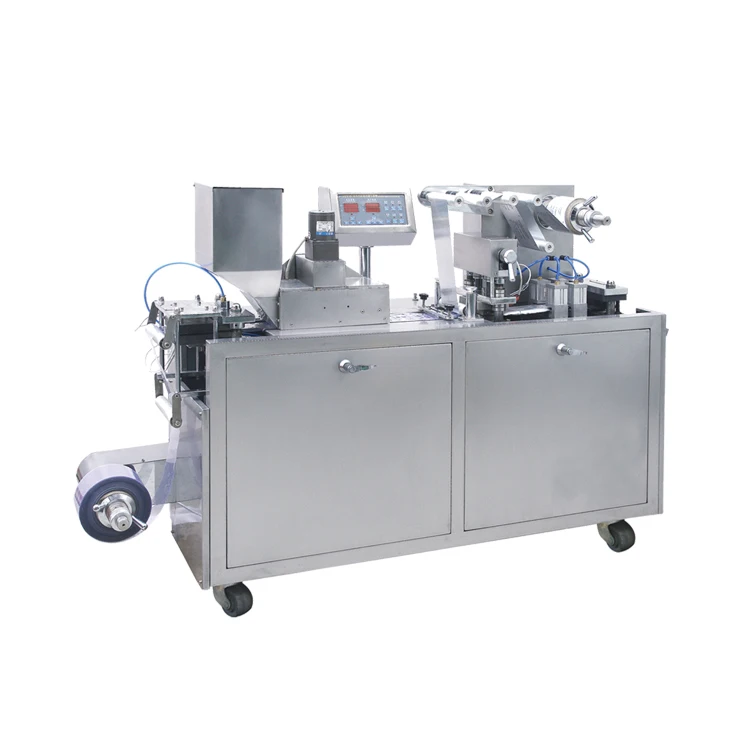

Полностью автоматическая машина для DPP-80 таблетки в мягких капсулах блистерная упаковочная
- Категория: Blister Packaging Machines >>>
- Поставщик: Hangzhou,Shengde,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 6188.68 $* | 6497.34 $* |
| Aug-18-2025 | 6136.4 $* | 6443.70 $* |
| Jul-18-2025 | 5148.96 $* | 5405.63 $* |
| Jun-18-2025 | 6032.29 $* | 6334.14 $* |
| May-18-2025 | 5252.55 $* | 5515.18 $* |
| Apr-18-2025 | 5928.24 $* | 6224.48 $* |
| Mar-18-2025 | 5876.70 $* | 6170.79 $* |
| Feb-18-2025 | 5824.37 $* | 6115.39 $* |
| Jan-18-2025 | 5772.42 $* | 6061.47 $* |
Характеристики
Application
This automatic blister packaging machine is specially designed for hospital preparation rooms, laboratories, health care products, and small and medium-sized pharmaceutical factories. It has the characteristics of a compact body, convenient operation, multi-function, adjustable stroke, and long durability. It is suitable for ALU-PVC packaging of medicine, food, electrical appliances, etc.
Product Paramenters
Model | DPP-88H | ||
Cutting Frequency | 10-30times/min | ||
Max. Forming Area and Depth | 100*90*15mm | ||
Pulling Length | 40-100mm | ||
Blister Plate Size | Design according to customer requirements | ||
Packaging material(I.D.Φ75) | PVC(mm) | (0.15-0.4)*110*(Φ300) | |
PTP(mm) | (0.02-0.15)*110*(Φ250) | ||
PET(mm) | (50-100)g/m2*110*(Φ300) | ||
Power | 220V 50Hz 4.5kw | ||
Air Compression(self-prepared) | 0.6-0.8Mpa≥0.3m³/min | ||
Mould Cooling | 30-50L/h (Recycle water or circulating water consumption) | ||
Overall Dimension(L*W*H) | 1700*450*1100 (including foundation) | ||
Weight | About 300kg | ||
Main Features
1- The pulling length is adjustable. The mold is positioned by a fixed groove, which is convenient for mold replacement.
2- It heats the PVC through conduction and forms it by pressing and foaming.
3- Automatic feeding. Mould and feeding device can be designed according to customer requirements.
4- When the machine stops, the heating mold will automatically separate, which helps protect the material from the heating mold.
5- It is equipped with perforation embossing, batch number embossing, and waste rewinding.
6- The conveying arm is used to clamp the material from both sides, and the linear repeat operation makes the machine operation synchronous, accurate, and stable.
We have several Models of this machine. We can recommend you a suitable model according to your requirement. Please inform us: blister size, material, requirement of production capacity, and better show some product pictures. Contact Us>>
