Характеристики

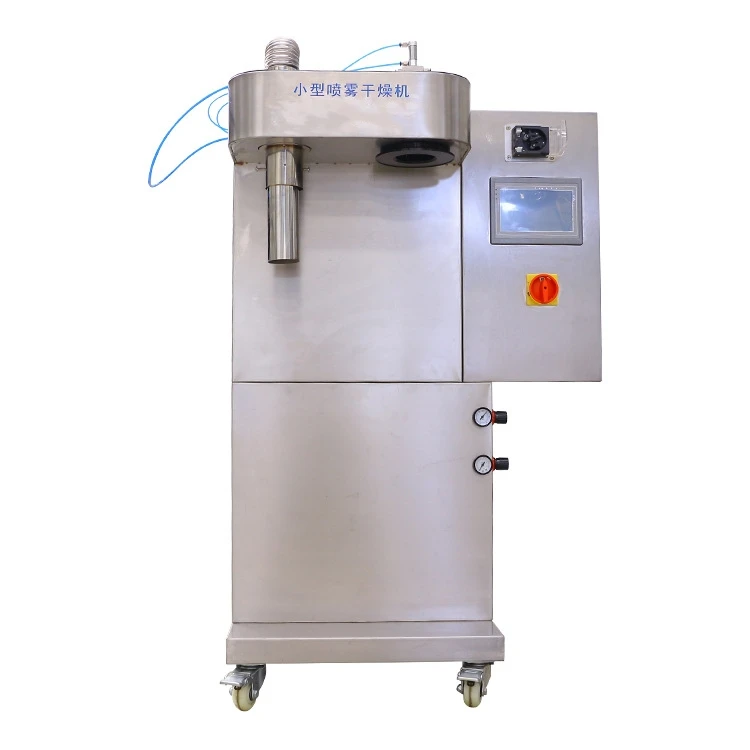

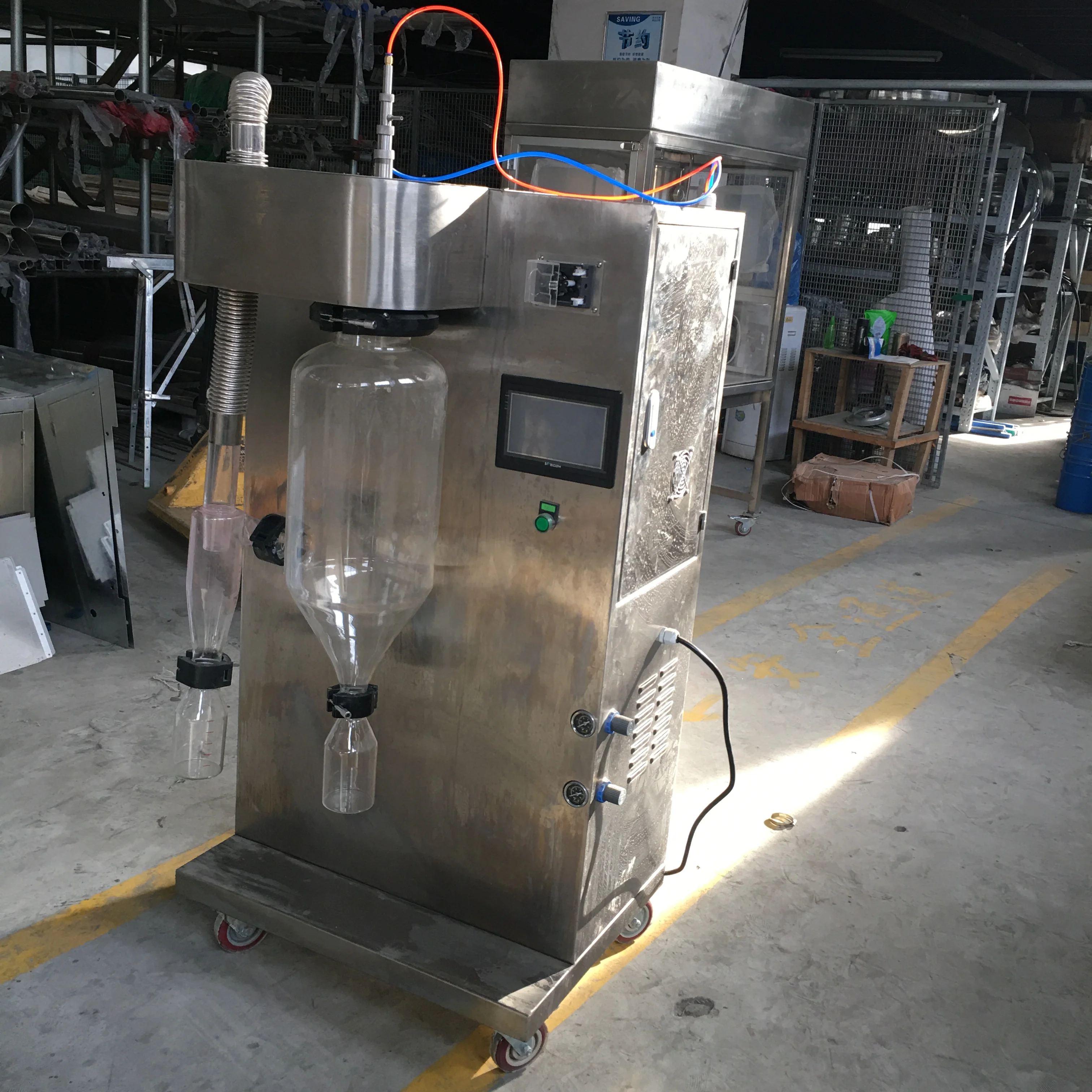

Product description of small spray dryer
It is suitable for the production of micro-particulate powder in universities, research institutes and laboratories of food, pharmaceutical and chemical enterprises. It is widely applicable to all solutions such as emulsions and suspensions. Preparations, etc. Because the sprayed material is only subjected to high temperature and instantaneous heating when sprayed into a mist, these active materials maintain their active ingredients unchanged after drying.
Specifically used in the following fields: beverage flavors and pigments milk and egg products plant and vegetable extracts pharmaceutical synthesis heat-sensitive substances plastic polymers and resin fragrances blood products ceramics and superconductor biochemical products dye soap and detergent food binder oxide bone powder And tooth powder, etc.
Main features of small spray dryer
*Original imported nozzle, high efficiency.
*Color large touch screen operation, combination of automatic control and manual control,
*Real-time PID constant temperature control technology, accurate temperature control, heating temperature control accuracy ± 1℃.
*The spraying, drying and collecting devices are made of transparent high-quality high-temperature resistant high-borosilicate glass, and the entire spray drying experiment process is visible.

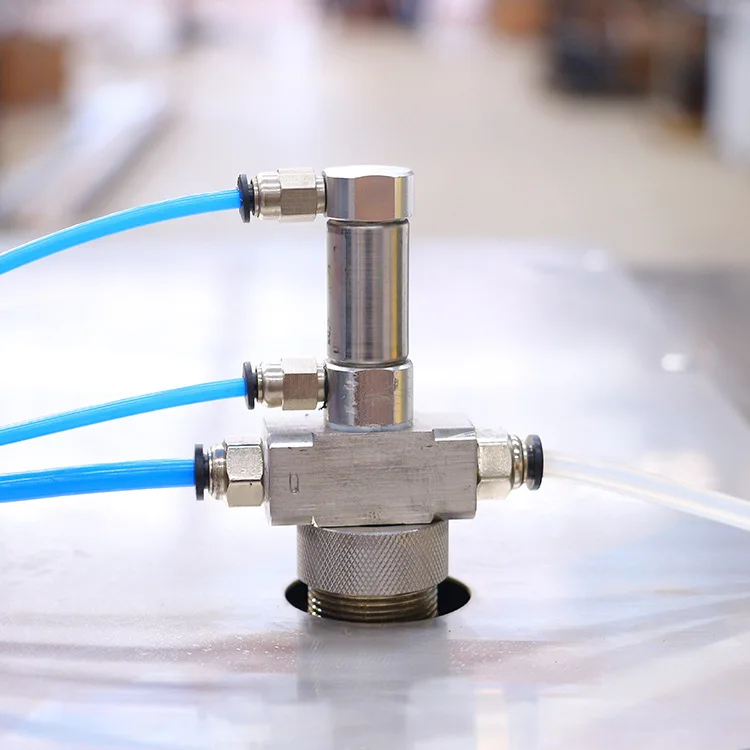

*The atomization structure of the two-fluid spray is made of high-precision 316 stainless steel. The particle diameter of the powder spray is normally distributed and the fluidity is good.
*Color large touch screen operation, combination of automatic control and manual control,
*Real-time PID constant temperature control technology, accurate temperature control, heating temperature control accuracy ± 1℃.
*The spraying, drying and collecting devices are made of transparent high-quality high-temperature resistant high-borosilicate glass, and the entire spray drying experiment process is visible.
*The atomization structure of the two-fluid spray is made of high-precision 316 stainless steel. The particle diameter of the powder spray is normally distributed and the fluidity is good.
Main features of small spray dryer
*The jet device is automatically cleared (through needle) and the frequency is adjustable. When the nozzle is blocked, it will
*Special protection function, the fan does not start, the heater cannot start.
*Built-in imported oil-free air compressor, the noise is less than 50db.
*Air inlet filter to ensure sample purity.
*The particle size of the dried product is uniform, and more than 95% of the dry powder is at the same particle size.
be automatically cleared to ensure the continuity of the experiment.
*The feeding amount can be adjusted by feeding peristaltic pump.*Special protection function, the fan does not start, the heater cannot start.
*Built-in imported oil-free air compressor, the noise is less than 50db.
*Air inlet filter to ensure sample purity.
*The particle size of the dried product is uniform, and more than 95% of the dry powder is at the same particle size.
Product Paramenters
1 | Inlet air temperature control | 30～300 ℃ |
2 | Outlet temperature control | 30～150 ℃ |
3 | Evaporated water | 1500～2000mL / H |
4 | Large feed volume | 2000mL / H |
5 | Small feed volume | 50mL |
6 | Feeding method | peristaltic pump adjustment |
7 | Average drying time | 1.0 ~ 1.5S |
8 | Electric heater power | 3KW AC220V single-phase ground |
9 | Fan | 0.2KW air volume 5.6m3 / min wind pressure 1020Pa |
10 | Air compressor | 0.2KW gas production 4.2 m3 / h |
11 | Working pressure of compressed air | 2 ～ 3Bar |
12 | Equipment dimensions | 1300mm (height) × 650mm (length) × 800mm (width) |
13 | Nozzle diameter | 1.00mm |
14 | Equipment weigh | 125KG |
Small spray dryer configuration
1. Atomizer; 2. Large clamp; 3. Exhaust pipe; 4. Lock nut; 5. Cyclone; 6. No. 1 clamp;
7. Collection bottle; 8. Large clamp; 9. Peristaltic pump; 10. Drying chamber; 11. Touch screen; 12, No. 2 clamp;
13. Power switch; 14. Feed tube; 15. No. 3 clamps; 16. Collection tube
7. Collection bottle; 8. Large clamp; 9. Peristaltic pump; 10. Drying chamber; 11. Touch screen; 12, No. 2 clamp;
13. Power switch; 14. Feed tube; 15. No. 3 clamps; 16. Collection tube
Componants
1 | Glass drying room | 1 |
2 | Glass cyclone | 1 |
3 | Glass sample collection bottle | 1 |
4 | Glass sample collection tube | 1 |
5 | Conveying silicone tube 6mm | 2m |
6 | Spray chamber | 1 |
7 | Clamp (LY12 black) | 4 |
