High Speed Axial Lead Component terminal Insertion Machine global inserting
- Категория: Other Machine Tool Equipment >>>
- Поставщик: Guangzhou,Minder-Hightech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.79 $* | 0.44 $* |
| Aug-15-2025 | 0.37 $* | 0.6 $* |
| Jul-15-2025 | 0.85 $* | 0.95 $* |
| Jun-15-2025 | 0.63 $* | 0.93 $* |
| May-15-2025 | 0.46 $* | 0.54 $* |
| Apr-15-2025 | 0.25 $* | 0.7 $* |
| Mar-15-2025 | 0.99 $* | 0.0 $* |
| Feb-15-2025 | 0.26 $* | 0.70 $* |
| Jan-15-2025 | 0.65 $* | 0.27 $* |
Характеристики
Product Description

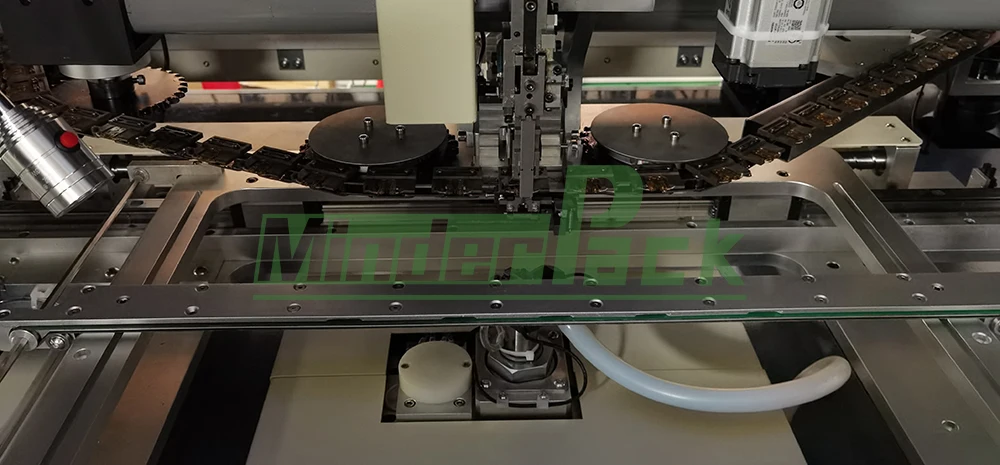

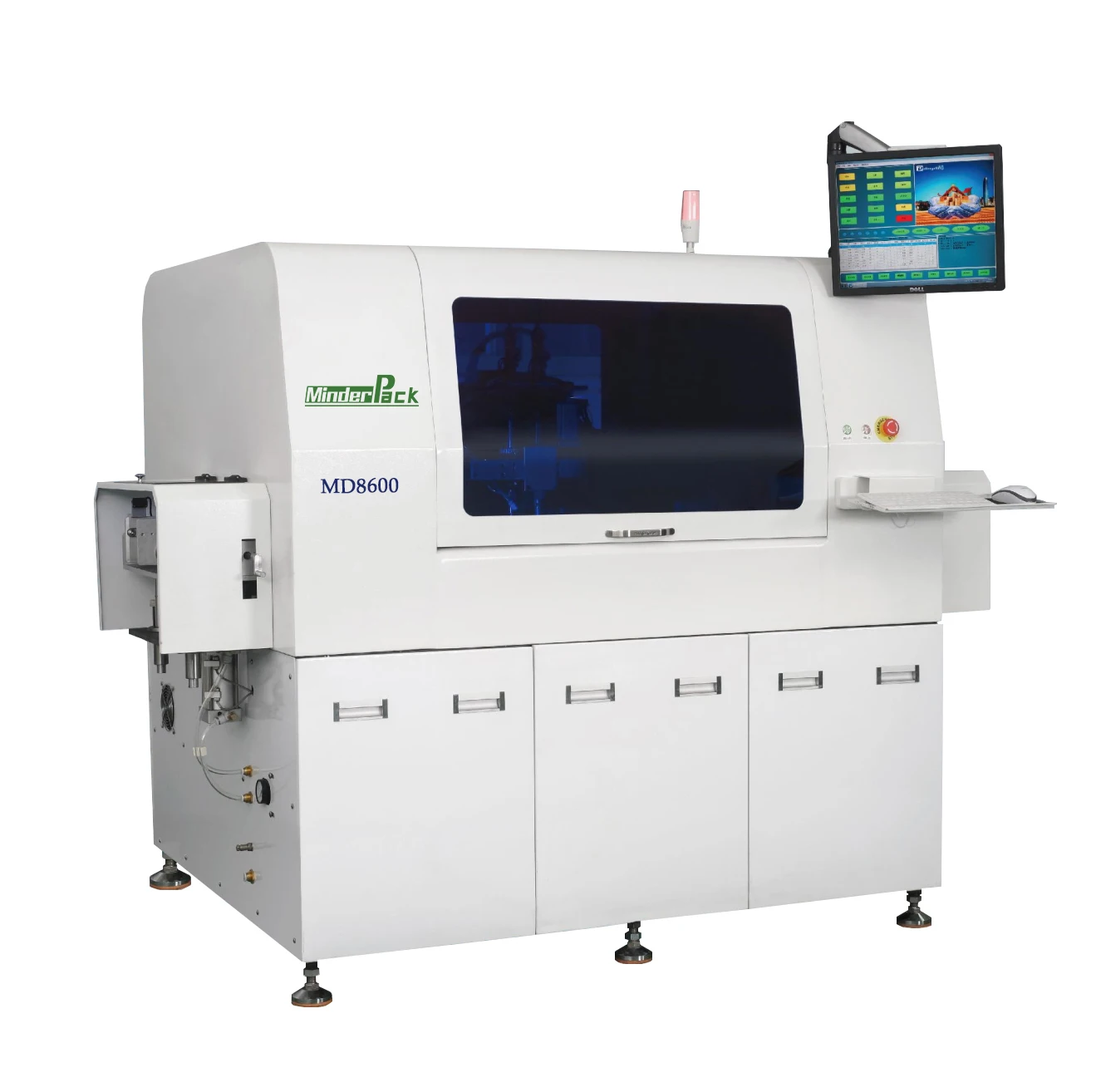

Shaped horizontal insertion(plug in) machine

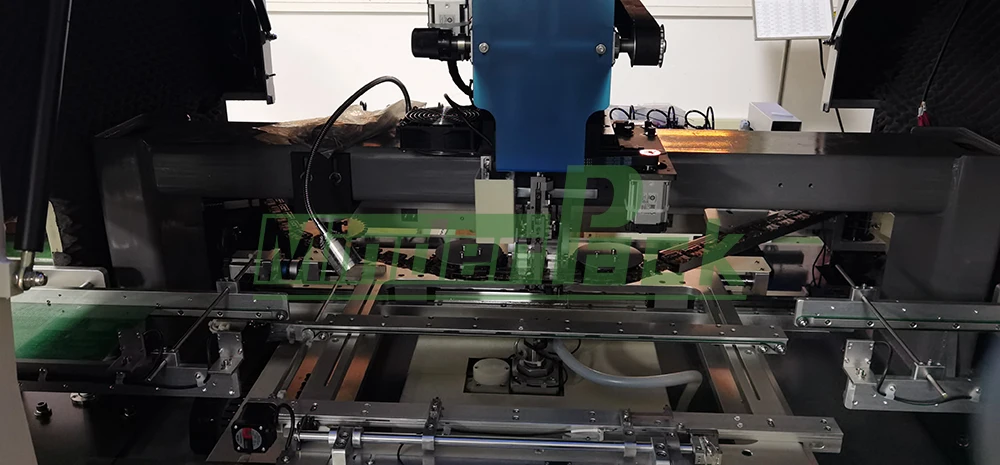

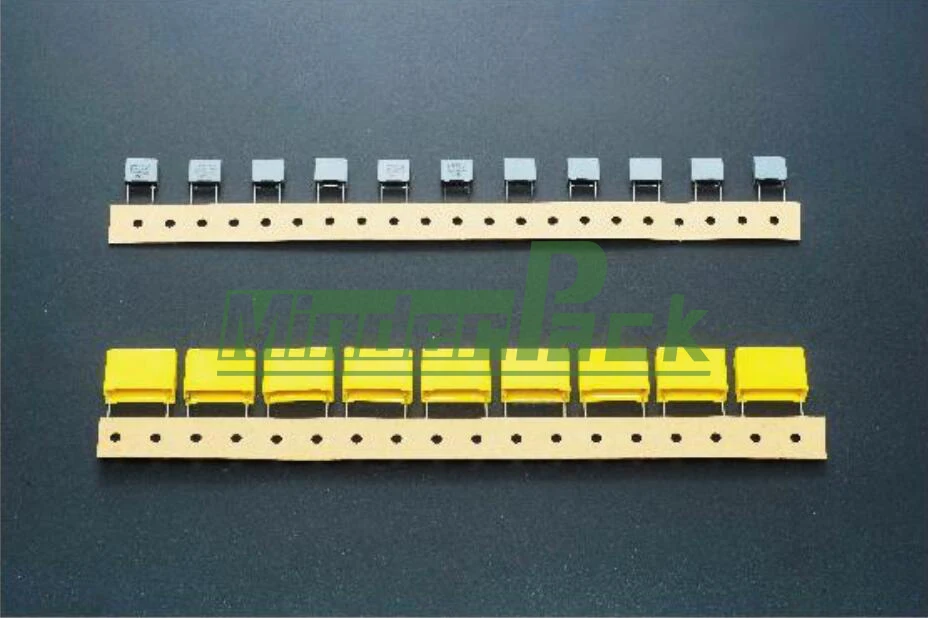

Non-standard braided horizontal component plug-in machine automatically inserts various non-standard braided horizontal components into the PCB according to the set program. It has the fixed tail function and the detection function to achieve high speed, high precision and high stable insertion effect
Specification
Components | Hole distance 7.5-17mm Component diameter ≤ 5mm Component foot diameter 0.5-0.8mm | Feeding system | Tape feeder |
Plugin speed | 0.8s/Piece | Motion accuracy | 0.001/pulse |
Loading and unloading PCB time | 3s | Motion system | Panasonic servo controller, motor |
Component packaging | Weaving Tape | Programming function | Online visual programming Visual correction Easy EXCEL process |
Loadable PCB size | Maximum 380*280mm; Minimum 50*50mm (Customizable) | Data input | USB interface import Manual entry |
Number of plug-in header | 1-3, can be used for different sizes of tape components | communication interface | RS232C |
Component requirements | No serious deformation and bending. | Power supply | 220V/AC 50/60Hz,2KVA |
PCB board requirements | Positioning hole The aperture is larger than the end of the component. | Air pressure | 5-6kg/cm2 |
Insertion mode | set at 0,±90 degrees | Noise | ≤75db |
Distance between components | 2mm | Ambient temperature | 10℃-30℃ |
Component direction detection | Bottom bend detection | Ambient humidity | 30%-70% |
Component fixing method | Inward bending of feet (Customized according to customer's product requirements) | Air consumption | 0.63m3/min |
Control System | Independent research and development control system Industrial computer + motion control | Dimension | 1950*1200*1530mm |
Display system | 17-inch color LCD | Weight | 1500kg |

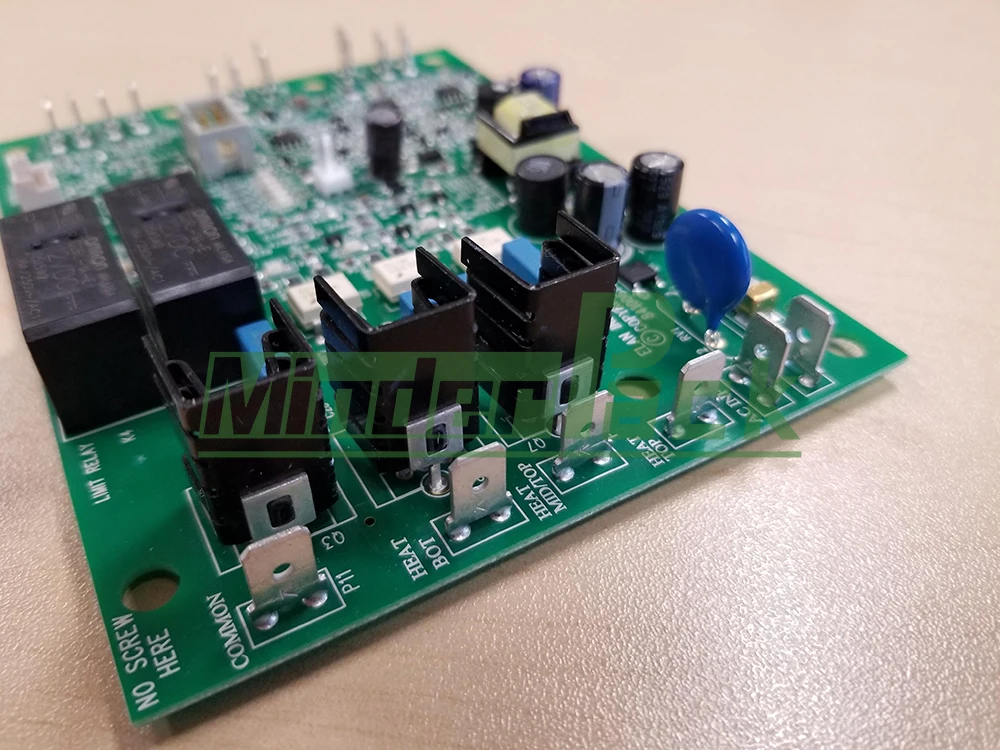

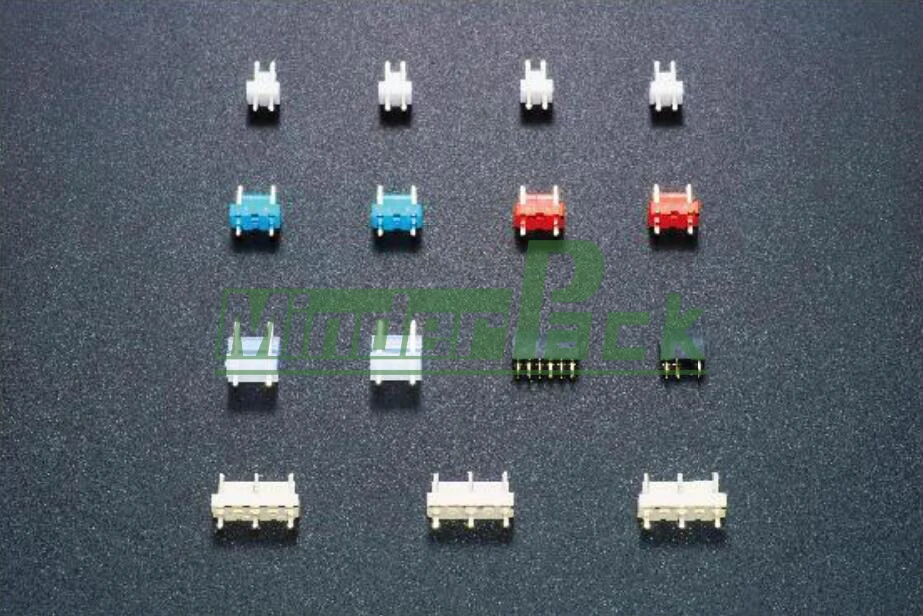

Sample
Product configuration:
Operation system:
Operating software, production data, management data, equipment parameters, editing programs, all I/O signal diagnosis, etc. running under Windows environment can be completed on the host. The interface is humanized, and the application of high-tech technology makes the equipment introduction efficient and easy to use. ,easy to use
Visual System:
The industrial-specific high-definition camera and the self-developed vision correction software form a vision system. The
deviation between the PCB hole position and the programmed input coordinates can be quickly and automatically calibrated to match all the coordinates with the actual PCB hole position, ensuring the plug-in accuracy and greatly improving the programming efficiency.
deviation between the PCB hole position and the programmed input coordinates can be quickly and automatically calibrated to match all the coordinates with the actual PCB hole position, ensuring the plug-in accuracy and greatly improving the programming efficiency.
Plug in speed:
0.8 seconds / piece, equipped with Panasonic AC servo drive, high speed, low noise, smooth motion
Why Choose Us
Provide professional process solutions according to customer product characteristics;
Professional engineers provide 7*24-hour online services to provide customers with one-to-one professional training to ensure that customers worry-free use;
Original accessories, professional CNC machining center, perfect quality control, durable products.
Professional engineers provide 7*24-hour online services to provide customers with one-to-one professional training to ensure that customers worry-free use;
Original accessories, professional CNC machining center, perfect quality control, durable products.
Company Profile
Our Factory
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
