Product Description

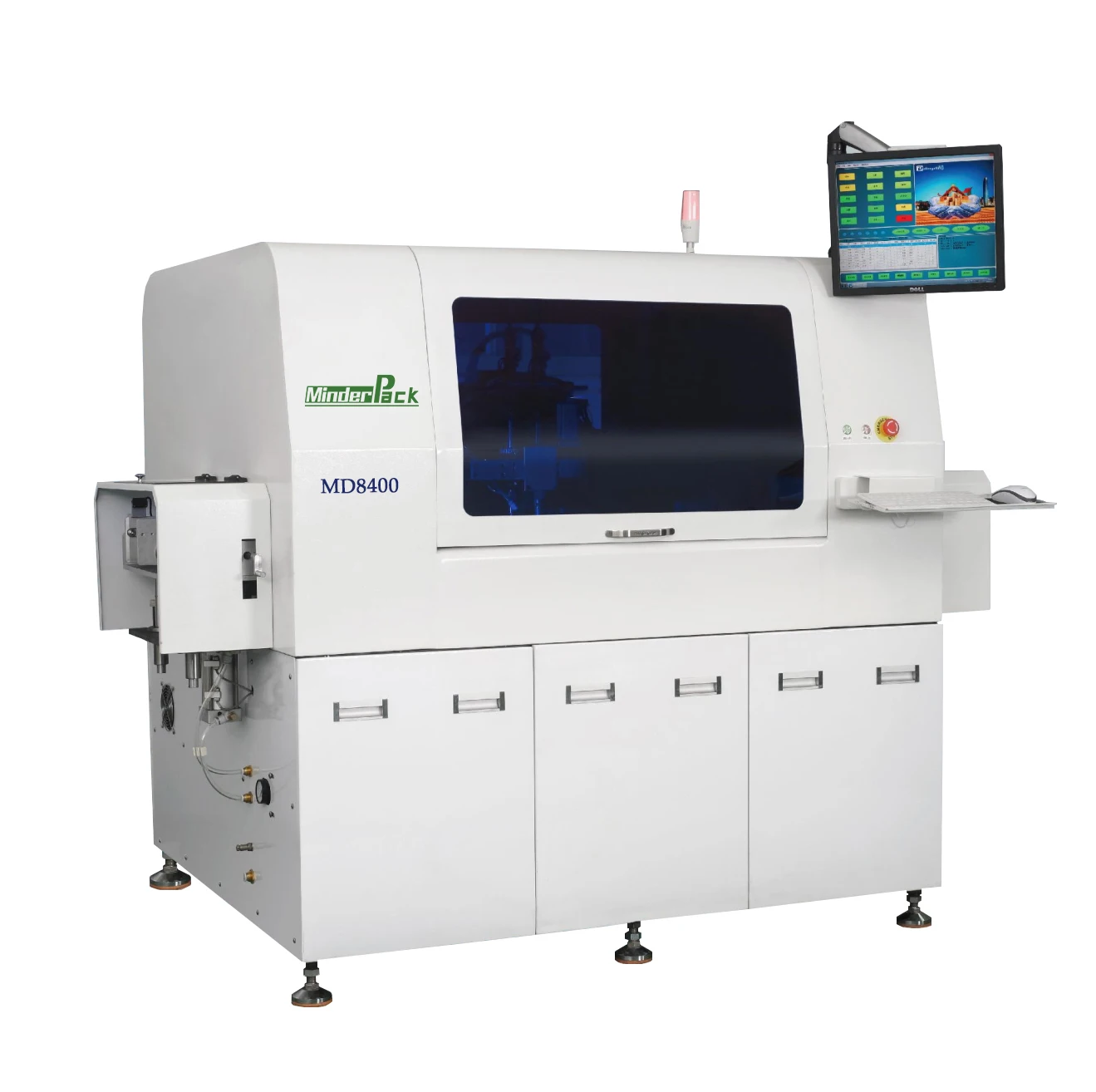

Shaped horizontal insertion(plug in) machine
Non-standard braided horizontal component plug-in machine automatically inserts various non-standard braided horizontal components into the PCB according to the set program. It has the fixed tail function and the detection function to achieve high speed, high precision and high stable insertion effect

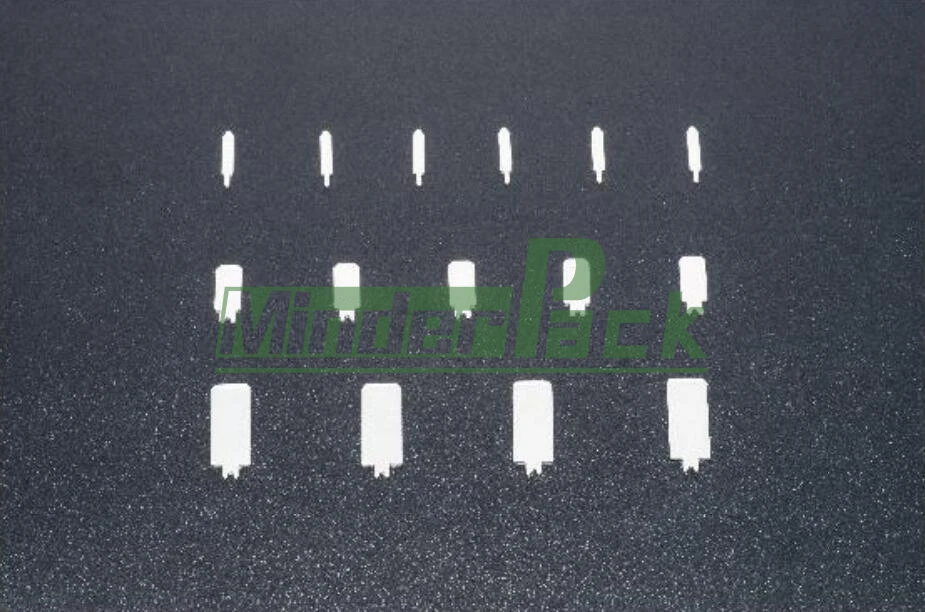

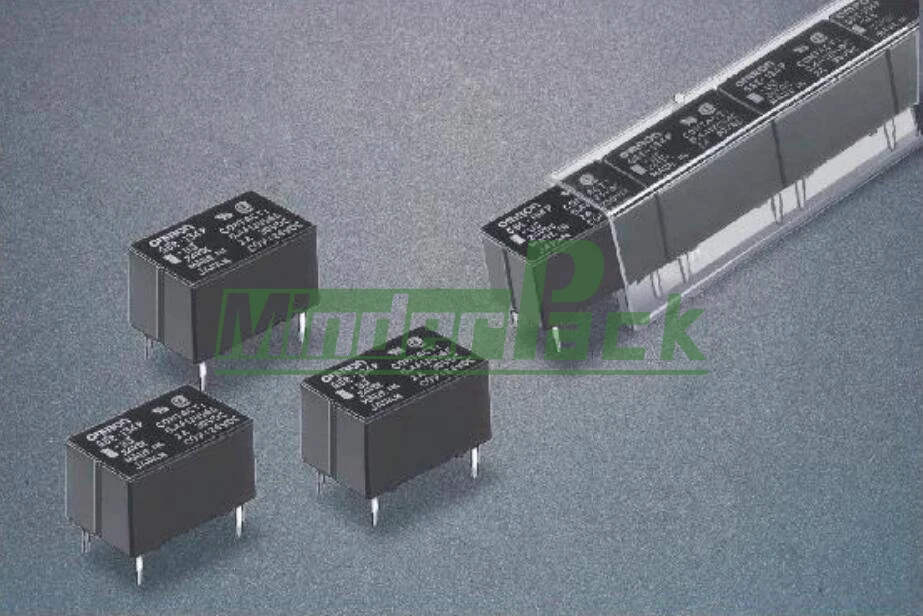

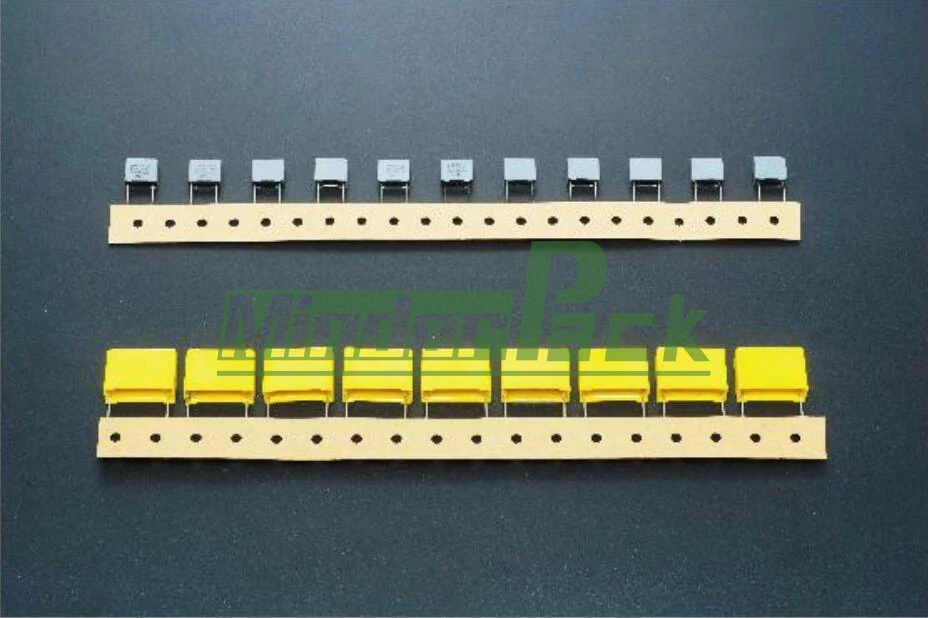

Some of plug-in parts：
Specification
Feeding system | Tape feeder |
Motion accuracy | 0.001/pulse |
Motion system | Panasonic servo controller, motor |
Programming function | Online visual programming Visual correction Easy EXCEL process |
Data input | USB interface import Manual entry |
communication interface | RS232C |
Power supply | 220V/AC 50/60Hz,2KVA |
Air pressure | 5-6kg/cm2 |
Noise | ≤75db |
Ambient temperature | 10℃-30℃ |
Ambient humidity | 30%-70% |
Air consumption | 0.63m3/min |
Dimension | 1950*1200*1530mm |
Weight | 1500kg |
Product configuration:
Operation system:
Operating software, production data, management data, equipment parameters, editing programs, all I/O signal diagnosis, etc. running under Windows environment can be completed on the host. The interface is humanized, and the application of high-tech technology makes the equipment introduction efficient and easy to use. ,easy to use
Visual System:
The industrial-specific high-definition camera and the self-developed vision correction software form a vision system. The
deviation between the PCB hole position and the programmed input coordinates can be quickly and automatically calibrated to match all the coordinates with the actual PCB hole position, ensuring the plug-in accuracy and greatly improving the programming efficiency.
deviation between the PCB hole position and the programmed input coordinates can be quickly and automatically calibrated to match all the coordinates with the actual PCB hole position, ensuring the plug-in accuracy and greatly improving the programming efficiency.
Plug in speed:
0.8 seconds / piece, equipped with Panasonic AC servo drive, high speed, low noise, smooth motion
Sample
Why Choose Us
Provide professional process solutions according to customer product characteristics;
Professional engineers provide 7*24-hour online services to provide customers with one-to-one professional training to ensure that customers worry-free use;
Original accessories, professional CNC machining center, perfect quality control, durable products.
Professional engineers provide 7*24-hour online services to provide customers with one-to-one professional training to ensure that customers worry-free use;
Original accessories, professional CNC machining center, perfect quality control, durable products.
Company Profile

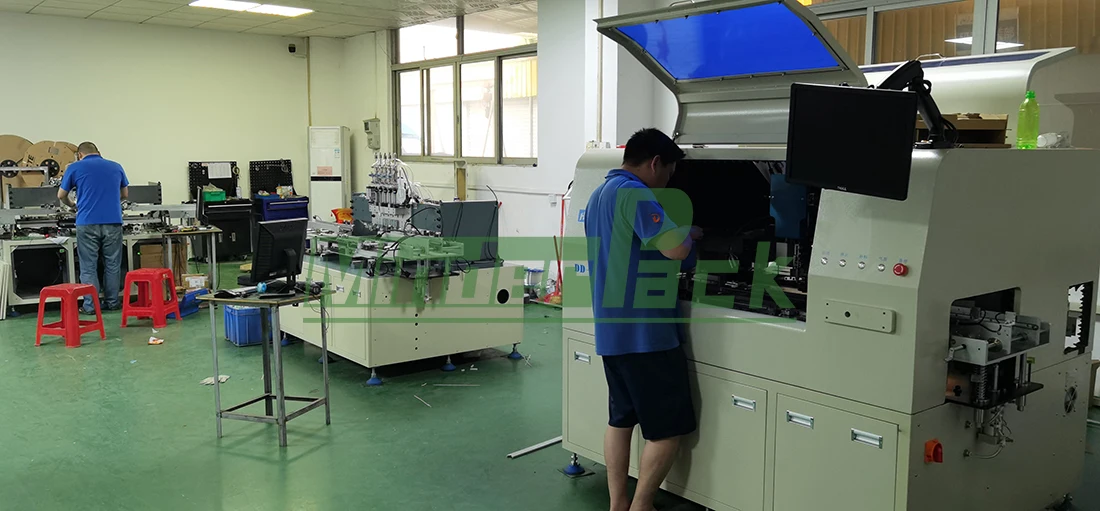

Our Factory
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
