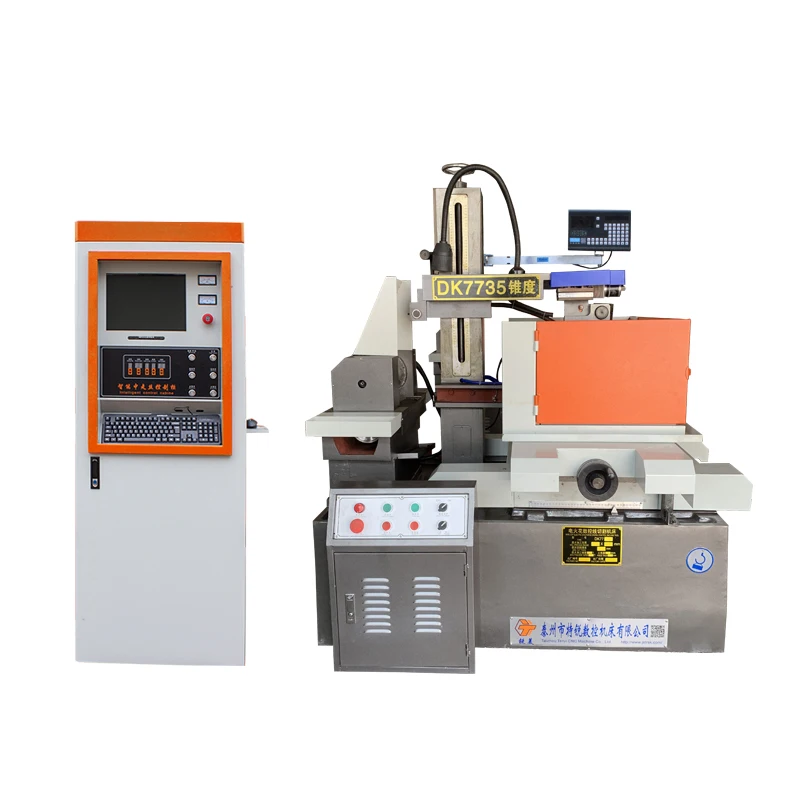

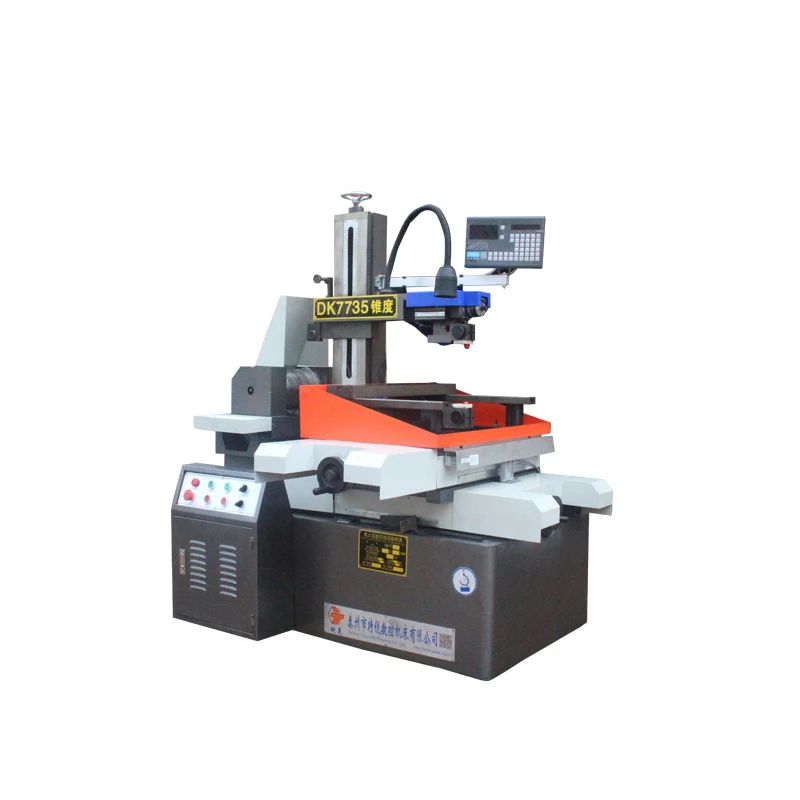

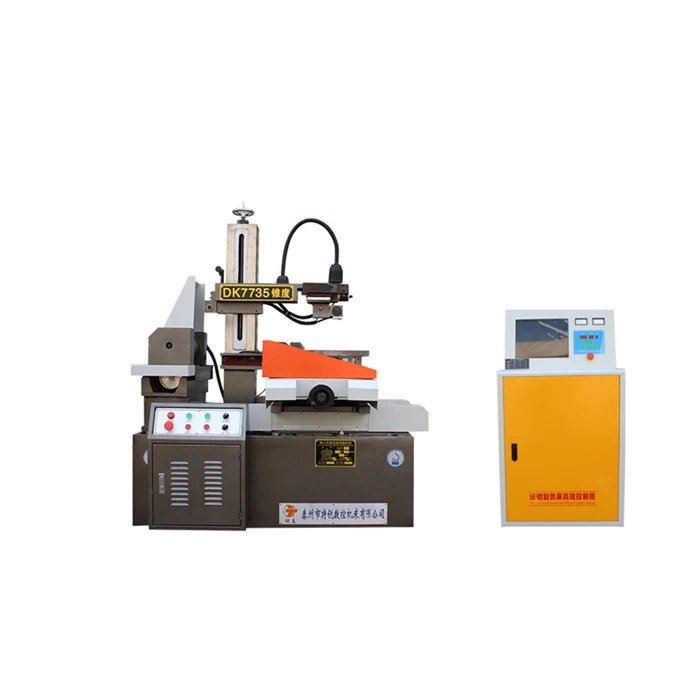

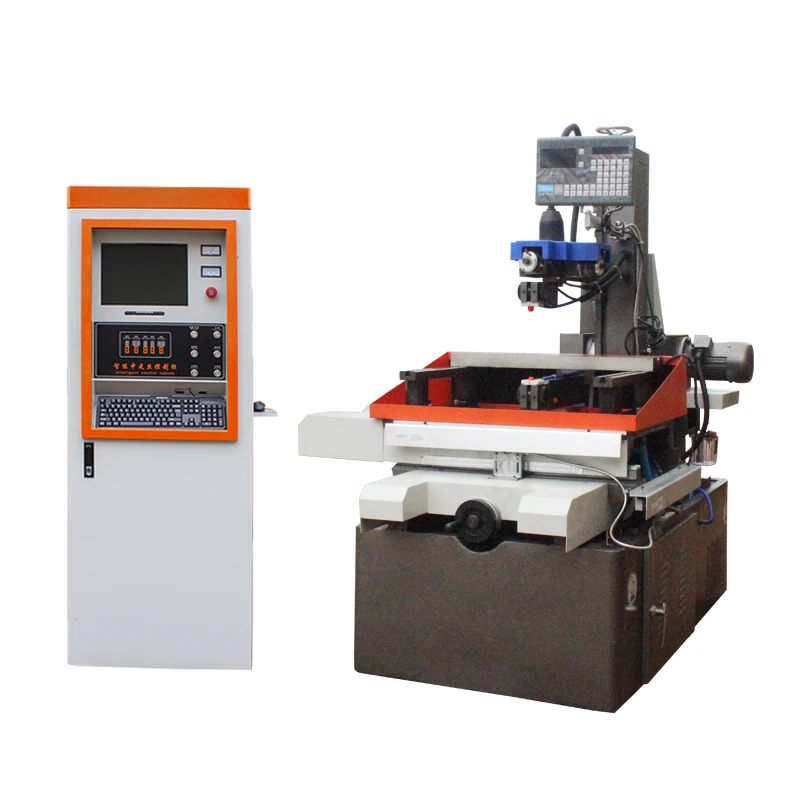

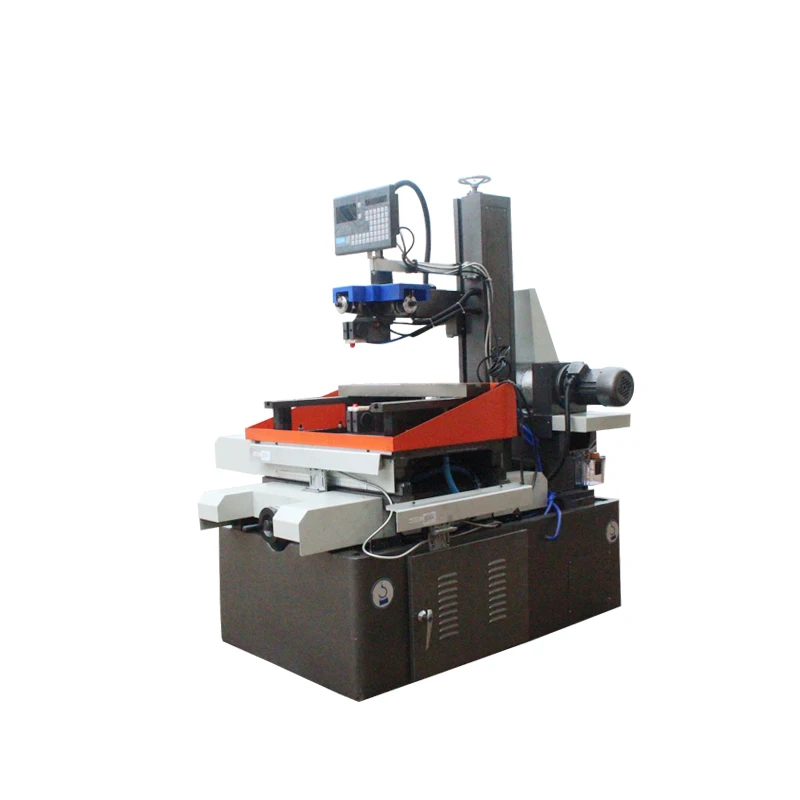

DK7735 CNC машина для резки проводов с закрытым циклом
- Категория: Machine Tool Equipment >>>
- Поставщик: Taizhou,Terui,CNC,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5950.7 $* | 6248.96 $* |
| Aug-16-2025 | 5900.88 $* | 6195.71 $* |
| Jul-16-2025 | 4950.43 $* | 5198.35 $* |
| Jun-16-2025 | 5800.40 $* | 6090.6 $* |
| May-16-2025 | 5050.54 $* | 5303.44 $* |
| Apr-16-2025 | 5700.72 $* | 5985.67 $* |
| Mar-16-2025 | 5650.54 $* | 5933.84 $* |
| Feb-16-2025 | 5600.51 $* | 5880.34 $* |
| Jan-16-2025 | 5550.57 $* | 5828.88 $* |
Характеристики
DK7735 CNC wirecut machine close loop 350 wire cut
DK77 whole series
Taizhou Terui CNC Machine Co., Ltd. produces whole series of DK77 CNC edm wire cutting machines,which adopts high precision V-shaped guide rail(Linear guide rail optional) and P3-grade high precison ball screw. The products have high quality, complete models, long service life and high precision. Machine specifications can be customized according to customer needs,like non-standard models DK7740(45)F,DK7750(55)F,DK7763F,DK7780F,DK77100F,DK77120F or even larger models. The company also produces ±30°, ±45° swing large taper machines and CNC high-precision middle speed edm wire cutting machines(Precision≤±0.005mm,roughness≤1.0μm). The following are the main parameters of DK77 series machines:
1.Standard maximum cutting taper:±6°/80mm;(±15°,±30°,±45° are optional)
2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guide equipped, the precision can reach 0.01mm)
3.Best surface roughness ≤ Ra2.5μm(single-cut),Ra1.5μm(multi-cut);
4.Molybdenum wire diameter:0.1-0.2mm;
5.Max. cutting speed≥120mm^2/min;
6.Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can be customized),Power:1.5KW;
7.Working fluid:Water-based emulsion.
| Model | Worktable travel(mm) | Worktable size(mm) | Max. cutting thickness(mm) | Max. load(kg) | Dimensions(mm) | Weight(kg) |
| DK7720 | 200*250 | 420*270 | 200 | 100 | 1250*950*1250 | 800 |
| DK7725 | 250*320 | 520*340 | 300 | 200 | 1450*900*1500 | 1000 |
| DK7735(32) | 350(320)*450(400) | 710*460 | 400 | 300 | 1400*1100*1600 | 1100 |
| DK7745(40) | 450(400)*550(500) | 810*570 | 400 | 500 | 1600*1200*1600 | 1400 |
| DK7745F(40F) | 450(400)*630 | 950*600 | 400/600 | 600 | 1600*1580*1600 | 1600 |
| DK7755(50) | 550(500)*650(630) | 950*650 | 700 | 700 | 2000*1500*1900 | 1800 |
| DK7755F(50F) | 550(500)*800 | 1140*650 | 700 | 700 | 2000*1650*1900 | 2000 |
| DK7763 | 630*800 | 1140*750 | 700 | 1000 | 2100*1700*2050 | 2400 |
| DK7763F | 630*1000 | 1350*750 | 700 | 1200 | 2250*1850*2050 | 2800 |
| DK7780 | 800*1000 | 1350*980 | 900 | 2000 | 2400*1900*2350 | 4000 |
| DK7780F | 800*1200 | 1600*1050 | 900 | 2400 | 2550*1950*2400 | 4500 |
| DK77100 | 1000*1200 | 1600*1100 | 1000 | 2600 | 2850*2500*2500 | 5200 |
| DK77100F | 1000*1400 | 1800*1250 | 1000 | 2800 | 2950*2050*2500 | 5800 |
| DK77120 | 1200*1400 | 1800*1350 | 1000 | 3000 | 3050*2750*2500 | 7500 |
| DK77120F | 1200*1600 | 2000*1500 | 1000 | 3500 | 3100*2850*2500 | 8400 |
| DK77160 | 1600*1800 | 2000*1700 | 1000 | 4000 | 3250*3000*2500 | 10000 |
FAQ:
Q:Are you manufacturer or distributor?
A:We are manufacturer,welcome to visit our factory.
Q:How to choose the machine I want?
A:Firstly,please correspond to the worktable travel and cutting thickness according to the size of the workpiece to find a suitable model;
Secondly,please check if precision and roughness meet your requirements;(Our TRS series machines have much higher precision and better finish)
Q:Our country’s voltage is three-phase 220V(or single phase 220V,or other voltage), machine's voltage is three-phase 380V, can you change the voltage?
A:Yes, please tell me the voltage you need,we will change it.
Q:How can I get technical support if I buy your machine?
A:We have detailed instructional videos, even if novices can operate by watching the videos.Please search for Taizhou Terui CNC Machine Co.,Ltd. on YouTube for more videos!
Q:How about after-sales service?
A:Free replacement of damaged parts during the warranty period,replacement at cost price after the warranty period;
If any problems,we will provide you with solutions quickly by shooting videos or other ways.
