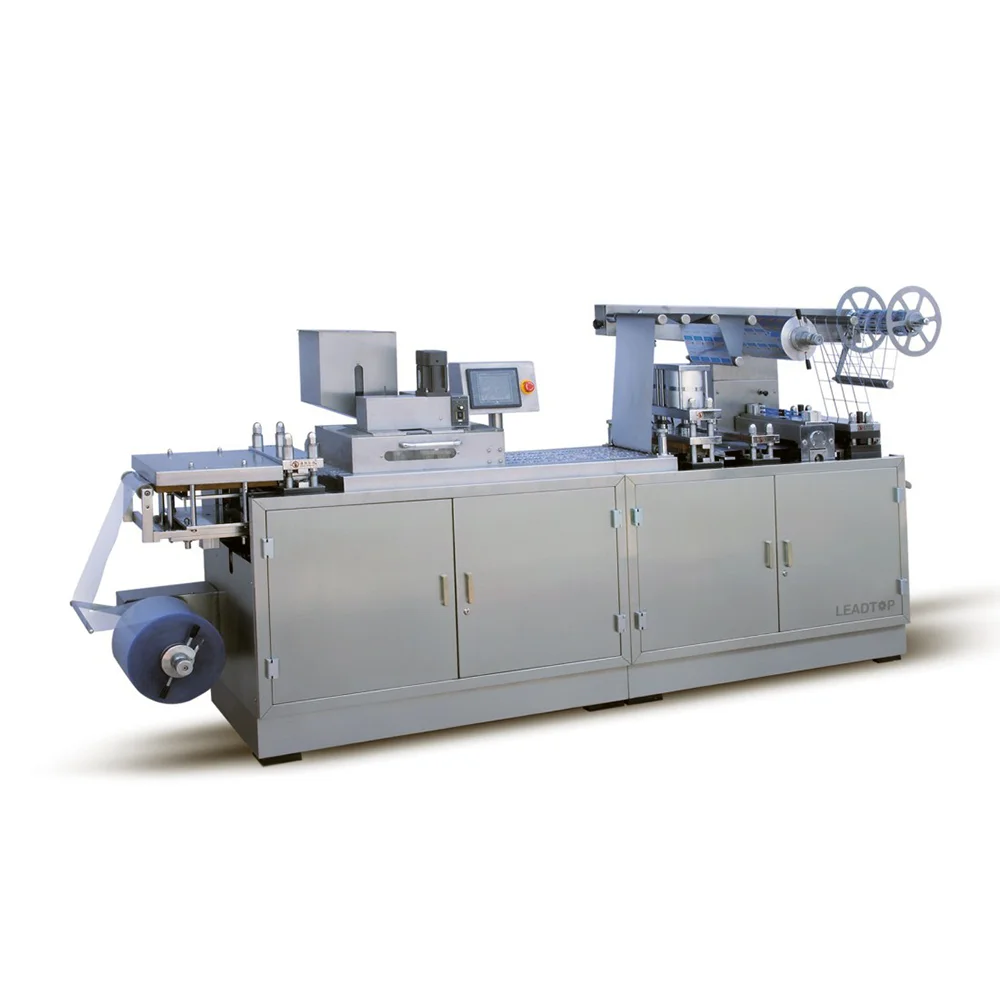

Product Description

        The machine is assembled with three part sand can be packed and Transported separately.Under control of PLC, the machine can complete.Separately all procedures including warm-up,blister forming,automatic

feeding,heat sealing and synchronous adjustment of Aluminum-Plasticstrip,empty-detecting,hard Aluminum forming,second heat sealing.Batch number printing,blanking and scrap-collecting,etc.The machine is suitable

for blister packing with Aluminum-Plastic,Aluminum-Aluminum and Aluminum-Plastic-Aluminum.



Feature

1. Travel scope can be adjusted.

2. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.

3. The material is fed automatically. The mould and feeder can be designed as user’s requirements.

4. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.

5. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.

6. Step Motor For Pulling material, more saving material and adjusting time.

7. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.



Main Technical Data:



Model:	DPP-250
Punch Speed	10-35time/min
Sheet’s quantity of one blanking:	3-5sheets
Travel Range:	10-160mm
Compressed Air:	0.4MPA-0.6MPA
Power:	380V 50Hz 4Kw
Power Supply:	380V 50Hz 5.5Kw (optional)
Wrapper Specification:	Aluminum Foil:(0.02-0.035)*250mm Tropical Aluminum:(0.09-0.15)*250mm PVC: (0.15-0.5)*250mm
Overall Dimensions:	4300*635*1400mm
Forming Area:	PVC:250*160*25mm Tropical Aluminum: 250*160*15mm
Weight:	2000Kg



 Machine Details

Q: What price terms you offer?

A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.



Q: What payment terms you take?

A: TT, LC, other terms are also workable.



Q: Will you help with installation and stuff training?

A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.



Q: How can I visit your factory?

A: Our factory is located in Ruian city Zhejiang Province. Just let us know your schedule in advance and we will arrange everything for you!
