Alu/pvc Alu/Alu фармацевтическая Косметическая компактная двойная печатная капсула для пасты в таблетках жидкий крем блистерная упаковочная
- Категория: Blister Packaging Machines >>>
- Поставщик: Sinoped,International,(Liaoning),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 26180.20 $* | 27489.60 $* |
| Aug-17-2025 | 25960.86 $* | 27258.29 $* |
| Jul-17-2025 | 21780.84 $* | 22869.31 $* |
| Jun-17-2025 | 25520.74 $* | 26796.50 $* |
| May-17-2025 | 22220.55 $* | 23331.7 $* |
| Apr-17-2025 | 25080.6 $* | 26334.92 $* |
| Mar-17-2025 | 24860.75 $* | 26103.57 $* |
| Feb-17-2025 | 24640.44 $* | 25872.65 $* |
| Jan-17-2025 | 24420.48 $* | 25641.25 $* |
Характеристики
Brief introduction
DPP-260 Blister packaging machine
DPP260 Automatic Al-Plastic(AL-AL) lister Packing Machine is our advanced equipment designed under updated improvement.It adopts the integral technology applying frequency inverter for speed control and mechanism, electricity, light and air to machine. Its design is in strict compliance and takes lead in the blister packer’s field. Featuring advanced function, easy to operate, high output, the machine is the most ideal packing equipment for large and medium size pharmaceutical enterprise, health food and food stuff traders.
Feature:
1. Adopts top brand PLC controller with touch screen displayed in Chinese and English, frequency inverter for speed control, servo traction, which can ensure the length of blister traction adjustable within the range.
1. Adopts top brand PLC controller with touch screen displayed in Chinese and English, frequency inverter for speed control, servo traction, which can ensure the length of blister traction adjustable within the range.
2. With thermal temperature control and test, main machine over loading protect, PVC and PTP packing material position test, feeder material position test, failure automatic debug and alarm, automatic protection and stop running..
3. The machine station module type design of level frame, good sight, safe and convenient operation.
4. Thermal with contact type, positive press formed, air cushion thermal seal upper and lower net, photo register make your product package better..
5. The special design for mould in rectangle shape, ladder type fixing, provide much convenience and easy to replace mould. All material contact parts adopts high quality stainless steel ad aluminum metal, slap-up surface treatment craft. Discharging finished prpduct in right order, automatic collection of bad product, auto rewinding of strap material to ensure easy collection.
6.The machine has been designed into separate body, which is easy to move into lifts or workshops. .
7. Equipped with plexiglass cover: the operation area is isolated with transmission organ, avoids pollution, easy for clean. 8. Apply online detection and ejection system, and the camera detection system can be chosen for option.

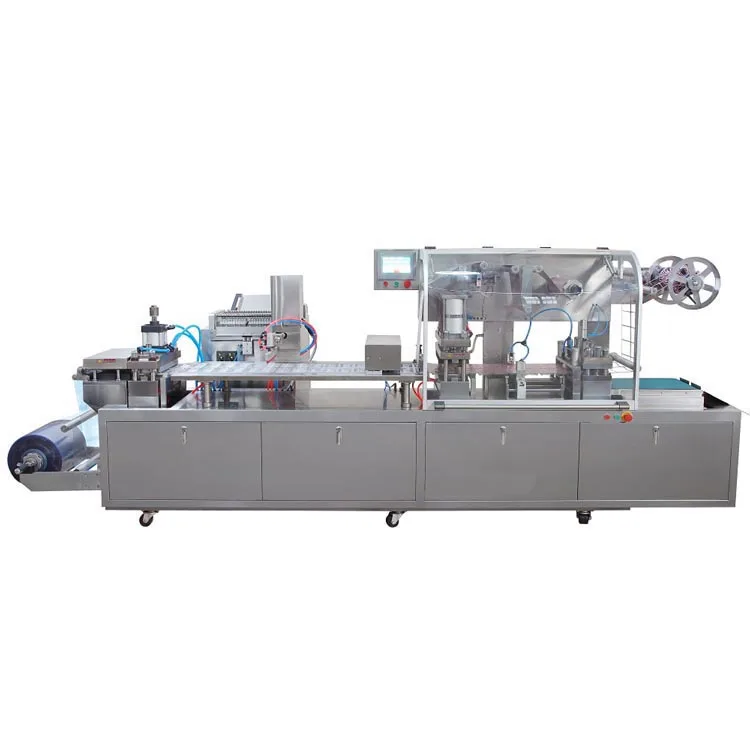

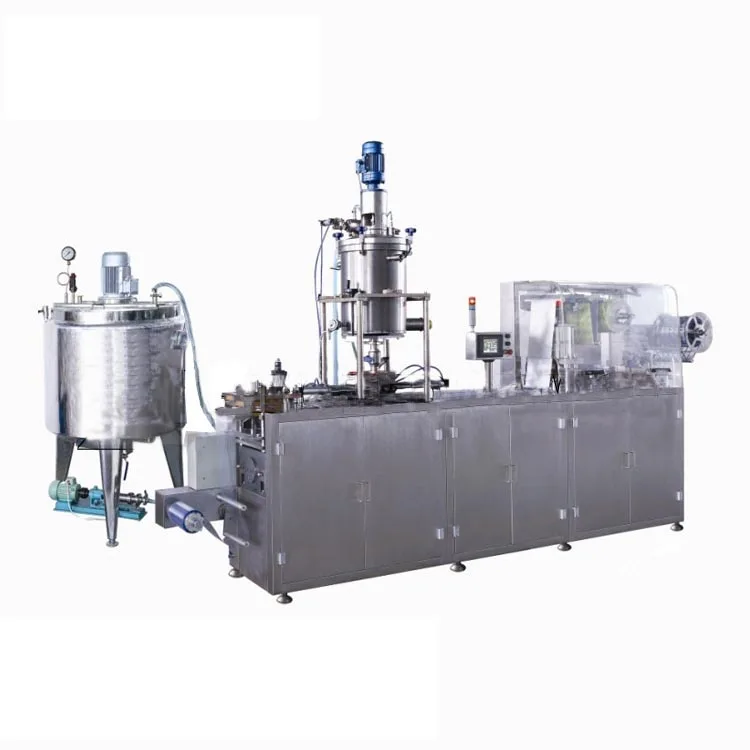

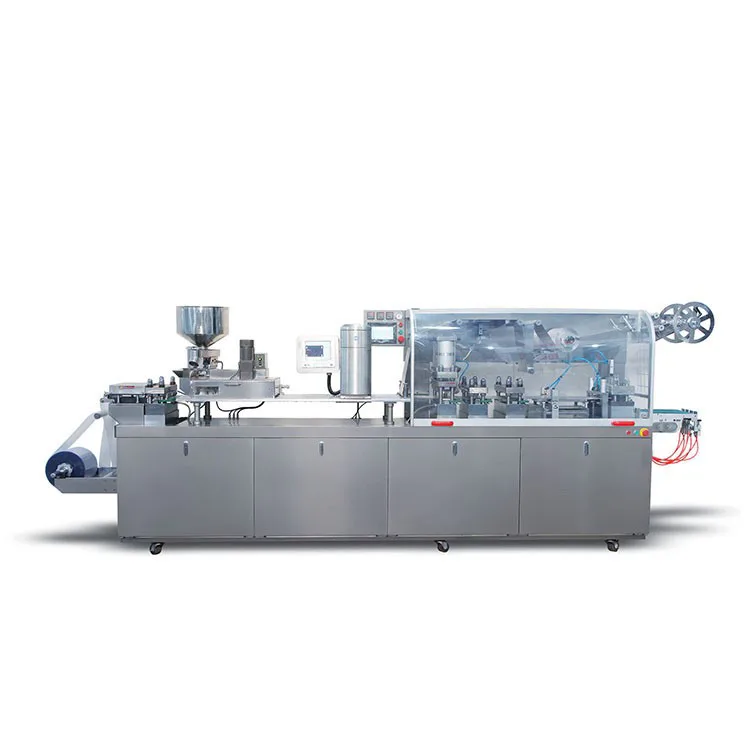

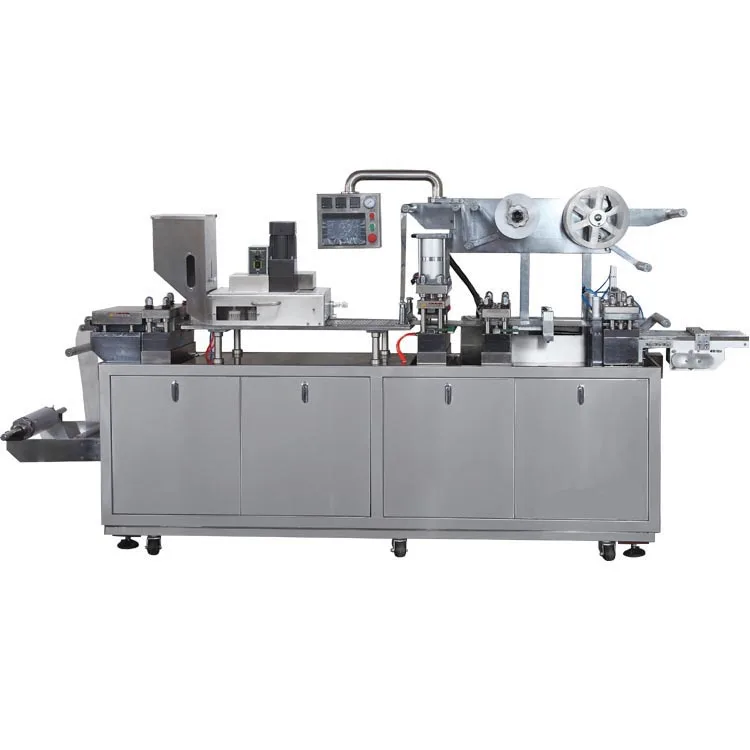

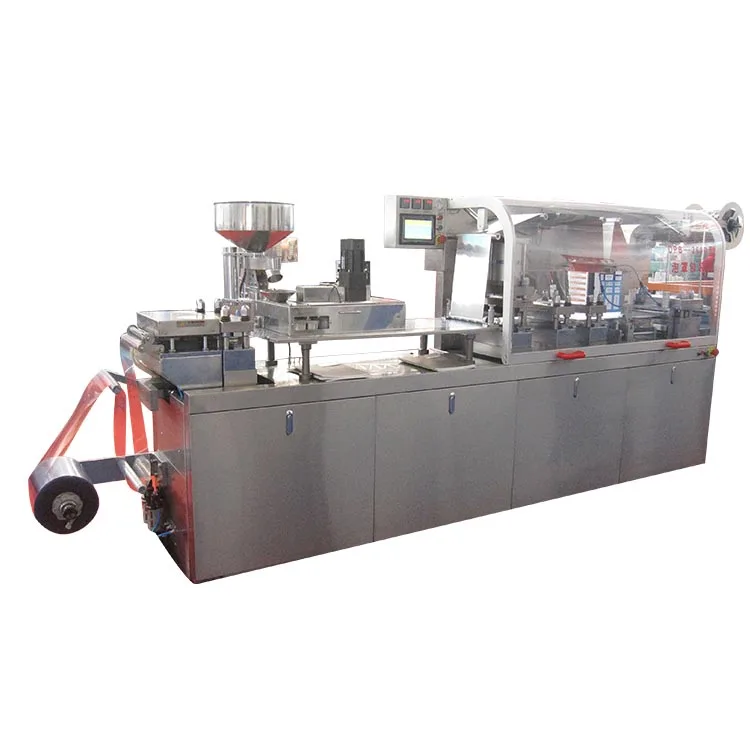

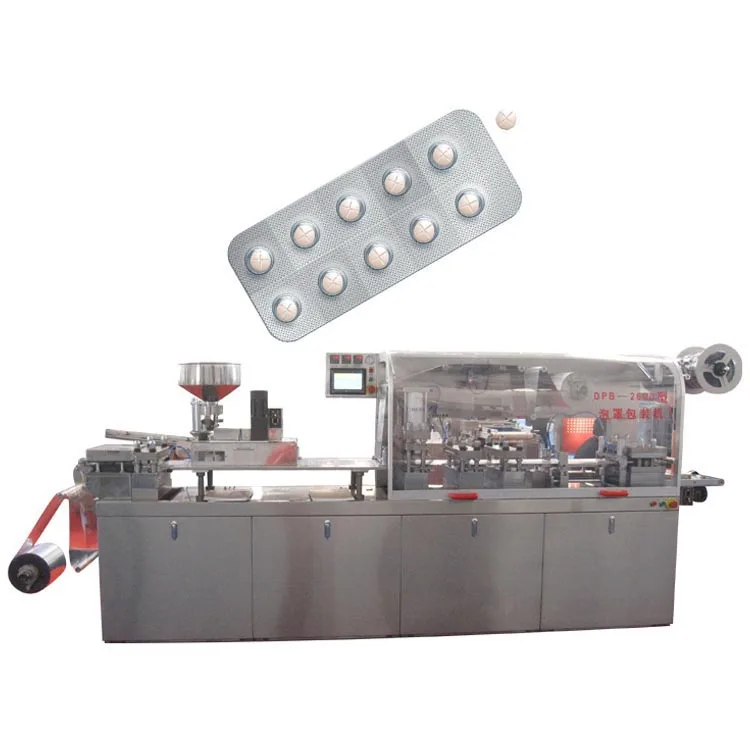

Detailed Images
Characteristics:
1),The spindle locating devices with gear racks are equipped in the devices of forming, thermal sealing, batch No. printing, impressing and cutting, etc, and when the handle is rotated, all these devices can move flexibly in the spindle. There is a ruler, with which it's convenient to position fast and correctly.
2),There are double oscillating rods in the manipulator, the puling travel's range is increased to 180mm, so the blister package with all kinds of size can be satisfied. Operations of blister sheet correcting & heating, the pressing & forming, the face/back surface pattern impressing, the cylinder's thermal sealing, the automatic feeding, the automatic batch No. printing and automatic cutting can all be completed by this machine, and it's easy and reliable to operate.
3),With the pressing & air forming device and the mechanical punch, the blister shapes are homogeneous and strong, and it is specially used for the packing of big honey pill or medical machinery, etc, whose size is bigger or whose shape is irregular. When the special automatic charging device is equipped, this machine can also be used for the packing of ampoule, syringe or vials, etc.
4),The helical-gear reducing box with parallel shaft is adopted for the main transmission part, the pin positioning is adopted for the dies of forming, thermal sealing and the impressing, the pressing plate is tight, the positioning is accurate, and it's convenient to change dies.
5),As to user's requirement, the machine can be made by several parts, which is convenient to move the machine into the workshop.
Note:
The cursor tracking device and the sheet revising & sealing device can be equipped.
PMMA cover can be equipped.
Inkjet coding device can be equipped
Cutting frequency (times/min) | Al-plastic：20~60times/min(your has lines, suggest open speed around 20times/min) Al-Al:15~30times/min |
Max. forming area (mm) | 250×110x22(Al-Pl) 250x110x18(Al-Al) Big Honey Pill 250x110x26(Al-Pl0 |
Max. forming depth (mm) | Al-plastic：26，al-al：18 |
Travel range (mm) | 30-120（can be made as request 0`140mm） |
Standard plate (mm) | 80×57 (can be manufactured as user’s requirement) |
Air pressure (mpa) | 0.4-0.6 |
Non-poisonous PVC Hard Piece | （0.15～0.4）×260×（Φ600）mm |
Heat Seal Alu Foil | （0.02～0.15）×260×（Φ300）mm |
Form Alu Foil | （0.16～0.2）×260×（Φ600）mm |
Heat Seal Medical Grade paper | （50～100）g/㎡×260×（Φ300）mm |
Upper Heater Power | 2kw |
Down Heater Power | 2kw |
Heat Seal Power | 2kw |
Batch Heat Power | 0.175kw×3（pcs） |
Air supply | ≥0.25~0.5m3/min 0.6~0.8MPa |
Total power | 380V/220V 50Hz 10kw |
Main motor power (kw) | 3 |
PVC rigid sheet (mm) | 0.15-0.5×260 |
PTP aluminum foil (mm) | 0.02-0.035×260 |
Dialysis paper (mm) | 50-100g×260 |
Mould cooling | Tap water or circulating water/60~100L/h |
Overall dimension (mm) | 4775×760×1620（L×W×H）Middle separated, include feet height |
Weight (kg) | 2088 |
