Характеристики
Product Overview
Small Spray Dryer

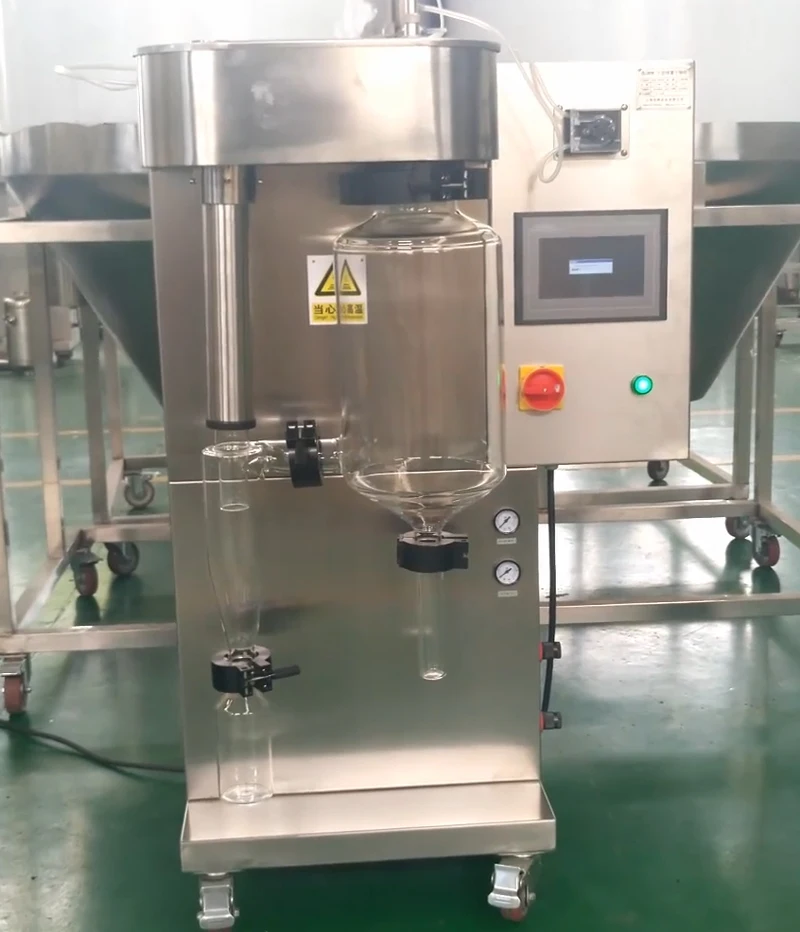

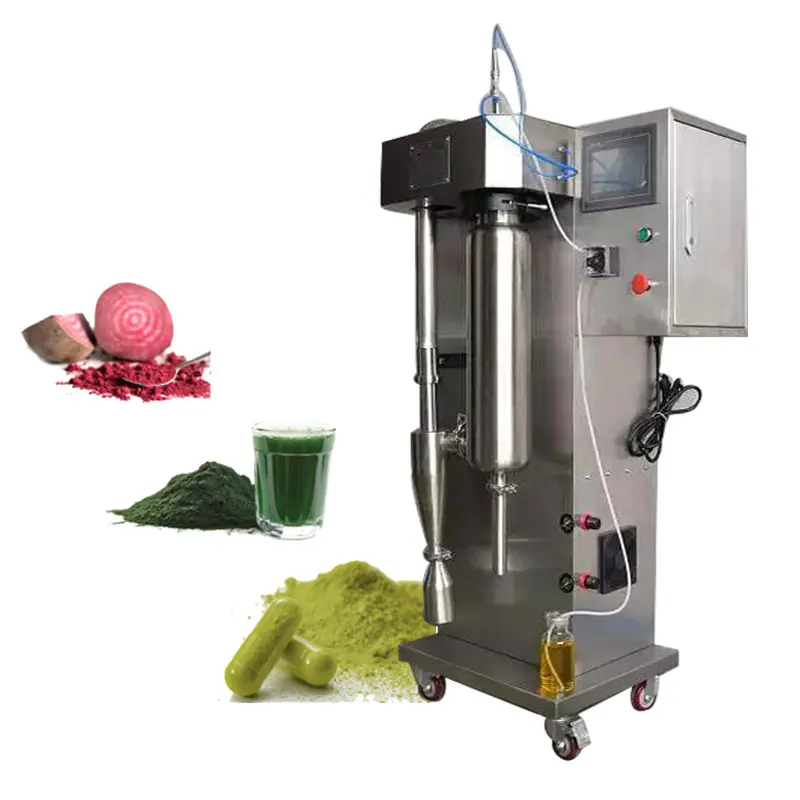

Lab spray dryer has Stainless steel shell and arc corner design.Equip with imported Schneider electrical components,PLC control system,self-priming peristaltic pump and oil-free air compressor,is suitable for producing solid powder or particle products from liquid materials drying,such as emulsion, suspending liquid, liquor and so on.
Laboratory Scale Spray Dryer Small Spray Dryer Mini Spray Drying Machine Application:
Food and pharmaceutical fields, milk powder, egg yolk, soy sauce, coffee, starch, protein, hormones, serum, antibiotics, enzymes, spices, extracts
Inorganic chemical fields such as wax, dyes, detergents, surfactants, pesticides, preservatives, synthetic resins, pigments, etc.
Ferrite, ceramics, powders for copying, magnetic materials, metal powders, photosensitive materials, various industrial medicines, sample waste liquids, etc.
Laboratory Scale Spray Dryer Small Spray Dryer Mini Spray Drying Machine Application:
Food and pharmaceutical fields, milk powder, egg yolk, soy sauce, coffee, starch, protein, hormones, serum, antibiotics, enzymes, spices, extracts
Inorganic chemical fields such as wax, dyes, detergents, surfactants, pesticides, preservatives, synthetic resins, pigments, etc.
Ferrite, ceramics, powders for copying, magnetic materials, metal powders, photosensitive materials, various industrial medicines, sample waste liquids, etc.
FEATURES AT A GLANCE

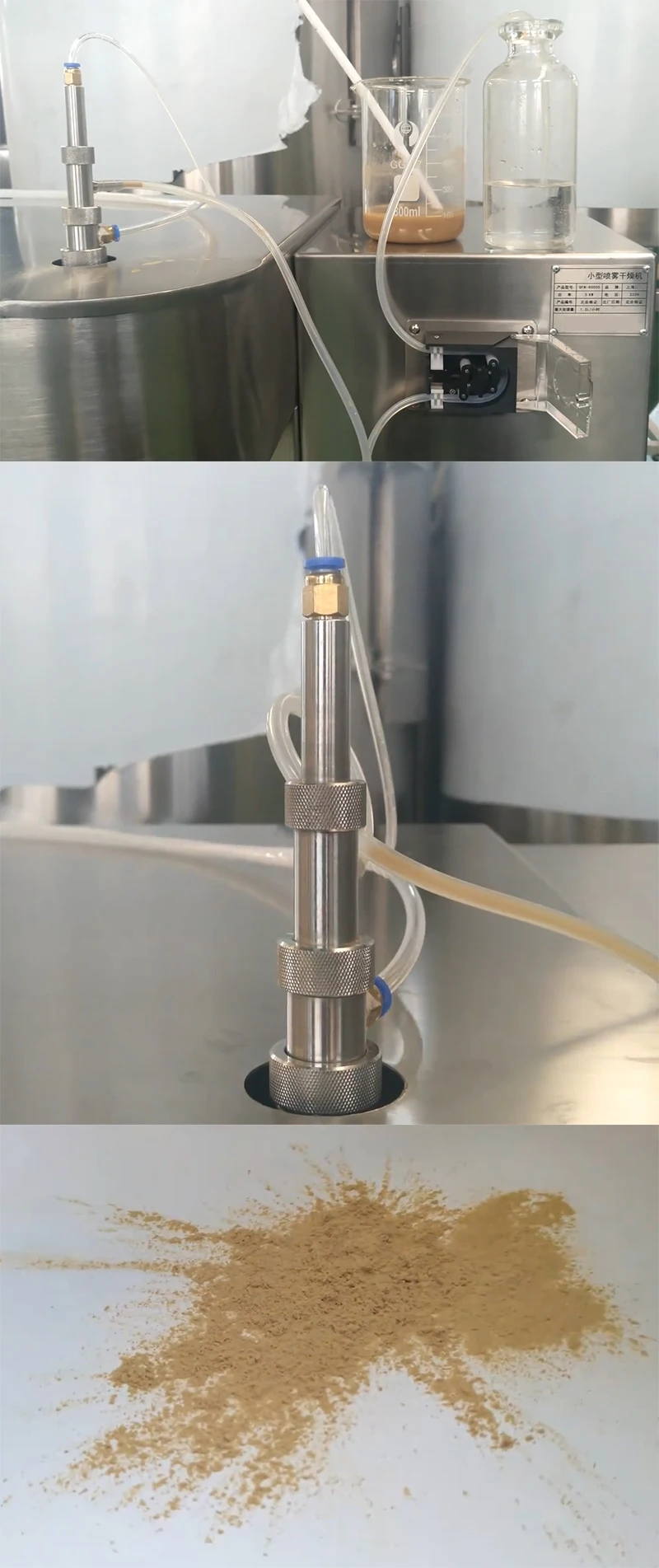

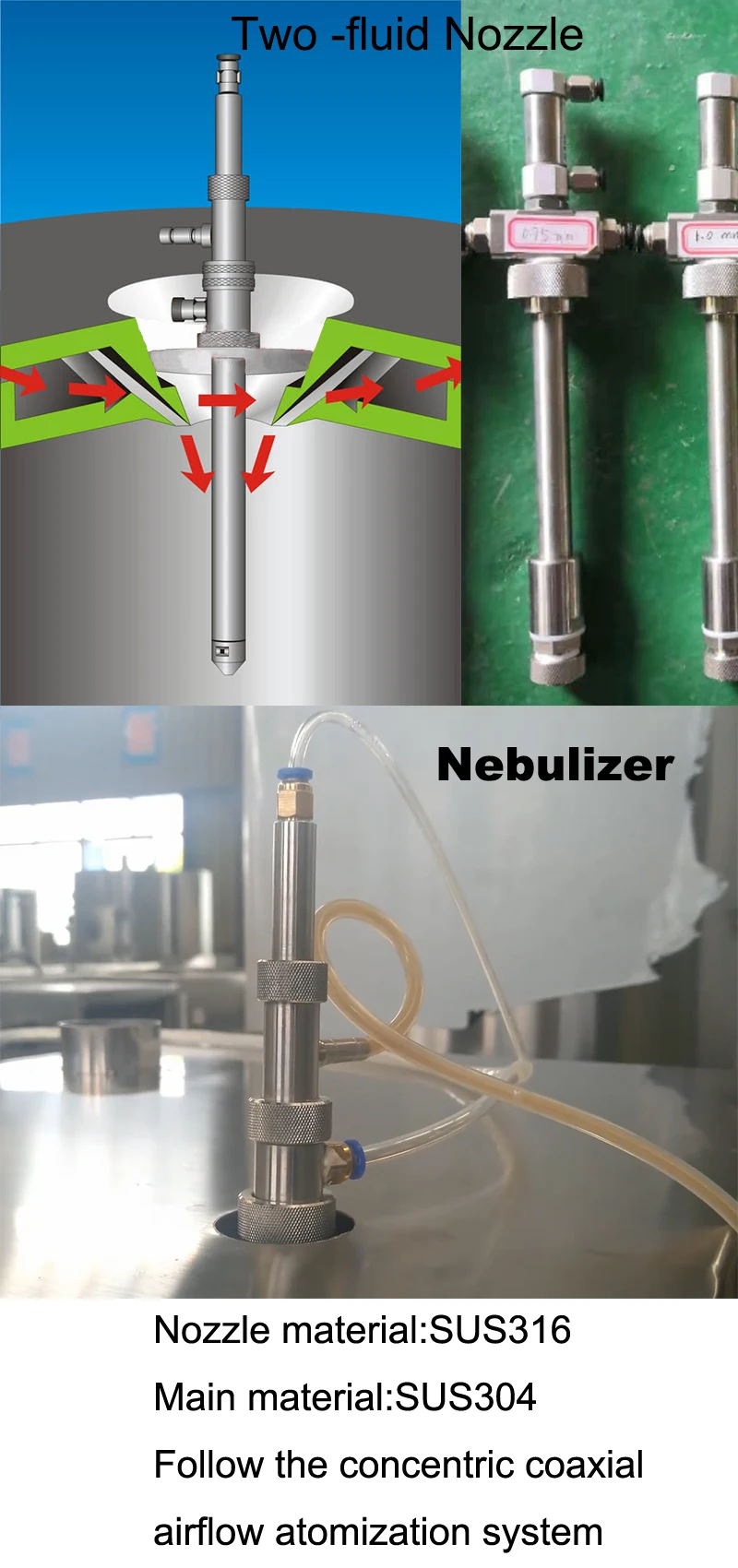

1. Use self-designed concentric coaxial atomizer, and the nozzle aperture can be customized
2. The wear-resistant and corrosion-resistant 16# silicone tube is selected to meet the transportation needs of most heat-sensitive materials

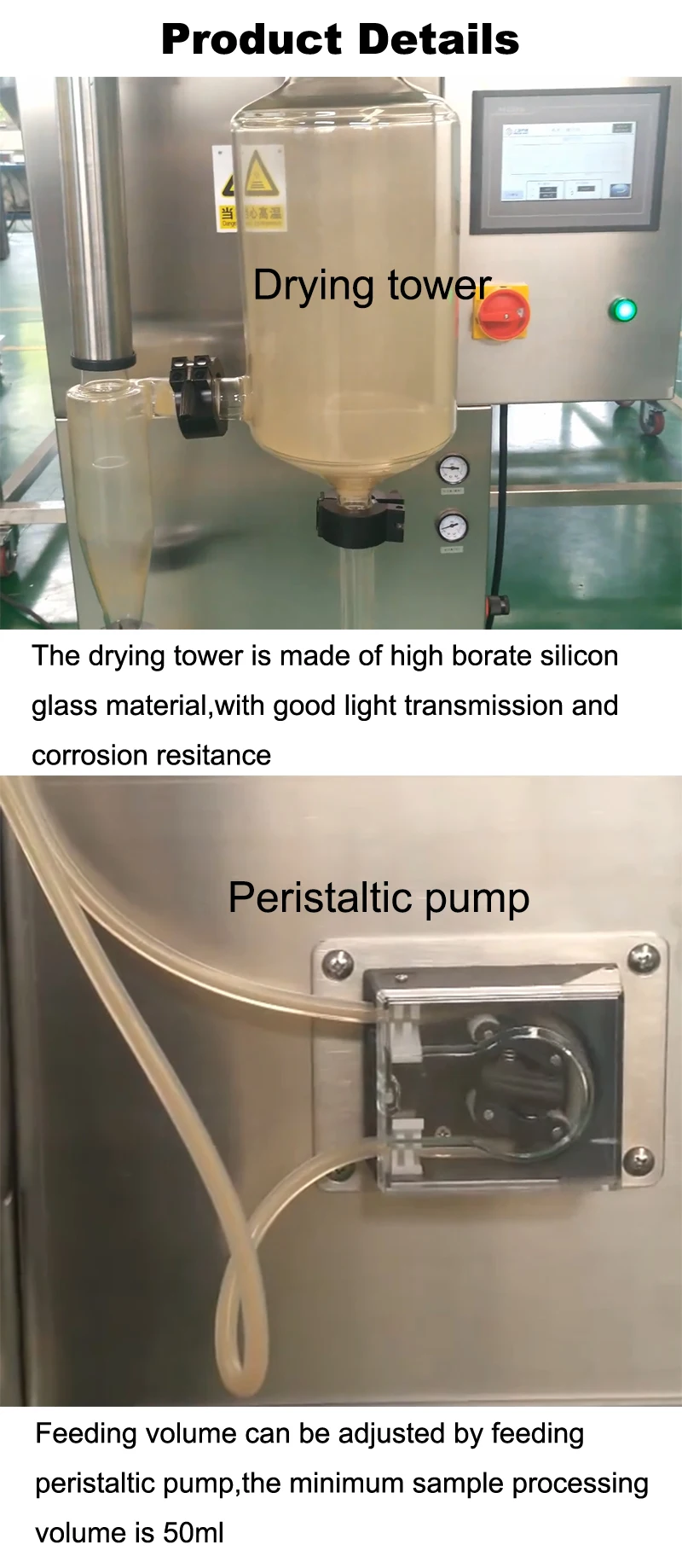

3. The feeding device is a built-in peristaltic pump with precise speed control, and one-way rotation is safer
4. Matching high borosilicate glass drying components with good light transmittance and acid and alkali resistance
5. The clamp of the fixed component is made of high-quality aluminum alloy material, which is fastened and durable without dead corners
6. The cyclone separator and the bag-type dust removal device can be used interchangeably, which can screen and collect materials of different particle sizes
2. The wear-resistant and corrosion-resistant 16# silicone tube is selected to meet the transportation needs of most heat-sensitive materials
3. The feeding device is a built-in peristaltic pump with precise speed control, and one-way rotation is safer
4. Matching high borosilicate glass drying components with good light transmittance and acid and alkali resistance
5. The clamp of the fixed component is made of high-quality aluminum alloy material, which is fastened and durable without dead corners
6. The cyclone separator and the bag-type dust removal device can be used interchangeably, which can screen and collect materials of different particle sizes
7. The oil-free air compressor imported from Taiwan is selected, which has low pollution, low noise and sustainable operation
8. Using high-precision PID temperature control technology, the temperature control accuracy range is 1℃, and the electric heating source is stable and more environmentally friendly
9. Intelligent human-computer interaction interface, simple operation, support Chinese and English switching
10. The finished dry powder after drying has a relatively uniform particle size, and more than 95% of the dry powder is in the same particle size range
11. For viscous materials, there is a nozzle cleaner (through needle), which will be automatically cleared when the nozzle is blocked, and the frequency of the needle can be automatically adjusted
12. The stainless steel drying chamber can be used for tower wall purging (optional)
13. Accept customization (such as fully equipped with imported accessories, appearance sandblasting, design models according to the laboratory environment, etc.)
8. Using high-precision PID temperature control technology, the temperature control accuracy range is 1℃, and the electric heating source is stable and more environmentally friendly
9. Intelligent human-computer interaction interface, simple operation, support Chinese and English switching
10. The finished dry powder after drying has a relatively uniform particle size, and more than 95% of the dry powder is in the same particle size range
11. For viscous materials, there is a nozzle cleaner (through needle), which will be automatically cleared when the nozzle is blocked, and the frequency of the needle can be automatically adjusted
12. The stainless steel drying chamber can be used for tower wall purging (optional)
13. Accept customization (such as fully equipped with imported accessories, appearance sandblasting, design models according to the laboratory environment, etc.)
Model | QFN-2L |
Max capacity | 1500 - 2000 mL/ h |
Temperature setting range | 30-300℃ PID automatic control, (temperature can be set) |
Spray adjustment range | 0-0.8 MPa (recommended 0.2 MPa) |
Precision of temperature | Inlet temperature ±1℃ |
Dryer time | 1.0-1.5 S |
Consume of dryer air | 0-330m3 /h, max pressure: 686Pa |
Consume of spray air | 0-4.2m3 /h, spray pressure: 2-5bar |
Spray pressure air outlet | 36L/ min |
Spray system | 2 liquid nozzles with standard 1.0mm jet options of 0.7/ 1.0/1.5/ 2.0/2.2mm |
Spray direction | downwards co-current |
Liquid feeding pump flow adjustment range | 0-26ml/ min |
PRODUCT SPECIFICATIONS
Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgam and many others.
Why Choose Us
Zhengzhou Jili instrument equipment Co., Ltd. is a famous manufacturer of Lab equipment , located in Zhengzhou city,Henan Province in China. After many years of research and improvement, has become a large scale and strength of scientific research instrument manufacturers. Now mainly engaged in rotary evaporator, glass reactor, high pressure reactor, spray dryer,vacuum drying machine, freeze drying machine and a series of scientific research instruments and equipment. With solid strength,reasonable prices and excellent services, our company has established long-term cooperative relationships with a number of enterprises.
