Product Description
Product Application
YC-015 mini Spray dryer (lab spray dryer) can be used in a wide range of applications where the production of a free-flowing powder sample is required.This technique has successfully processed materials in the following areas:
Oxide • Blood • Polymers and Resins
Beverages • Flavours & Colourings
Milk & Egg Products • Plant & Vegetable Extracts
Pharmaceuticals • Heat Sensitive Materials
Plastics • Perfumes • Dyestuffs
Ceramics & Advanced Materials
Soaps & Detergents •Textiles
Foodstuffs • Adhesives
Bones, Teeth & Tooth Amalgam and many others
Main Feature
1) Dual control modes of fully automatic control and manual control are available. During the entire experimental process, the color LCD touch screen animation display is available.
2) A built-in oil-free air compressor must be equipped with the stainless steel air tank to prevent corrosion.
3)Shutdown protection function: just press the stop button when shutting down. The machine will stop running immediately except for the blower to ensure that the heating part of the equipment will not break down due to improper
operation (shutting down the blower by force).4) The spray head is a concentric one. It guarantees no eccentricity during atomization that may lead to spraying to the bottle wall. The spray head can move up and down after installed to facilitate the adjustment of the atomization position to improve the spray drying effect. The spray head is made of SUS316L stainless steel.
5) It can be upgraded to an organic solvent model with inert loop system.
PARAMENTERS FOR YC-015 Lab Spray Dryer | ||||||
Material | Machine Body | / | SUS304 stainless steel | |||
Atomizer | / | SUS316 stainless steel | ||||
Drying Chamber | / | high borosilicate glass | ||||
Main performance parameters | Capacity | ml/h | 1500-2000 | |||
min sample | ml | 50 | ||||
Power | KW | 3.5 | ||||
System | Inlet temperature | ℃ | 30-250 | |||
Outlet temperature | ℃ | 30-140 | ||||
Drying time | s | 1-1.5 | ||||
Certifications
Detailed Images
Machine Parts

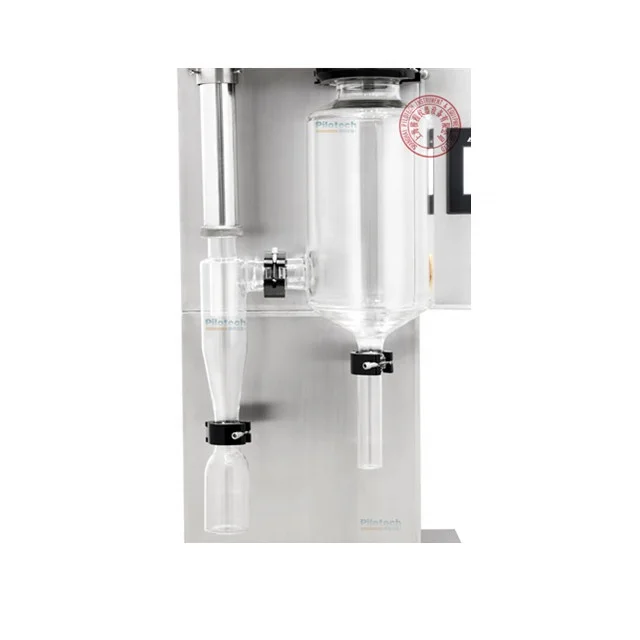

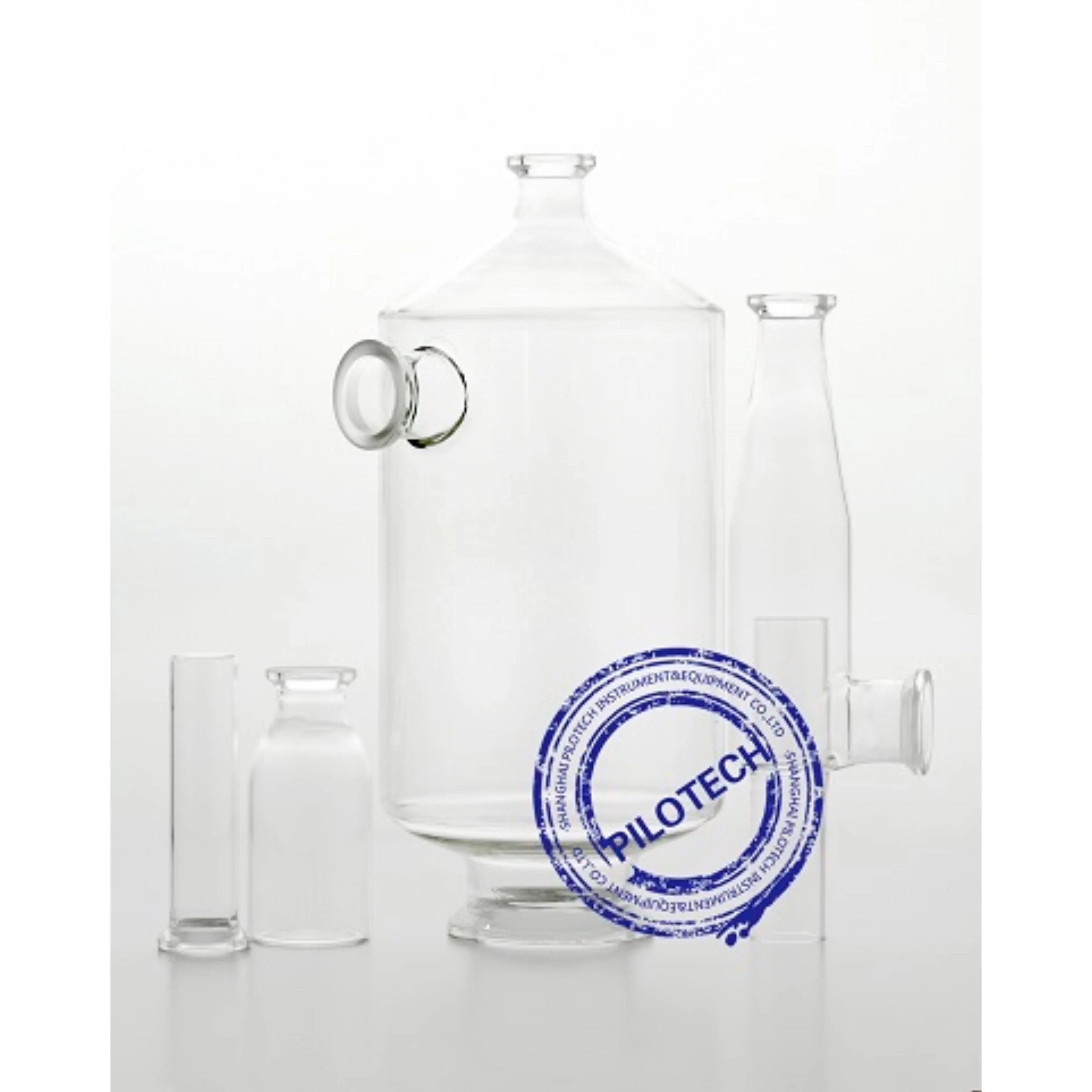

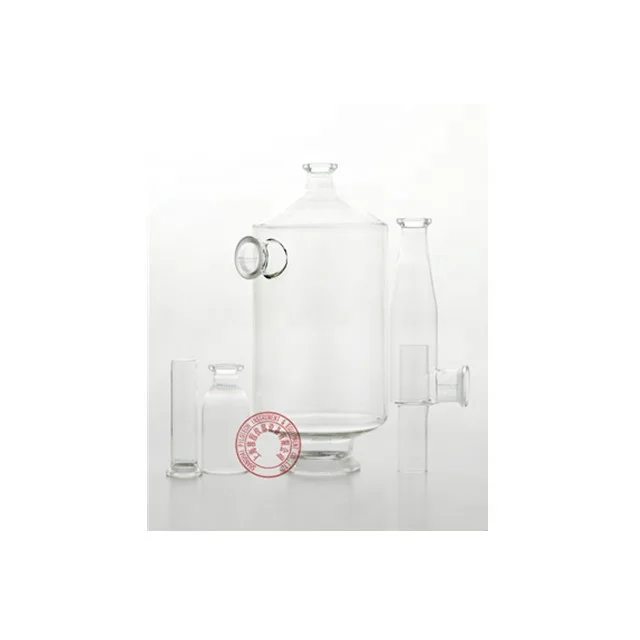

Name: Drying Chamber
Material: high borosilicate
Characteristic:high temperature resistance
Machine Parts
Name: Touch Screen
Brand: Delta
Original: Taiwan
Dual control modes of fully automatic control and manual control are available. During the entire experimental process, the color LCD touch screen animation display is available.
Machine Parts
Name:Air compressor
Air Cylinder Material: SUS 304 stainless steel
Characteristic:
The air compressor is oil-free. On the whole, the air cylinder of this kind is made of iron completely. As time goes by, it is liable to corrosion because of water steam. To address the problem, we switched to 304-stainless steel. So no problem will be presented in any length of time.
Machine Parts

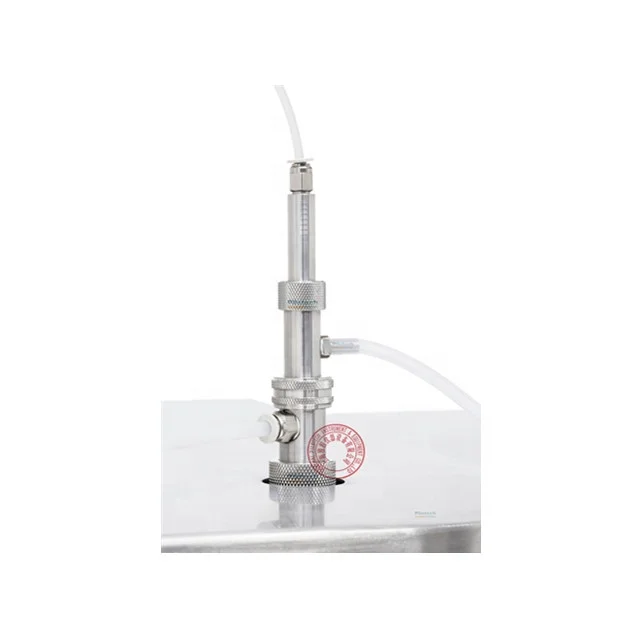

Name: Spray Head
Material:SUS316 stainless steel
Characteristic:
The spray head is a concentric one. It guarantees no eccentricity during atomization that may lead to spraying to the bottle wall. The spray head can move up and down after installed to facilitate the adjustment of the atomization position to improve the spray drying effect.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery.
Packing & Delivery
Packaging | ||
Size | 960mm (L) * 750mm (W) * 1490mm (D) | |
Weight | 168KG/SET | |
Packaging Details | The package is standard export Tri-ply wood(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 650mm (L) * 410mm (W) * 600mm (D) | |
Weight | 18KG/SET | |
Packaging Details | The package is standard export Tri-ply wood(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
