Сшаоон Модель: ULYP-416-MSP 6 тонн самозажим ручные гидравлические Застежка Вставка пресс-машина с сенсорным
- Категория: Другое станочное оборудование >>>
- Поставщик: Dongguan,Usun,Fluid,Control,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.76 $* | 0.56 $* |
| Aug-20-2025 | 0.55 $* | 0.68 $* |
| Jul-20-2025 | 0.15 $* | 0.64 $* |
| Jun-20-2025 | 0.66 $* | 0.26 $* |
| May-20-2025 | 0.72 $* | 0.73 $* |
| Apr-20-2025 | 0.50 $* | 0.35 $* |
| Mar-20-2025 | 0.72 $* | 0.56 $* |
| Feb-20-2025 | 0.14 $* | 0.57 $* |
| Jan-20-2025 | 0.62 $* | 0.99 $* |
Характеристики

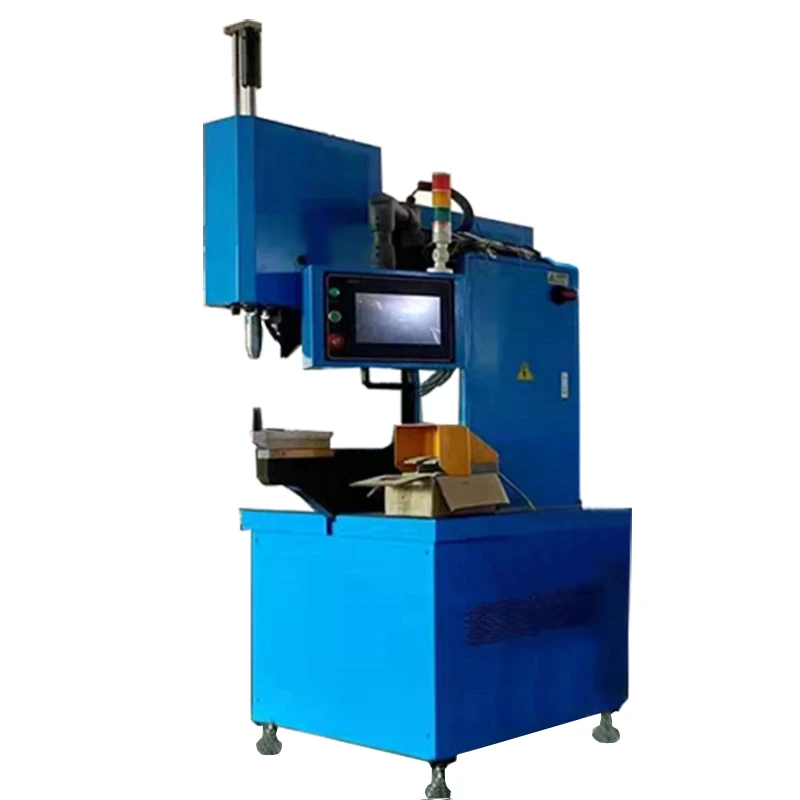

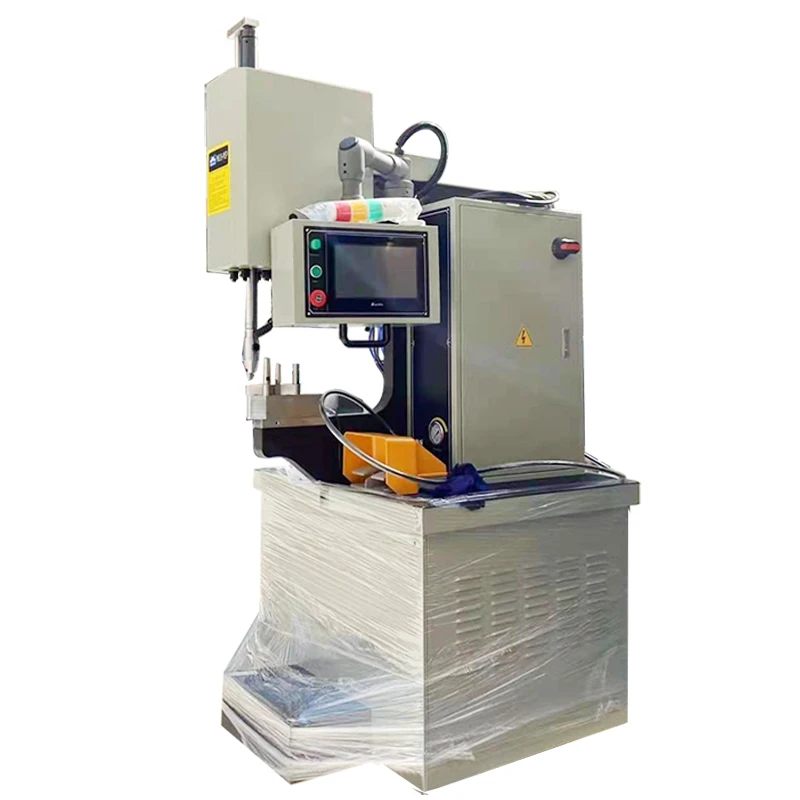

High quality C frame 6 Tons customized self clinching Automatic hydraulic fastener insertion Press machine with MSP system
Product Description
63 KN(6 Ton) ram force and 450mm(18 inch) throat depth with adjustable ram retract position.
Dwell time adjustment. Riveting capacity: carbon steel fasteners with maximum size
nut M10/standoff M8/stud M6
Broaching flaring (maximum fastener size M8 with material carbon steel)
Convex forming (maximum forming diameter 45 mm)
Product Main features
1) Compact structure, clean design
2) Increased productivity with automatic feeding system and multi-point riveting
3) Large anti-ejecting forces and anti-torsion torques
4) High flexibility with height-adjustable
5) High stroke frequency High stroke frequency
6) Easy maintenance and changeable
7) Available for riveting nuts diameter larger than M10
Product Specifcation
1.Riveting ability (Nut below M10,bolt below M8 and srew below M6 carbon steel material riveting fastener)
2.Turned edge tapping thread (below M6 carbon steel material turned edge tapping thread technology)
3.Convex hull formation(formation arear diameter below 45MM techonlogy
4.No rivet screw conjunction(total thickness below 4.0MM carbon steel material no rivet screw conjunction technology)
5.Pierce out lock rivet conjunction (total thickness below 4.0MM carbon steel material pierce out lock rivet
conjunction technology)
Spare parts for machine

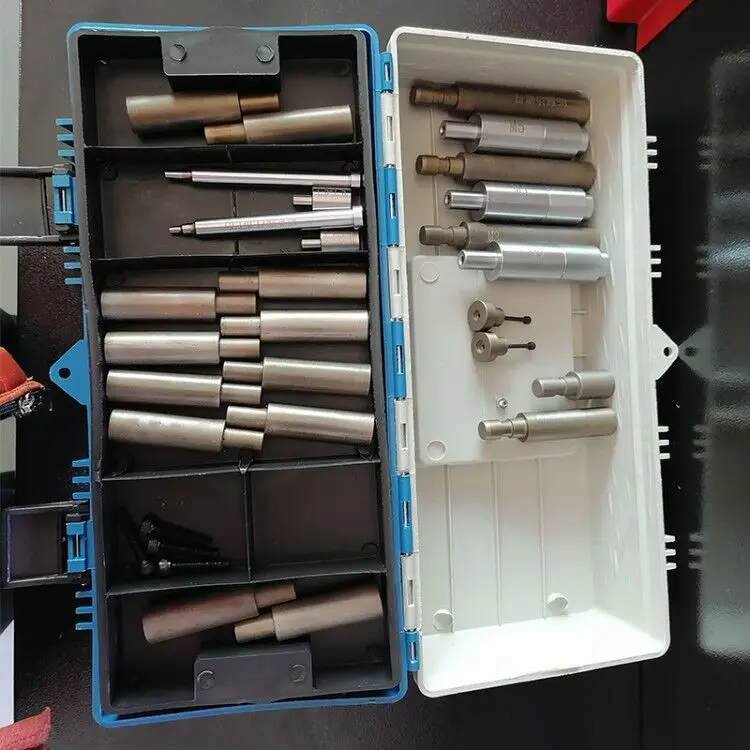

Optional auto feeding system and tooling system
Performance parameters
Point diameter (mm) | Sheet thickness (mm) | Shear strength (N) | Tensile strength (N) | Punching force (KN) |
Φ3 | 0.5-1.5 | 260-520 | 130-360 | 7-15 |
Φ4 | 0.6-2.0 | 710-1300 | 350-850 | 13-28 |
Φ5 | 0.9-2.5 | 750-2000 | 200-1000 | 15-30 |
Φ6 | 1.0-3.0 | 560-3400 | 300-2200 | 12-40 |
Φ8 | 1.6-6.0 | 510-6200 | 290-2800 | 18-60 |
Φ10 | 1.75-7.0 | 1600-8500 | 800-6200 | 36-105 |
Φ12 | 4.0-11.0 | 2700-10000 | 1100-7500 | 61-125 |
Main Technical parameters
Type | ULYP-416-MSP |
Max. pressing force | 60KN |
Power source | Hydraulic powered |
Power supply | 380V/ 50Hz |
Max. total stroke | 200 mm |
Compressed air | None |
Weight | 840 KGS |
Product applications
Real clinching samples for C frame bolts or nuts
Packaging & Shipping
Shipping
| By sea | Cheapest but longest option 18~30 days by sea delivery for mass shipment |
| By air | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. |
| By express | door to door service,the fastest and most expensive one, 3~5 day for DHL /Fedex /UPS/TNT express |
Detailed Images
