YC-1800 распылительная сушилка низкой

Product Details

YC-1800 mini low temperature spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying. Both use a clear touch screen display , the operator can control the following functions:
Inlet Temperature
Airflow Volume
Air compressor flow
Pump Speed
De-blocker Frequency

Product Details

Perfect combination of low temperature and high temperature With maximum inlet air temperature reaching 200°C, it can meet high temperature drying requirements of ceramics and other materials; with minimum inlet air temperature being 105°C, it is especially suitable for spray drying of traditional Chinese medicine, extracts of natural substances and other materials with sugar content. No material will adhere to the wall during drying and materials are featured with excellent fluidity after drying.

Product Details

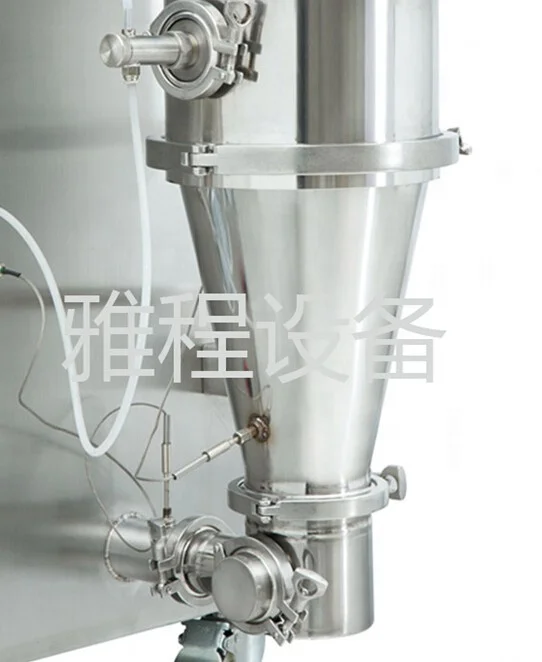

The stainless steel spray assembly consists of an inner tube for the liquid sample leading to a small diameter jet. An outer tube directs compressed air to the nozzle. All units are supplied with 0.7mm jets, other sizes are available as accessories.The spray assembly incorporates an automatic de-blocking device that prevents the jet nozzle from becoming blocked, the de-blocking needle is activated by an integral compressor. De-blocker is sometimes necessary with materials which may solidify or when large particles in suspension cause blockages in the jet.

Product Details

The heater has an extreme high temperature when experiment finished, which needs air blower to continue working in order to reduce the inside temperature and ensure the safety of equipment, YC-1800 mini spray dryer can control air blower running automatically, even the operator wants to turn off the air blower, the system would prevent the operator until the temperature of system reduce to the default security state of system.
