Product Description:

Small/laboratory/micro spray dryer and it is mainly suitable for the production of micro-particle powder in universities, research institutes and laboratories of food, medicine and chemical enterprises. It is suitable for all solutions such as emulsions and suspensions. Wide applicability, suitable for a variety of materials. Because the material is sprayed into fine droplets, and then contact with the hot air medium, the contact surface area is large, and the instant drying can reach 3-15s, and the instant heating can better keep the composition of the material from being damaged.

Equipment principle:

Use the atomizer to spray the material liquid into fine droplets and disperse them in the thermal drying medium (hot air flow) to quickly evaporate the solvent to obtain a solid product to achieve gas-solid separation. The product is mostly powder or small particles.

Applicable Industry:

Spray dryer is widely used in food, chemical, pharmaceutical, cosmetics, fine ceramics, materials, dairy products, health products, environmental protection, biological, microelectronics industry, lubricant, additive industry, etc.

Product Features:

1. Color LCD touch screen parameter display: air inlet temperature / air outlet temperature / peristaltic pump speed / air volume / needle frequency.
2. Fully automatic control: One-button startup, after setting the spray process parameters, the temperature reaches the predetermined temperature, the peristaltic pump starts automatically, the operation animation is displayed on the touch screen, and the operation process is clearly displayed;
3. Nozzle cleaner (through needle): When the nozzle is blocked, it automatically removes the blockage, and the frequency of the needle can be adjusted by itself.
4. Shutdown protection function: When shutting down, the heater is above 60℃ and the fan cannot be turned off to ensure that the equipment will not burn out due to misoperation (forcibly shutting off the fan).
5. Temperature control: using real-time PID constant temperature control technology, accurate temperature control in the whole temperature zone, heating temperature control accuracy ±1℃.
6. Finished product effect: The particle size of the finished product has a steeper normal distribution, uniform particles and good fluidity.
7. Air compressor: built-in imported oil-free air compressor, low noise, less than 60db.

Product Parameters:

Model	WK-8000S	WK-8000T
Water evaporation	1500-2000ml/h	1500-2000ml/h
Minimum feed	50ml	50ml
Drying chamber diameter(mm)	Φ220	Φ220
Inlet air temperature	-250℃(adjustable)
Heater capacity(kw)	3.5	3.5
Power(Kw)	4.5	4.5
Dimensions(mm)	800*600*1300	800*600*1300
Weight:(kg)	100kg	120kg

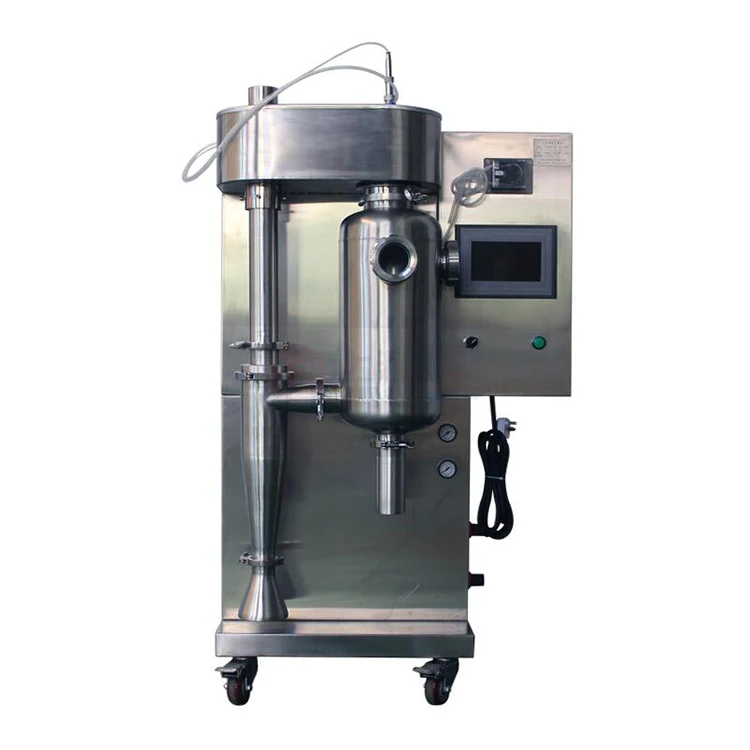

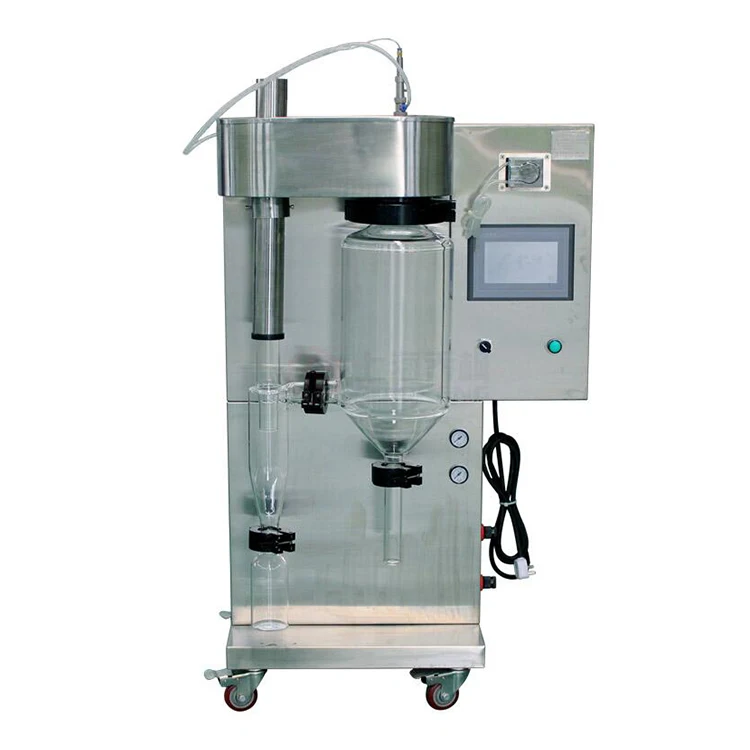

Drying chamber material:	High borosilicate glass	304 stainless steel



Product Details:

Dry product display:

Company information:

Zhengzhou Well-known Instrument & Equipment Co.,Ltd, is a famous manufacturer of Lab equipment located in the central China.The main products include rotary evaporator , glass reactor, autoclave machine , dryer oven and so on. So far, our products have been sold all over Asia, Europe and America, and covered most of laboratories in China. We have become one of the most popular and trustworthy brands.

Though our foreign trade is not for long, we do have a history of more than 30 years of our domestic trade. To assure the good quality & good service is our consistent aim.
We welcome new and old customers from all over the world to contact us for future business relationships and achieving mutual success!!

Packaging&shipping:

Packaging
-The glass parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.

FAQ:

1. The period, scope and condition of the warranty.
(1)We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&quality problem, we offer replacement, maintenance service.
(2)The damage caused by the transportation problem shall be borne by the seller.

2. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find the problem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.



3.How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.

4. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.
