SHG Wet film comb thickness gauge 0-200um

The SHG comb wet film thickness gauge is used to measure the wet film thickness of paint, varnish and other coatings.Comb type wet film thickness gauge is suitable for flat substrate with high measuring accuracy.

After all kinds of coating construction, immediately put the wet film thickness on the flat surface of the wet film coating, the wet film thickness instrument from the wet film, can measure the thickness of the wet film coating.The wet-film thickness should be between the shortest tooth infiltrated by the wet-film and the adjacent tooth not soaked.



SHG Wet film comb thickness gauge 0-200um

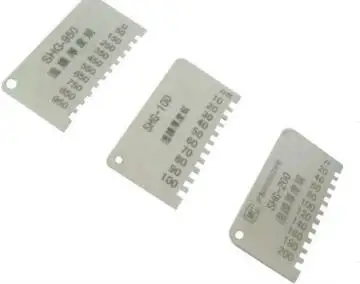

There are five different specifications to choose from to meet the needs of different industries.  Test Standard GB/T 13452.2 ISO 2808



SHG Wet film comb thickness gauge 0-200um

Technical parameters:

Specifications:

Shg-100 :(10, 20, 30, 40, 50, 60, 70, 80, 90, 100) um

Shg-200 :(20, 40, 60, 80, 100, 120, 140, 160, 180, 200) um

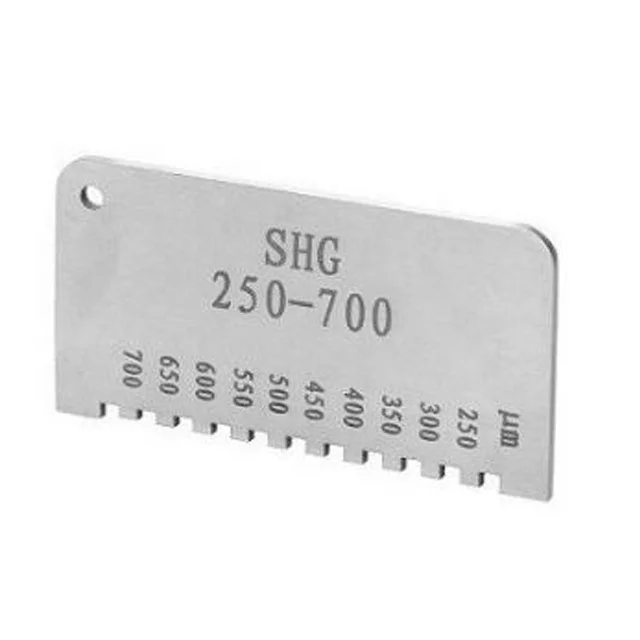

Shg-700 :(250, 300, 350, 400, 450, 500, 550, 600, 650, 700) um

The shg-750 double-sided :(50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300, 350, 400, 450,

um: 500, 550, 600, 650, 700, 750)

um :(50, 150, 250, 350, 450, 550, 650, 750, 850, 950)



Weight: 20 g

Overall dimension: 65×36×1.5mm (length × width × height)
