Leather cover: tablet leather case (dell, apple, acer, dell, HTC, asus and samsung, hanwang, blackberry, etc.), mobile phone holster (iPhone, samsung, nokia, HTC, MOTOROLA, etc.), leather carrying case, imitation leather skin cover, product (leather box), digital products carrying case, electronic products, communication products, such as carrying case, medical equipment products.
Electrically heated hot water bag. Blister packaging. Blowing toys. Raincoat rain gear. Handbags handbags. Stationery stickers. Leather embossing. Footwear trademark. Car seat cushion, etc. Cloth embossed. Any P.V.C or p.v c content in more than 30% of plastic welding. And so on.
PVC/PET Sealing High frequency Toothbrush Blister Packaging machine Catalog:
1.Automatic turntable high frequency synchronous welding and cutting machine(with/without robot) 2.automatic sliding table high frequency synchronous welding and cutting machine 3.manual shuttle tray high frequency synchronous welding and cutting machine 4.Double heads high frequency synchronous welding and cutting machine. 5.manual turntable high frequency only welding machine(with/without robot),
PVC/PET Sealing High frequency Toothbrush Blister Packaging machine Advantage:
3.1. High-Q Electron tube, Output Stable
3.2. High sensitive spark suppression, preventing the damage to the mold
3.3. Cylinder push-out position device, accurate positioning
3.4. High efficiency and environmental
3.5. Customer-made according to your demands
PVC/PET Card Sealing High frequency Toothbrush Blister Packaging machine Specification:
Model
JZ-5K-3R(-P)
JZ-8K-3R(-P)
JZ-10K-3R(-P)
H.F. Output
5KW
8KW
10KW
Oscillation tube
7T85RB
7T69RB
E3069RB
Max pressure
470KG
700KG
Gap of electrode
230mm
210mm
customized
Horn route
200mm
Up plate size
200*350mm
400*600mm
400*600mm
Down plate size
400*600mm
600*800mm
600*800mm
Voltage
220V/380V
380V 50/60HZ
Frequency
27.12MHZ or 40.68MHZ
Input power
8.5KVA
15KVA
18KVA
Rectifier
silicon diode
Temperature
0~200°C
Station
Three Station round table
Operate
Pneumatic(Hydraulic)
Welding time
0~10s Adjustable
Size:L*W*H
1.1m*2.0m*1.8m
1.1m*2.7m*1.85m
1.1m*2.7m*1.85m
Model
JZ-5K-(A)YR-P
JZ-8K-(A)YR-P
JZ-10K-(A)YR-P
JZ-12K-(A)YR-P
JZ-15K-(A)YR-P
H.F. Output
5KW
8KW
10KW
12KW
15KW
Oscillation tube
7T85RB
7T69RB
E3069RB
E3130RB
8T85RB
Max pressure
5~18T
10~18T
10~20T
20T
25T
Gap of electrode
170mm
Press stroke
200mm
Up plate size
300*450mm
300*450mm
400*600mm
Customized
Customized
Down plate size
300*500mm
300*500mm
400*600mm
Customized
Customized
Voltage
380V 50/60HZ
Frenquency
27.12MHz
13.56Mhz
Input power
8KVA
15KVA
18KVA
20KVA
25KVA
Rectifier
silicon diode
Temperature
0~200℃
Station
Two station Slidway
Operate
Manual and Auto Slidway
Welding time
0~10sadjustable
Size:L*W*H
2m*1.4m*2.4m
2m*1.4m*2.4m
2m*1.4m*2.4m
Customized
Customized

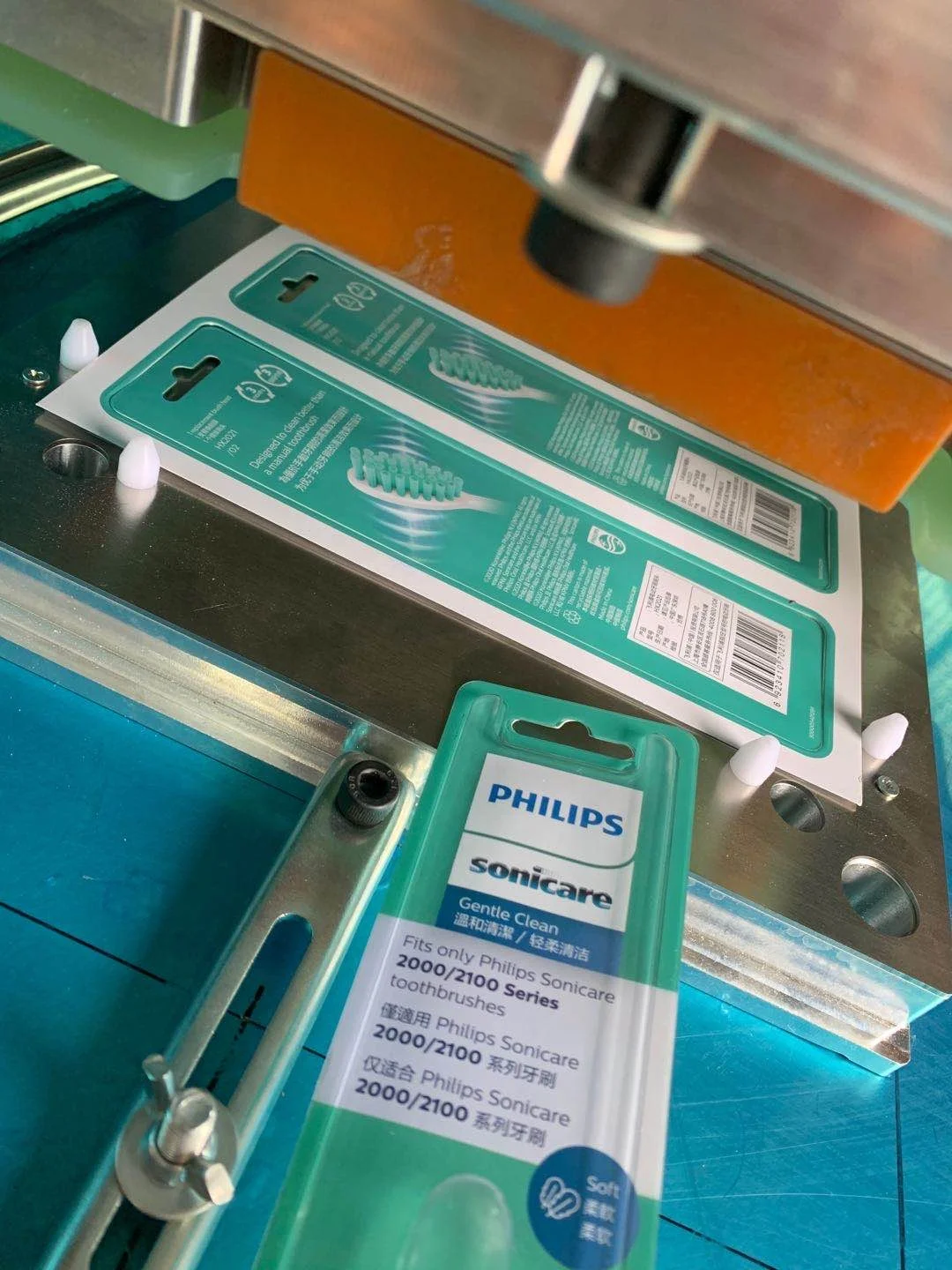

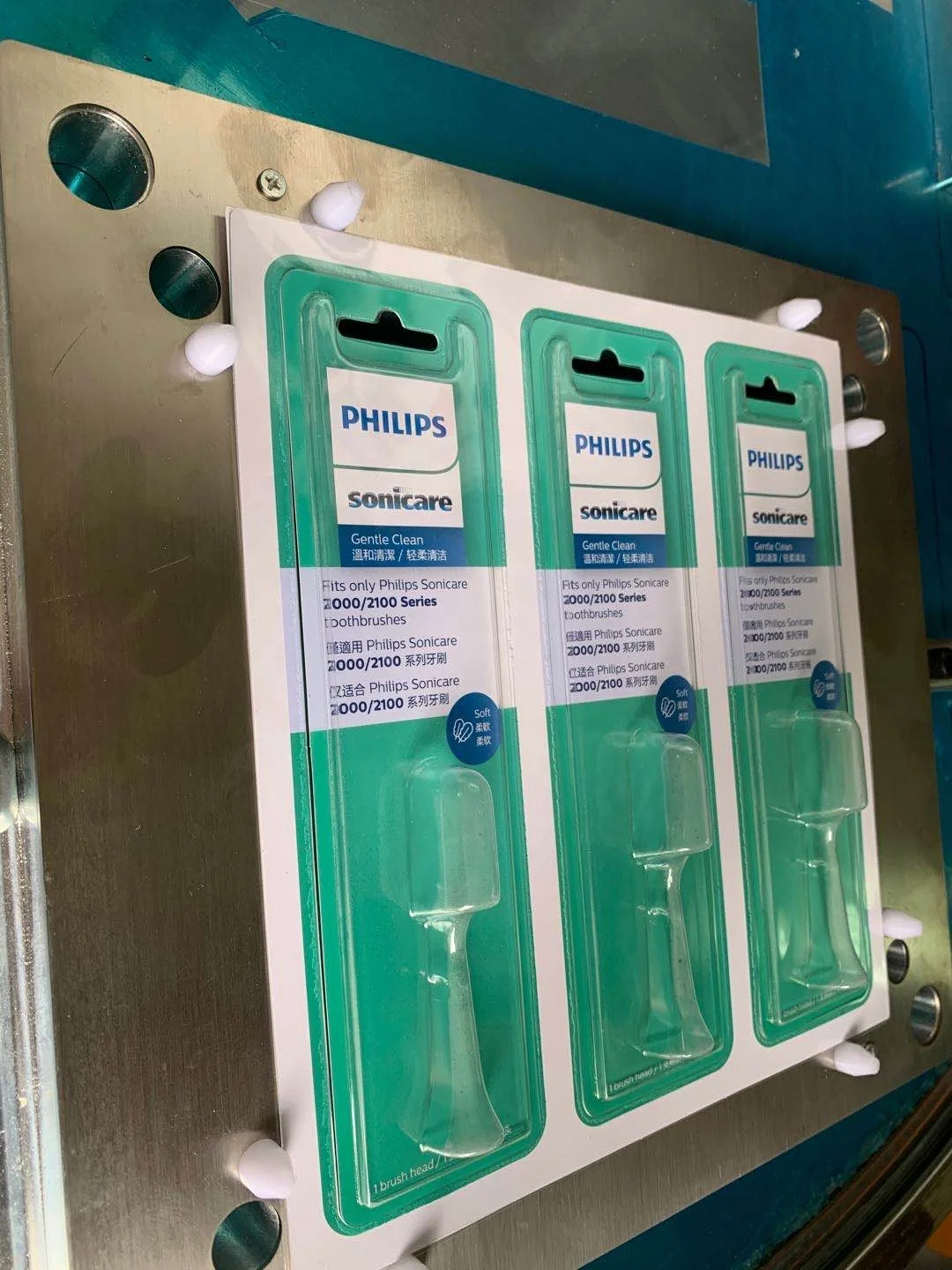

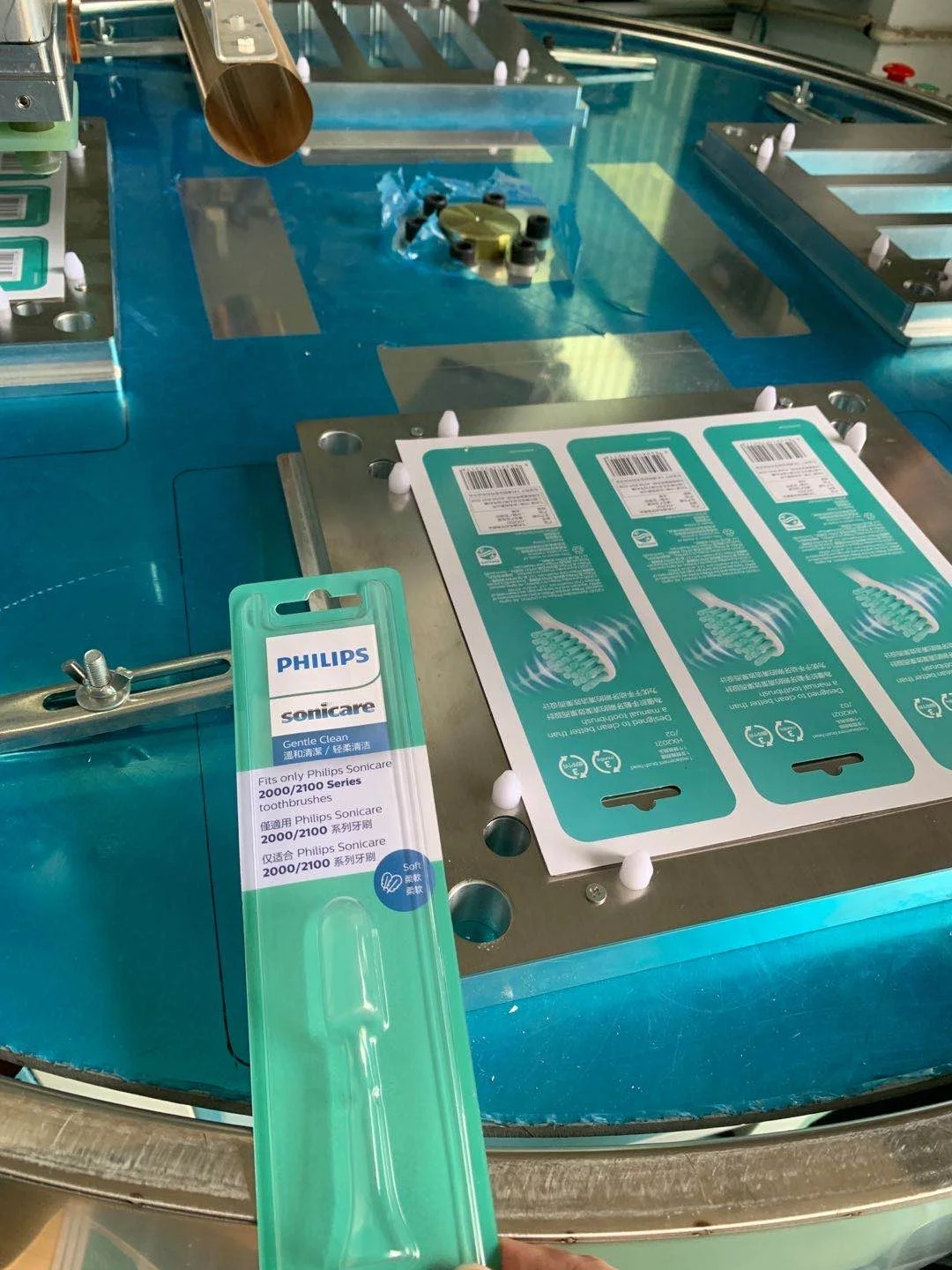

PVC/PET Card Sealing High frequency Toothbrush Blister Packaging machine Samples and mold:
Packaging & Shipping
Packing: Standard Seaworthy exported wooden package
Delivery: 7 to 30 working days, depends on quantity and production.
Our Services
Company Information
We are manufacturer of High Frequency Welding Machine and related molds which founded in 2006. We have our own design department for the mold and machine which can do customized machines. We welcome any of your ideas.
