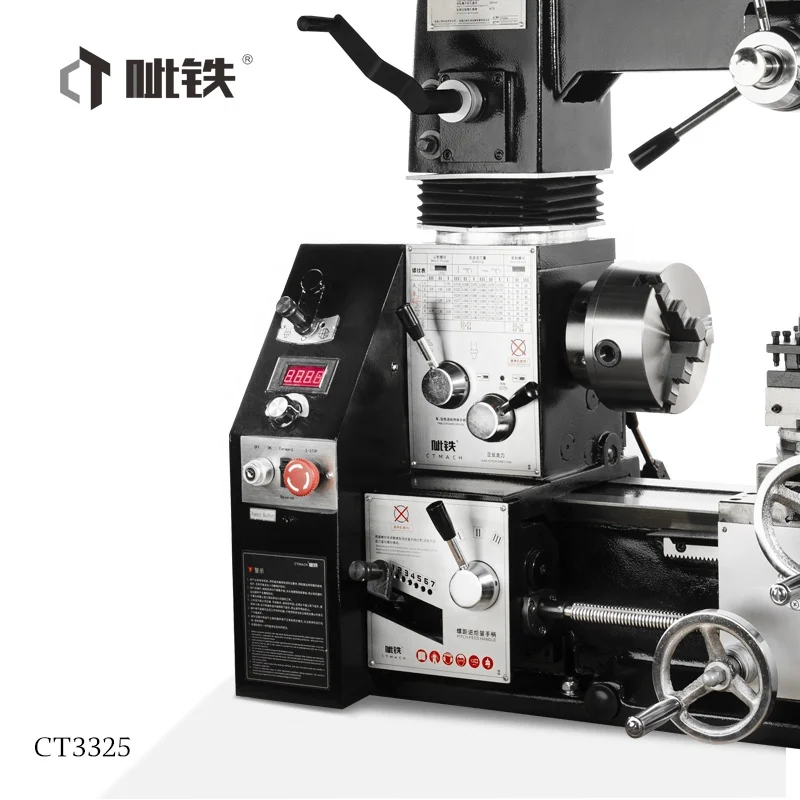

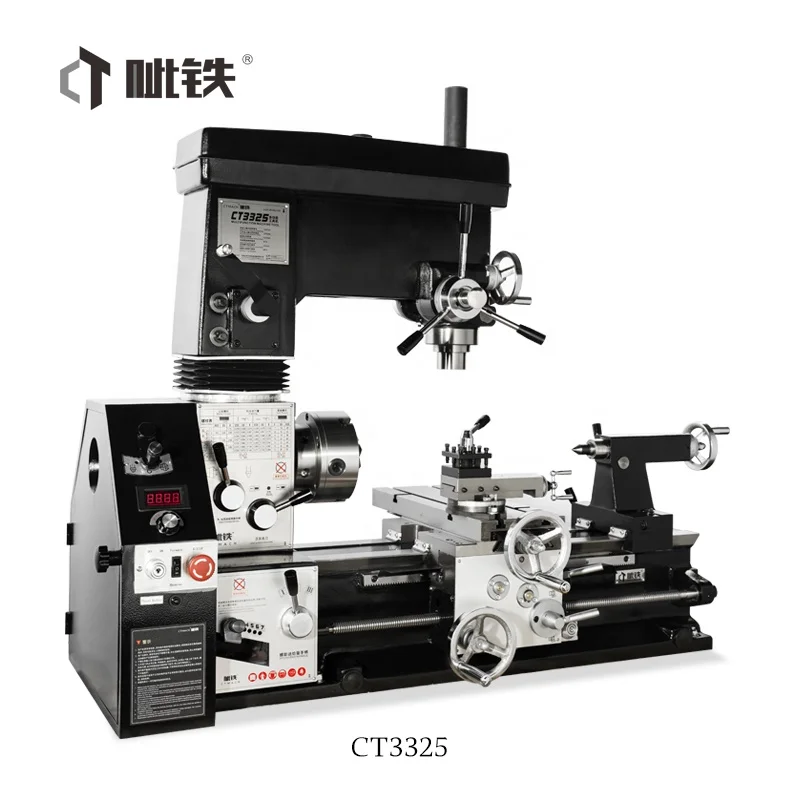

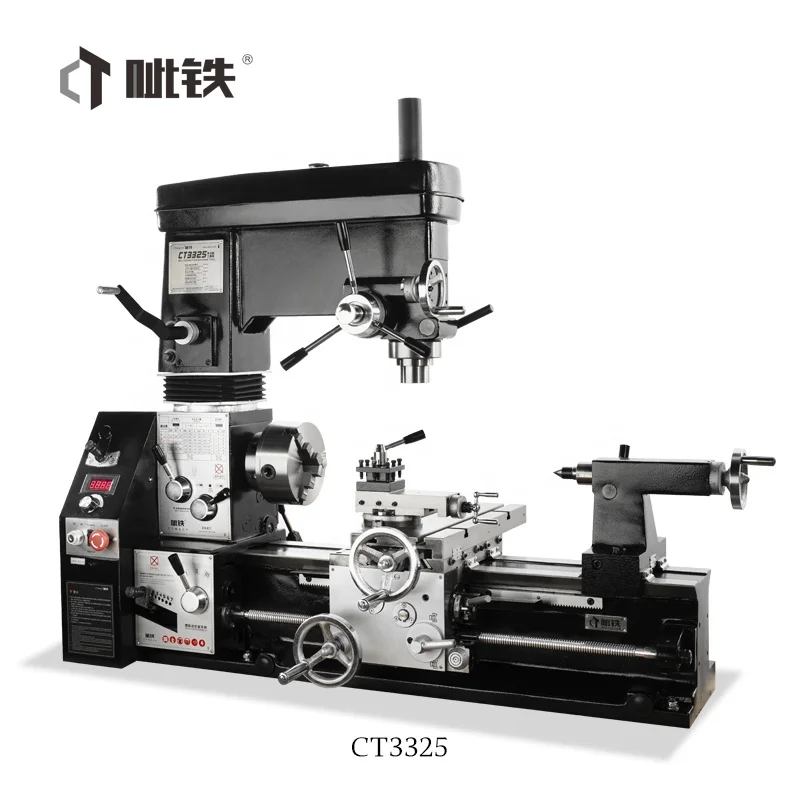

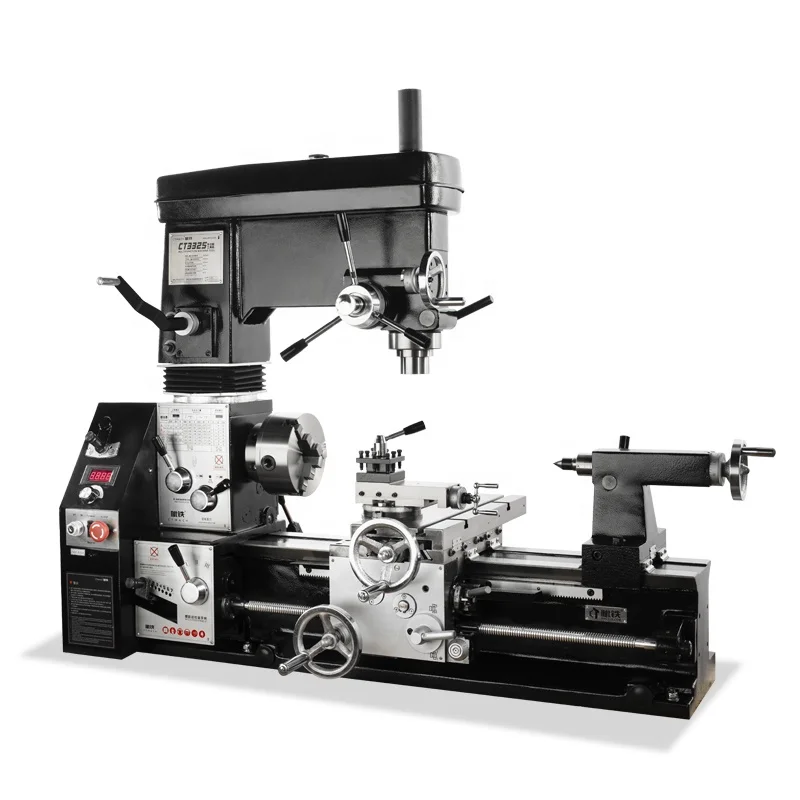

Токарный и мельничный комбинированный многоцелевой токарный станок CT3325 3 в 1 с переменной скоростью 5 лет 220/380 В наличии CN;ANH CTMACH
- Категория: Другое станочное оборудование >>>
- Поставщик: Anhui,Citie,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3499.44 $* | 3674.47 $* |
| Aug-16-2025 | 3469.62 $* | 3642.21 $* |
| Jul-16-2025 | 2911.11 $* | 3057.66 $* |
| Jun-16-2025 | 3410.42 $* | 3581.39 $* |
| May-16-2025 | 2969.42 $* | 3117.45 $* |
| Apr-16-2025 | 3352.67 $* | 3520.53 $* |
| Mar-16-2025 | 3322.97 $* | 3488.38 $* |
| Feb-16-2025 | 3293.65 $* | 3458.34 $* |
| Jan-16-2025 | 3263.30 $* | 3426.90 $* |
Характеристики
| lathe | |
| Maximum workpiece turning diameter of the bed | 330mm |
| Two of the top distance | 610/1000mm |
| Maximum workpiece turning diameter of tool post | 190mm |
| Spindle hole diameter | 28mm |
| Spindle taper | MT4 |
| Spindle end form | D1-4 |
| Maximum longitudinal stroke | 508/890mm |
| Maximum lateral stroke | 203mm |
| Processing metric thread pitch range/species | 0.5-3mm/9 |
| Processing inch thread pitch range/species | 7-52TPI/21 |
| Each longitudinal turret spindle feed / Series | 0.038-0.284mm/r |
| Infeed amount per spindle / turret progression | 0.019-0.14mm/r |
| Longitudinal feed level | 21 |
| Horizontal feed level | 21 |
| Tailstock quill stroke | 51mm |
| Tailstock sleeve taper | MT3 |
| Spindle speed range/level | Low speed 50-1300rpm/Variable |
| High speed 100-2600rpm/Variable | |
| Drilling and milling | |
| Maximum drilling diameter | 24mm |
| Diameter of end mill | 12mm |
| Maximum face milling cutter diameter | 63mm |
| Minimum distance from spindle end to worktable | 100mm |
| Rotation angle of the column of the drilling and milling case | 360° |
| Drilling and milling spindle taper | MT3 |
| Spindle speed range/level | Low speed 50-1300rpm/Variable |
| High speed 100-2600rpm/Variable | |
| Drilling and milling box stroke | 110mm |
| Spindle sliding sleeve stroke | 127mm |
| Working surface width | 170mm |
| Length of working surface | 450mm |
| N.W./G.W. | 300/350kg 330/380KG |
| Machine size | 1325×585×1110mm/1705×585×1110mm |
| Packing size | 1260×570×1100mm/1640×570×1100mm |
