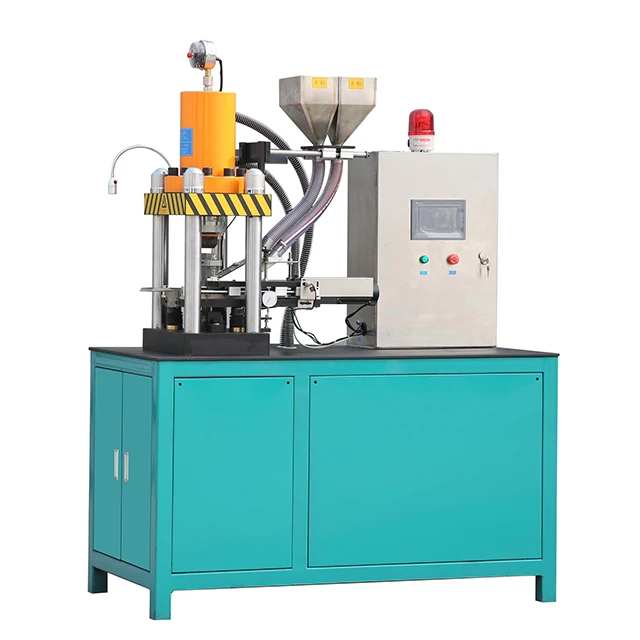

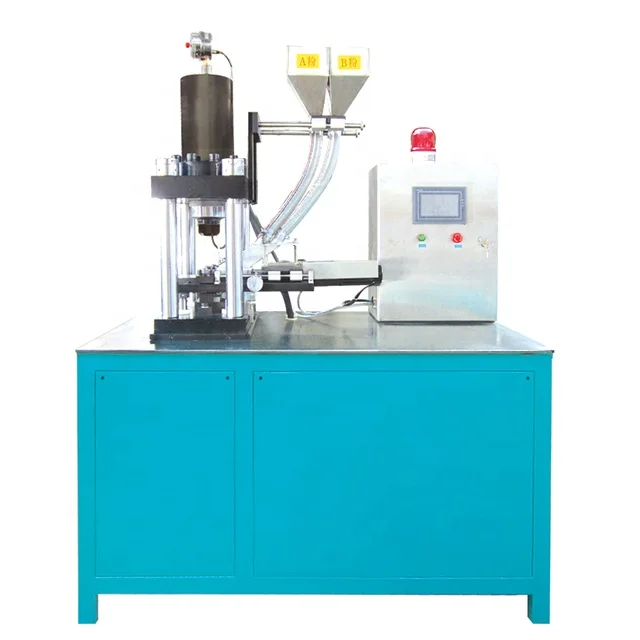

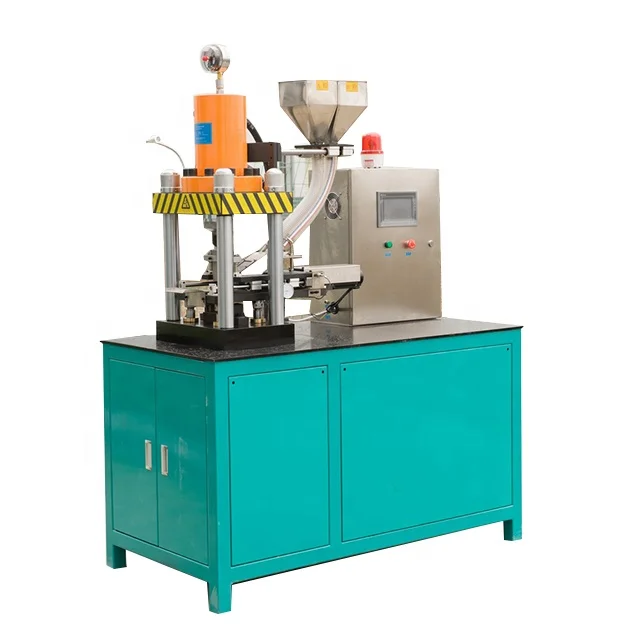

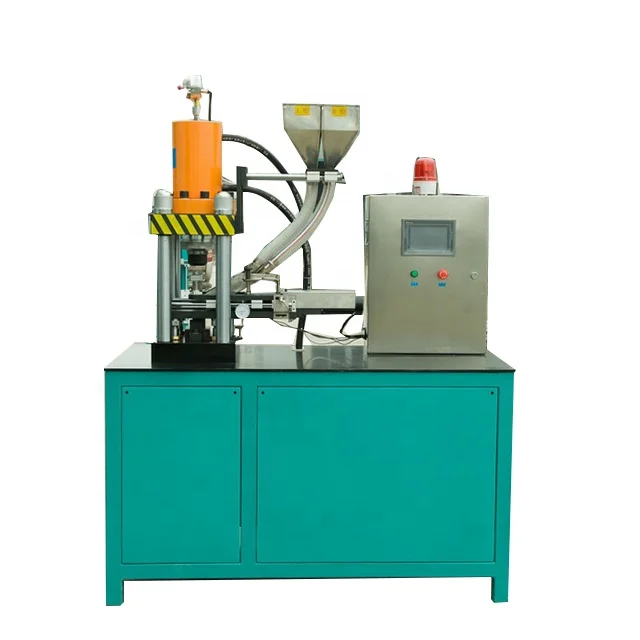

Auto volumetric Cold Press Machine For Segment Product

  Main features of Automation cold press machine:

•

  It is mainly used to make segment base from diamond metallurgy powder by cold press.




•

  It can be used to make segments for all sorts of saw blades by putting mixtures of powder with different proportion of diamond.




•

  The powder no need granulated, which saves the production cost and is convenient for customers.




•

  It can automatically measure the thickness and show the height of segments, which can release the operator.




•

  It can correct the error of weight which is caused by the error of powder density.




•

  It is acommensurable equipment with high ourput Cold press sandwich segments(segments for diameter 350 saw blade) 6000pcs/8h,segments 7 layers(segments for diameter 1600 saw blade)3000pcs/8h}, which can save a lot of labour force.




•

  The electrical system is designed according to the national standard with high reliability and convenient maintenance.




•

  There’re buttons on the screen, which makes it easier to operate and set the program.




•

  It can be used to store 50 pieces of technics, which is convenient for operator




•

  Product Feature








  1. Continuous automatic press forming of diamond saw blade head, drill bit, grinding wheel,etc.




  2. can press multiple layers of cutter heads and sandwich cutter heads with welded layers.




  3. powder does not require granulation.




  4. Low mold cost and long service life.




  5. Hydraulic and pneumatic systems are made of high quality imported componets, stable performance and durable.




  6. The electrical system adopts man-machine interface and PLC imported components, stable performance and durable;




  7. Simple and convenient operation and reliable operation.




  8. various suppression parameters can be set and adjusted through the touch screen.




  9. the finished product has a uniform density and stable geometric dimensions;




  10. It can greatly reduce labor costs and reduce the labor intensity of operators, and improve production efficiency.








  Specification

Power	7.5kw	Rated Voltage	380V
Rated Current	15A	Working Pressure	63T
Finished Error	±0.1g	Head Travel	50-75MM
Work Efficiency	6 times/min(3 layers)	Product Thickness	0.5-20MM
Pressing Layers	1-9 Layers	Loading Depth	1-40MM
Equipment Size	L1450*W850*H1750MM	Net Weight	1.3T





 After-sale service:

·    12 months warranty period

·    Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, we will provide replacement parts after detecting the faults.

·    If any big quality problems occurs during the guarantee period, we will send maintenance

·    technician to provide visiting service after checking with the customer and charge for a favorable price.

.   We provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.

. The above mentioned are only basic aftersale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
